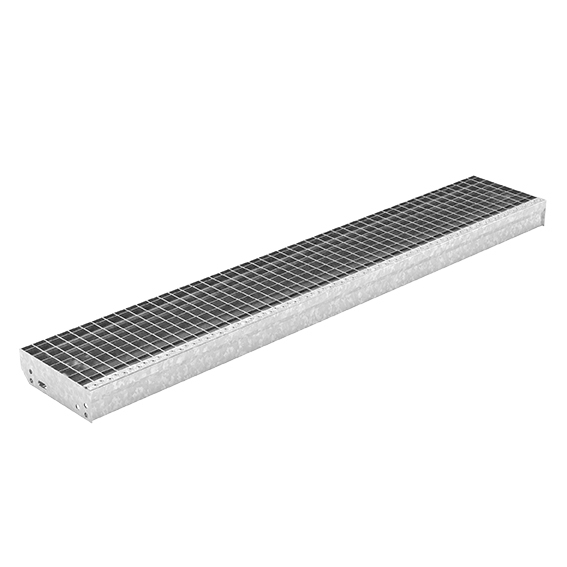

Grating step dimensions: 2700 x 270 mm, 30/30 mm, made from S235JR (St37-2), hot-dip galvanised
FeNau GmbH
Product number:
40.2702730.7
EAN:
4251412919497
Weight:
57 kg
Description
Product information "Grating step dimensions: 2700 x 270 mm, 30/30 mm, made from S235JR (St37-2), hot-dip galvanised"
XXL grating step | Dimensions: 2700 x 270 mm, 30/30 mm | Made from S235JR (St37-2), hot-dip galvanised
[ Technical details ] made from S235JR (St37-2), hot-dip galvanised

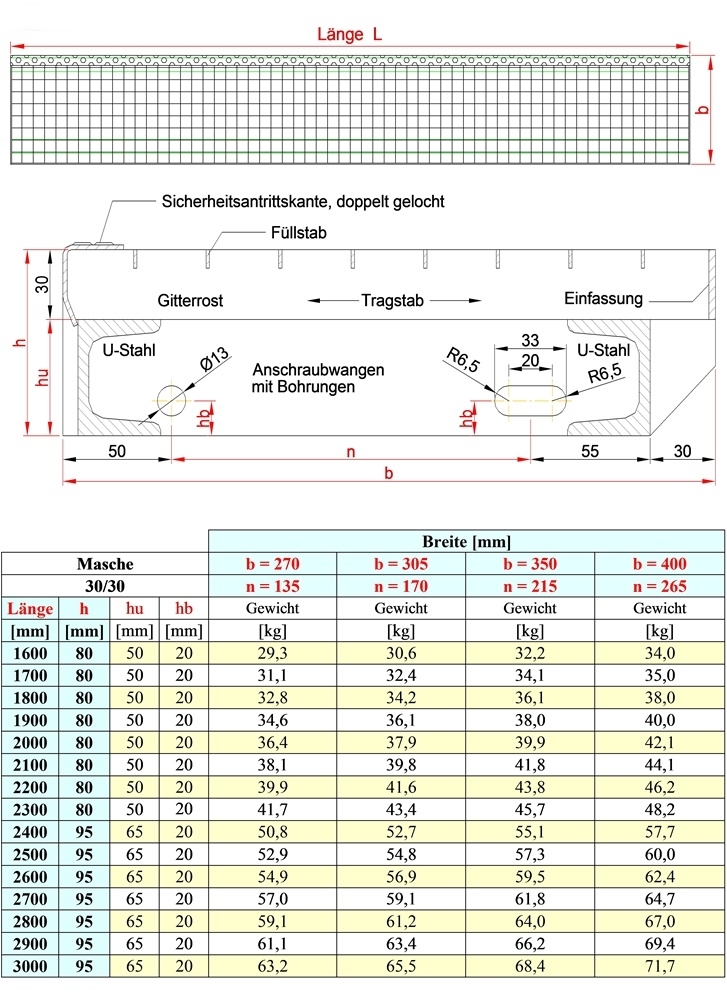

[ Specific details ] Depth (support bar direction): 270 mm; Width (filler bar direction): 2700 mm; Mesh size: 30/30 mm; Support bar: 30/2 mm
[ Further specific details ] with welded-on U-profile
[ Certificate ] Load capacity according to DIN 1055-3: 2.0 kN on a 50x50 mm² load cube or 5.00 kN/m²; Slip resistance class: R10; with flanges and raised edge; Hole pattern in accordance with DIN 24531
[Application note] Note: Due to hot-dip galvanising, zinc residues may remain in the mesh!
Properties
| Maschenweite | Steps | Drahtgewebe: | 30/30mm |
|---|---|
| Rutschhemmung | Steps: | R10 |
| Stufenbreite | Steps | Stufenlänge: | 2700mm |
| Stufentiefe | Steps | Auftritt : | 270mm |
| Versand Gurtmasspflichtig: | Ja |
