Bottom roller, double-bearing, roller diameter 125 mm MEA 10337638
FeNau GmbH
Stock:
1016
Product number:
60.0201.7
EAN:
4251412907722
Weight:
0.23 kg
Description
Product information "Bottom roller, double-bearing, roller diameter 125 mm MEA 10337638"

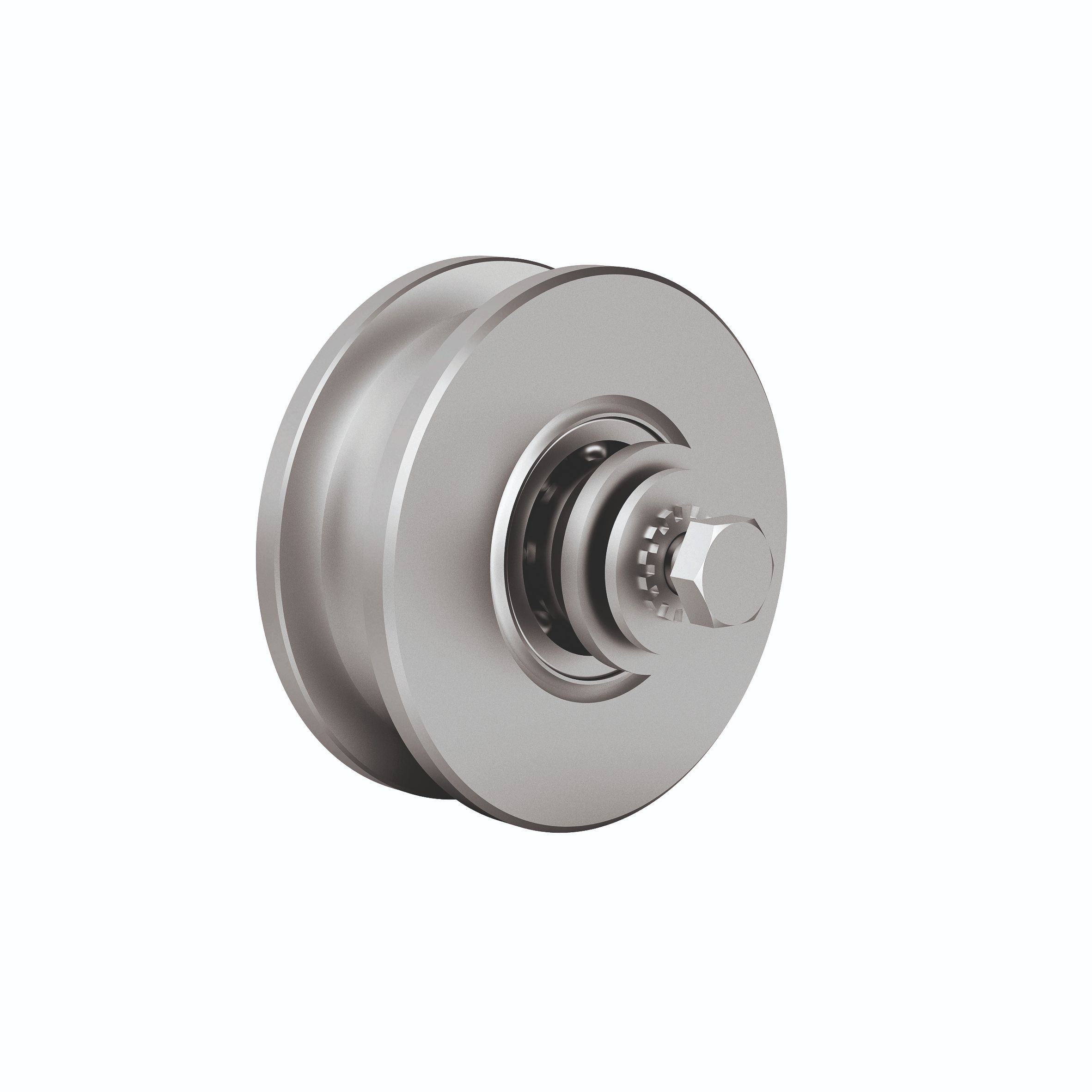

Bottom roller, double-bearing – roller diameter 125 mm

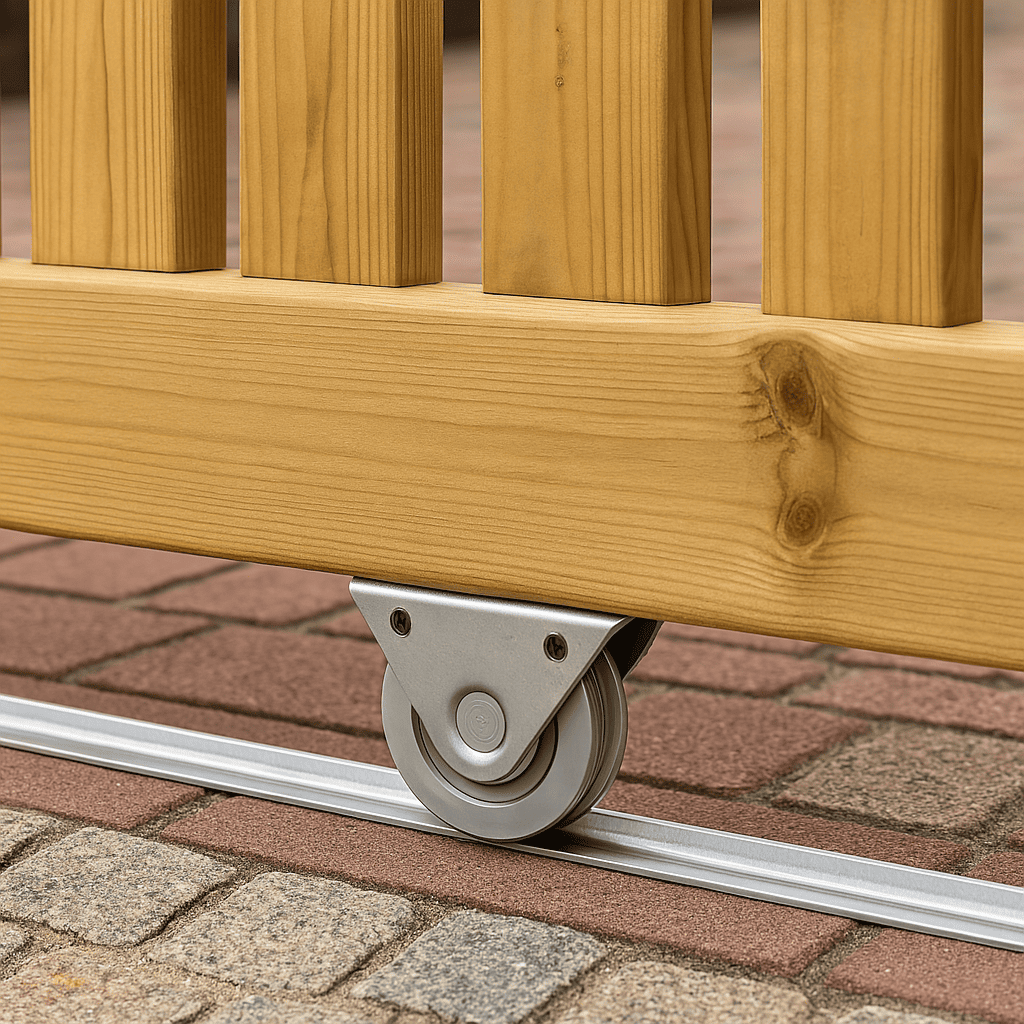

High-quality roller made from S235JR steel, electro-galvanised – ideal for use in sliding gate systems and other heavy-duty applications.
- Material: S235JR steel, electro-galvanised
- Roller diameter: 125 mm
- Load capacity per roller: 750 kg
- Rail width: 25 mm

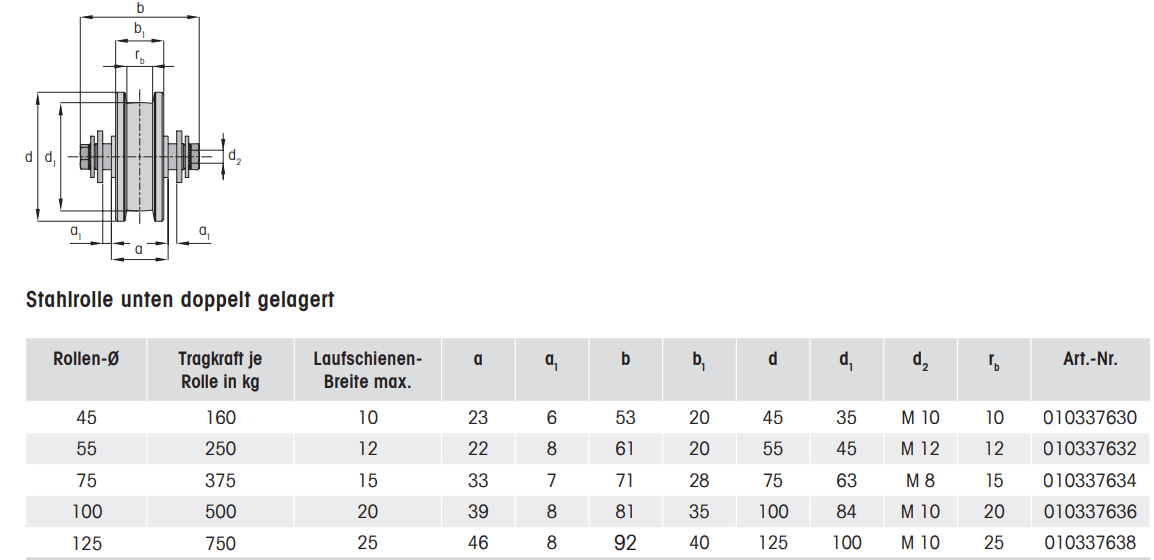

Dimensions at a glance
| Designation | Dimension |
|---|---|
| Dimension a | 46 mm |
| Dimension a1 | 8 mm |
| Dimension b | 92 mm |
| Dimension b1 | 40 mm |
| Dimension d | 125 mm |
| Dimension d1 | 100 mm |
| Dimension d2 | M 10 |
| Dimension Rb | 25 mm |
| Item number | 010337638 |
Properties
| Durchmesser: | Ø 125 mm |
|---|---|
| Form: | Laufrolle |
