Mounting kit for 25m aluminium profile for glass 16.76–17.52mm

Montageset fuer 25m Aluprofil fuer Glas 16-76-17-52mm-88-1180501-GU.25M

£447.87*

Prices include VAT, plus delivery charges

Available: 1-3 days

Stk

Stock: 11

Product number: 88.1180501.GU.25M

EAN: 4067727006070

Weight: 16.376 kg

20,000 items in stock

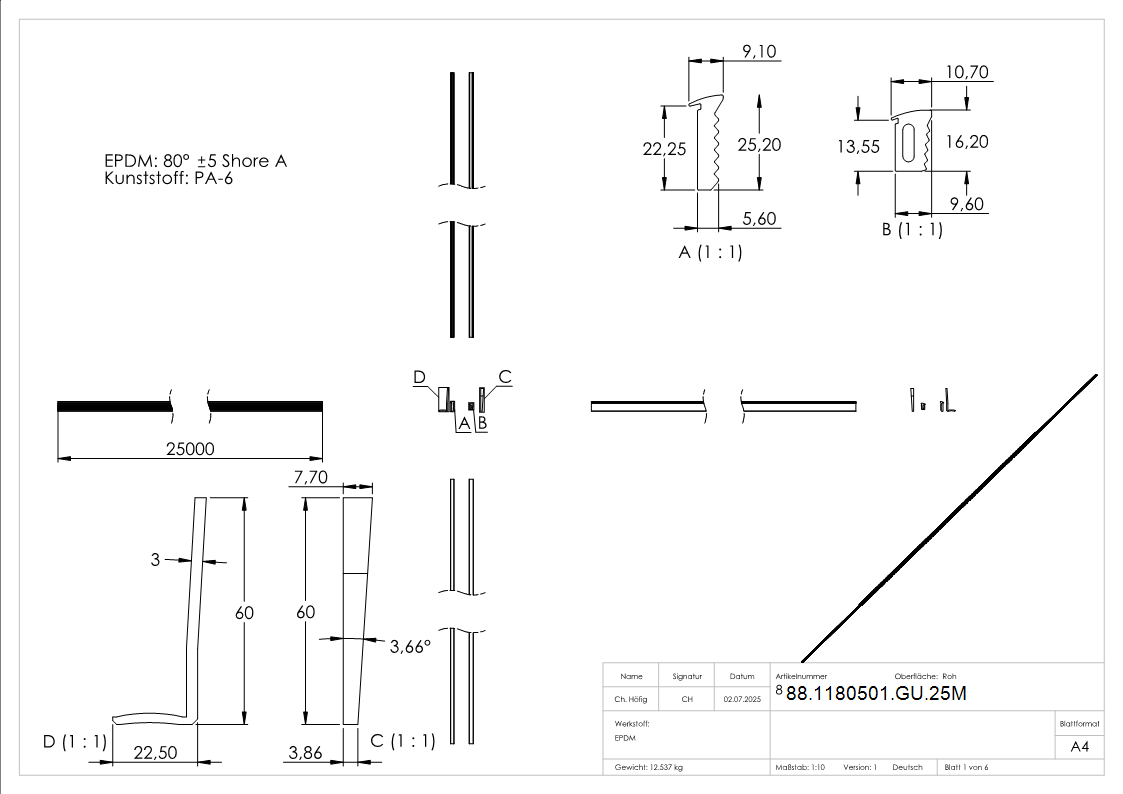

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "Mounting kit for 25m aluminium profile for glass 16.76–17.52mm"

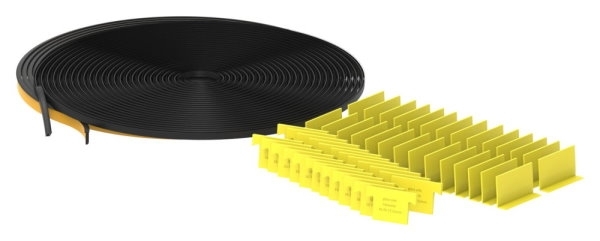

Installation kit for 25 metres of aluminium profile for glass 16.76–17.52 mm, comprising: 100 L-shaped wedges, 100 wedges (yellow), 25 running metres each of end seal

Accessories

Alu-Profil - MASSIV2 - Laenge- 6000 mm - seitliche Montage - Aluminium-12-2200.6

Stk

12.2200.6

Aluminium profile | MASSIV2 | Length: 6000 mm | Side mounting | Aluminium

Aluminium profile | MASSIV2 | Length: 6000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ Further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 11.21 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

£942.13*

Alu-Profil - MASSIV2 - Laenge- 3000 mm - seitliche Montage - Aluminium-12-2201.6

Stk

12.2201.6

Aluminium profile | MASSIV2 | Length: 3000 mm | Side mounting | Aluminium

Aluminium profile | MASSIV2 | Length: 3000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 11.21 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

£483.96*

Alu-Profil - MASSIV2 - Laenge- 6000 mm - aufgesetzte Montage - Aluminium-12-2204.6

Stk

12.2204.6

Aluminium profile | MASSIV2 | Length: 6000 mm | Surface-mounted | Aluminium

Aluminium profile | MASSIV2 | Length: 6000 mm | Surface-mounted installation | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 7.08 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

£612.66*

Alu-Profil - MASSIV2 - Laenge- 3000 mm - aufgesetzte Montage - Aluminium-12-2205.6

Stk

12.2205.6

Aluminium profile | MASSIV2 | Length: 3000 mm | Surface-mounted | Aluminium

Aluminium profile | MASSIV2 | Length: 3000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 7.08 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

£330.90*

Alu-Profil - KOMPAKT - Laenge- 3000 mm - seitliche Montage - Aluminium-12-2212.6

Stk

12.2212.6

Aluminium profile | KOMPAKT | Length: 3000 mm | Side mounting | Aluminium

Aluminium profile | KOMPAKT | Length: 3000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 3000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 4.88 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

£259.42*

Alu-Profil - KOMPAKT - Laenge- 6000 mm - seitliche Montage - Aluminium-12-2213.6

Stk

12.2213.6

Aluminium profile | KOMPAKT | Length: 6000 mm | Side mounting | Aluminium

Aluminium profile | KOMPAKT | Length: 6000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 6000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ Further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 4.88 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

£458.21*

Alu-Profil - MASSIV - Laenge- 3000 mm - seitliche Montage - Aluminium-12-2208.6

Stk

12.2208.6

Aluminium profile | SOLID | Length: 3000 mm | Side mounting | Aluminium

Aluminium profile | SOLID | Length: 3000 mm | Side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 7.02 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

£357.63*

Alu-Profil - MASSIV - Laenge- 6000 mm - seitliche Montage - Aluminium-12-2209.6

Stk

12.2209.6

Aluminium profile | SOLID | Length: 6000 mm | side mounting | aluminium

Aluminium profile | SOLID | Length: 6000 mm | side mounting | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ Further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 7.02 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

£664.13*

Alu-Profil - KOMPAKT - Laenge- 3000 mm - aufgesetzte Montage - Aluminium-12-2215.6

Stk

12.2215.6

Aluminium profile | KOMPAKT | Length: 3000 mm | Surface-mounted | Aluminium

Aluminium profile | KOMPAKT | Length: 3000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 3000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 6.55 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

£346.43*

Alu-Profil - KOMPAKT - Laenge- 6000 mm - aufgesetzte Montage - Aluminium-12-2214.6

Stk

12.2214.6

Aluminium profile | KOMPAKT | Length: 6000 mm | Surface-mounted | Aluminium

Aluminium profile | KOMPAKT | Length: 6000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–17.52 mm; Length: 6000 mm; for rail load: 0.5–1.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for outdoor use; profile weight per running metre: 6.55 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

£612.66*

Alu-Profil - MASSIV - Laenge- 3000 mm - aufgesetzte Montage - Aluminium-12-2206.6

Stk

12.2206.6

Aluminium profile | SOLID | Length: 3000 mm | Surface-mounted | Aluminium

Aluminium profile | SOLID | Length: 3000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 3000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 9.14 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

£431.97*

Alu-Profil - MASSIV - Laenge- 6000 mm - aufgesetzte Montage - Aluminium-12-2207.6

Stk

12.2207.6

Aluminium profile | SOLID | Length: 6000 mm | Surface-mounted | Aluminium

Aluminium profile | SOLID | Length: 6000 mm | Surface-mounted | Aluminium[ Technical details ] Stainless steel finish, anodised E4/EV1, 20 µm coating thickness[ Specific details ] For glass: 12.76–21.52 mm; Length: 6000 mm; for rail load: 0.5–3.0 kN; maximum glass height: 1100 mm; for pitches up to max. 41°[ further specific details ] Class 20 DIN 17611 for external use; profile weight per running metre: 9.14 kg[ Certificate] A structural analysis and a building authority test certificate are available forthis profile[ Application ] Installation is carried out using the drill holes in the profile

Available, : Lieferzeit 3-5 Werktage

£777.40*
