2-piece pipe connector for 22 mm V4A pipe, pack of 5
Product information "2-piece pipe connector for 22 mm V4A pipe, pack of 5"

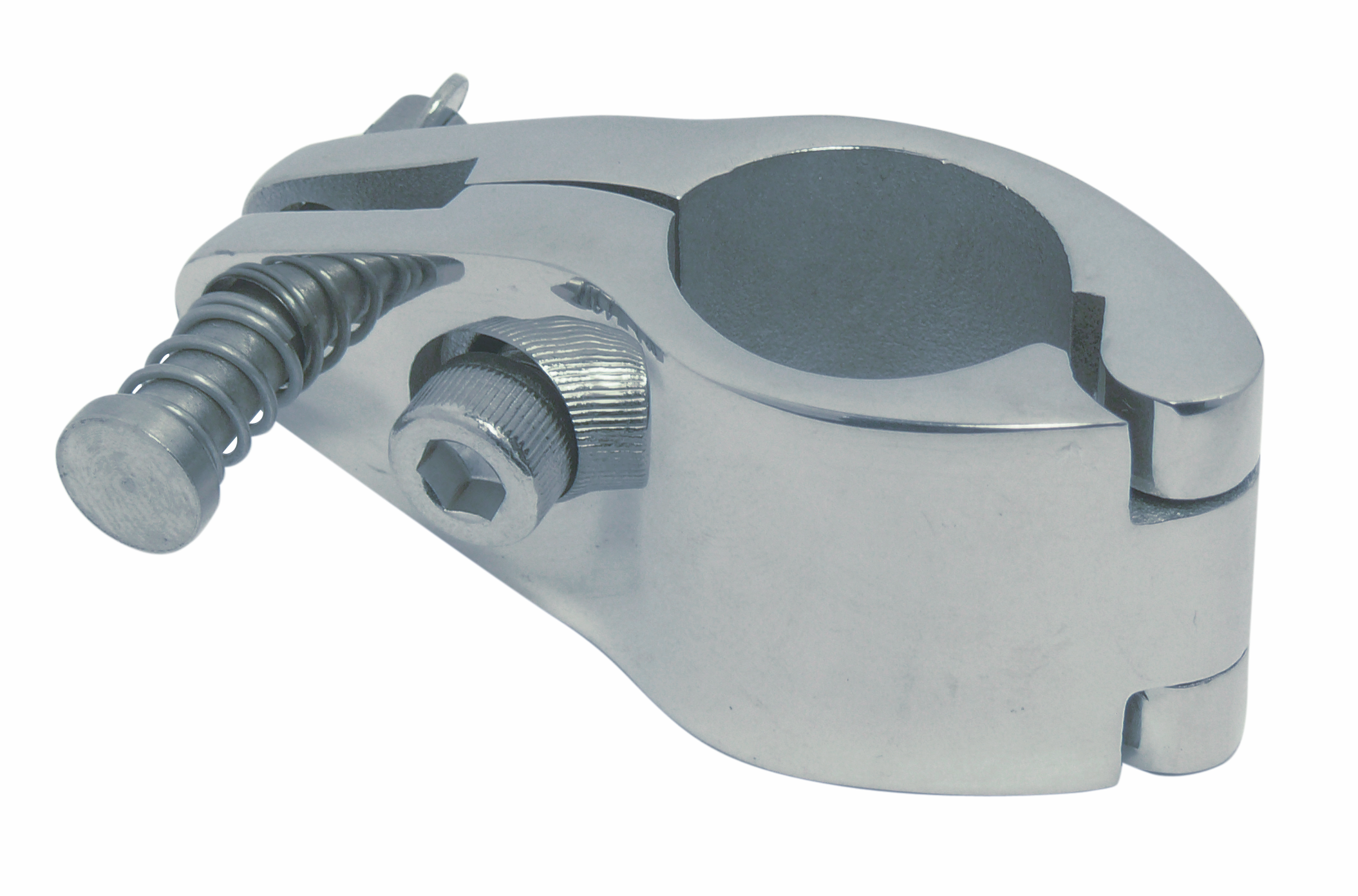

2-piece pipe connector for 22 mm pipes, made from V4A (A4) stainless steel – the molybdenum content makes it particularly resistant to salt water and chloride-containing environments.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- For tube diameter: 22 mm
- Material thickness (ø): 6 mm
- Thread (GW): M6
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 pack = 5 pieces
Sold only as a whole pack (5 pieces). The packaging is not opened; the price is per pack.
Technical data
| Material | V4A (A4) stainless steel – grade 1.4401 / AISI 316 |
|---|---|
| For pipe Ø | 22 mm |
| Thread (GW) | M6 |
| Thread type | Metric thread |
| Material thickness Ø (ø) | 6 mm |
| Length (L) | 62 mm |
| Width (B) | 30 mm |
| Height (H) | 28 mm |
| Internal width (iB) | 7.5 mm |
| Weight approx. | 121.5 g per item |
| Weight per pack approx. | 607.5 g |
| Sales unit (PU) | 5 pieces – sold only as a whole pack |

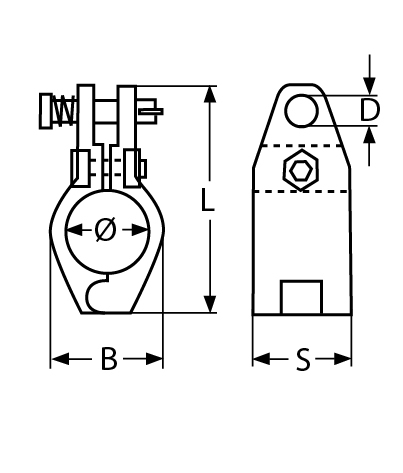

The dimensional letters (B, H, iB, L, ø) correspond to the dimensional drawing in the product images. Dimensions and load specifications are provided by the manufacturer and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly if they come into contact with salt water.
Note: Any questions about use or large quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
