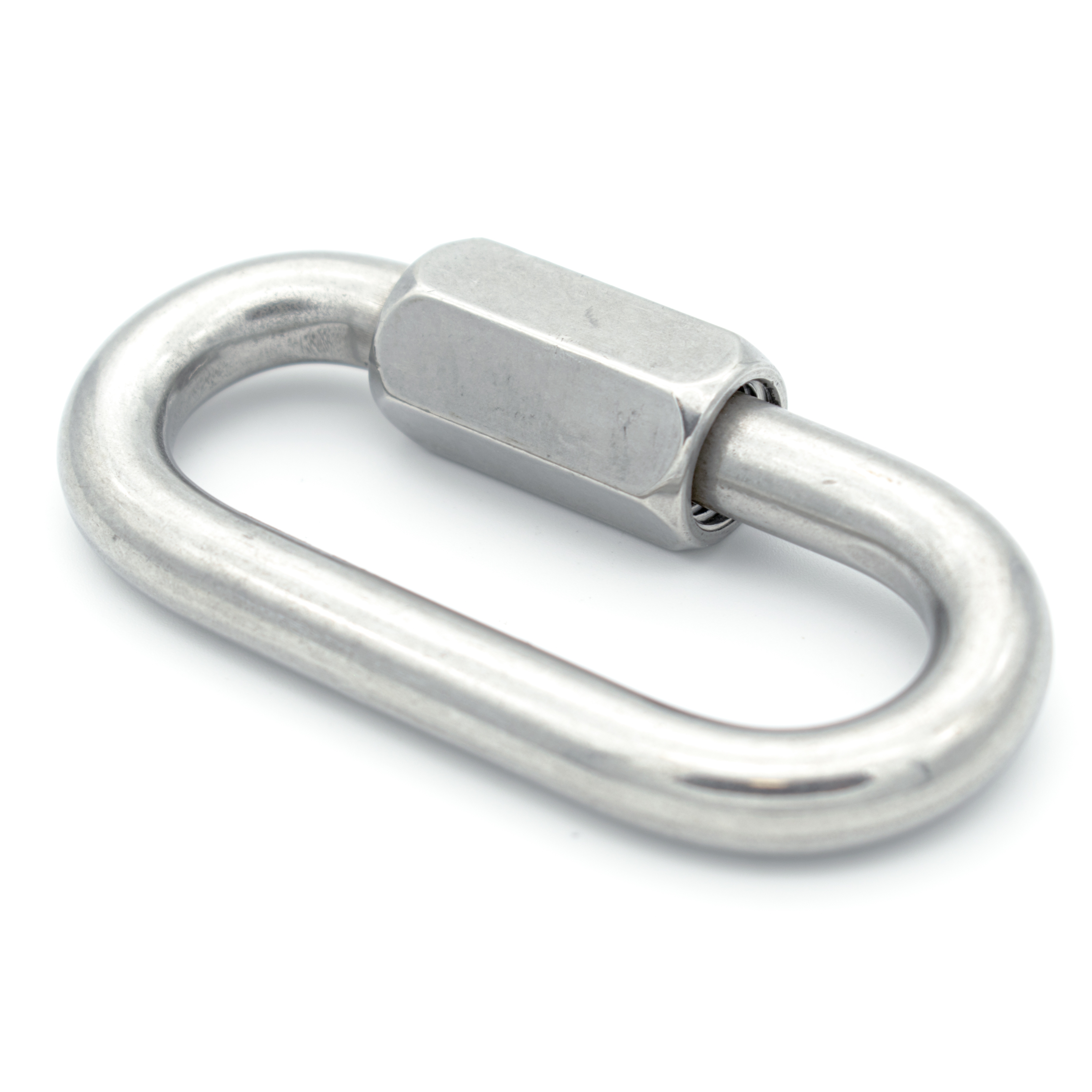

4 mm V4A screw connectors, pack of 20
Product information "4 mm V4A screw connectors, pack of 20"
4 mm screw connectors made from V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments due to their molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools. Also suitable for use in the sports and leisure sectors, e.g. camping, equestrian sports, water sports and the manufacture of play and sports equipment.
- Material thickness Ø (ø): 4 mm
- Internal length (iL): 32 mm
- Thread (GW): M6
- Breaking load: 500 kg
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 pack = 20 pieces
Sold only as a whole pack (20 pieces). The packaging is not opened; the price is per pack.
Technical data
| Material | V4A (A4) stainless steel – grade 1.4401 / AISI 316 |
|---|---|
| Thread (GW) | M6 |
| Thread type | Metric thread |
| Material thickness Ø (ø) | 4 mm |
| Internal length (iL) | 32 mm |
| Internal width (iB) | 12 mm |
| Opening width (C) | 5.5 mm |
| Drive | SW8 |
| Breaking load | 500 kg |
| Weight approx. | 12.1 g per item |
| Weight per pack approx. | 242 g |
| Sales unit (PU) | 20 pieces – sold as a whole pack only |
The dimensional letters (C, iB, iL, ø) correspond to the dimensional drawing in the product images. Dimensions and load specifications are manufacturer’s specifications and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly if they come into contact with salt water.
Safety note: Break load and working load specifications apply only when correctly suspended axially on a single strand without spreading. The break load is not the permissible working load. This product is not intended for lifting loads or as personal protective equipment (PPE). Dimensions and load specifications are non-binding.
Note: Questions about usage or large quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
