Ball catch 50 x 9 mm V4A, pack of 5
Product information "Ball catch 50 x 9 mm V4A, pack of 5"

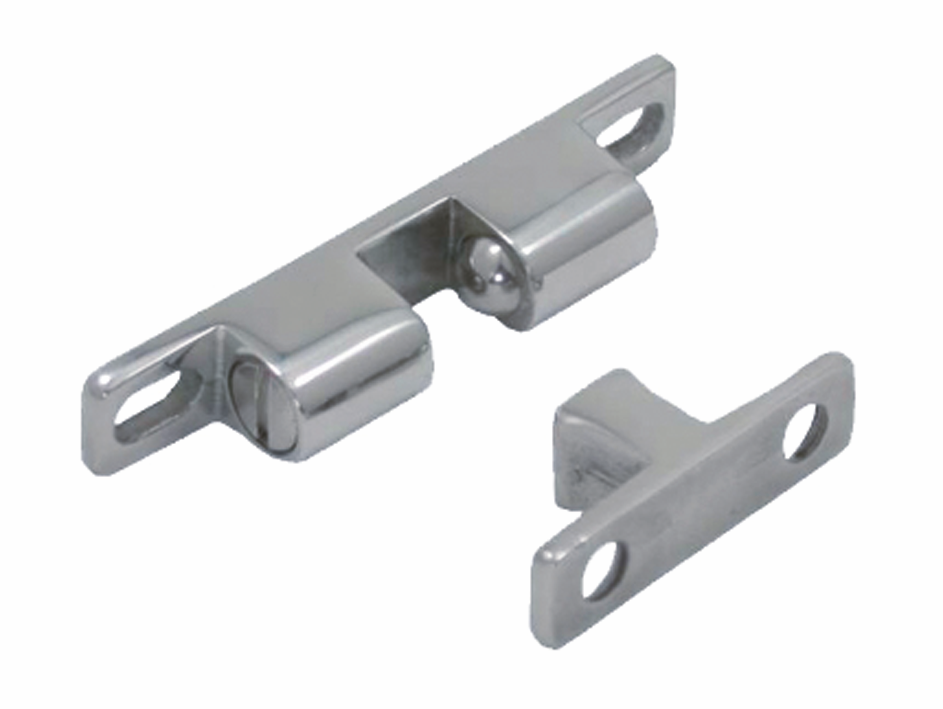

50 x 9 mm ball catch made from V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments thanks to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Length (L): 50 mm
- Length (L1): 29 mm
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 pack = 5 pieces
Sold only as a complete pack (5 pieces). The packaging is not opened; the price is per pack.
Technical data
| Material | V4A (A4) stainless steel – material 1.4401 / AISI 316 |
|---|---|
| Length (L) | 50 mm |
| Length (L1) | 29 mm |
| Width (B) | 9 mm |
| Height (H) | 12 mm |
| Thickness (S) | 2.5 mm |
| Centre-to-centre distance (A) | 40 mm |
| Centre-to-centre distance (A1) | 19 mm |
| Bore diameter (BD) | 4 mm |
| Weight approx. | 24 g per piece |
| Weight per pack approx. | 120 g |
| Sales unit (PU) | 5 pieces – sold as a whole pack only |

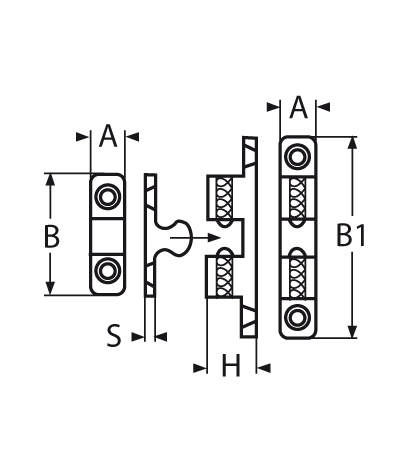

The dimensional letters (A, A1, B, BD, H, L, L1, S) correspond to the dimensional drawing shown in the product images. Dimensions and load specifications are manufacturer’s specifications and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly if they come into contact with salt water.
Note: Questions about usage or larger quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
