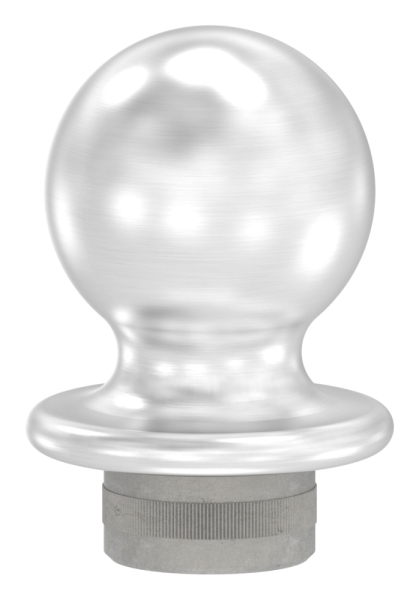

Ball-end cap/tube end cap for stainless steel railings | for tubes with a diameter of 33.7 / 42.4 / 48.3 mm
Ø Rohraußendurchmesser x ■ Wandstärke / Material:
Ø 33,7 mm x 2,6 mm
Stock:
11
Product number:
11.5134.4
EAN:
4251412937866
Length:
48 mm
Weight:
0.58 kg
Description
Product information "Ball-end cap/tube end cap for stainless steel railings | for tubes with a diameter of 33.7 / 42.4 / 48.3 mm"
Ball-end cap/pipe end cap for stainless steel railings | Suitable for pipe outer diameters of Ø 33.7 / 42.4 / 48.3 mm
- ✔ Made from AISI 304 or 1.4301 stainless steel, solid material – 240-grit finish with knurling for hammering in.
- ✔ For pipe outer diameters of 33.7 mm with a wall or material thickness of 2.0 mm.
- ✔ For outer tube diameters of 33.7 mm with a wall thickness of 2.6 mm
- ✔ For outer tube diameter 42.4 mm with wall thickness 2.0 mm
- ✔ For outer pipe diameter 42.4 mm with material thickness 2.6 mm
- ✔ For outer tube diameter 48.3 mm with wall or material thickness 2.6 mm

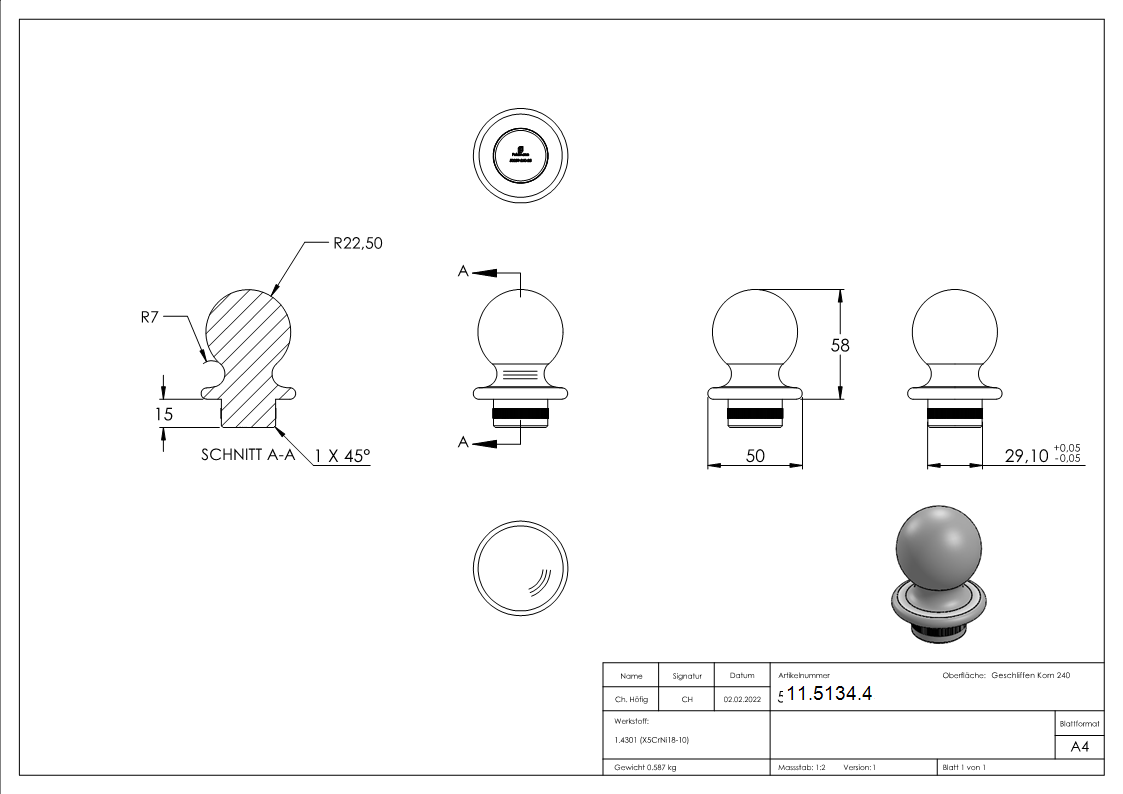

| Item number | Pipe diameter | Dimension A in drawing (in mm) | Dimension B in drawing (in mm) | Dimension C in drawing (in mm) | Ø | Material |
| 11.5130.4 | 33.7 x 2.0 | 58 | 15 | 50 | 45 | 1.4301 / AISI 304 |
| 11.5134.4 | 33.7 x 2.6 | 58 | 15 | 50 | 45 | 1.4301 / AISI 304 |
| 11.5131.4 | 42.4 x 2.0 | 62 | 15 | 60 | 45 | 1.4301 / AISI 304 |
| 11.5132.4 | 42.4 x 2.6 | 62 | 15 | 60 | 45 | 1.4301 / AISI 304 |
| 11.5133.4 | 48.3 x 2.6 | 62 | 15 | 60 | 45 | 1.4301 / AISI 304 |
Properties
| Form: | Kugelrohrknopf |
|---|---|
| Oberfläche: | Korn 240 geschliffen |
| Werkstoff: | V2A (1.4301) |
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | 33,7x2,5 mm |
