Baluster | for 2 M8 glass clamps | Length: 880 mm | V2A
FeNau GmbH
Stock:
124
Product number:
14.0010.4
EAN:
4251412941672
Weight:
1.93 kg
Description
Product information "Baluster | for 2 M8 glass clamps | Length: 880 mm | V2A"
Balustrade post | for 2 M8 glass clamps | Length: 880 mm | V2A
[ Technical details ] Stainless steel 1.4301/V2A/AISI 304 – sanded to 240

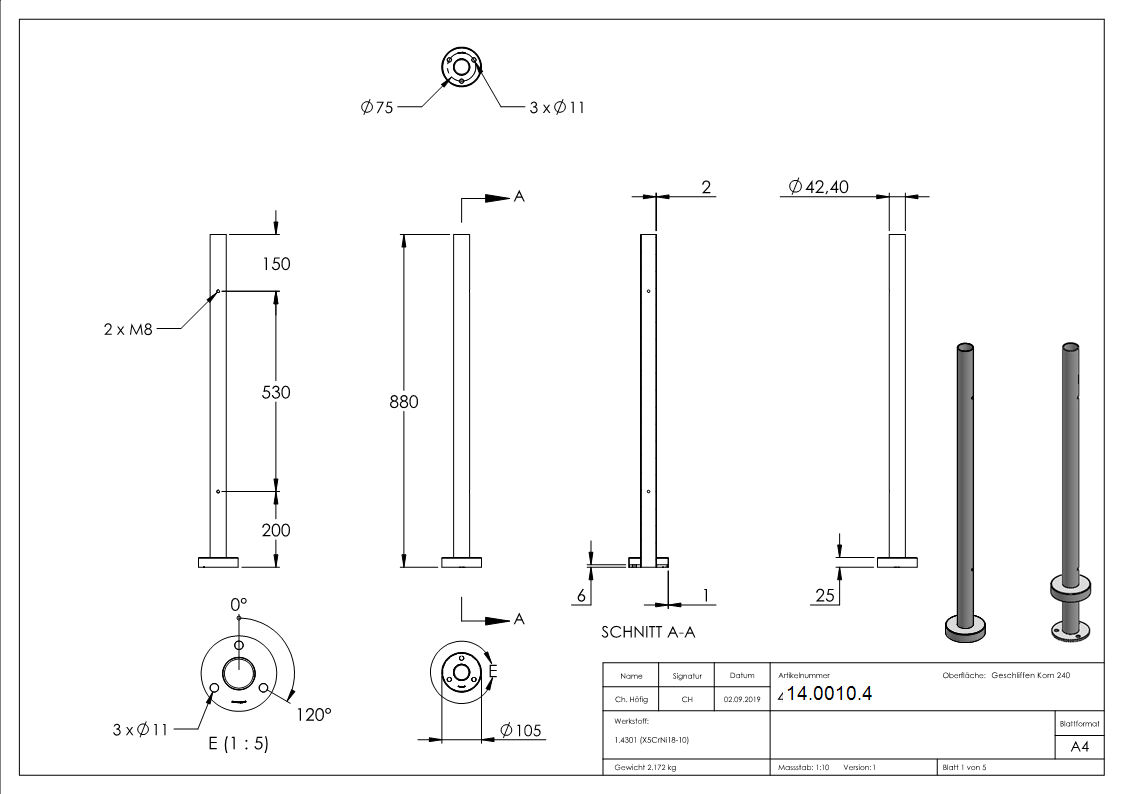

grit [ Post details ] Post: Length: 880 mm; Ø 42.4x2.0 mm; with 2x M8 flow-formed threads for glass clamps; Distance between glass clamp holes: 530 mm

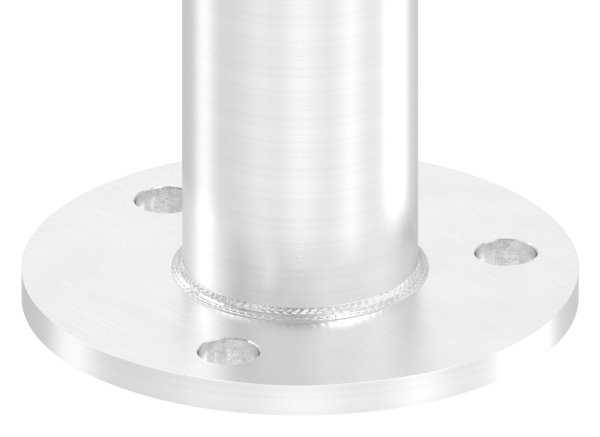

[ Further details ] Welded anchor plate: Dimensions: 100x6 mm with 3 holes, each 11 mm; Cover rosette: Dimensions: 105x25 mm

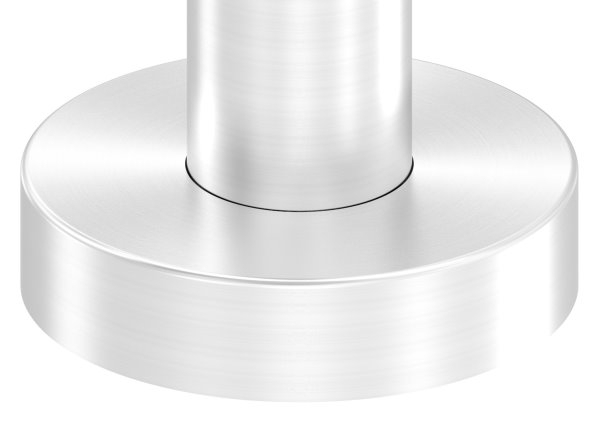

[ Scope of delivery ] Consisting of: Stainless steel tube with welded anchor plate (Item No.: 11.2265.4) + enclosed cover rosette (Item No.: 11.2505.4)
[ Application ] Secure the crossbar holder in the threaded holes, screw on the anchor plate and then fit the cover rosette over it
