DIY Threaded Terminal Block 4 mm / M8 V4A
Product information "DIY Threaded Terminal Block 4 mm / M8 V4A"

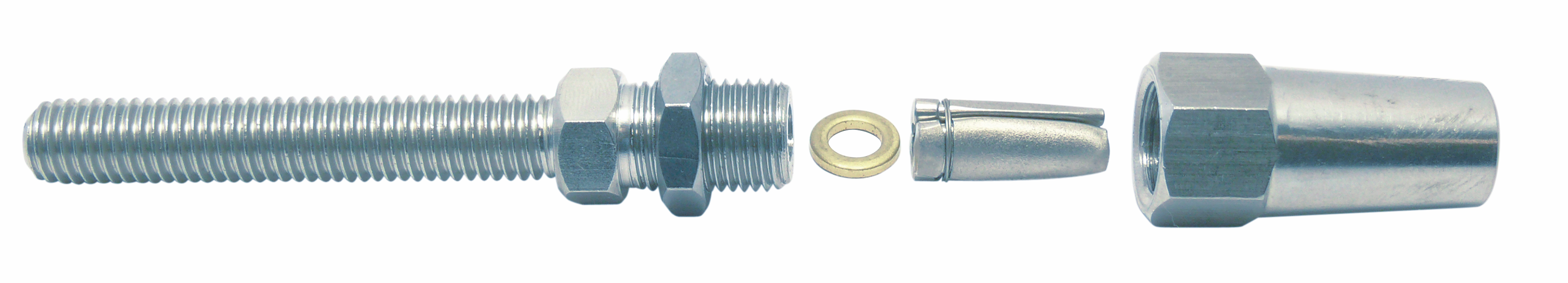

DIY threaded terminal, 4 mm / M8, made from V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments due to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Wire rope diameter (DS): 4 mm
- Length (L): 100 mm
- Thread (GW): M8
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 piece
Technical data
| Material | Stainless steel V4A (A4) – grade 1.4401 / AISI 316 |
|---|---|
| Wire rope diameter (DS) | 4 mm |
| Thread (GW) | M8 |
| Thread type | Metric thread |
| Length (L) | 100 mm |
| Length (L1) | 57 mm |
| Drive | SW14 |
| Weight approx. | 65 g per item |
| Sales unit (SU) | 1 piece |

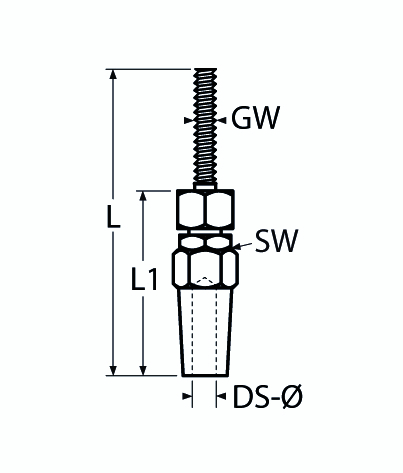

The dimensional letters (L, L1) correspond to the dimensional drawing in the product images. Dimensions and load specifications are manufacturer’s specifications and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly and treated with care products, particularly if they come into contact with salt water.
Safety note: Breaking load and working load specifications apply only when correctly suspended axially on a single strand without spreading. The breaking load is not the permissible working load. This item is not intended for lifting loads or for use as personal protective equipment (PPE). Dimensions and load specifications are non-binding.
Note: Questions about usage or large quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
