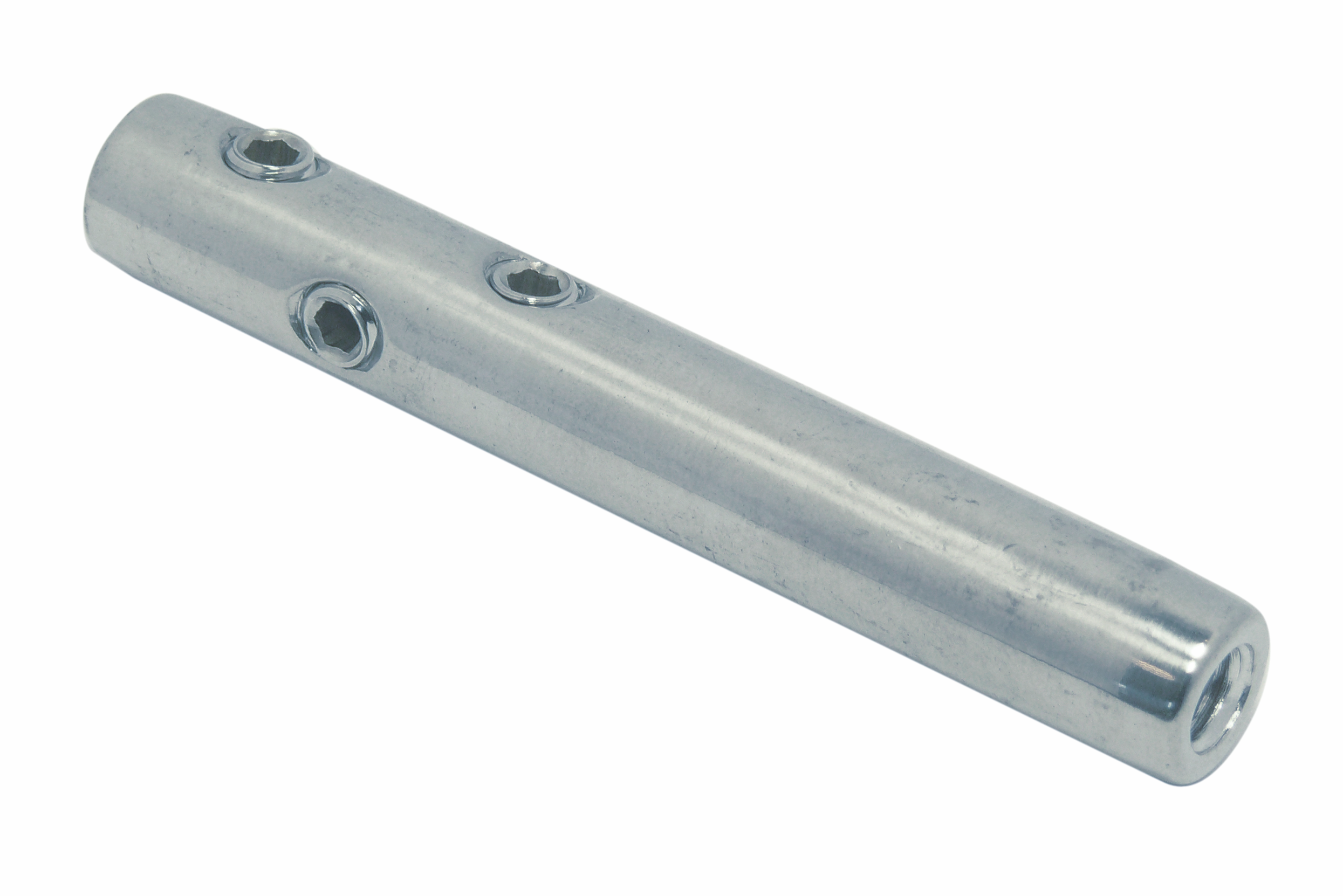

DIY screw terminal with internal thread 3+4 mm / M6 right-hand thread, V4A, pack of 5
Product information "DIY screw terminal with internal thread 3+4 mm / M6 right-hand thread, V4A, pack of 5"
DIY screw terminal with 3+4 mm / M6 right-hand internal thread, made from V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments due to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Wire rope diameter (DS): 3 / 4 mm
- Length (L): 80 mm
- Thread (GW): M6
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 pack = 5 pieces
Sold only as a complete pack (5 pieces). The packaging is not opened; the price is per pack.
Technical data
| Material | V4A (A4) stainless steel – material 1.4401 / AISI 316 |
|---|---|
| Wire rope diameter (DS) | 3 / 4 mm |
| Thread (GW) | M6 |
| Thread type | Metric thread |
| Length (L) | 80 mm |
| Diameter (D1) | 12 mm |
| Internal length (iL) | 45 mm |
| Internal length (iL1) | 35 mm |
| Weight approx. | 56.9 g per piece |
| Weight per pack approx. | 284.5 g |
| Sales unit (PU) | 5 pieces – sold only as a whole pack |

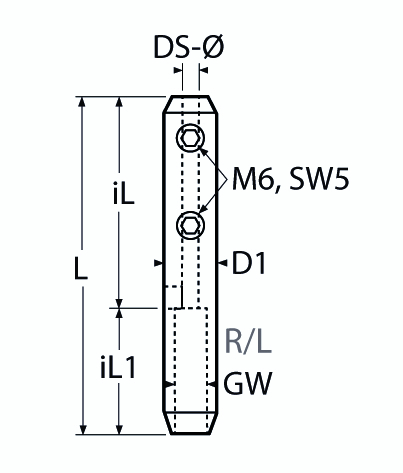

The dimensional letters (D1, iL, iL1, L) correspond to the dimensional drawing shown in the product images. Dimensions and load specifications are provided by the manufacturer and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly if they come into contact with salt water.
