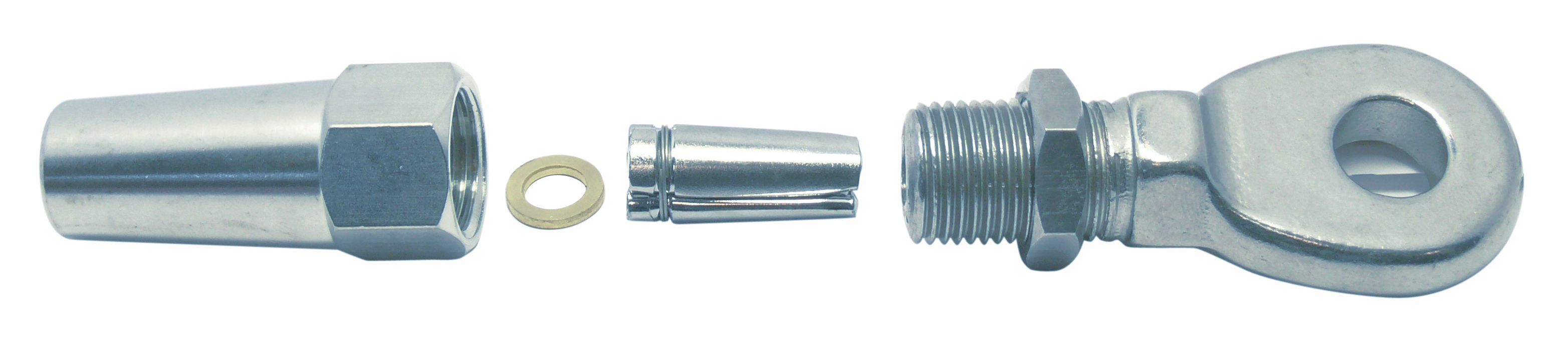

DIY 4 mm V4A eye terminal assembly
Product information "DIY 4 mm V4A eye terminal assembly"
DIY 4 mm eye terminal made from V4A (A4) stainless steel – its molybdenum content makes it particularly resistant to salt water and chloride-containing environments.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Wire rope diameter (DS): 4 mm
- Length (L): 67 mm
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 piece
Technical data
| Material | V4A (A4) stainless steel – grade 1.4401 / AISI 316 |
|---|---|
| Wire rope diameter (DS) | 4 mm |
| Length (L) | 67 mm |
| Inner diameter (iD) | 8 mm |
| Thickness (S) | 6.5 mm |
| Drive | SW14 |
| Weight approx. | 63 g each |
| Sales unit (SU) | 1 piece |

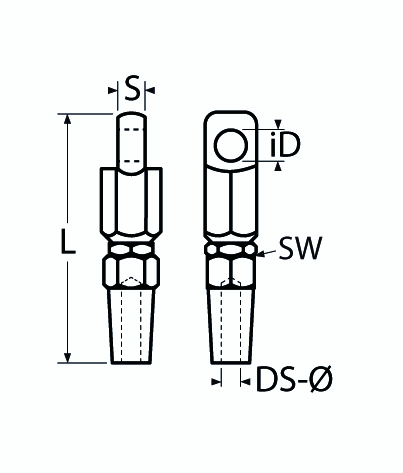

The dimensional letters (iD, L, S) correspond to the dimensional drawing shown in the product images. Dimensions and load specifications are provided by the manufacturer and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly if they come into contact with salt water.
Safety note: Breaking load and working load specifications apply only when correctly suspended axially on a single strand without spreading. The breaking load is not the permissible working load. This product is not intended for lifting loads or for use as personal protective equipment (PPE). Dimensions and load specifications are non-binding.
Note: Questions about usage or large quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
