DIY Mounting Fork Terminal 4 mm V4A
Product information "DIY Mounting Fork Terminal 4 mm V4A"

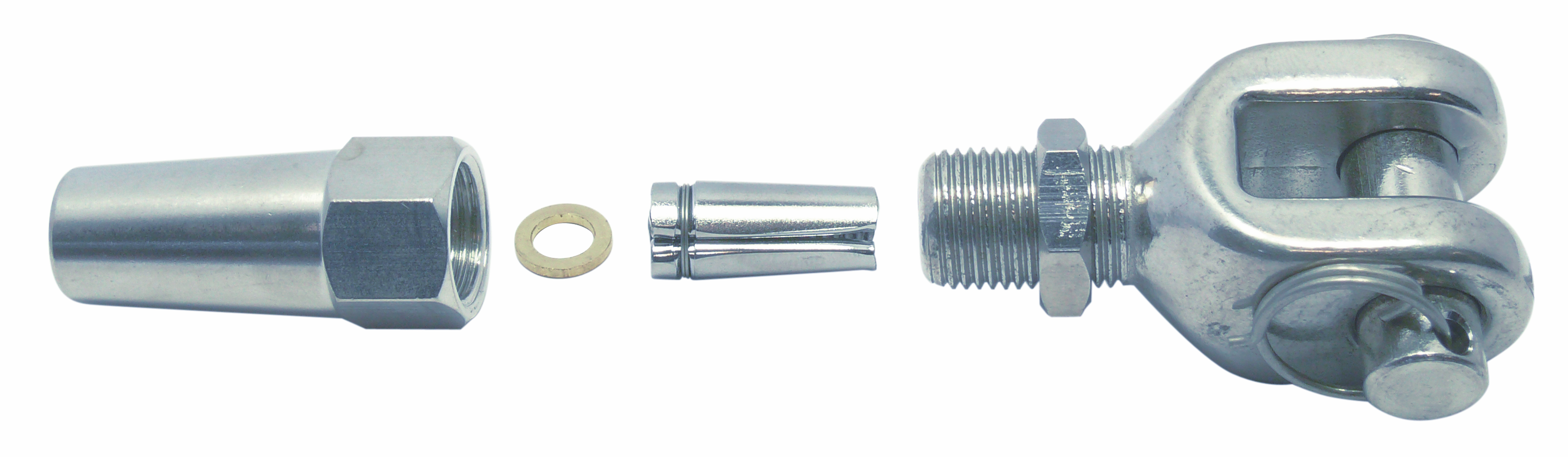

DIY 4 mm V4A (A4) stainless steel spade terminal – its molybdenum content makes it particularly resistant to salt water and chloride-containing environments.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Wire rope diameter (DS): 4 mm
- Material thickness Ø (ø): 8 mm
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 piece
Technical data
| Material | Stainless steel V4A (A4) – grade 1.4401 / AISI 316 |
|---|---|
| Wire rope diameter (DS) | 4 mm |
| Wire thickness Ø (ø) | 8 mm |
| Length (L) | 72 mm |
| Internal length (iL) | 8 mm |
| Internal width (iW) | 8 mm |
| Drive | SW14 |
| Weight approx. | 90 g per piece |
| Sales unit (PU) | 1 item |

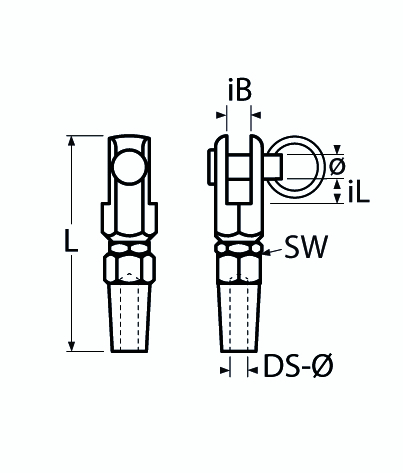

The dimensional letters (iB, iL, L, ø) correspond to the dimensional drawing shown in the product images. Dimensions and load specifications are provided by the manufacturer and are for information only.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly if they come into contact with salt water.
Safety note: Breaking load and working load specifications apply only when correctly suspended axially on a single strand without spreading. The breaking load is not the permissible working load. This item is not intended for lifting loads or as personal protective equipment (PPE). Dimensions and load specifications are provided for information only.
Note: Questions about usage or large quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
