External guide roller | Nylon | with dowel | Sizes 0, 1, 2, 3 MEA 10337824
Product information "External guide roller | Nylon | with dowel | Sizes 0, 1, 2, 3 MEA 10337824"

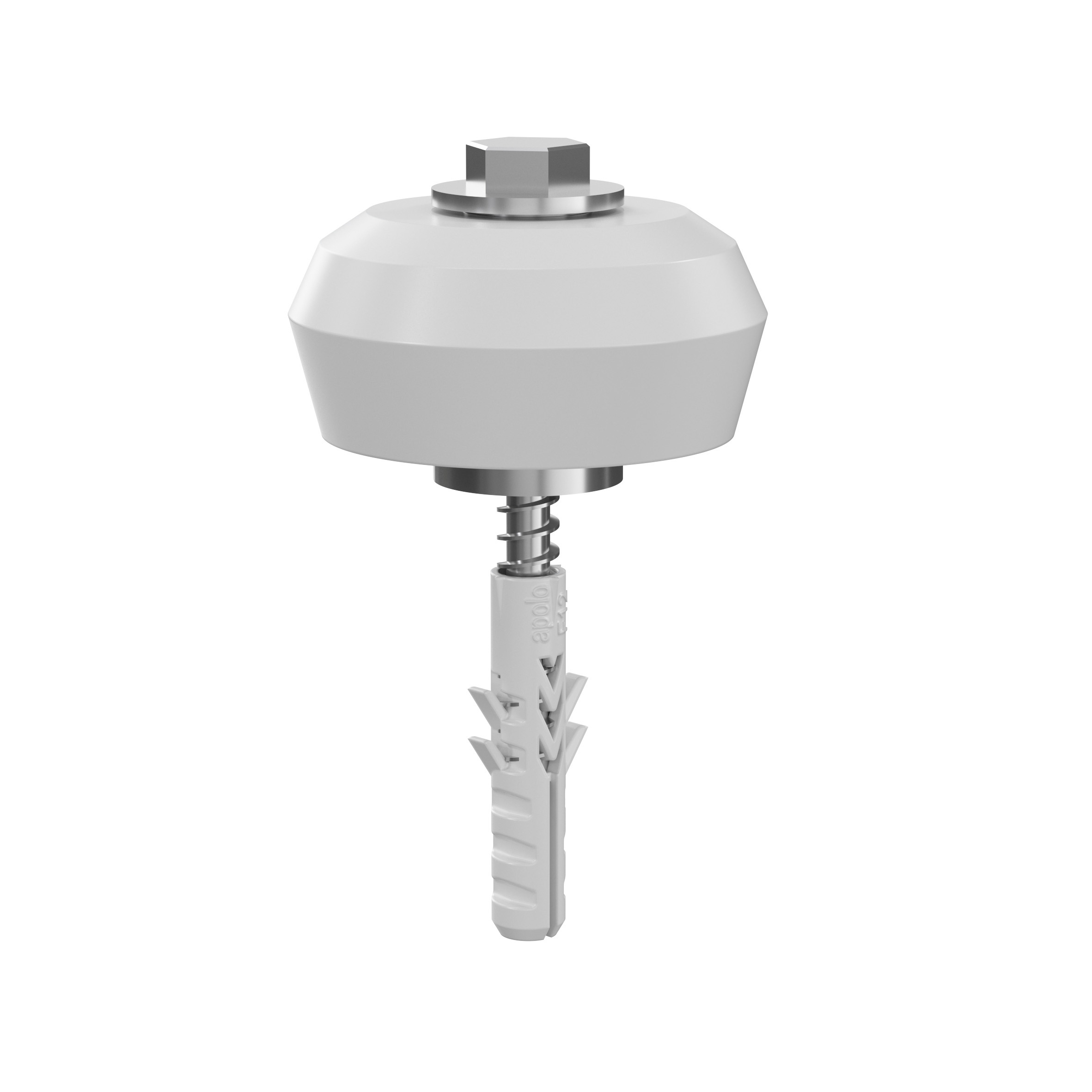

MEA external guide roller, nylon, with wall plugs – roller diameter 38 mm | Item No. 10337824
External guide rollers guide the gate leaf in pairs from the outside between the rollers. They do not require a floor rail and are therefore particularly quick to install.
This original component from MEA Metal Applications is supplied in the version shown: roller diameter Ø 38 mm, electro-galvanised finish (steel parts).
Why choose this component
- Electro-galvanised – protected against the elements in typical outdoor use
- Available individually or in packs of 10
Application and installation
The rollers are fitted on both sides of the gate leaf. The version with dowels is set directly into the concrete, whilst the version with a plate is screwed to a substrate.
Technical data
| Manufacturer | MEA Metal Applications |
|---|---|
| MEA item number | 10337824 |
| Product type | Outer guide roller, nylon, with dowel |
| Roller/outer diameter | Ø 38 mm |
| Height | 35 mm |
| Length | 80 mm |
| Bore diameter | 12 mm |
| Material | Nylon / steel components |
| Surface | electro-galvanised (steel parts) |
| Weight per piece | 0.12 kg |
| Packaging unit | 10 pieces |
Contents
1 outer guide roller. The loose version includes an M12 x 80 hexagon head bolt, 2 nuts, 2 washers and 1 lock washer.
What to look out for when selecting
All components of an MEA sliding gate system are designed to work together. Ensure that the guide tube, roller assembly, fixings and accessories are all of the same MEA size. All dimensions are approximate figures according to MEA and may vary within the usual technical tolerances.
Not sure which size is right for your gate? Tell us the gate weight, gate width and installation type – we’ll put together the right components for you.
| Bohrung Ø in mm: | 12 |
|---|---|
| Durchmesser: | Ø 38 mm |
| Form: | Außenführungsrolle, Nylon, mit |
| Höhe: | 35 mm |
| Länge: | 80 mm |
| Oberfläche: | galvanisch verzinkt (Stahlteil |
| Werkstoff: | Nylon / Stahlteile |
