Eye-to-eye swivel, 5 x 55 mm, V4A, pack of 10
Product information "Eye-to-eye swivel, 5 x 55 mm, V4A, pack of 10"

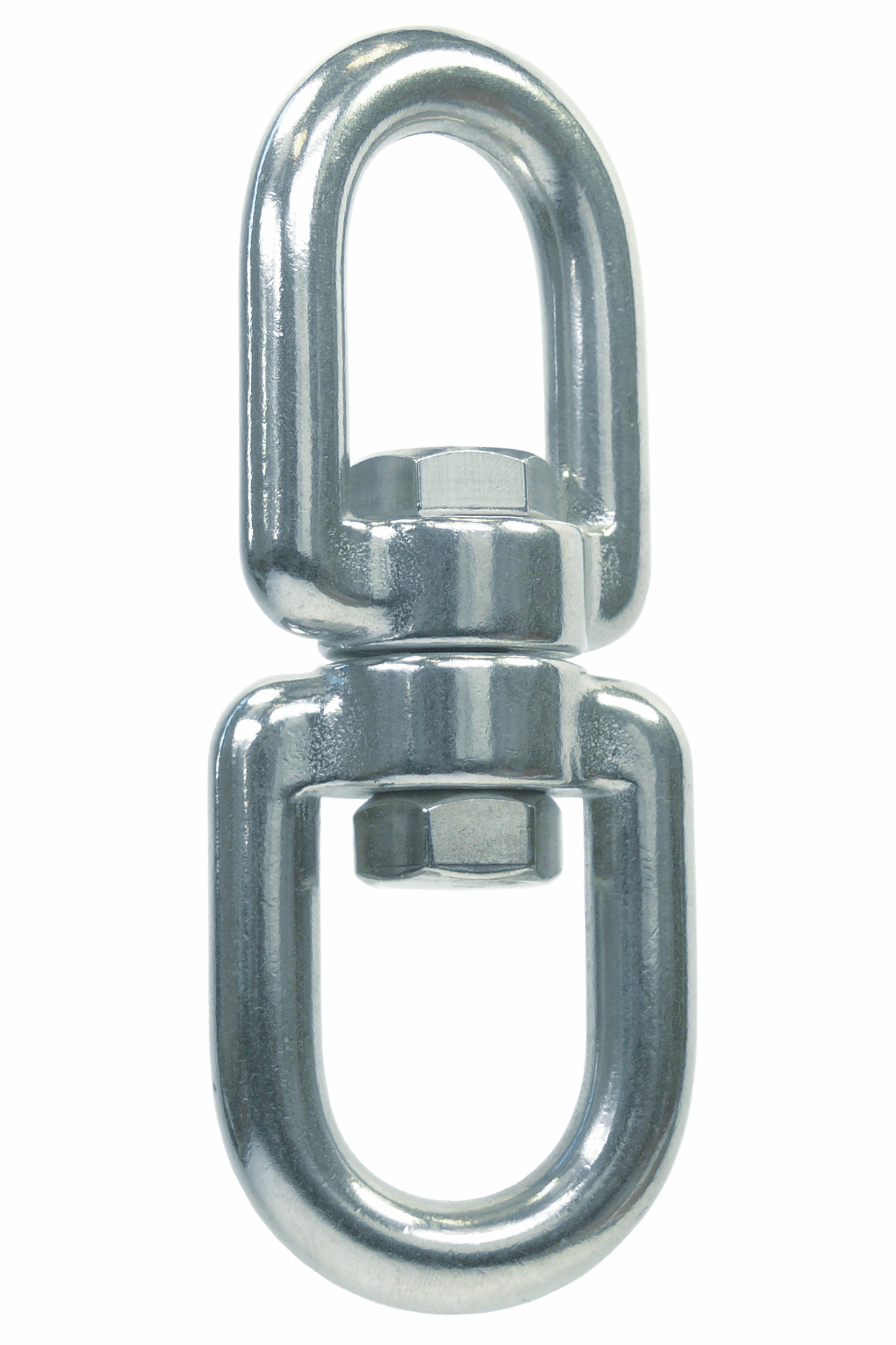

Eye-to-eye swivel, 5 x 55 mm, made from V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments due to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Material thickness Ø (ø): 5 mm
- Length (L): 55 mm
- Breaking load: 790 kg
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 pack = 10 pieces
Sold only as a whole pack (10 pieces). The packaging is not opened; the price is per pack.
Technical data
| Material | V4A (A4) stainless steel – grade 1.4401 / AISI 316 |
|---|---|
| Material thickness Ø (ø) | 5 mm |
| Length (L) | 55 mm |
| Internal length (iL) | 12 mm |
| Internal width (iB) | 12 mm |
| Breaking load | 790 kg |
| Weight approx. | 31.4 g per piece |
| Weight per pack approx. | 314 g |
| Sales unit (PU) | 10 pieces – sold only as a whole sales unit |

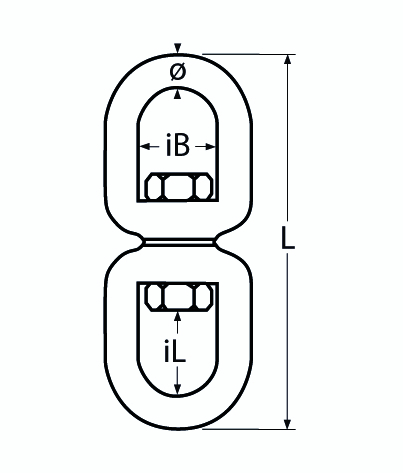

The dimensional letters (iB, iL, L, ø) correspond to the dimensional drawing in the product images. Dimensions and load specifications are manufacturer’s specifications and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly when in contact with salt water.
Safety note: Breaking load and working load specifications apply only when correctly suspended axially on a single strand without spreading. The breaking load is not the permissible working load. This product is not intended for lifting loads or as personal protective equipment (PPE). Dimensions and load specifications are provided for information only.
