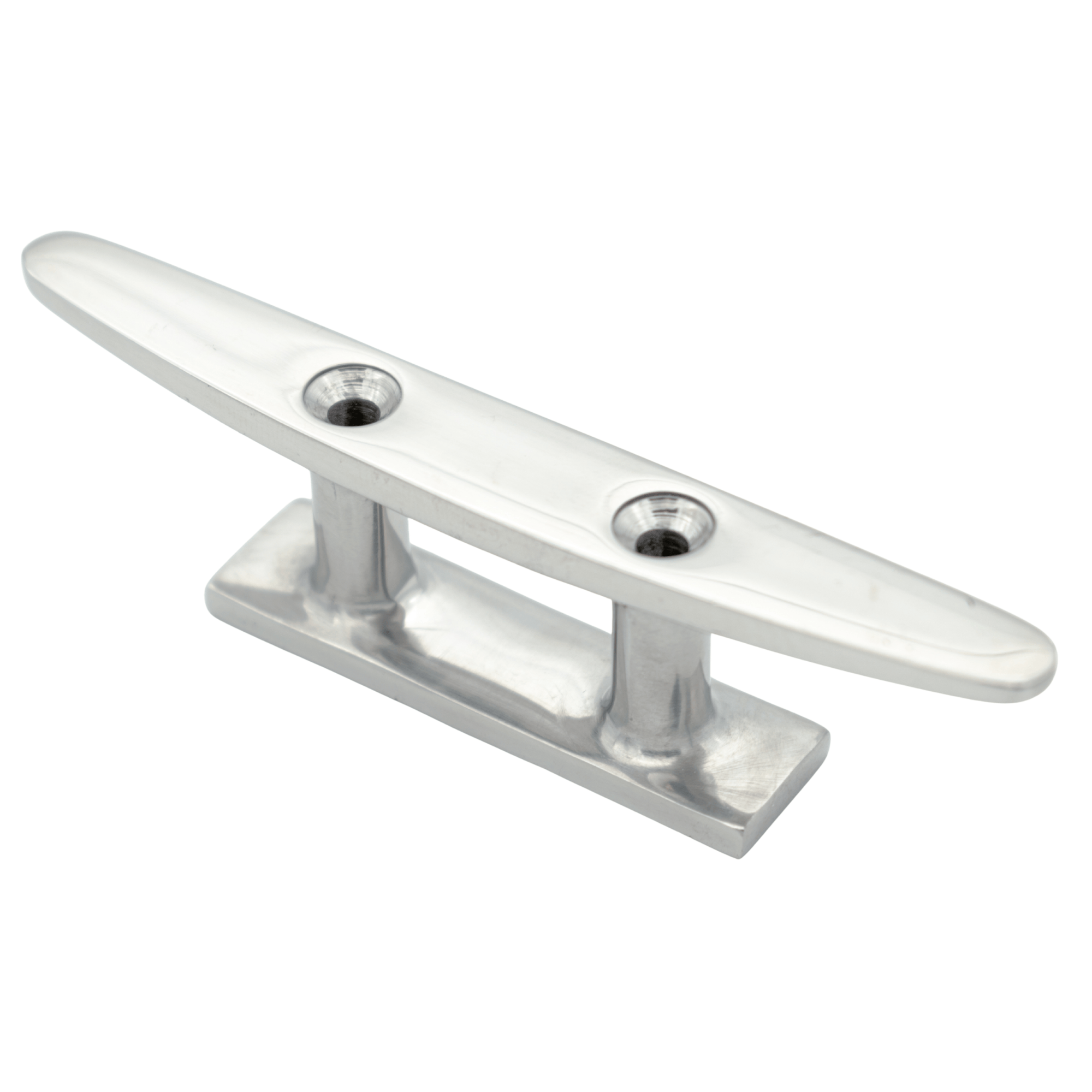

Flat cleat with 2 holes, 100 mm, V4A
Product information "Flat cleat with 2 holes, 100 mm, V4A"
Flat cleat with 2 holes, 100 mm, made from V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments due to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Length (L): 100 mm
- Length (L1): 55 mm
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 piece
Technical data
| Material | V4A (A4) stainless steel – material 1.4401 / AISI 316 |
|---|---|
| Length (L) | 100 mm |
| Length (L1) | 55 mm |
| Width (B) | 14 mm |
| Height (H) | 23.5 mm |
| Height (H1) | 15 mm |
| Bore diameter (BD) | 4.3 mm |
| Weight approx. | 70 g per piece |
| Sales unit (SU) | 1 piece |

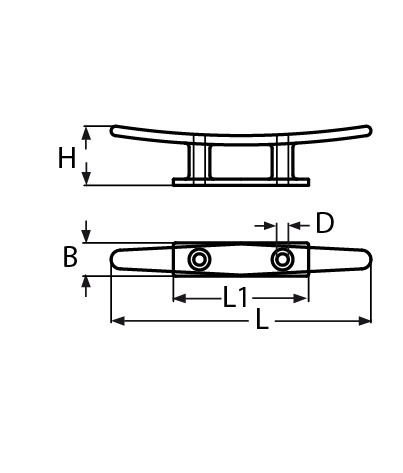

The dimensional letters (B, BD, H, H1, L, L1) correspond to the dimensional drawing shown in the product images. Dimensions and load specifications are provided by the manufacturer and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly and treated with care products, particularly if they come into contact with salt water.
Note: Any questions about usage or larger quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
