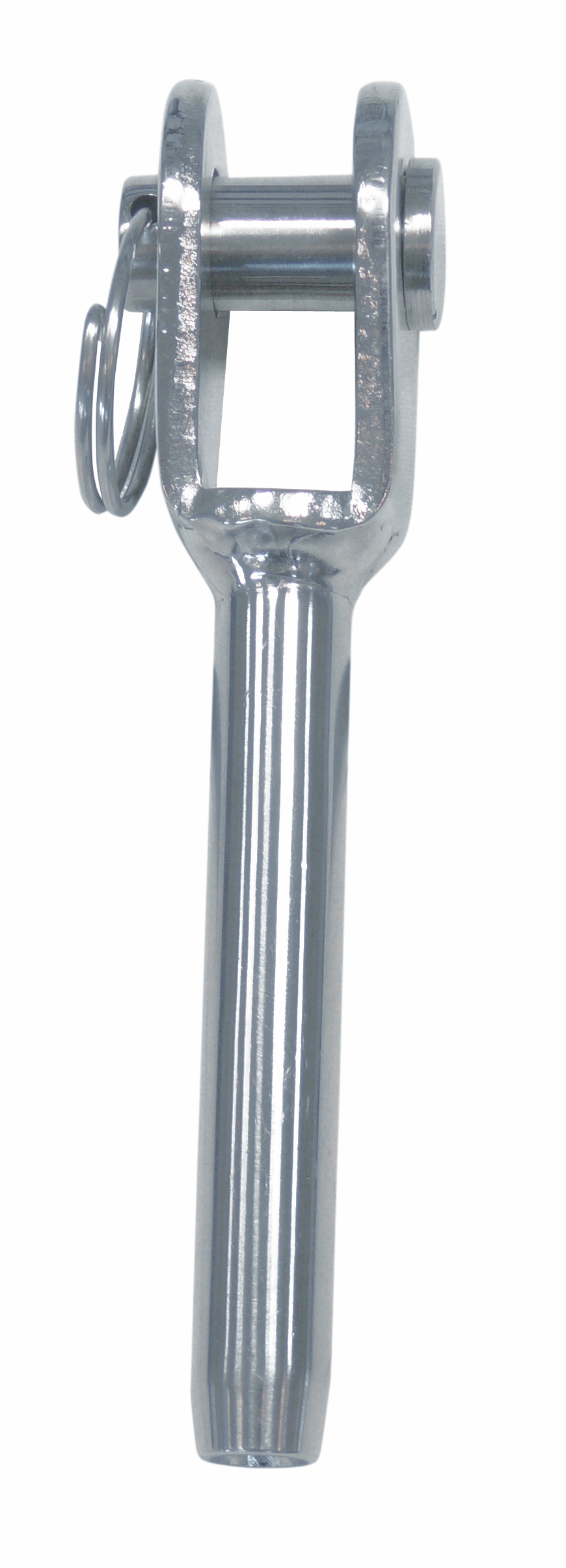

2.5 mm fork terminal, 5 mm V4A bolt, pack of 10
Product information "2.5 mm fork terminal, 5 mm V4A bolt, pack of 10"
2.5 mm fork terminal, 5 mm bolt made from V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments due to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Wire rope diameter (DS): 2.5 mm
- Wire thickness Ø (ø): 5 mm
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 pack = 10 pieces
Sold only as a whole pack (10 pieces). The packaging is not opened; the price is per pack.
Technical data
| Material | V4A (A4) stainless steel – grade 1.4401 / AISI 316 |
|---|---|
| Wire rope diameter (DS) | 2.5 mm |
| Material thickness Ø (ø) | 5 mm |
| Length (L1) | 55 mm |
| Diameter (D1) | 5.5 mm |
| Internal length (iL) | 10 mm |
| Internal length (iL1) | 24 mm |
| Internal width (iB) | 6.5 mm |
| Weight approx. | 22 g per piece |
| Weight per pack approx. | 220 g |
| Sales unit (PU) | 10 pieces – sold only as a whole pack |

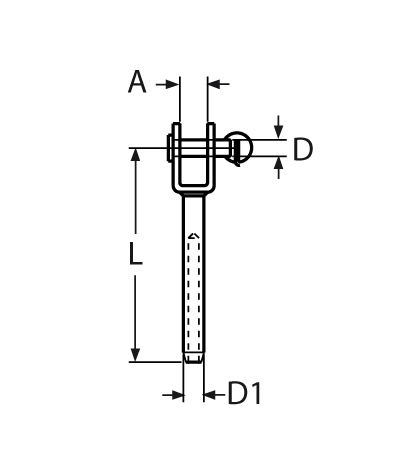

The dimensional letters (D1, iB, iL, iL1, L1, ø) correspond to the dimensional diagram shown in the product images. Dimensions and load specifications are provided by the manufacturer and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly if they come into contact with salt water.
Safety note: Breaking load and working load specifications apply only when correctly suspended axially on a single strand without spreading. The breaking load is not the permissible working load. This product is not intended for lifting loads or as personal protective equipment (PPE). Dimensions and load specifications are non-binding.
Note: Questions about usage or large quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
