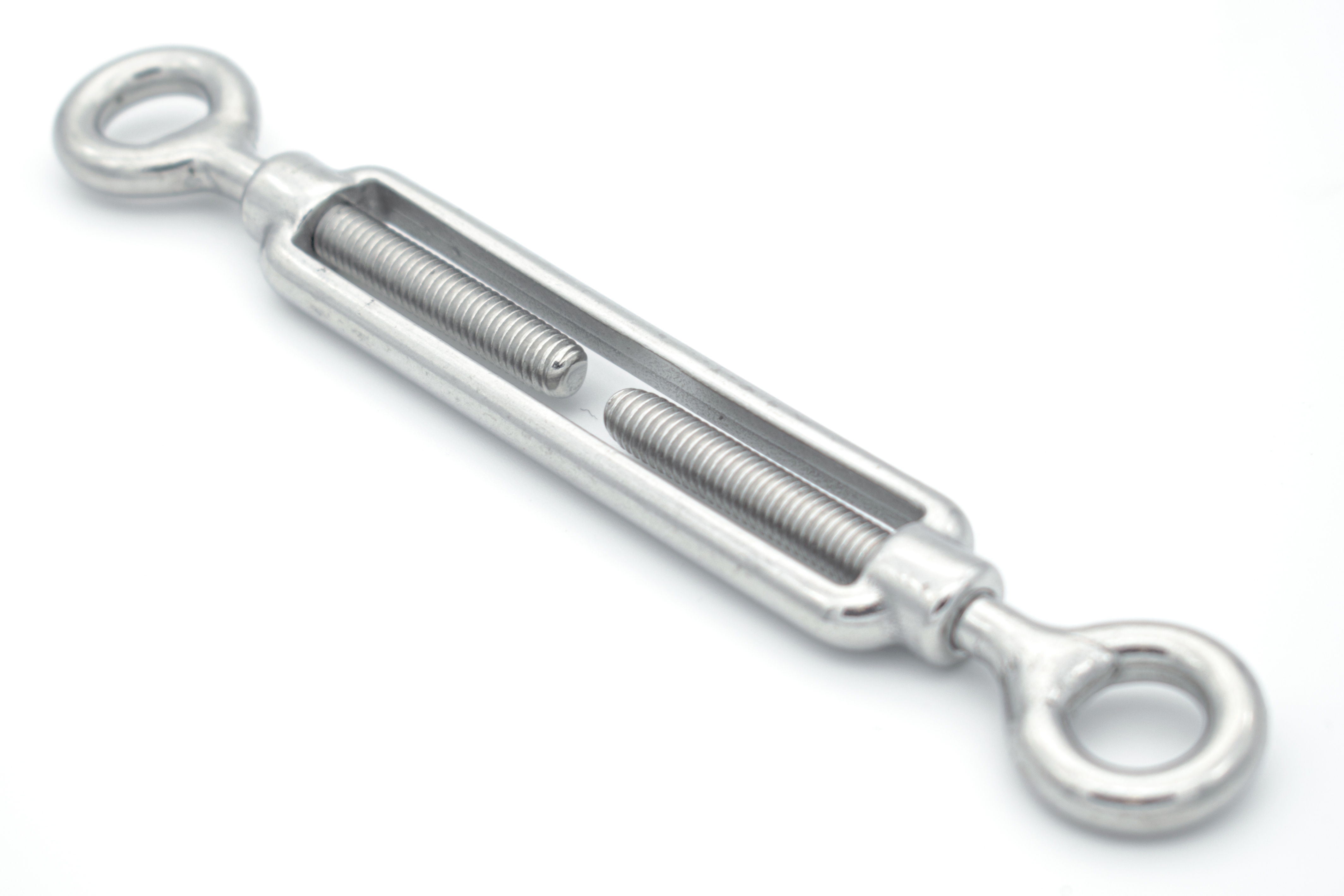

M5 turnbuckle, V4A eye-to-eye, pack of 10
Product information "M5 turnbuckle, V4A eye-to-eye, pack of 10"
M5 turnbuckle, eye-to-eye, made of V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments due to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Material thickness Ø (ø): 4.3 mm
- Length (L): 165 mm
- Thread (GW): M5
- Breaking load: 160 kg
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 pack = 10 pieces
Sold only as a complete pack (10 pieces). The packaging is not opened; the price is per pack.
Technical data
| Material | V4A (A4) stainless steel – grade 1.4401 / AISI 316 |
|---|---|
| Thread (GW) | M5 |
| Thread type | Metric thread |
| Material thickness Ø (ø) | 4.3 mm |
| Length (L) | 165 mm |
| Length (L1) | 110 mm |
| Inner diameter (iD) | 8 mm |
| Adjustable length | Infinitely adjustable |
| Breaking load | 160 kg |
| Weight approx. | 37 g per piece |
| Weight per pack approx. | 370 g |
| Sales unit (PU) | 10 pieces – sold only as a whole pack |
The dimensional letters (iD, L, L1, ø) correspond to the dimensional drawing shown in the product images. Dimensions and load specifications are provided by the manufacturer and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly when in contact with salt water.
Safety notice: Breaking load and working load specifications apply only when correctly suspended axially on a single strand without spreading. The breaking load is not the permissible working load. This product is not intended for lifting loads or as personal protective equipment (PPE). Dimensions and load specifications are not binding.
Note: Questions about use or larger quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
