Pin bolts with ball retainer, 5 x 28 mm, V2A, pack of 25
Product information "Pin bolts with ball retainer, 5 x 28 mm, V2A, pack of 25"

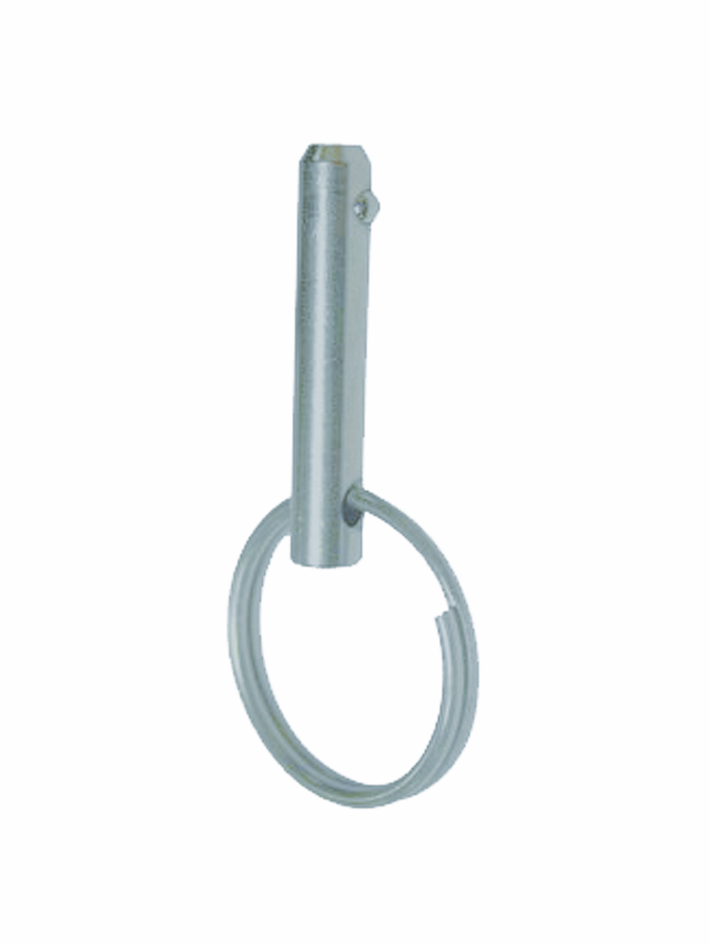

Stainless steel V2A (A2) pin bolts with ball lock, 5 x 28 mm – rust-free and well suited for freshwater, indoor and outdoor use.
Applications: Marine fittings for sailing boats and motorboats in inland and fresh water, as well as railings and outdoor structures. For coastal areas, salt water and swimming pool construction, we recommend the V4A version.
- Diameter (ø): 5 mm
- Length (L): 28 mm
- Material: V2A (A2) stainless steel, grade 1.4301 / AISI 304
- Contents: 1 pack = 25 pieces
Sold only as a whole pack (25 pieces). The packaging is not opened; the price is per pack.
Technical data
| Material | V2A (A2) stainless steel – grade 1.4301 / AISI 304 |
|---|---|
| Material thickness Ø (ø) | 5 mm |
| Length (L) | 28 mm |
| Length (L1) | 13 mm |
| Weight approx. | 5.9 g per piece |
| Weight per pack approx. | 147.5 g |
| Sales unit (PU) | 25 pieces – sold only as a whole unit |

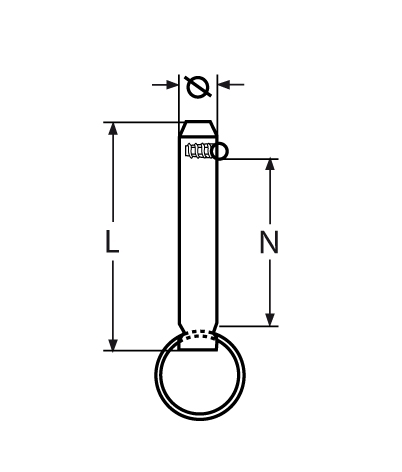

The dimensional letters (L, L1, ø) correspond to the dimensional drawing shown in the product images. Dimensions and load specifications are provided by the manufacturer and are not binding.
Installation and care instructions: To prevent contact corrosion, always fit stainless steel screws with washers and nuts made from the same grade of material (e.g. A4 screw + A4 washer + A4 nut). Stainless steel parts should be cleaned regularly or treated with care products, particularly if they come into contact with salt water.
Note: Any questions about usage or large quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
