Recessed handle 75 x 56 mm V4A
Product information "Recessed handle 75 x 56 mm V4A"
75 x 56 mm stainless steel V4A (A4) handle – particularly resistant to salt water and chloride-containing environments due to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Length (L): 75 mm
- Width (W): 56 mm
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 piece
Technical data
| Material | V4A (A4) stainless steel – material 1.4401 / AISI 316 |
|---|---|
| Length (L) | 75 mm |
| Width (B) | 56 mm |
| Height (H) | 10 mm |
| Bore diameter (BD) | 4.3 mm |
| Weight approx. | 119 g per piece |
| Sales unit (SU) | 1 piece |

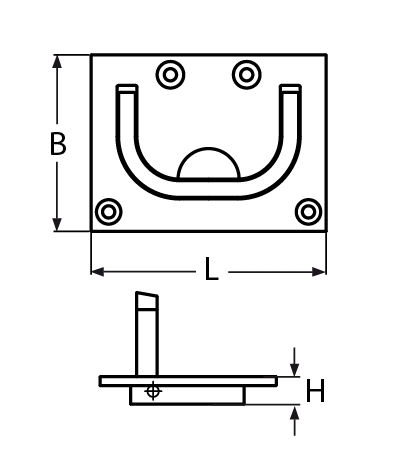

The dimensional letters (B, BD, H, L) correspond to the dimensional drawing shown in the product images. Dimensions and load specifications are provided by the manufacturer and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly if they come into contact with salt water.
Note: Questions about usage or larger quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
