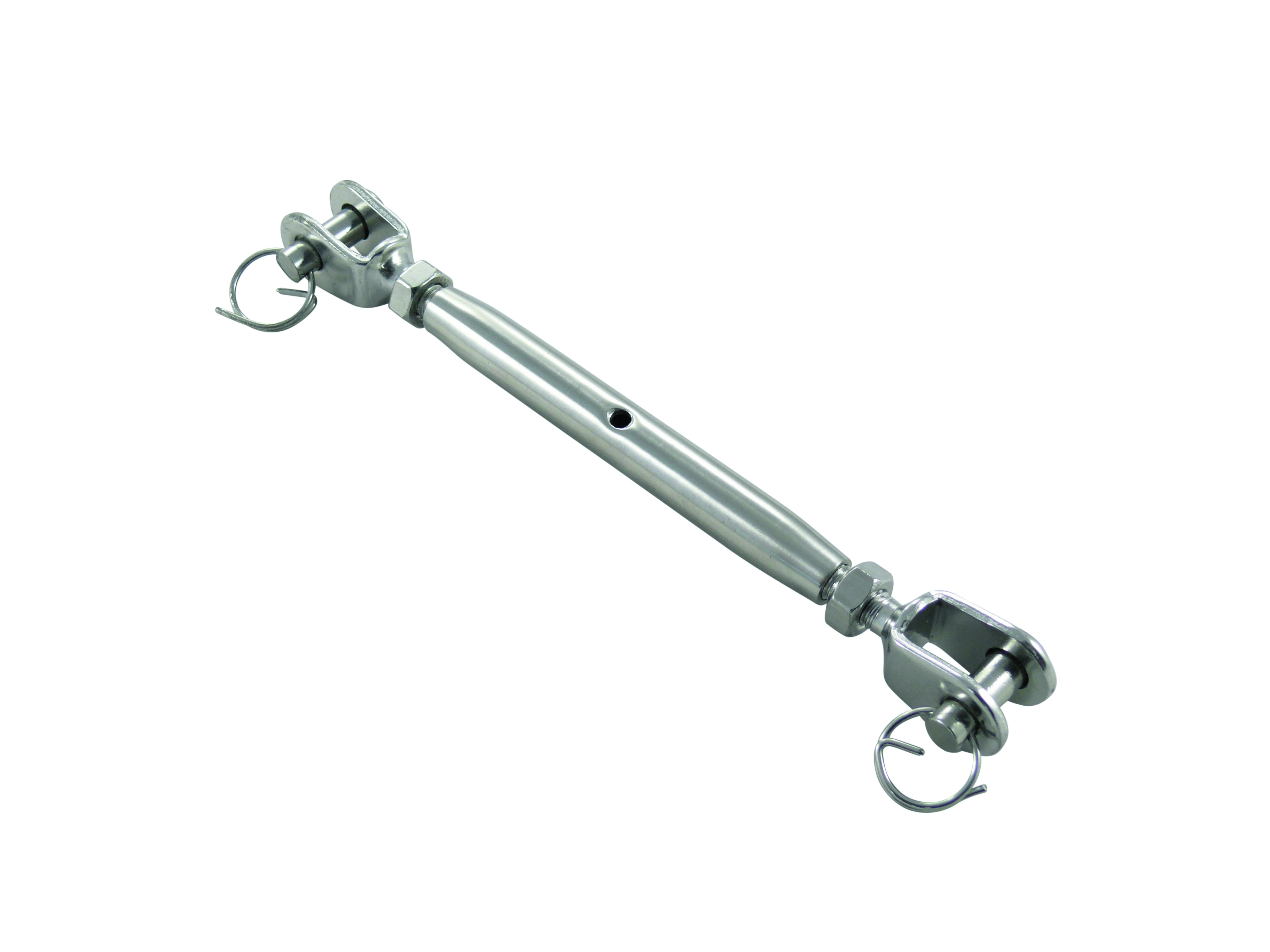

Shroud tensioner, fork-to-fork M14, 12 mm bolt, V4A
Product information "Shroud tensioner, fork-to-fork M14, 12 mm bolt, V4A"
Shroud tensioner, fork-to-fork M14, 12 mm bolt made of V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments due to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Diameter (ø): 12 mm
- Length (L1): 390 mm
- Thread (GW): M14
- Breaking load: 5,900 kg
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 piece
Technical data
| Material | Stainless steel V4A (A4) – grade 1.4401 / AISI 316 |
|---|---|
| Thread (GW) | M14 |
| Thread type | Metric thread |
| Material thickness Ø (ø) | 12 mm |
| Length (L1) | 390 mm |
| Length (L2) | 270 mm |
| Internal length (iL) | 22 mm |
| Internal width (iB) | 15 mm |
| Drive | SW19 |
| Adjustable length | Infinitely adjustable |
| Breaking load | 5,900 kg |
| Weight approx. | 630.9 g per piece |
| Sales unit (SU) | 1 piece |

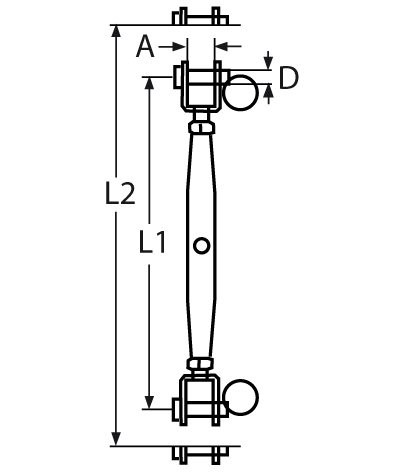

The dimensional letters (iB, iL, L1, L2, ø) correspond to the dimensional drawing shown in the product images. Dimensions and load specifications are manufacturer’s figures and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly if they come into contact with salt water.
Safety note: Break load and working load specifications apply only when correctly suspended axially on a single strand without spreading. The break load is not the permissible working load. This item is not intended for lifting loads or for use as personal protective equipment (PPE). Dimensions and load specifications are for information only.
