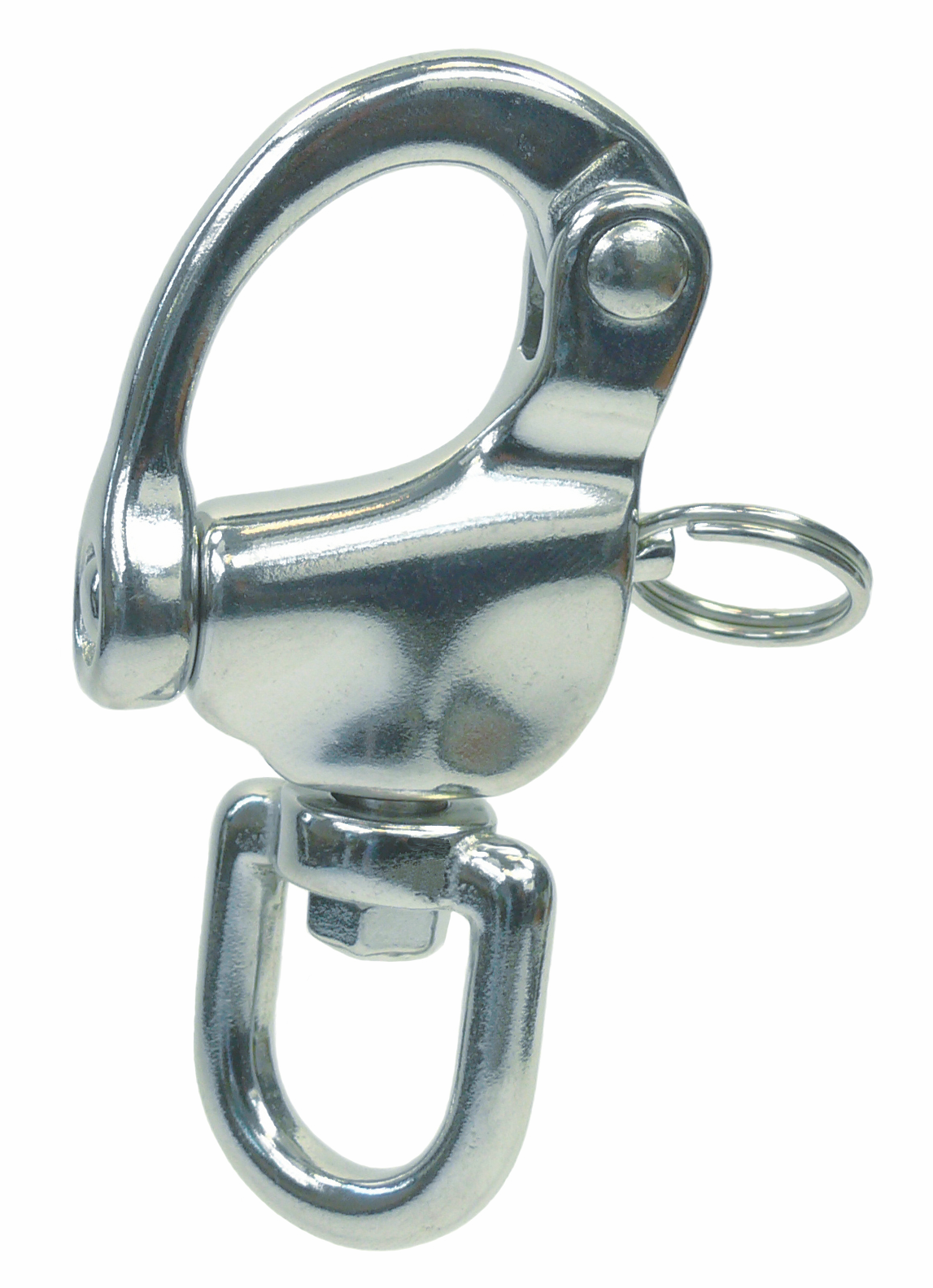

Snap shackle with swivel eye, 70 mm, V4A, pack of 5
Product information "Snap shackle with swivel eye, 70 mm, V4A, pack of 5"
Snap shackle with swivel eye, 70 mm, made from V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments due to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Material thickness Ø (ø): 5 mm
- Length (L): 70 mm
- Breaking load: 790 kg
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 pack = 5 pieces
Sold only as a whole pack (5 pieces). The packaging is not opened; the price applies per pack.
Technical data
| Material | V4A (A4) stainless steel – grade 1.4401 / AISI 316 |
|---|---|
| Material thickness Ø (ø) | 5 mm |
| Length (L) | 70 mm |
| Width (B) | 33 mm |
| Inner diameter (iD) | 12 mm |
| Inner diameter (iD1) | 13 mm |
| Breaking load | 790 kg |
| Weight approx. | 46.4 g per piece |
| Weight per pack approx. | 232 g |
| Sales unit (PU) | 5 pieces – sold only as a whole sales unit |

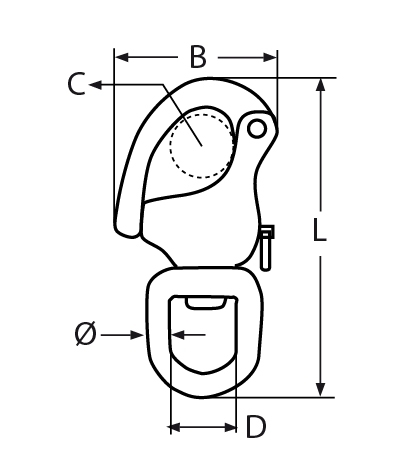

The dimensional letters (B, iD, iD1, L, ø) correspond to the dimensional drawing shown in the product images. Dimensions and load specifications are manufacturer’s figures and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly when in contact with salt water.
Safety note: Breaking load and working load specifications apply only when correctly suspended axially on a single strand without spreading. The breaking load is not the permissible working load. This product is not intended for lifting loads or as personal protective equipment (PPE). Dimensions and load specifications are non-binding.
Note: Questions about usage or larger quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
