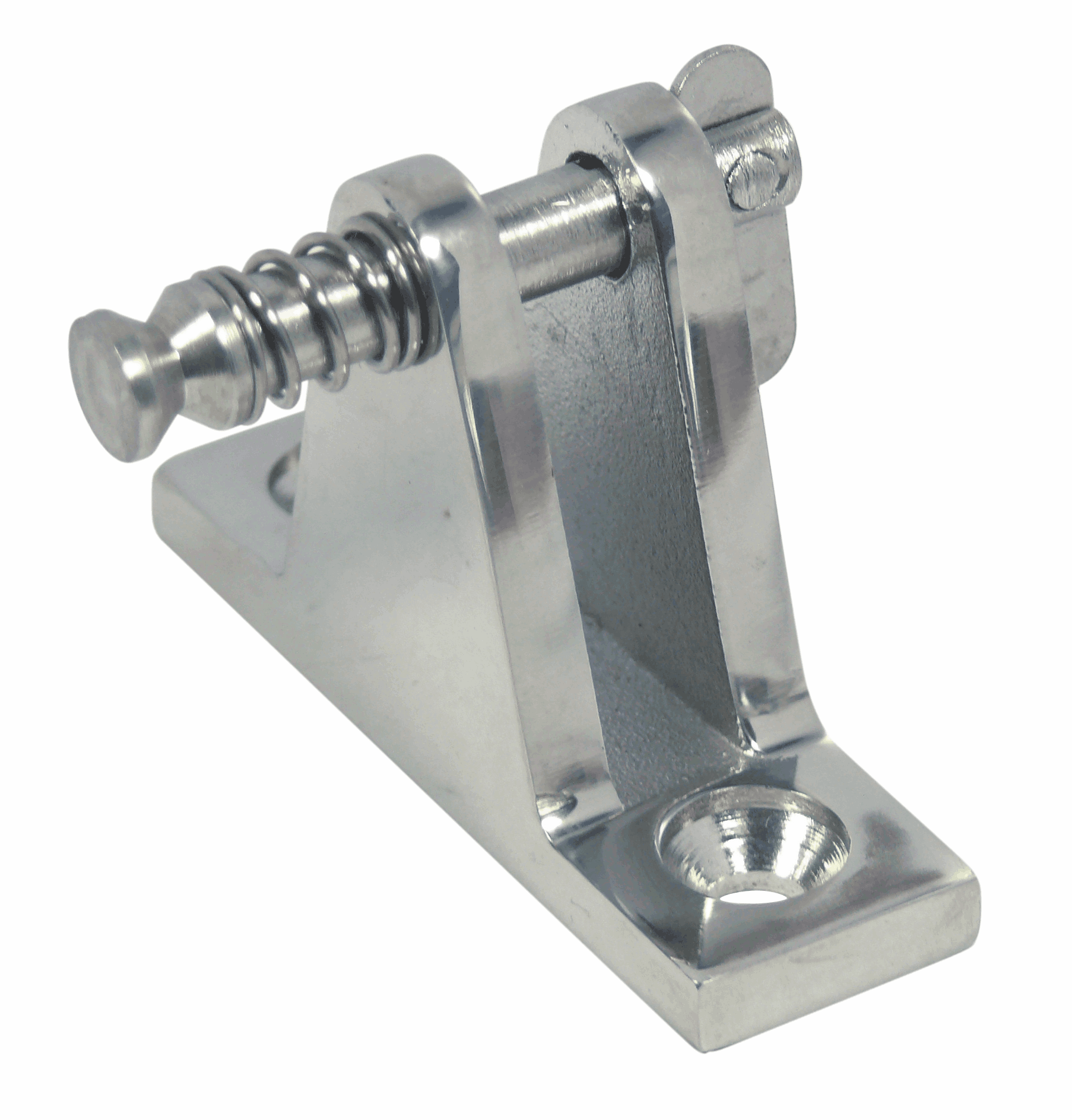

Soft-top fitting with hinged nose bolts, 60 x 18 mm, V4A, pack of 5
Product information "Soft-top fitting with hinged nose bolts, 60 x 18 mm, V4A, pack of 5"
Canopy fitting with hinged nose bolts, 60 x 18 mm, made from V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments due to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools.
- Material thickness Ø (ø): 6 mm
- Length (L): 60 mm
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 pack = 5 pieces
Sold only as a whole pack (5 pieces). The packaging is not opened; the price is per pack.
Technical data
| Material | V4A (A4) stainless steel – grade 1.4401 / AISI 316 |
|---|---|
| Material thickness Ø (ø) | 6 mm |
| Length (L) | 60 mm |
| Width (B) | 17 mm |
| Height (H) | 35 mm |
| Internal width (iB) | 7 mm |
| Bore diameter (BD) | 5.3 mm |
| Weight approx. | 82 g per piece |
| Weight per pack approx. | 410 g |
| Sales unit (PU) | 5 pieces – sold only as a whole pack |

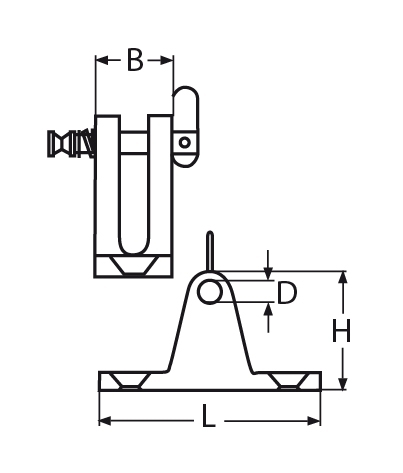

The dimensional letters (B, BD, H, iB, L, ø) correspond to the dimensional drawing shown in the product images. Dimensions and load specifications are provided by the manufacturer and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly or treated with care products, particularly if they come into contact with salt water.
