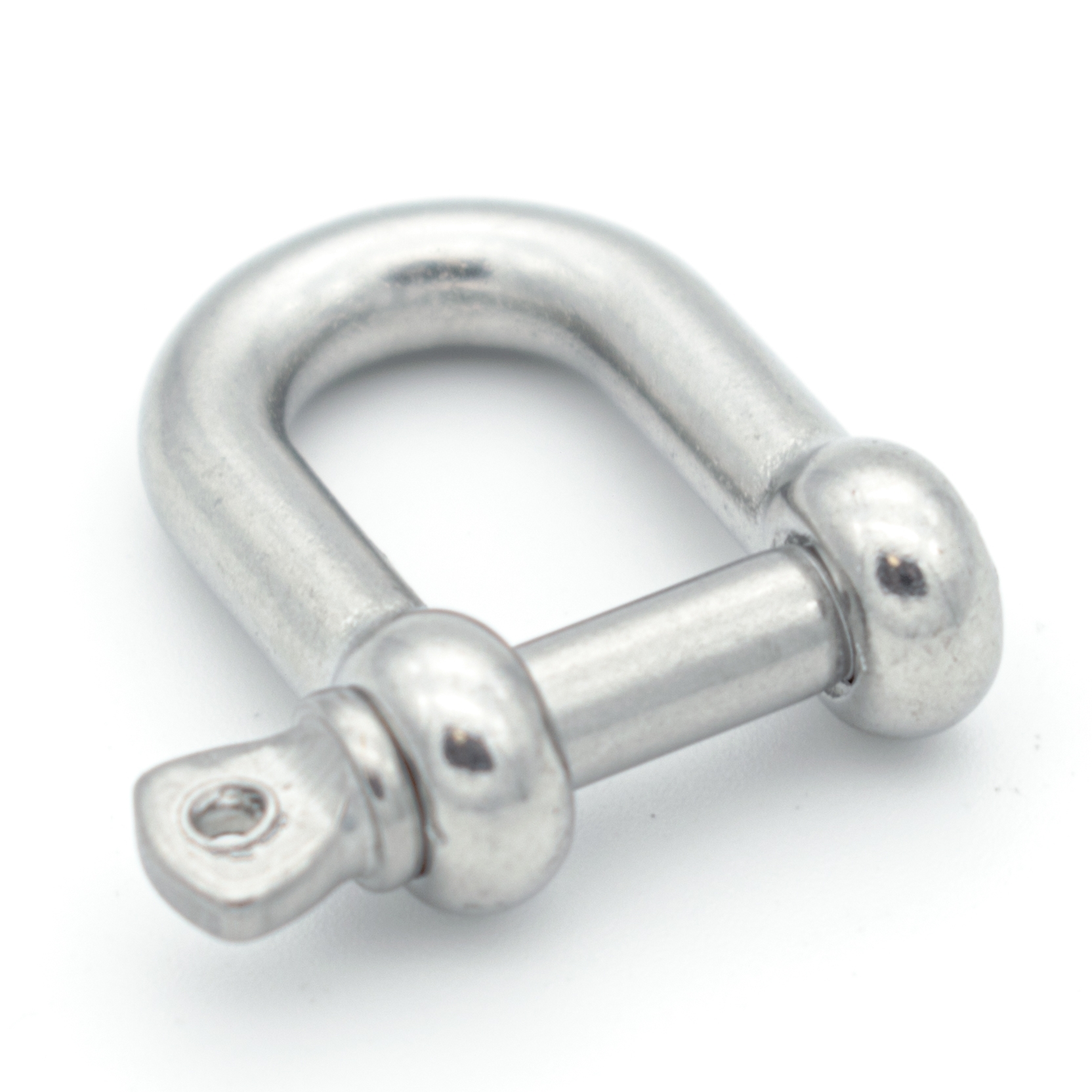

Round shackle 19 mm V4A
Product information "Round shackle 19 mm V4A"
19 mm round shackle made from V4A (A4) stainless steel – particularly resistant to salt water and chloride-containing environments due to its molybdenum content.
Applications: Marine fittings for sailing boats and motorboats, railings and structures in coastal areas, as well as pool construction and swimming pools. Also suitable for use in sports and leisure activities, e.g. camping, equestrian sports, water sports and the manufacture of play and sports equipment.
- Material diameter (ø): 19 mm
- Internal length (iL): 66.5 mm
- Breaking load: 16,000 kg
- Material: V4A (A4) stainless steel, grade 1.4401 / AISI 316
- Contents: 1 piece
Technical data
| Material | Stainless steel V4A (A4) – grade 1.4401 / AISI 316 |
|---|---|
| Material thickness Ø (ø) | 19 mm |
| Internal length (iL) | 66.5 mm |
| Internal width (iB) | 35 mm |
| Breaking load | 16,000 kg |
| Weight approx. | 780 g per piece |
| Sales unit (SU) | 1 piece |
The dimensional letters (iB, iL, ø) correspond to the dimensional drawing in the product images. Dimensions and load specifications are manufacturer’s specifications and are not binding.
Installation and care instructions: Stainless steel parts should be cleaned regularly and treated with care products, particularly if they come into contact with salt water.
Safety note: Breaking load and working load specifications apply only when correctly suspended axially on a single strand without spreading. The breaking load is not the permissible working load. This product is not intended for lifting loads or as personal protective equipment (PPE). Dimensions and load specifications are non-binding.
Note: Questions about usage or large quantities? WhatsApp: +49 176 25515110 or email: info@fenau.eu.
