Adjustable M18 door hinge, steel (unfinished) S235JR
FeNau GmbH
Stock:
56
Product number:
30.3530.7
EAN:
4251412917448
Weight:
0.52 kg
Description
Product information "Adjustable M18 door hinge, steel (unfinished) S235JR"
M18 hinge | adjustable | steel (uncoated) S235JR
[ Technical details ] S235JR steel, raw

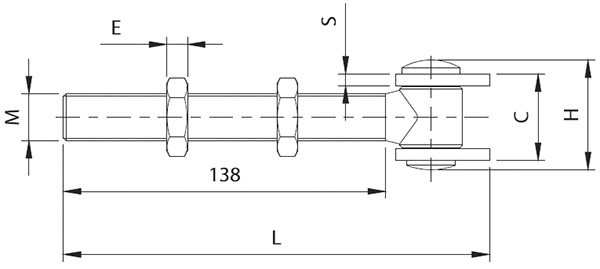

[ Specific details ] Eye bolt and pin hot-dip galvanised; Dimension A: 33 mm; Dimension B: 40 mm; Dimension C: 39 mm; Dimension E: 9 mm; Dimension G: 25 mm; Dimension H: 49 mm; Dimension L: 185 mm; Dimension M: M18; Dimension S: 6 mm; Load capacity per pair: 125 kg

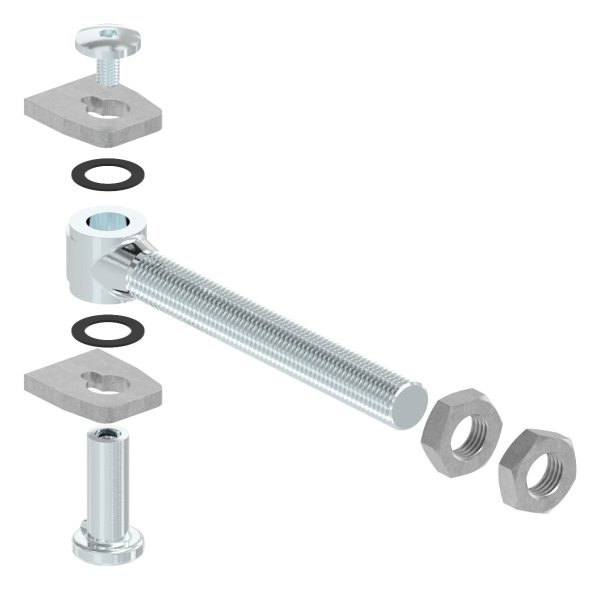

[ Further Specific Details ] Gate hinge with long thread, adjustable / Eye bolts and pins hot-dip galvanised / With 2x flat hex nuts and 2x washers / Pin rotation stop and locking screw
[ Application ] Position the gate hinge where required, adjust at the lower end of the eye bolt
Properties
| Gewinde : | M18 |
|---|---|
| Versand Gurtmasspflichtig: | Nein |
| Werkstoff: | Stahl roh |
