Grating step, slip resistance class R10

FeNau grating steps – robust, safe and durable

Our grating steps are the ideal solution for industrial, commercial and public applications. Thanks to high-quality S235JR steel and hot-dip galvanising in accordance with DIN EN ISO 1461, they offer maximum corrosion resistance and stability. The support bar running along the long side ensures high load-bearing capacity and safety in everyday use.

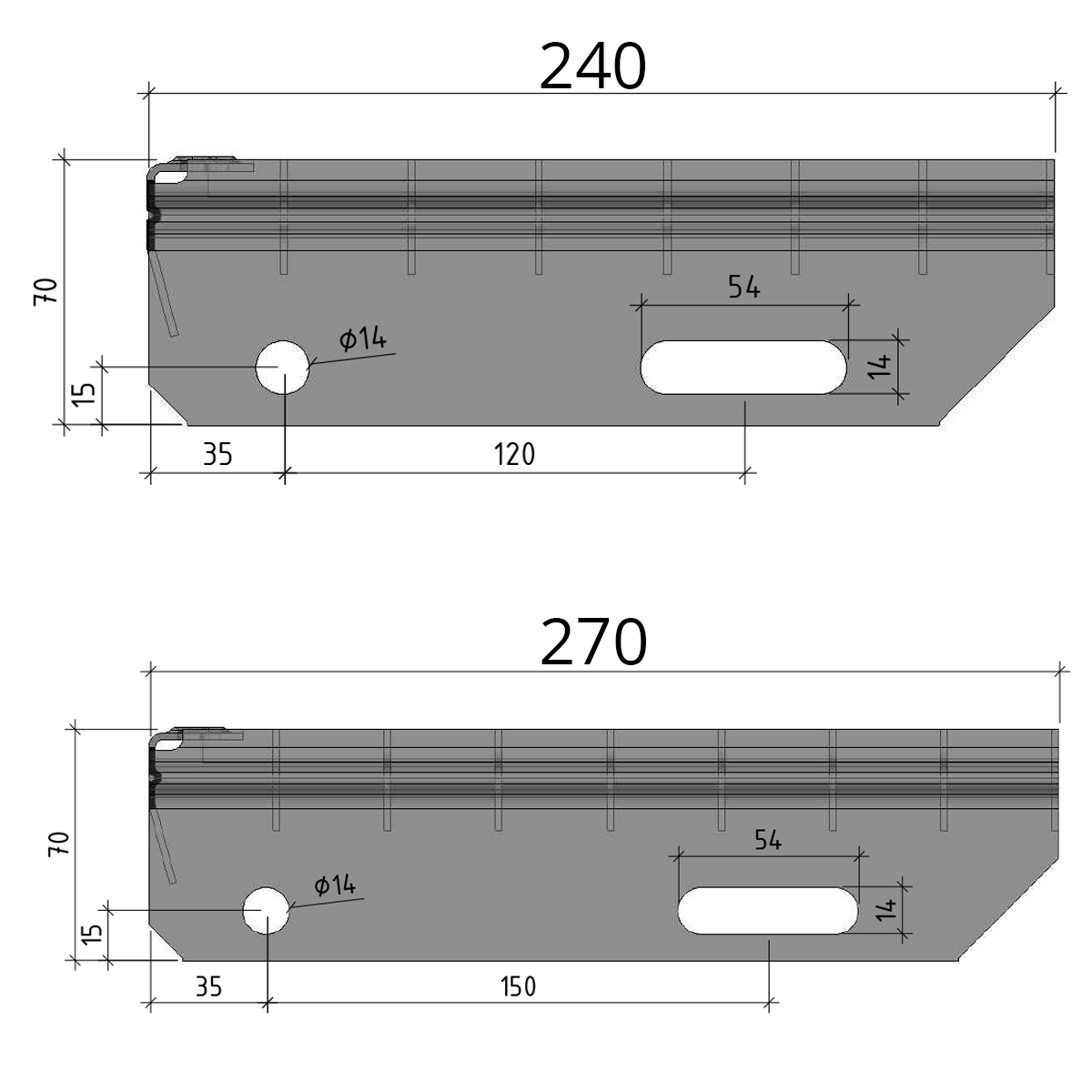

Technical details of the grating steps

• Material: S235JR (St37-2)
• Surface finish: Hot-dip galvanised in accordance with DIN EN ISO 1461
• Slip resistance: Class R10
• Construction: Support bar along the long side
• Load-bearing capacity: 1.5 kN on a 100 × 100 mm load cube
• Standard: Manufactured in accordance with DIN EN ISO 14122-3

Please note: Residues of galvanising in the mesh are a result of the manufacturing process and do not affect functionality.

Advantages and disadvantages of grating steps

Advantages:

• High load-bearing capacity: Resistant to heavy loads and intensive use.
• Slip resistance: Thanks to the R10 slip resistance rating, the steps remain safe even when wet or oily.
• Corrosion resistance: The hot-dip galvanised surface protects against rust and environmental factors.
• Durability: Robust material and high-quality workmanship ensure a long service life.
• Easy to clean: Dirt and water can drain away easily through the open structure.

Disadvantages:

• Visibility through to the bottom: The open design allows a view through to the bottom, which may be a disadvantage for some applications.
• Inconvenient with high-heeled shoes: Narrow heels may get caught in the mesh.
• No complete protection against small objects: Small items could fall through the openings.

Accessories for greater safety and comfort

To prevent objects from falling through or shoes from getting caught, we offer our grating covers as optional accessories. These covers not only improve safety but are also ideal for areas where animals or children are present.

Applications for grating steps

• Industry: Machine access points, maintenance platforms & industrial staircases.
• Commercial: Perfect for warehouses, production facilities & construction projects.
• Public areas: Safe access to facilities & emergency staircases.
• Outdoor areas: Weather-resistant for balconies & external staircases.

Order grating steps from FeNau now

Find the right grating step for your construction project. Contact us for a no-obligation consultation or order directly online – German quality to meet the highest standards!

Discover our high-quality grating steps in various designs:

• Grating step 1000x270 mm, 30/30 mm
• Grating step 1000x270 mm, 30/10 mm
• Other grating steps
