Suspended canopy

Suspended glass canopies combine structural safety with modern architecture. The visible bracing provided by stainless steel tension rods creates a delicate, technically clean appearance whilst offering high load-bearing capacity.

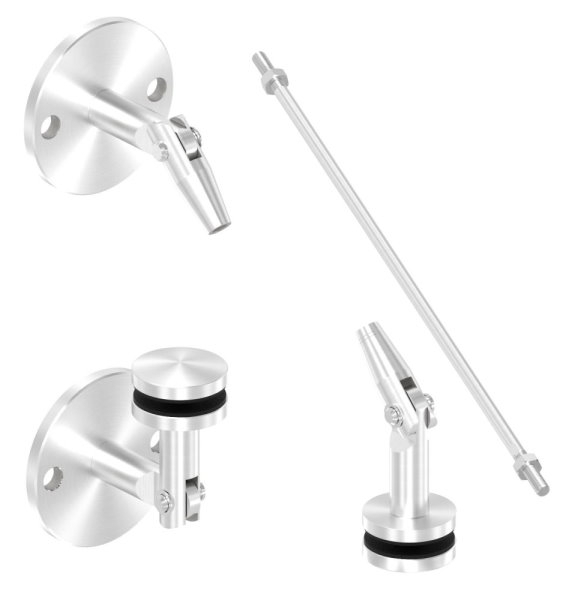

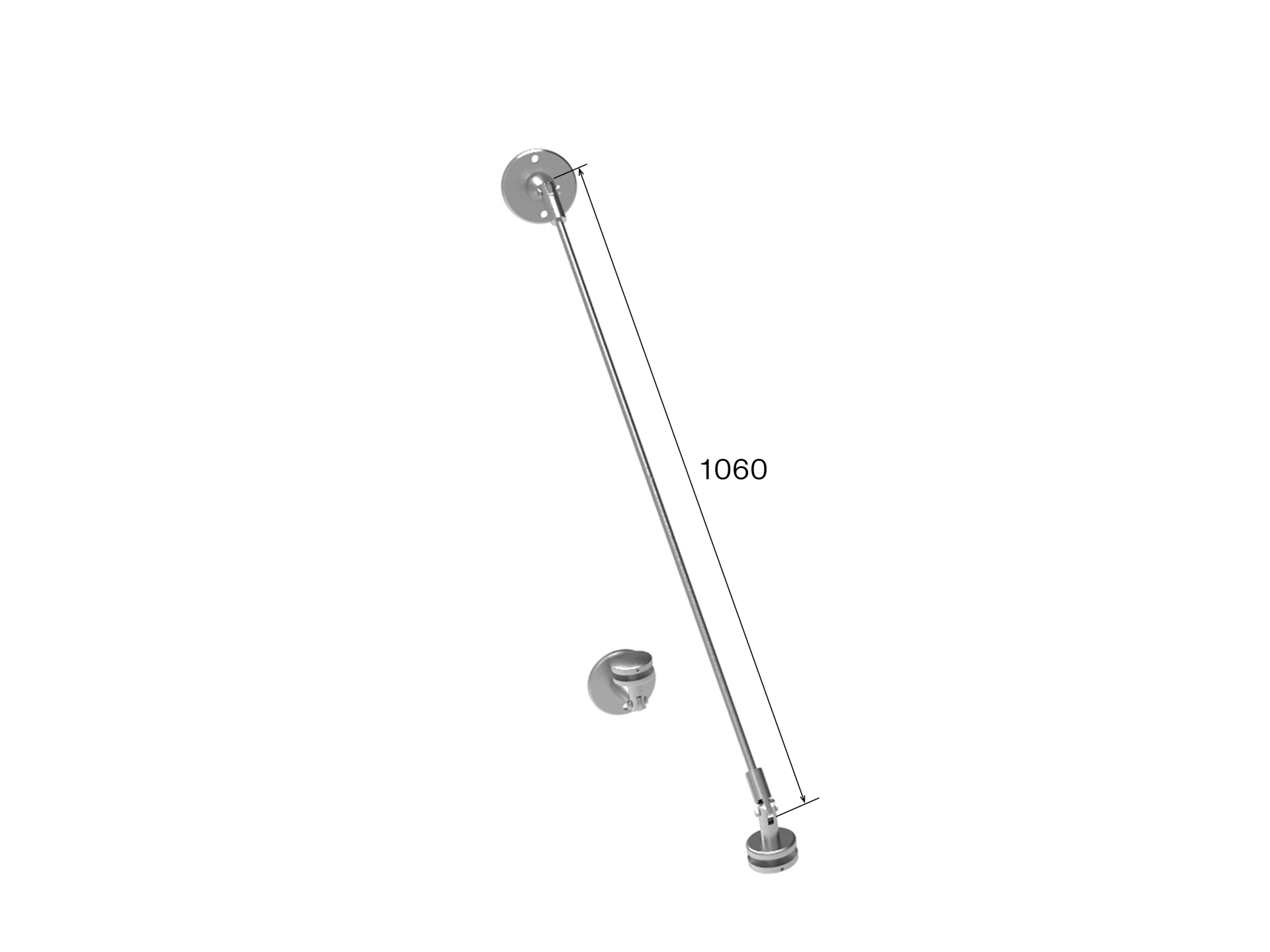

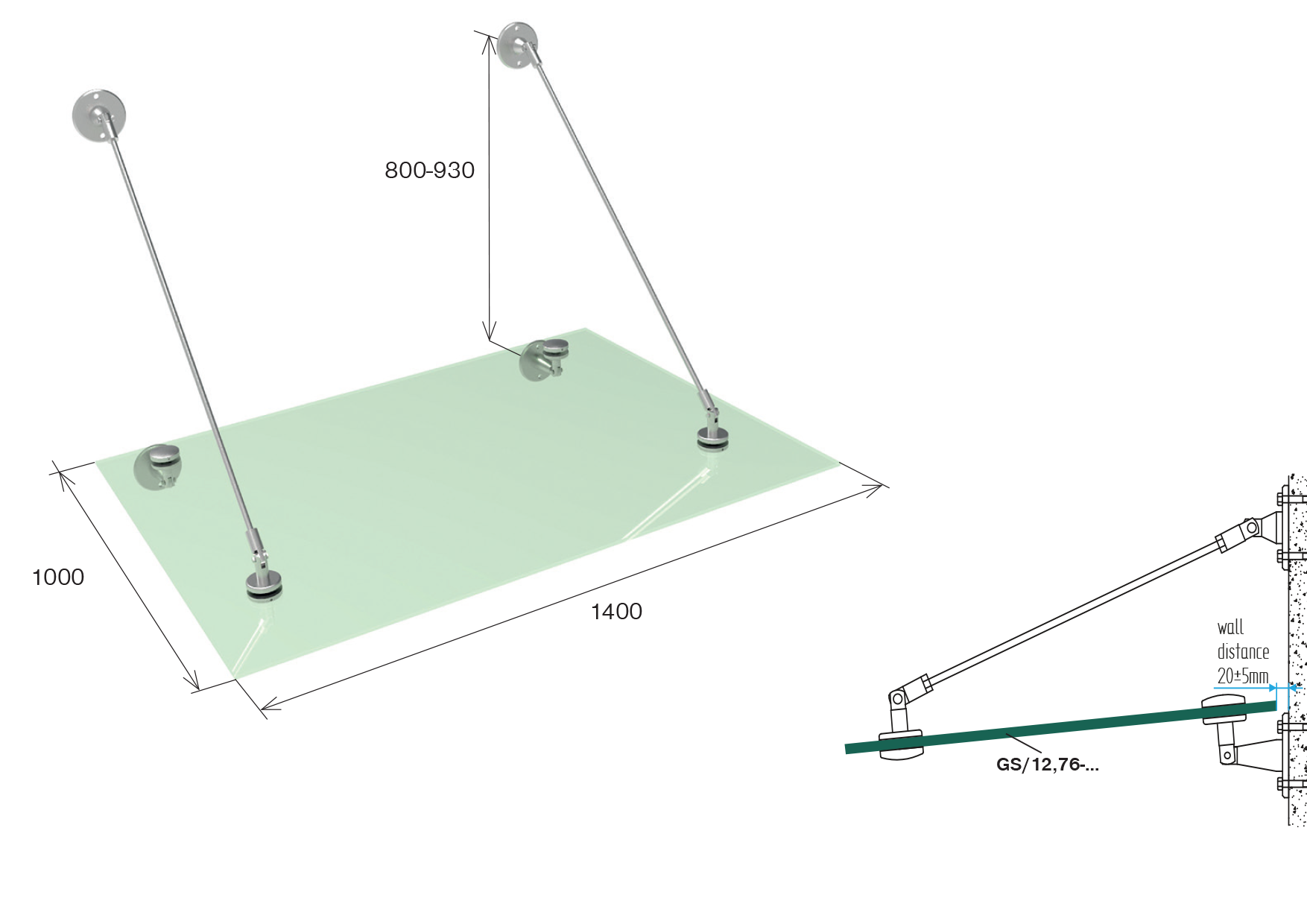

System structure of a suspended glass canopy

Unlike cantilevered canopies, the load is additionally transferred to the façade via tension rods or bracing systems. This makes the system particularly suitable for larger overhangs or demanding structural requirements.

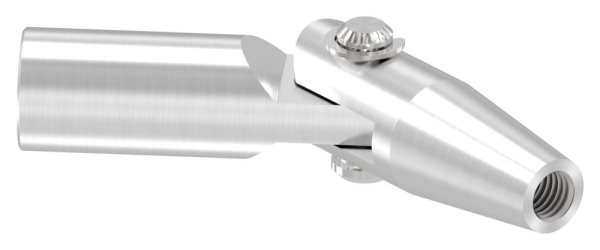

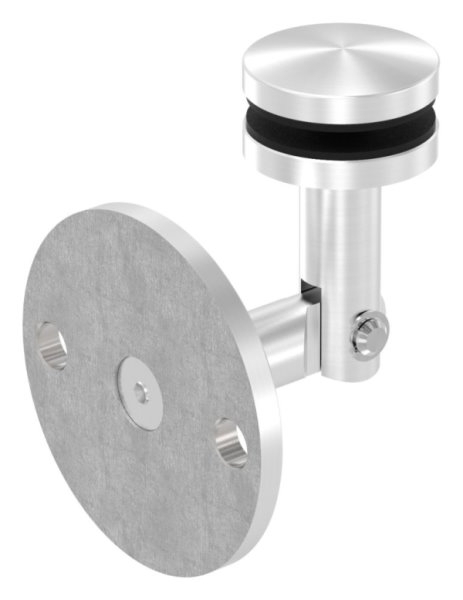

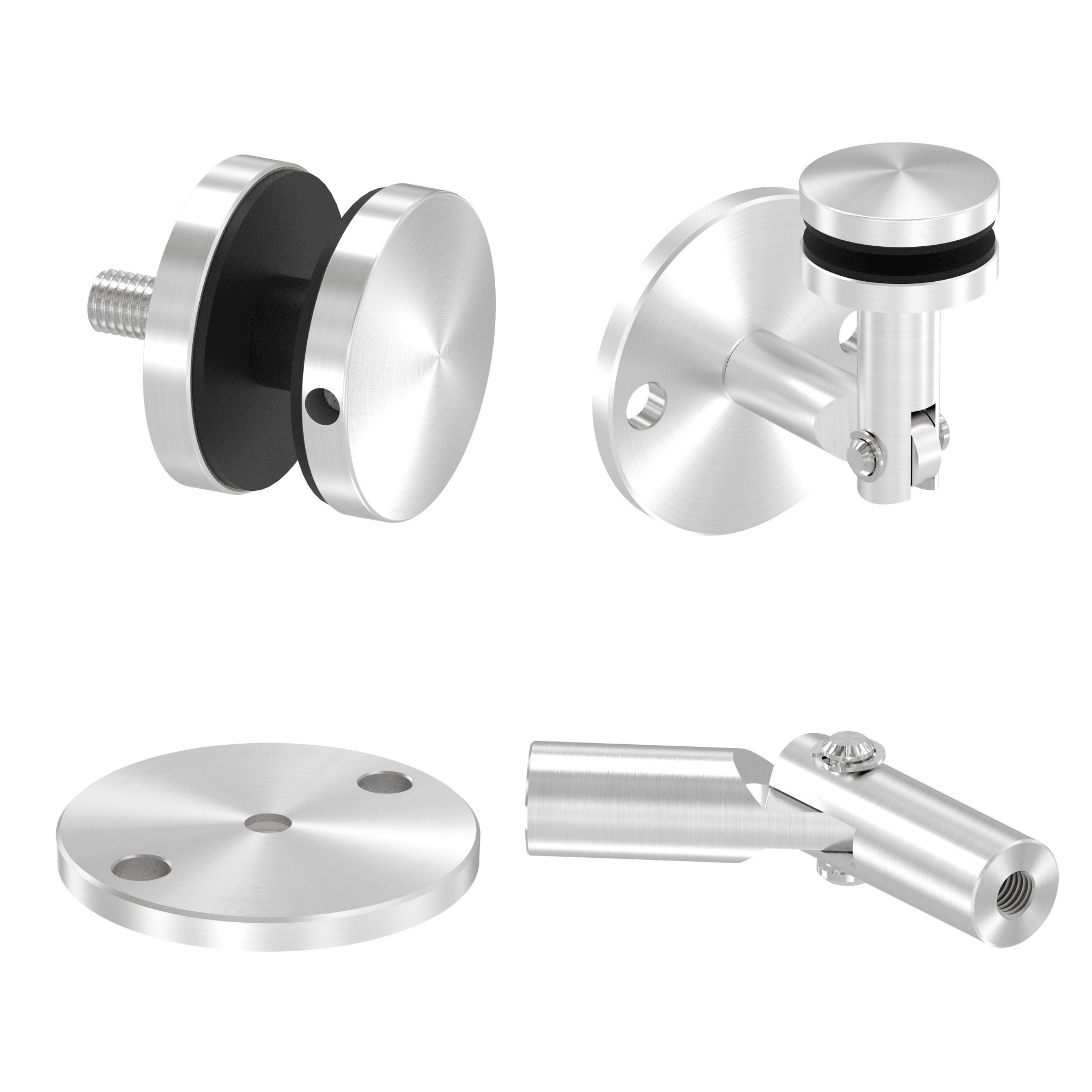

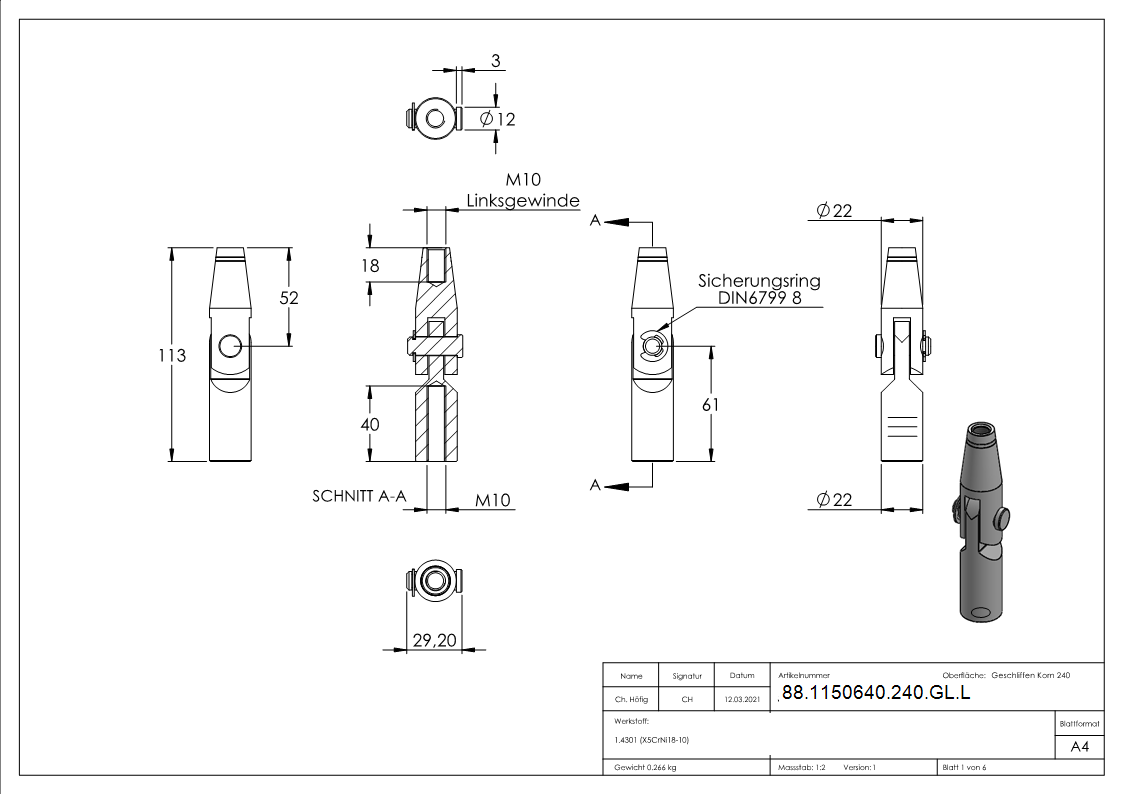

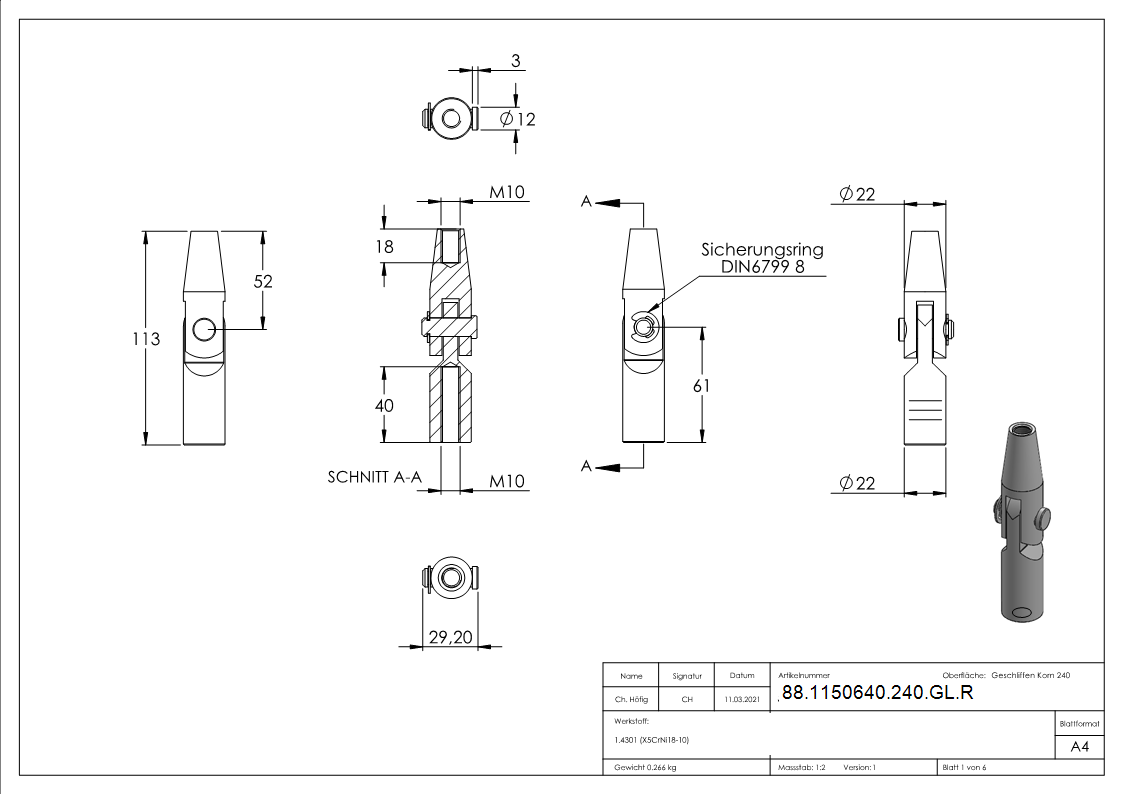

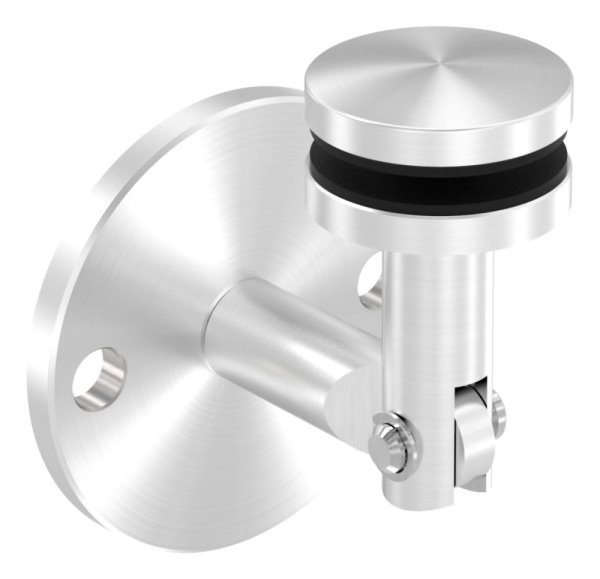

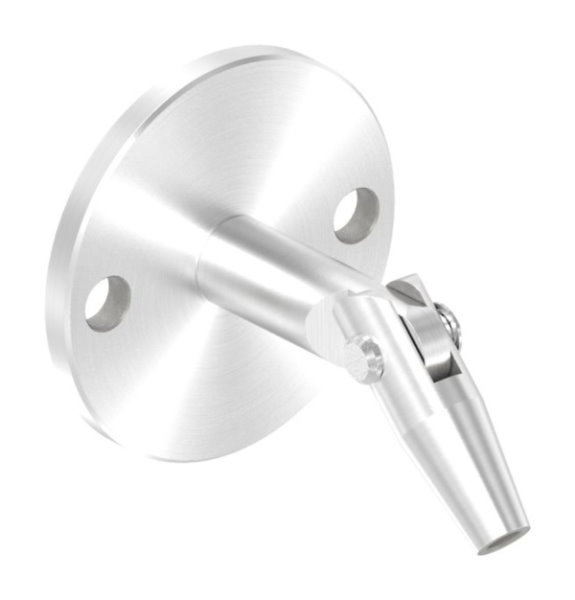

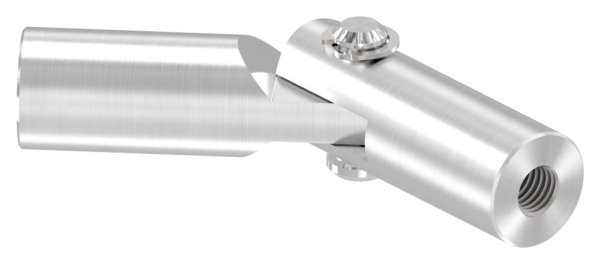

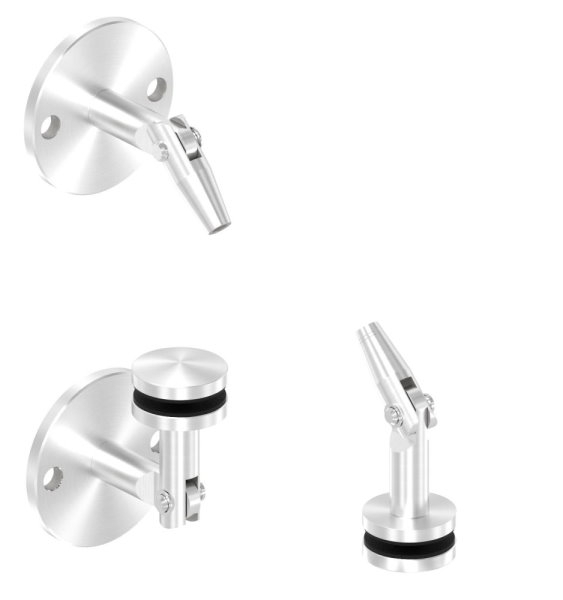

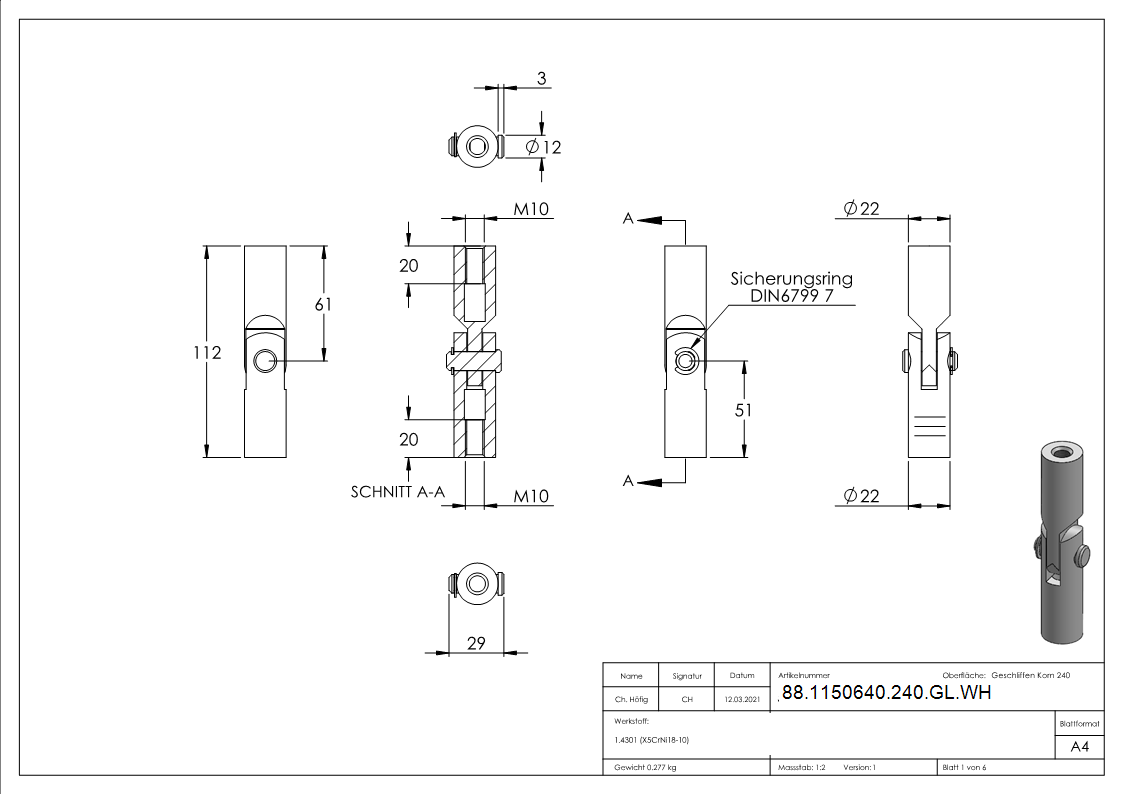

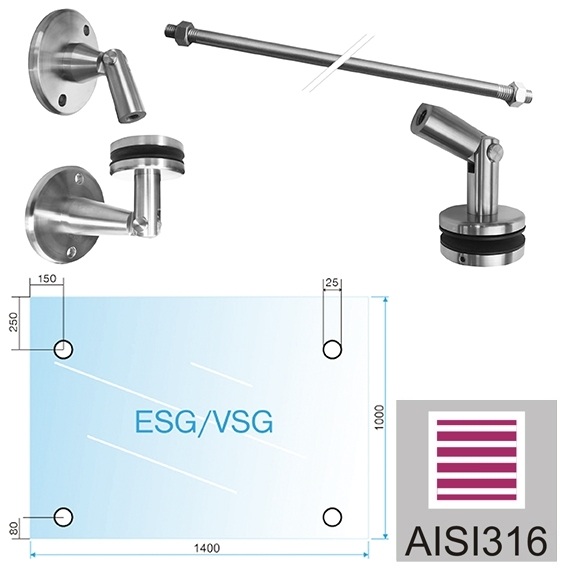

• Wall brackets and articulated wall brackets
• Tension rods in various lengths
• Glass point fixings Ø 52 mm
• Anchor plates for secure wall fixing
• System components in V2A or V4A stainless steel

Stainless steel components for long-lasting safety

The visible elements of a suspended glass canopy are made from high-quality stainless steel. Depending on the application, variants in V2A or V4A are available. These materials are corrosion-resistant, durable and ideally suited for long-term outdoor use.

Wall brackets, tension rods and glass point fixings together form a precisely coordinated system for secure overhead glazing.

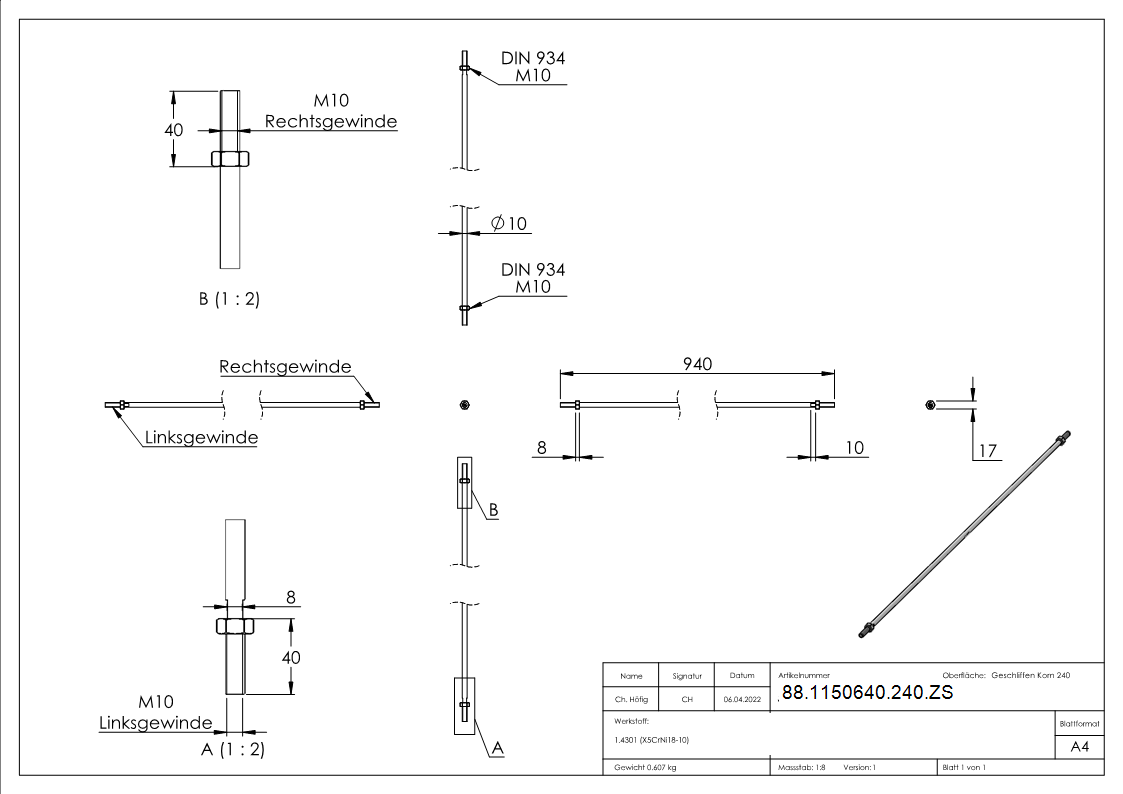

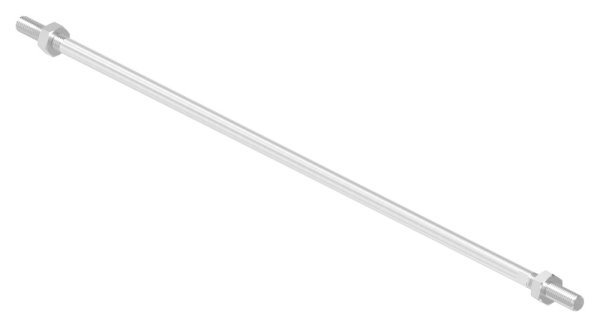

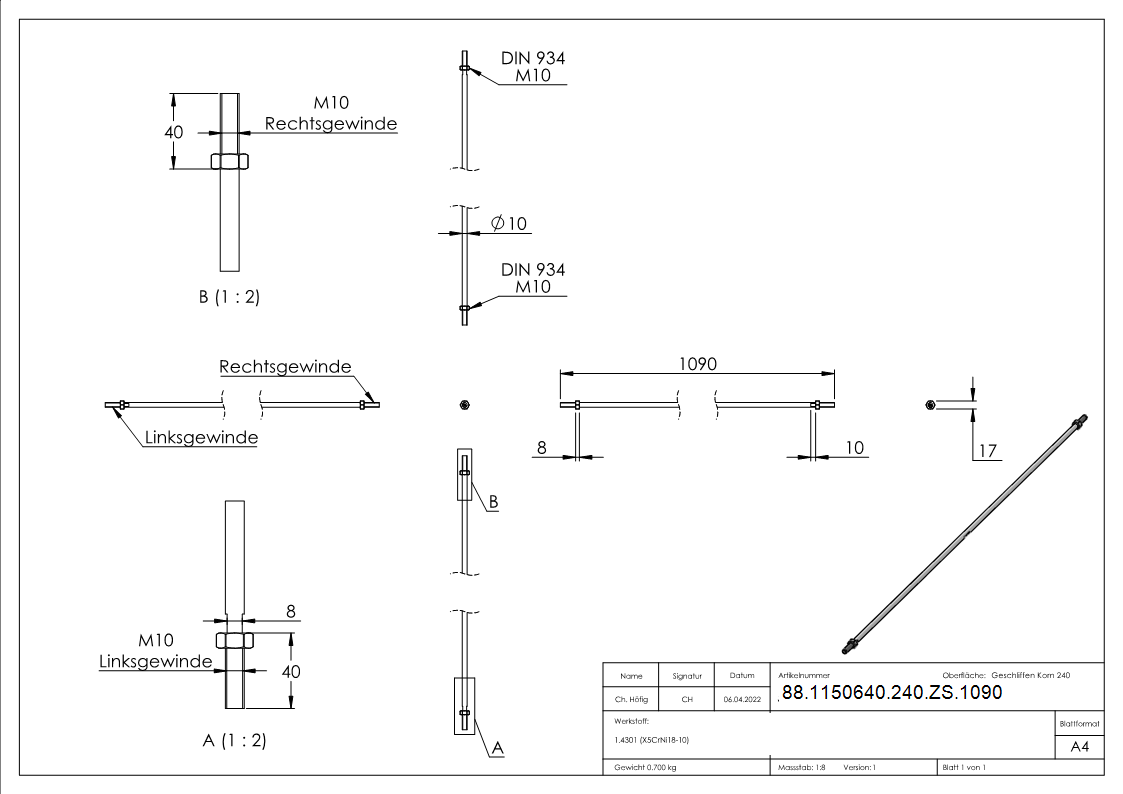

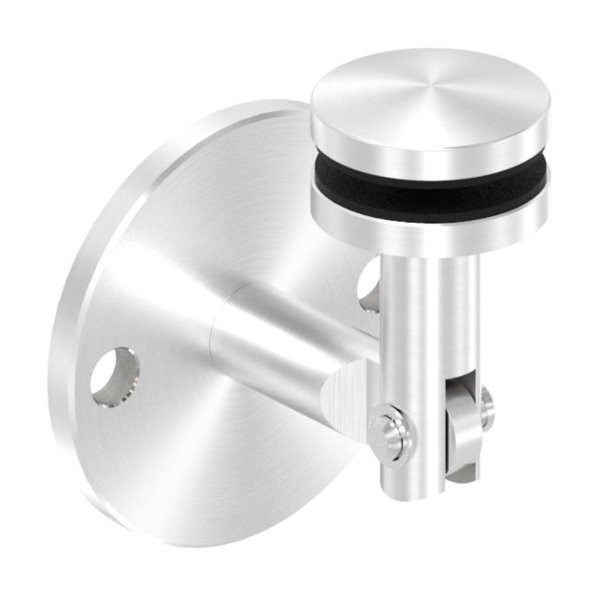

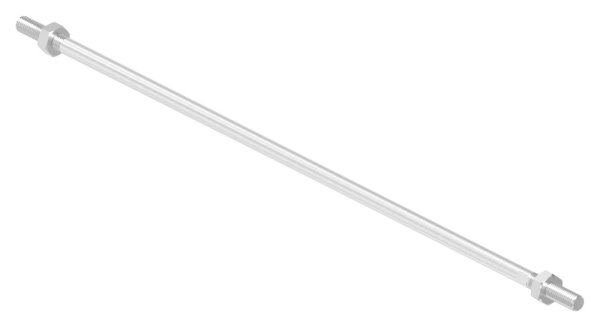

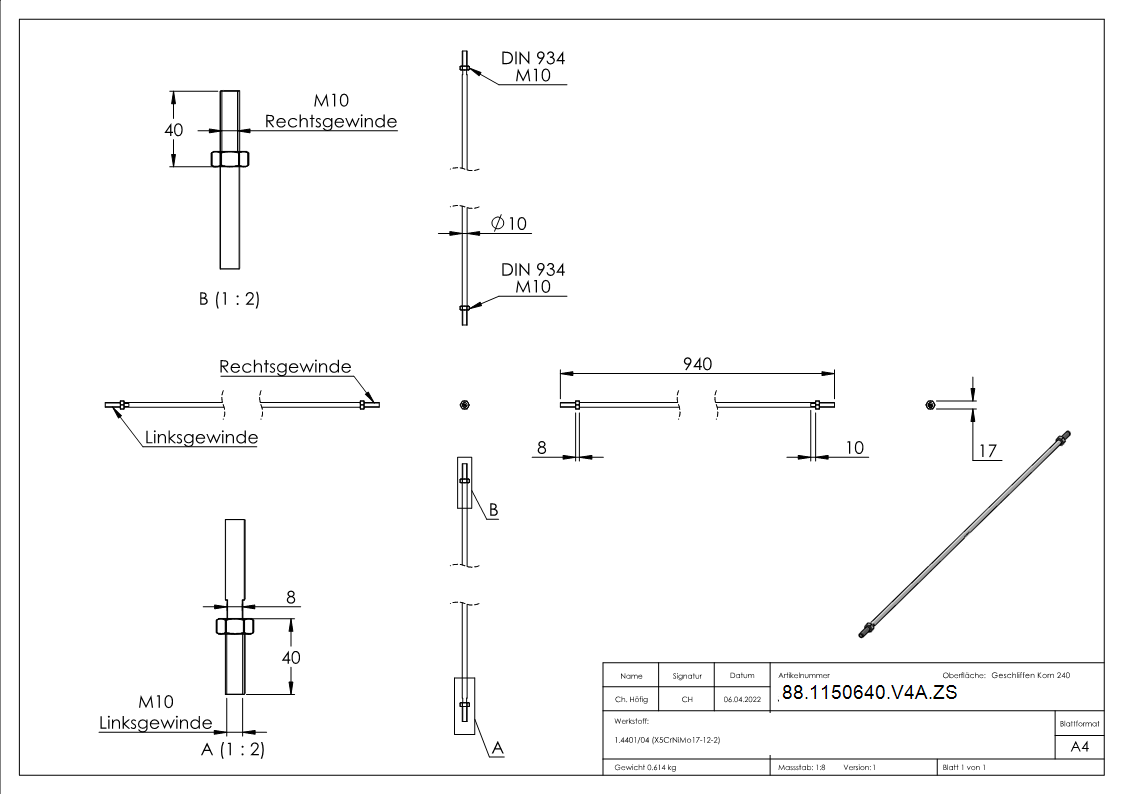

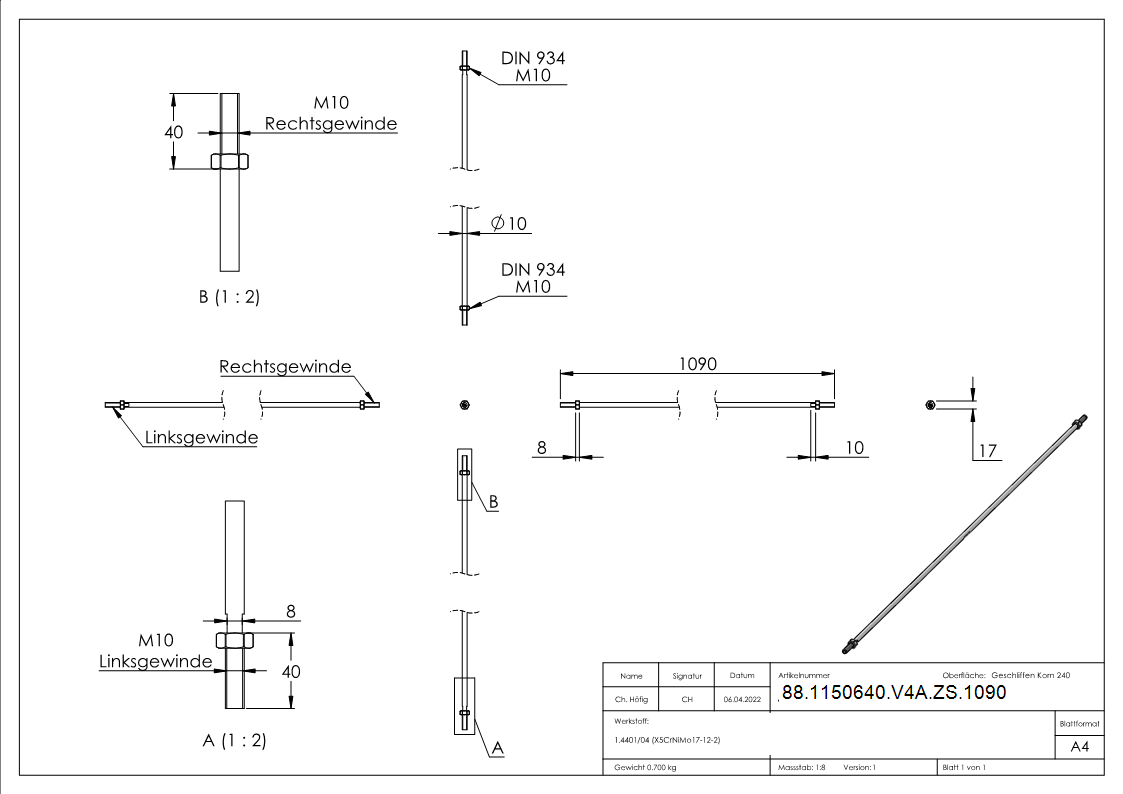

Tension rods and glass point fixings

The tension rods ensure controlled load distribution and stabilise the glass canopy against deflection. In combination with glass point fixings, the safety glass is securely fixed in place. The connection is made via defined articulation points, which allow for precise alignment.

Flexible system solutions

Suspended glass canopies can be configured to suit specific projects:

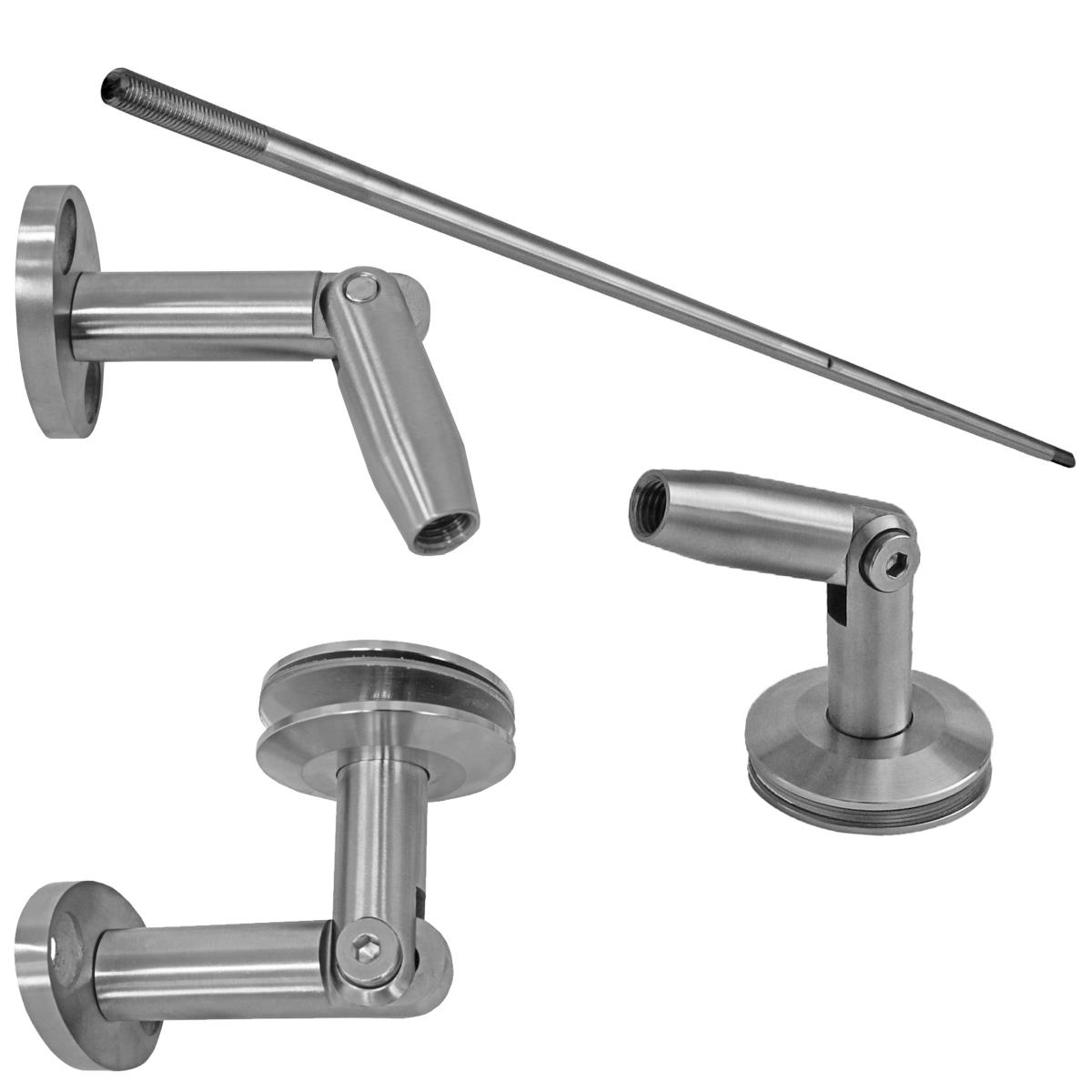

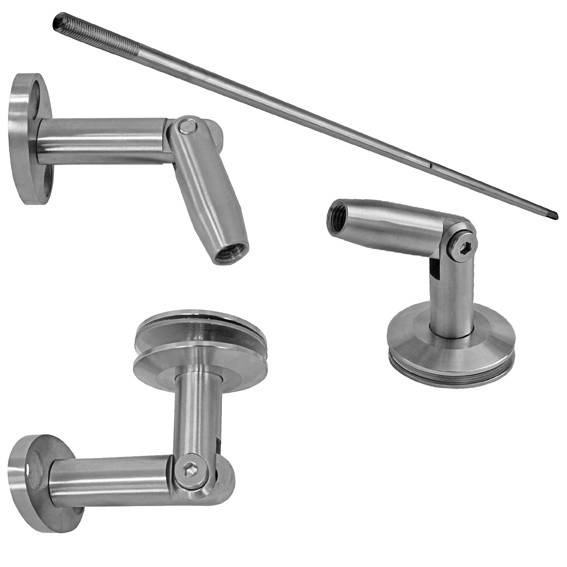

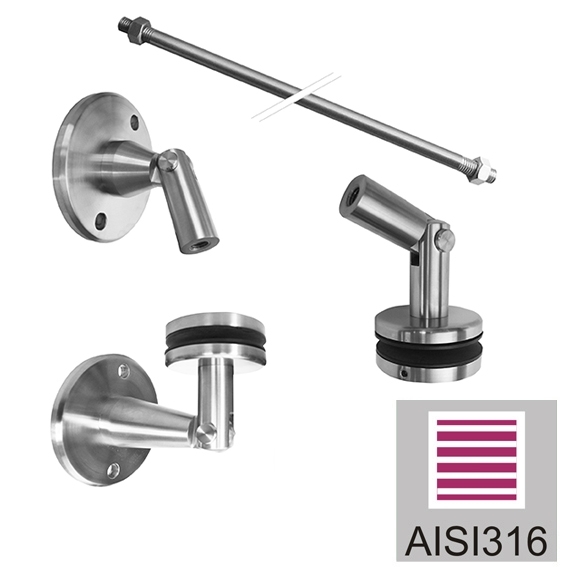

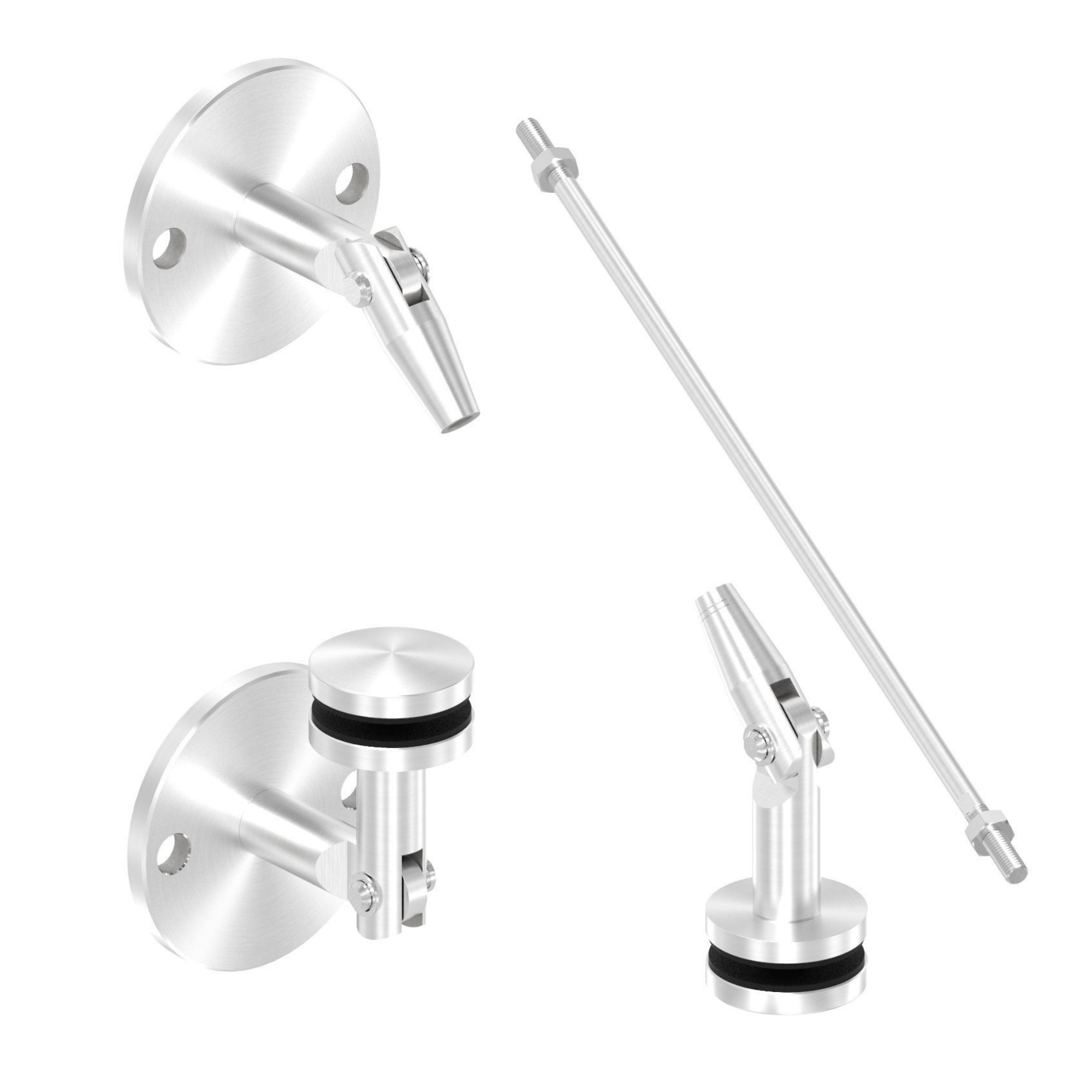

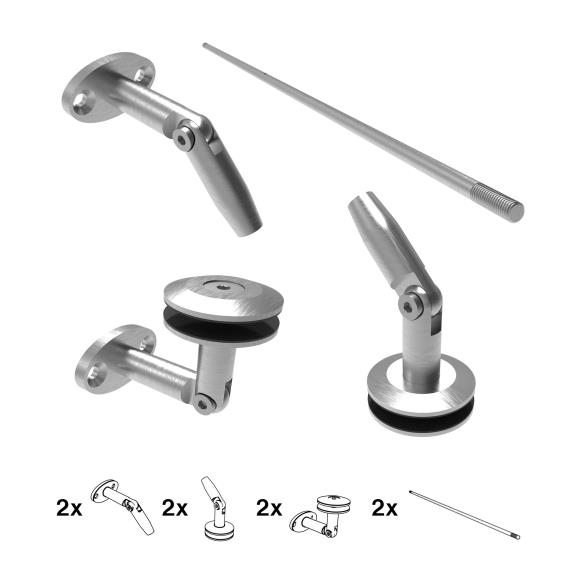

• Complete canopy systems
• Individual wall brackets and articulated brackets

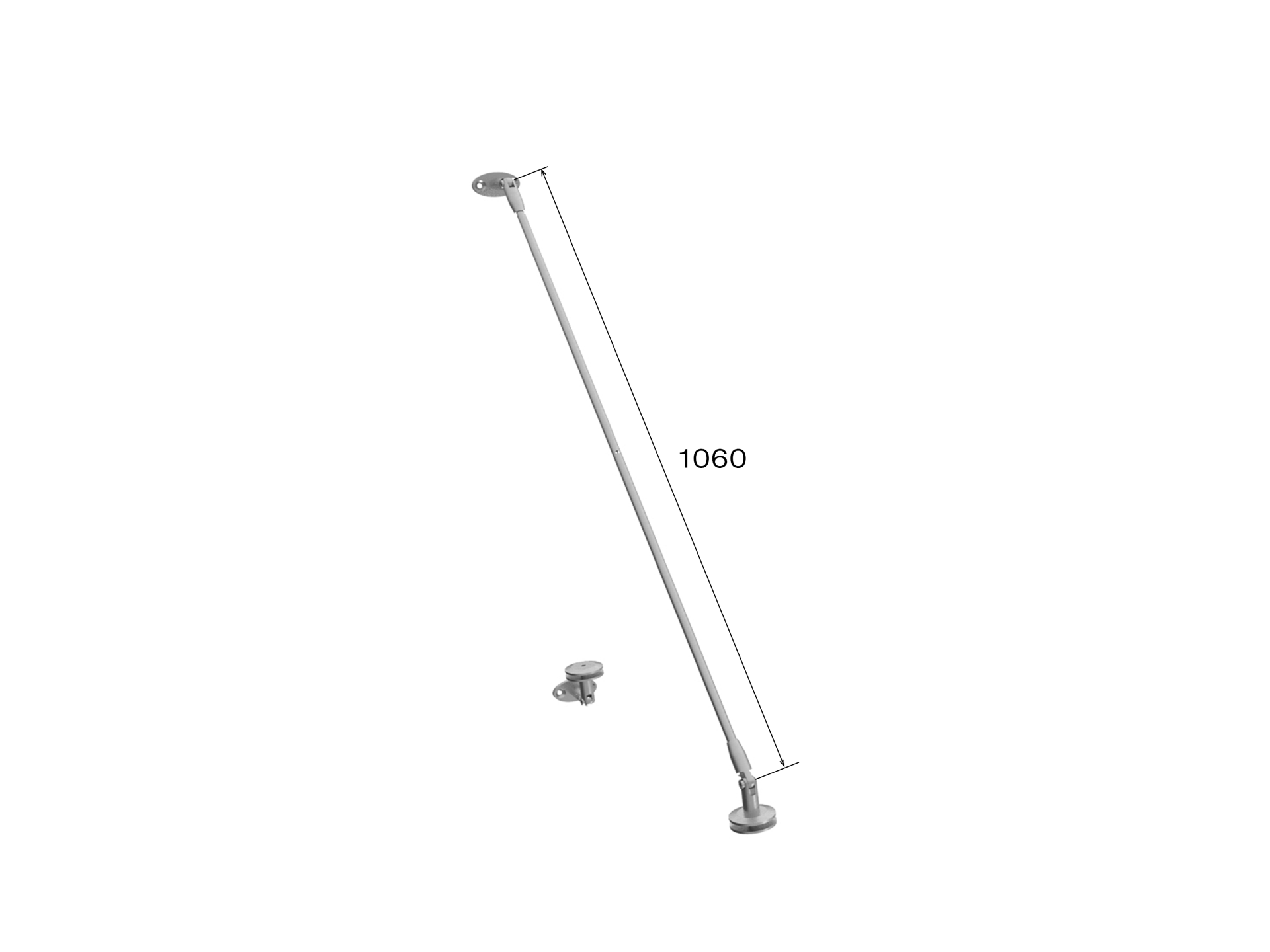

• Various tie-rod lengths
• Replacement or add-on parts

This makes the range suitable for both new-build projects and for replacement or extension solutions for existing glass canopies.

Technology and design in harmony

A suspended glass canopy appears light and transparent without compromising on stability. The visible stainless steel tension rods deliberately create design accents and lend the entrance area a high-quality, modern look.

Suspended glass canopies offer safe load-bearing capacity, durable stainless steel technology and architectural clarity – ideal for detached houses, blocks of flats and commercial properties.
