The versatile professional standard: Glass point holder Ø 52 mm (V2A / V4A)
When standard holders don’t fit, this is the one to use. Our Ø 52 mm glass point holder is the universal solution for metal construction. It bridges the gap between the delicate 40 mm holders and the heavy-duty 70 mm anchors.
Its strength lies in its enormous variety of connection options. This is one of the few holders on the market that is also available as standard for large tube diameters (48.3 mm). Thanks to its slightly larger plate diameter (52 mm), it also offers a generous contact surface and neatly covers glass drill holes of 22 mm.
One bracket for all pipes and walls
Configure the Ø 52 mm bracket exactly as your substructure requires. We supply three precise connection options:
The connection options
- Flat connection: The classic choice for concrete walls, masonry or square tubes.
- Ø 42.4 mm connection: A perfect fit for standard balustrade posts.
- 48.3 mm (1½ inch) connection: The professional size! Many standard brackets stop at 42 mm. This bracket fits perfectly onto the thicker 48.3 mm structural tubes, enabling particularly sturdy railings.
The materials
- V2A stainless steel (AISI 304): Our standard choice for long-lasting applications indoors and in normal outdoor environments.
- V4A stainless steel (AISI 316): The durable choice for coastal areas, swimming pools or areas with high levels of air pollution.

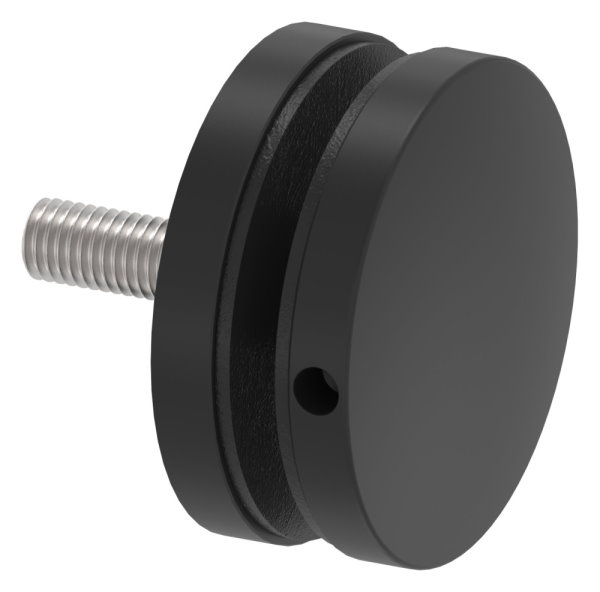

- Additional option: For specific design requirements, this bracket is also available in black (RAL 9005) on request.

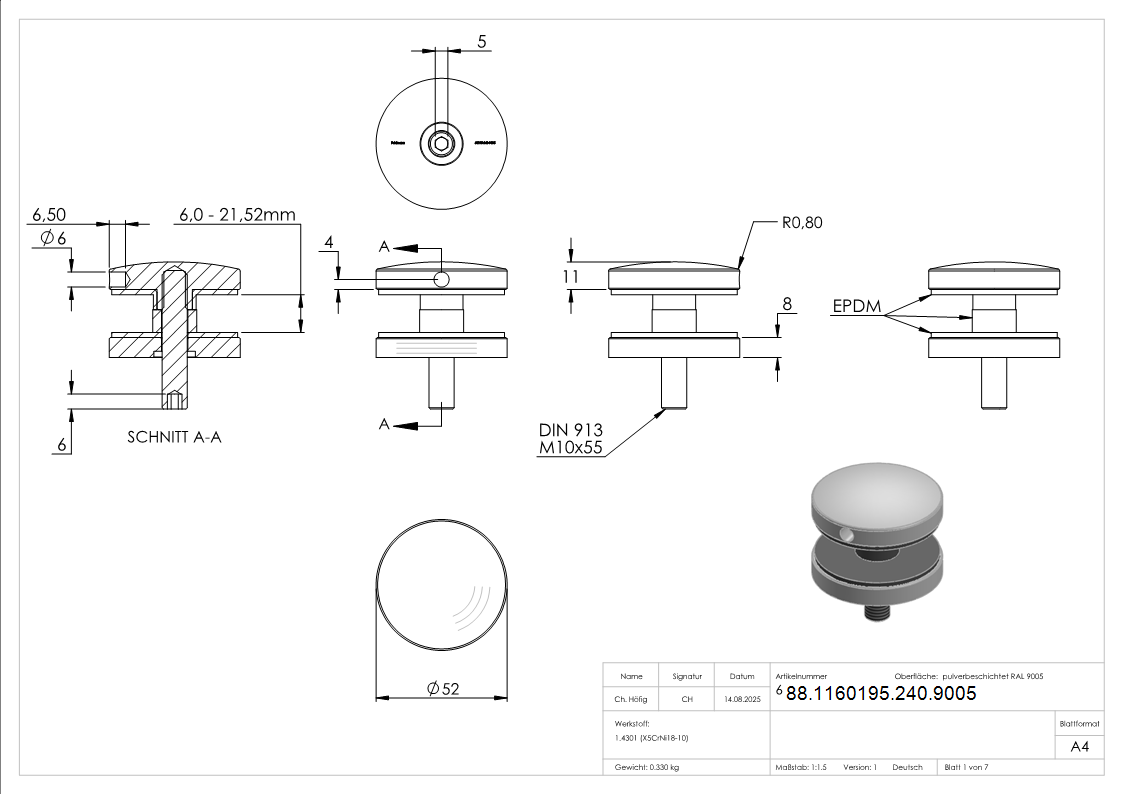

Technical details for your planning
This holder is designed for flexibility. It securely accommodates a wide range of glass thicknesses:
- Clamping range: 6.00 mm to 21.52 mm (covers toughened glass and thicker laminated safety glass).
- Required glass drill hole: 22 mm.
👨🔧 Expert advice: Calculations for those with specific requirements
Many of our customers use the Ø 52 mm bracket for custom designs (e.g. with threaded rods for large wall clearances). Please note: Due to its more robust construction and thicker rubber inserts, the calculation for the stud length differs from that of the smaller 30/40 mm brackets.
For the Ø 52 mm bracket, you must use this formula to determine the minimum length of the threaded pin:
= minimum length of threaded pin
Whether for 42 mm or 48 mm tubes, in V2A or V4A: with Fenau’s Ø 52 mm glass point holder, you have the right standard holder for every structural requirement at your fingertips.
