90-degree elbow (welded fittings, Type 5)
// 90° pipe elbow, Type 5 DIN, for generous pipe routing and secure connections.
Filter products
-
Pipe connector
- Ductile iron pipe fittings | T-pieces
- Ductile iron pipe fittings | Elbows
- Ductile iron pipe fittings | Cross pieces
- Ductile iron pipe connectors | Wall brackets / base plates
- Ductile iron pipe connectors | Handrails
- Ductile iron pipe coupler | Adjustable angle
- Ductile iron pipe couplings | Clamping rings / Flanges
- Ductile iron pipe couplings | Elbows
- Ductile iron pipe couplings | Extension pieces
- Ductile iron pipe couplings | Variable diameter
- Ductile iron pipe couplings | Accessories
-
Stainless steel components
- Plate holder
- Glass and panel holders
- Stainless steel glass holder
- Glass balustrades
- Glass point holder
-
Stainless steel balustrades
- Cover rosettes | Post covers
- Anchor plates
- Spacers
- Balustrade posts | Post fixings
- Handrail bracket
- Handrail supports
- Mounting plate
- Support pins for handrail brackets
- Carrying handle
- Cross-bar bracket
- Pipe plug
- Post caps
- Klöpper-formed stainless steel bottoms
- Ronden
-
Pipe bends
- 90-degree elbow (welded fittings, Type 3 DIN)
- 45-degree elbow (welded fittings, Type 3 DIN)
- 180-degree elbow (welded fittings, Type 3 DIN)
- 90-degree elbow (welded fittings, Type 2 DIN)
- 90-degree elbow (welded fittings, Type 5)
- Pipe bends, special-angle fittings, welded fittings
- 90-degree elbow welded fittings
- T-piece welded fittings
- Connector, welded fittings
- Cross-piece welded fittings
- Connectors
- Decorative fittings
- Wall anchors | Floor anchors
- Clamping profile
- Glass and door systems
- LED handrail
- Balls | Cones | Cubes
- Stainless steel tubes | Bar stock
- Grooved pipes
- Push-fit fittings / End caps for grooved pipes
- Home | Garden
- Door construction | Door locks | Door handles
- Stainless steel cables | Wire rope clamps | Accessories
- Marine | Boat supplies
- Accessories | Screws | Adhesives
- Black Lane – Powder-coated stainless steel parts
- Sliding glass door
- BRENK-fix® Base Holder
- RAIL FIX Installation Guide
-
wrought iron
- Caps
- Anchor plates
- Weld-on strips
- Weld-on brackets
- Baroque programme
- letters
- Drive-in plug
- Flat-rolled steel, unworked
- Handrail brackets + accessories
- House numbers
- balls
- Plastic handrails
- Rings | Crosses
- Ronden
- Locks | Door handles | Other accessories
- Bar stock
- pipe bend
-
Door hinges
- Gate hinge with welded sleeve
- Door hinge with slotted plate
- Door hinge with a long thread
- Door hinges, 4-way adjustable
- Self-closing gate hinges
- Threaded sleeves for gate hinges – spares & accessories
- with a weld-on plate
- Up-and-over door fittings
- Adjustable wall plates for gate hinges
- Brass washers for hot-dip galvanised gate hinges
- Eye bolts, sold individually, for gate hinges
- for embedding in concrete
- with a hinged flap
- with a wall plate
- Fence posts
- fence posts
- Decorative strips
- Enamel and paints
- Blacksmithing Basic Line
-
Grating steps
-
Grating
- Light well grating, building standard grating
- Grating fixing
- Grating, grating for channels, suitable for vehicle traffic
- Industrial grating
- Press-welded grating
- Press-Podestroste mit Antrittskante
- Safety toe cap
- Door frames
- Boat jetty
- Custom-made grating
- SEPGRATE designer covers
- Pulverbeschichtung für Gitterroste
- GRP
-
Marine | Boat accessories
-
Sliding gate fittings
- Sliding gate fitting 0 | Gate weight per leaf up to 90 kg
- Sliding gate fitting 1 | Gate weight per leaf up to 200 kg
- Sliding gate fitting 2 | Gate weight per leaf up to 400 kg
- Sliding gate fitting 3 | Gate weight per leaf up to 600 kg
- Sliding gate fitting 4 | Gate weight per leaf up to 1200 kg
- Sliding gate fitting 5 | Gate weight per leaf up to 2000 kg
- Full range
- Fits all sizes 1 to 5
- Cast iron rollers for sliding gates
- Freitragende Schiebetore (Kragarm)
- Bodengeführte Schiebetore
- Torantriebe & Steuerung
- Zubehör Schiebetor
- Schlösser & Riegel
-
Sealing plugs and protective caps
- Aluminium fences and aluminium gates
- New arrivals
Filter products
Available, : Lieferzeit 5-10 Werktage
Available, : Lieferzeit 5-10 Werktage

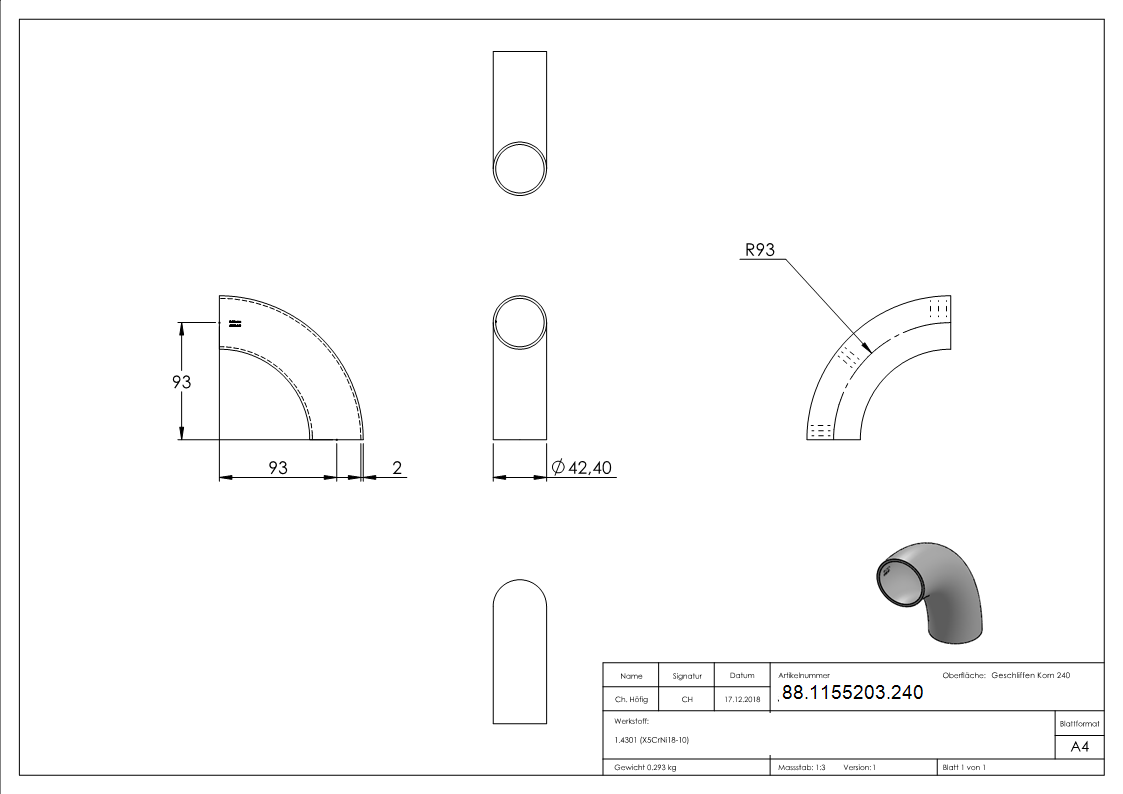

For optimised flow conditions and generous radii: Discover our 90° stainless steel pipe bends, Type 5 (DIN 2605 / EN 10253 Type 5D). These welded fittings are characterised by their particularly wide radius ($r \approx 2.5 \times d$) and minimise friction losses in pipework.
The geometry: Type 5 (Type 5D) explained
In contrast to the standard (Type 3), this elbow is significantly more elongated. This ensures smoother bends.
The radius comparison
- Type 3 (standard): $r \approx 1.5 \times d$ (e.g. for a 42.4 mm pipe = approx. 63.5 mm radius).
- Type 5 (shown here): $r \approx 2.5 \times d$ (e.g. for a 42.4 mm pipe = approx. 107 mm radius).
Planning note: This bend requires significantly more space during installation, but offers technical and aesthetic advantages in return.
When should Type 5 be used?
The wide radius is no coincidence, but fulfils specific technical requirements:
1. Fluid dynamics
The gentle curve drastically reduces flow resistance (zeta value). This means:
- Lower pressure loss in the pipe.
- Less turbulence and material erosion.
- Ideal for pneumatic conveying pipes (granules, powders) or high-speed systems.
2. Design & Architecture
Architects often use Type 5 as a stylistic device:
- Creates a ‘soft’, elegant line for handrails.
- Appears less technical/angular than the standard bend.
- Often used in high-end yacht railings or furniture designs.
Available versions
We offer Type 5 bends as welded fittings (for welding) in the following variants:
- Materials: V2A (1.4307) for standard applications and V4A (1.4404) for corrosive environments.
- Surface finish: Usually unpolished (industry standard). (If you require polished Type 5 bends, please enquire about these separately or check the product details.)
Please note: Due to the large radius and the amount of material used, Type 5 elbows are priced higher than standard elbows.
