Cross-bar end caps & bar holders | Stainless steel end caps

Querstabhalter V2A Edelstahl – Anschluss 42-4 mm fuer Rundstaebe 12 mm mit Sackloch Abschluss links inkl- Schrauben-11-1030.4

Stk

11.1030.4

Cross-bar bracket, V2A stainless steel – 42.4 mm connection for 12 mm round bars, with blind hole on the left, screws included

Available, : Lieferzeit 5-10 Werktage

£2.01*

Querstabhalter V2A Edelstahl – Anschluss FLACH passend fuer Rundstaebe 12 mm mit Sackloch Abschluss links inkl- Schrauben-11-1034.4

Stk

11.1034.4

V2A stainless steel cross-bar bracket – FLAT connection, suitable for 12 mm round bars with a blind hole on the left, screws included

Available, : Lieferzeit 5-10 Werktage

£2.01*

Querstabhalter V2A Edelstahl – Anschluss 42-4 mm fuer Rundstaebe 12 mm mit Sackloch Abschluss rechts inkl- Schrauben-11-1031.4

Stk

11.1031.4

Cross-bar bracket, V2A stainless steel – 42.4 mm connection for 12 mm round bars with a blind hole on the right, including screws

Available, : Lieferzeit 5-10 Werktage

£2.01*

Querstabhalter V2A Edelstahl – Anschluss FLACH passend fuer Rundstaebe 12 mm mit Sackloch Abschluss rechts inkl- Schrauben-11-1035.4

Stk

11.1035.4

V2A stainless steel cross-bar bracket – FLAT connection, suitable for 12 mm round bars with a blind hole on the right, screws included

Available, : Lieferzeit 5-10 Werktage

£2.01*

Stk

11.1641.4

V2A stainless steel crossbar bracket – End-mounted with 12.2 mm blind hole for 33.7 mm diameter tube, including screws

Available, : Lieferzeit 5-10 Werktage

£2.75*

Querstabhalter V2A Edelstahl – Anschluss FLACH passend fuer Rundstaebe 10 mm zum Verbinden -Stoss- inkl- Schrauben-11-1640.4

Stk

11.1640.4

V2A stainless steel cross-bar clamp – FLAT connection, suitable for 10 mm round bars for joining (end-to-end), including screws

Available, : Lieferzeit 5-10 Werktage

£2.75*

Querstabhalter V2A Edelstahl – Anschluss 33-7 mm fuer Rundstaebe 12 mm mit Sackloch Abschluss links inkl- Schrauben-11-1028.4

Stk

11.1028.4

Cross-bar bracket, V2A stainless steel – 33.7 mm connection for 12 mm round bars, with blind hole on the left, screws included

Available, : Lieferzeit 5-10 Werktage

£2.01*

89.11A100015014-A.4

Endkappe für Füllstab Edelstahl AISI 304 Ø 14 mm geschliffen

Available, : 1-3 days

£1.50*

Querstabhalter Edelstahl V2A Bohrung Ø 12-5 mm Anschluss Ø 33-7 mm zum Stossen-88-1150535-240.33

Stk

88.1150535.240.33

V2A stainless steel crossbar bracket – butt joint with 12.5 mm bore for 33.7 mm connection, including M6 screw (for handrail bracket mounting)

Available, : Lieferzeit 5-10 Werktage

£2.64*

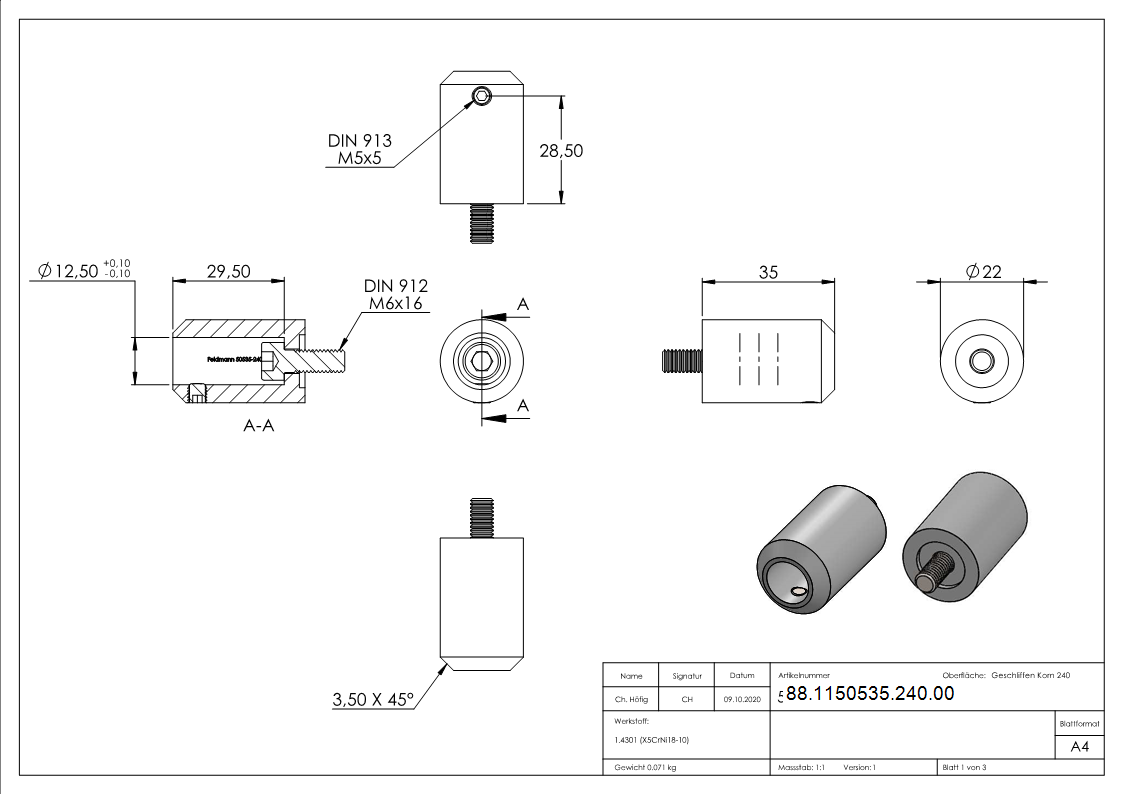

Querstabhalter Edelstahl V2A Bohrung Ø 12-5 mm flacher Anschluss geschliffen Korn 240-88-1150535-240.00

Stk

88.1150535.240.00

V2A stainless steel crossbar bracket – butt joint with 12.5 mm bore for FLAT connection, including M6 screw (for handrail bracket mounting)

Available, : Lieferzeit 5-10 Werktage

£2.64*

89.11A100015012L-A.4

Endkappe Kugel Edelstahl AISI 304 für Füllstab d12, Ø 15 mm Glanz

Available, : 1-3 days

£1.17*

Querstabhalter V2A Edelstahl – Stirnseitige Montage mit Sackloch 12-2 mm fuer Rohr Ø 42-4 mm inkl- Schrauben-11-1642.4

Stk

11.1642.4

V2A stainless steel cross-bar bracket – End-mounted with 12.2 mm blind hole for 42.4 mm diameter tube, including screws

Available, : Lieferzeit 5-10 Werktage

£2.75*

89.11A100015016L-A.4

Kugelendkappe für Füllstab Edelstahl AISI 304 Ø 16 mm Glanz

Available, : 1-3 days

£1.34*

Querstabhalter V2A Edelstahl – Anschluss 33-7 mm fuer Rundstaebe 12 mm mit Sackloch Abschluss rechts inkl- Schrauben-11-1029.4

Stk

11.1029.4

V2A stainless steel crossbar bracket – 33.7 mm connection for 12 mm round bars with a blind hole on the right-hand side, including screws

Available, : Lieferzeit 5-10 Werktage

£2.01*

Querstabhalter Edelstahl V2A Bohrung Ø 12-5 mm Anschluss Ø 42-4 mm geschliffen Korn 240-88-1150535-240.42

Stk

88.1150535.240.42

V2A stainless steel crossbar bracket – butt joint with 12.5 mm bore for 42.4 mm connection, including M6 screw (for handrail bracket mounting)

Available, : Lieferzeit 5-10 Werktage

£2.64*

Querstabhalter zum Stossen Edelstahl V4A Bohrung Ø 12-5 mm fuer Rohr Ø 42-4 mm-88-1150535-V4A.42

Stk

88.1150535.V4A.42

V4A stainless steel crossbar bracket – butt joint with 12.5 mm bore for 42.4 mm connection, including M6 screw (for handrail bracket mounting)

Available, : Lieferzeit 5-10 Werktage

£3.43*

89.11A100015010-A.4

Endkappe Edelstahl AISI 304 für Füllstab Ø 10 mm, D 15 mm, L 15 mm, zum Kleben

Available, : 1-3 days

£1.14*

89.11A100015016-A.4

Endkappe für Füllstab Edelstahl AISI 304 d16 L 21 D 18 H 6 mm Schliff

Available, : 1-3 days

£1.50*

Querstabhalter Edelstahl V2A Anschluss 48-3 mm Bohrung Ø 12-5 mm zum Stossen-88-1150535-240.48

Stk

88.1150535.240.48

V2A stainless steel crossbar bracket – butt joint with 12.5 mm bore for 48.3 mm connection, including M6 screw (for handrail bracket mounting)

Available, : Lieferzeit 5-10 Werktage

£2.64*

Querstabhalter V2A Edelstahl – Anschluss 33-7 mm fuer Rundstaebe 10 mm mit Sackloch Abschluss rechts inkl- Schrauben-11-1033.4

Stk

11.1033.4

Cross-bar bracket, V2A stainless steel – 33.7 mm connection for 10 mm round bars, with blind hole on the right, screws included

Available, : Lieferzeit 5-10 Werktage

£2.01*

Querstabhalter V2A Edelstahl – Anschluss 33-7 mm fuer Rundstaebe 10 mm mit Sackloch Abschluss links inkl- Schrauben-11-1032.4

Stk

11.1032.4

V2A stainless steel crossbar bracket – 33.7 mm connection for 10 mm round bars with blind hole on the left, screws included

Available, : Lieferzeit 5-10 Werktage

£2.01*

Querstab-Endhalter Edelstahl V2A fuer Rohr Ø 42-4 mm Sackloch Ø 10-2 mm links-88-1150399.240AL

Stk

88.1150399.240AL

Cross-bar end cap, V2A stainless steel – connection Ø 42.4 mm, suitable for 10 mm round bars, blind-ended, LEFT-HANDED, screws included

Available, : Lieferzeit 5-10 Werktage

£2.01*

Querstab-Endhalter Edelstahl V2A fuer Rohr Ø 42-4 mm Sackloch Ø 10-2 mm rechts-88-1150399.240AR

Stk

88.1150399.240AR

Cross-bar end cap, V2A stainless steel – connection Ø 42.4 mm, suitable for 10 mm round bars, blind-ended, RIGHT-HANDED, screws included

Available, : Lieferzeit 5-10 Werktage

£2.01*

End caps for crossbar holders: The neat finish for your balustrade

A professional stainless steel balustrade is recognised by the details – and, above all, by how it finishes. Nothing looks more unfinished than an exposed rail end jutting sharply into the room.

With FeNau’s end caps (also known as end crossbar holders), you can create the perfect finish. These holders are not drilled through, but feature what is known as a blind hole. This means that the infill bar is pushed into the holder and ends there, out of sight. The result is a closed, hygienic and injury-proof surface.

Why ‘left’ and ‘right’?

You might be wondering: ‘Isn’t an end bracket just an end bracket?’ Not quite. To ensure a flawless finish, we distinguish between left-hand and right-hand end brackets.

The appearance of the fixing: The handrail is usually secured using a small grub screw. To ensure this screw is not unsightly (e.g. on top of the bracket) or collects water, its position is crucial.
Symmetry: By providing specific alignment for the left and right sides, we ensure that the clamping screws at both ends of the railing are always positioned in the same, inconspicuous place (usually at the bottom). This ensures a harmonious overall appearance.

The advantages of FeNau blind-hole brackets

Why should you avoid using simple plugs and opt for our solid end brackets instead?

🛡️ Safety

No sharp edges on the balusters are exposed. The risk of injury (e.g. to children’s hands or clothing) is eliminated.

✨ Cleanliness

As the end is sealed (‘blind hole’), no dirt, water or pests can get into the hollow holder.

💎 Design

The solid stainless steel cap provides a high-quality finish that looks far more elegant than a simple plastic cap.

💡 Selection guide: How do I order correctly?
Picture your railing.
For the post on the far left , you’ll need the “Left-hand end bracket”.
For the post on the far right , you’ll need the ‘Right-hand end bracket’.
Note: Always order according to the number of crossbar rows you have (e.g. for 5 crossbars, you’ll need 5 left-hand and 5 right-hand brackets).

Technical data

Design: Blind hole (closed on one side)
Variants: Left and right versions available
Material: V2A (AISI 304) or V4A (AISI 316) stainless steel
Surface finish: Sanded, 240-grit
Installation: Identical to the standard bracket (countersunk screw on the post)

Finish your project to perfection. A balustrade is only complete when every last millimetre is just right – with FeNau’s end crossbar brackets.
