Glass point holder, Ø 40 mm, stainless steel – Design & Support

Tip

Glaspunkthalter Ø 40 mm- V2A- Anschluss- Flach-10-5041-A.4

Stk

10.5041-A.4

Glass point holder, Ø 40 mm, V2A, connection: flat

Available, : 1-3 days

£4.38*

Glaspunkthalter Edelstahl V2A Ø 40 mm flach – Punkthalter-10-5041.4

Stk

10.5041.4

Stainless steel V2A glass point holder, Ø 40 mm, flat – point holder

Available, : Lieferzeit 5-10 Werktage

£5.48*

1 Paar Ersatzgummis fuer Glaspunkthalter Ø 40 mm – Gummieinlage - Dichtung-10-5041.0

Stk

10.5041.0

1 pair of replacement rubber inserts for glass holders (Ø 40 mm) – rubber insert & seal

Available, : Lieferzeit 5-10 Werktage

£0.68*

Glaspunkthalter-Oberteil Ø 40 mm- V2A-10-5041.4OT

Stk

10.5041.4OT

Glass holder top section, Ø 40 mm, V2A

Available, : Lieferzeit 5-10 Werktage

£3.85*

10.GPH40

Glass support, Ø 40 mm, for connection: flat – Ø 42.4 mm, V2A

Available, : Lieferzeit 5-10 Werktage

From £5.48*

Tip

Glaspunkthalter Ø 40 mm- V2A- Anschluss- Flach Klemmbereich bis 17-52 mm-10-5210-A.4

Stk

10.5210-A.4

Glass support bracket, Ø 40 mm, V2A, connection: flat, clamping range up to 17.52 mm

Available, : 1-3 days

£3.59*

10.5041UT

Glass support bracket, base Ø 40, height: 5–50 mm, V2A

From £2.89*

Stk

88.1160231.240

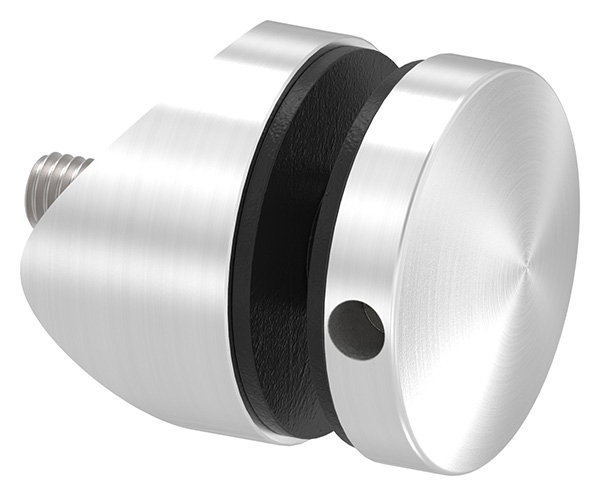

Glass support bracket, Ø 40 mm, V2A, connection: pipe Ø 42.4 mm

Available, : Lieferzeit 5-10 Werktage

£7.06*

Hakenschluessel fuer Glaspunkthalter Ø 40 mm-10-5004.4

Stk

10.5004.4

Hook wrench for glass point holders, Ø 40 mm

Available, : Lieferzeit 5-10 Werktage

£4.92*

89.11A0742FLEX1-A.4

Punkthalter Edelstahl AISI 304 D40 für Glas 8-17,52 mm, Loch Ø22 mm, FLEX1, flach

Available, : 1-3 days

£4.87*

The design favourite: Ø 40 mm glass spotlights in a complete set

Design is all about proportions. Our Ø 40 mm glass point holder is therefore the first choice for architects and builders who value a harmonious appearance. With its diameter, it aligns almost exactly with standard 42.4 mm balustrade posts – the result is a flowing, flush aesthetic that appears neither too delicate (like 30 mm) nor too bulky.

In addition, the 40 mm disc offers an enlarged clamping surface. This protects your glass through better pressure distribution and ensures greater stability during installation.

Everything included: our all-in-one, hassle-free set

To save you having to search for small parts on site, we supply this best-seller as a ready-to-install set as standard, comprising:

✅ 1x stainless steel body: Solid upper and lower sections (Ø 40 mm).
✅ 1x set of rubber pads included: The matching soft pads to protect the glass.
✅ 1x M8x45 threaded pin: The correct fastener is already included.

A wide range of connections for every situation

No matter what you’re attaching it to – we have the right connection. Simply select your option from the menu:

Flat connection: For straight walls, square tubes or masonry.
Pipe connection (for Ø 42.4 mm): With a radius on the back for a perfect fit on round balusters.

👨‍🔧 For those who like to customise: The calculation formula

Do you have a specific installation scenario, an unusual glass thickness, or would you like to customise the bracket? If you want to change the threaded pin or check the length, use our Fenau formula to determine the minimum length.

            B + glass thickness – 3.0 mm + allowance 15 mm

            = minimum length of threaded pin

Note: ‘B’ here refers to the dimension of the base body/threaded engagement (see technical drawing). This formula ensures that the pin engages deeply enough to guarantee full holding force.

Choose the 40 mm glass point holder from Fenau – available as a handy set for quick installation or as a flexible basis for your customised design.
