Cantilevered canopy

Modern, transparent, durable: cantilevered glass canopies for stylish entrances

A glass canopy is more than just protection from the elements: it is an architectural statement that enhances the entrance area , allows daylight to filter through and, at the same time, protects against rain, snow and falling debris. Anyone looking for a glass canopy usually wants precisely this combination: maximum light transmission, clean lines and a high-quality appearance – without bulky structures. Cantilevered glass canopies are particularly in demand, as they do not require visible support struts and therefore appear extremely ‘light’.

On this page, you’ll find all the key information you need to make the right choice when selecting a glass canopy: suitable types of glass, typical dimensions, useful accessories, installation guidance and practical tips to ensure your glass canopy not only looks good but also functions reliably and safely – for many years to come.

Why a glass canopy is a good choice

A glass canopy offers several advantages over enclosed canopies: it has a modern look, lets daylight into the entrance area and can be harmoniously integrated into both new builds and renovated existing buildings. The transparency really pays off, particularly with darker façades or narrow house entrances – the entrance area remains open and welcoming.

• Bright entrance area: Glass lets light through and prevents shadowed areas.
• Protection from the weather and dirt: protection against rain and splashing water, less dirt on the door and façade.
• Design upgrade: Clean lines, a timeless look, complementing modern doors and façades.
• Quality & durability: High-quality materials and tested systems ensure long-lasting stability.

Cantilevered glass canopies in particular impress with their uncluttered appearance: the load is supported by a slim wall profile, whilst the glass surface appears to ‘float’. This creates a minimalist, high-quality look – ideal if you’re looking for a glass canopy that blends discreetly into the architecture.

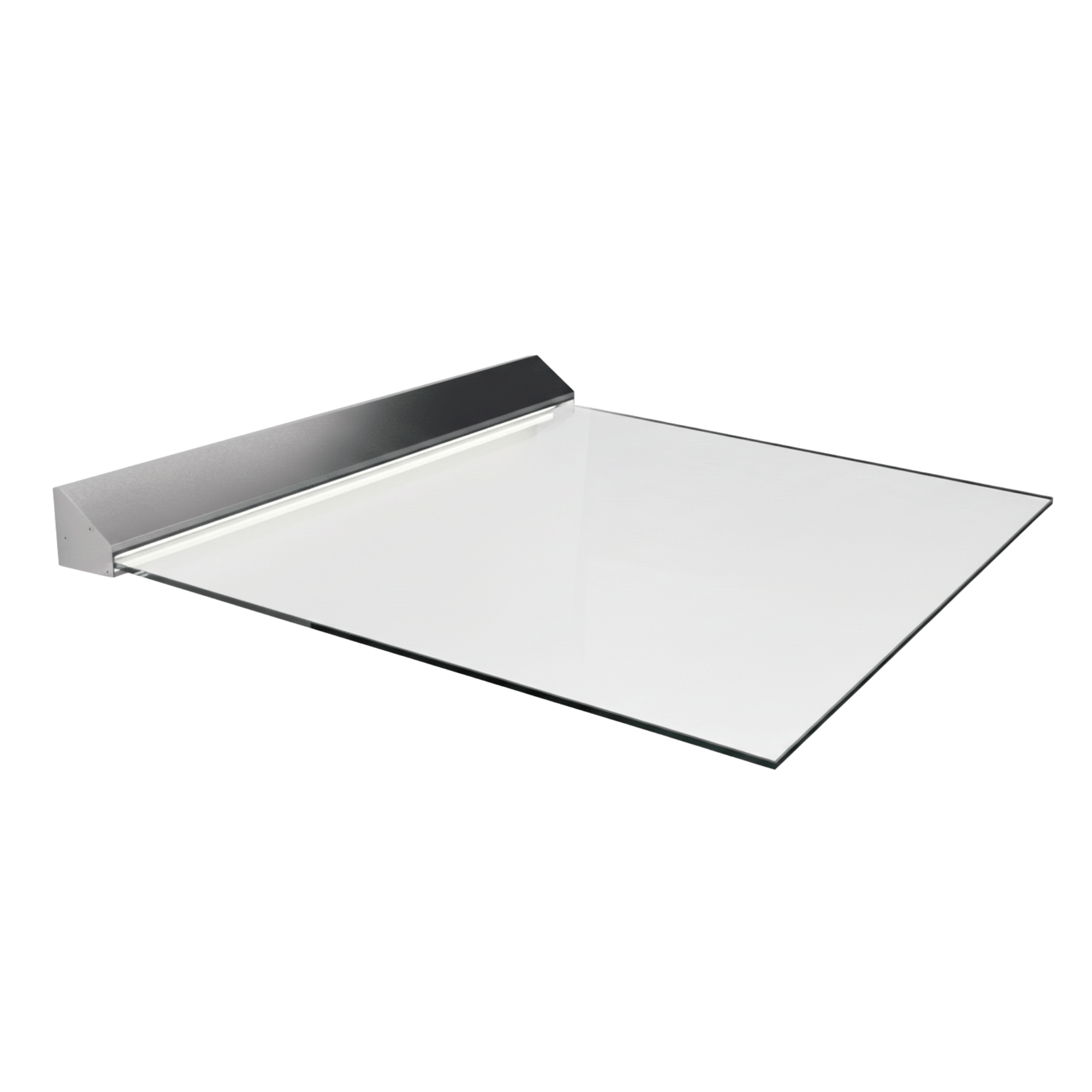

Cantilevered glass canopy: what does that mean?

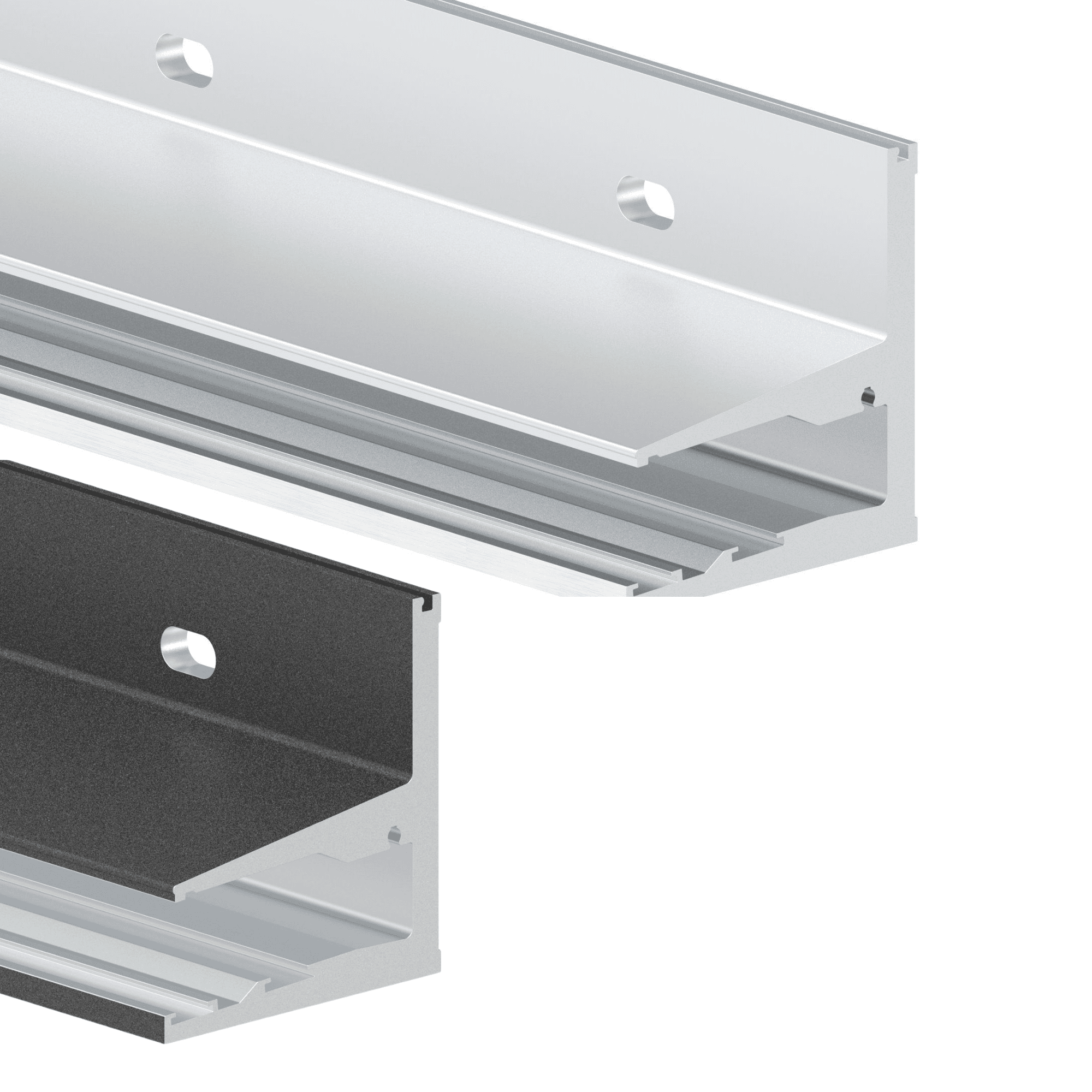

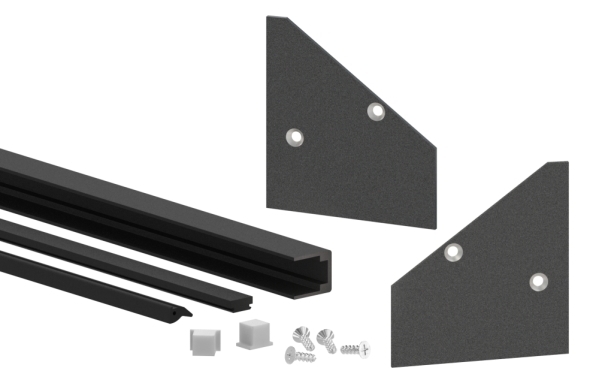

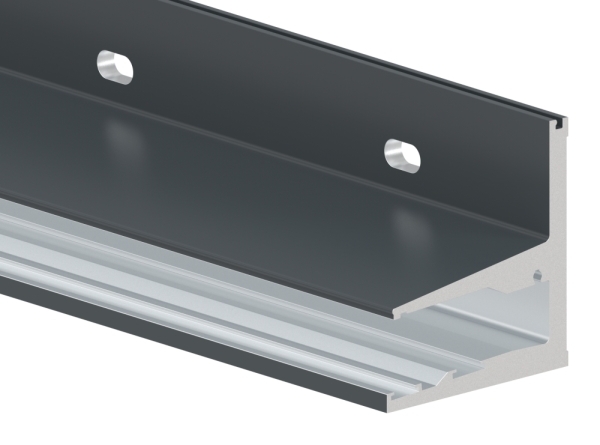

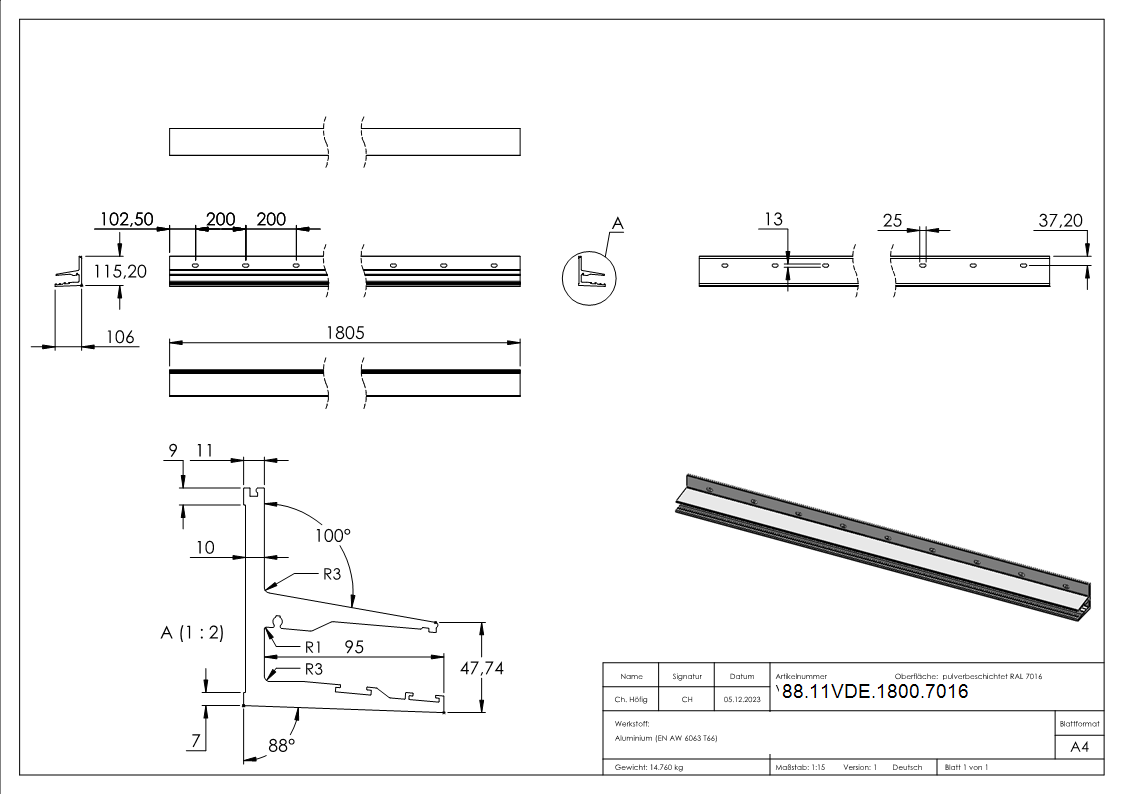

In a cantilevered glass canopy, the glass pane is supported on one side by the wall – typically via a continuous profile. Unlike canopies with tension rods or brackets, the view to the front remains unobstructed. The result is a particularly modern, minimalist design.

Important to know: Even though it looks light and airy, the construction is technically sophisticated. Crucial factors include the correct choice of glass (structure and thickness), the structural design to withstand wind and snow loads, and professional fixing to the respective wall structure. A good glass canopy combines design and safety – without compromise.

Typical dimensions: width, depth and projection

To ensure your glass canopy provides optimum protection, the projection (depth) should be chosen so that rain does not drip directly in front of the door and the door area remains as dry as possible. At the same time, the projection must be compatible with the glass thickness and the structural design. In the case of self-supporting systems, overhangs in the range of approximately 500 to 1300 mm are often achievable in practice – depending on the glass structure and load assumptions.

The width should be determined by the door layout: a glass canopy should cover at least the width of the door and, ideally, ‘overhang’ slightly to the left and right, so that less moisture reaches the door, even in windy conditions. Common widths range from approx. 1,400 to 3,000 mm (single pane), depending on the system and project.

Practical planning tip

• Single door: A width of 1,400–2,000 mm is usually sufficient, depending on the desired appearance.
• Side panel / wide entrance: 2000–3000 mm look harmonious and offer greater protection.
• Multi-panel systems: For large fronts, several panels can be combined (with defined joints).

A slight slope also plays a major role in drainage. Many high-quality systems incorporate a defined slope into the profile itself, so that water drains forwards in a controlled manner. This improves functionality and reduces the formation of puddles on the glass.

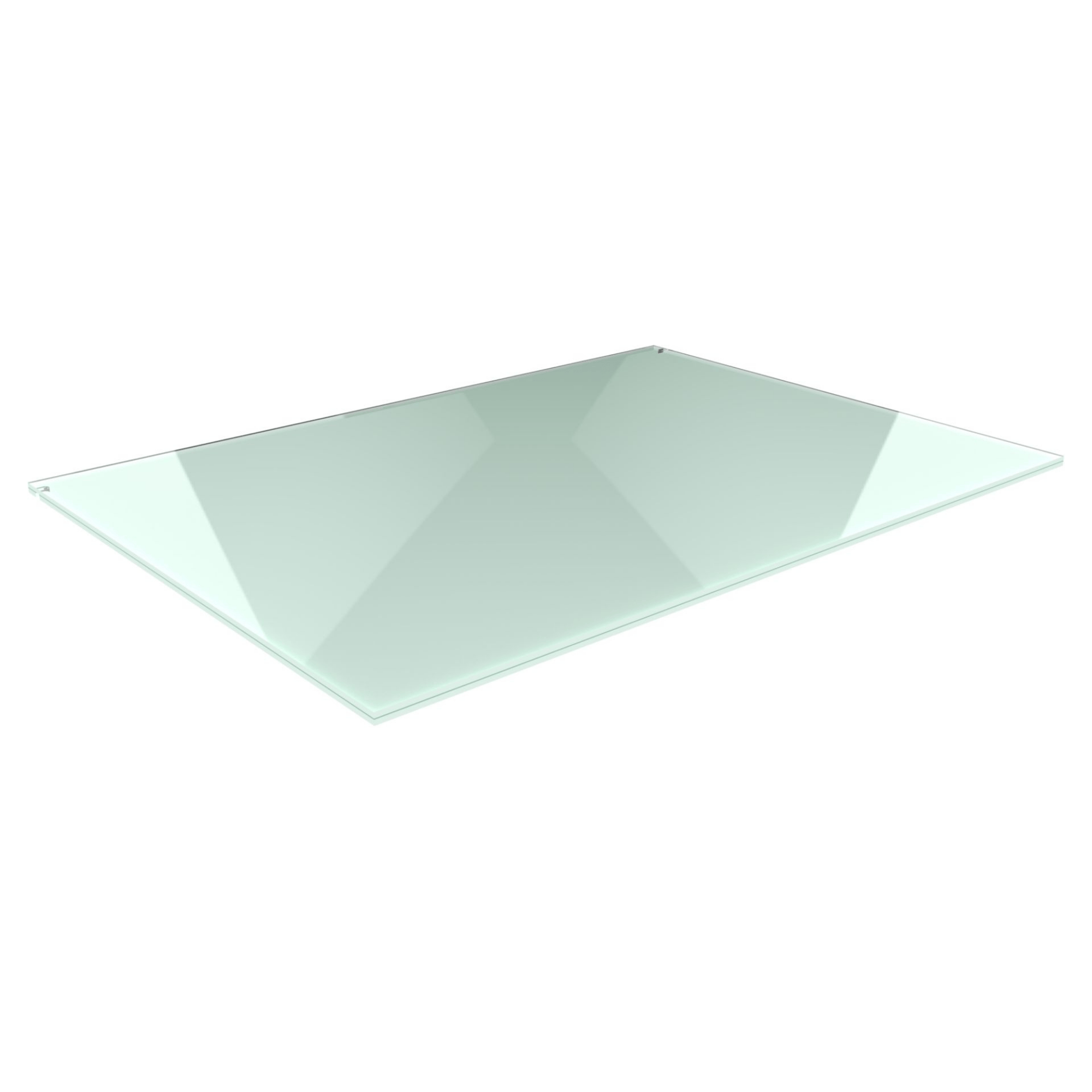

Which types of glass are suitable for a glass canopy?

Above all, a glass canopy must be one thing: safe. That is why, in the high-end sector, laminated safety glass (LSG) is used – usually made from heat-strengthened glass (HSG). Laminated safety glass consists of two panes of glass permanently bonded together by a film. Should damage occur, the shards remain attached to the film. This is a significant safety advantage over standard float glass.

PVB or SGP: the interlayer makes all the difference

Two types of interlayer are frequently used in laminated safety glass: PVB (the classic standard) or SGP (high-strength interlayer). SGP is stiffer and can – depending on the design – allow for higher load-bearing capacities. Which variant is suitable for your glass canopy depends on the desired projection, the pane size and the local loads.

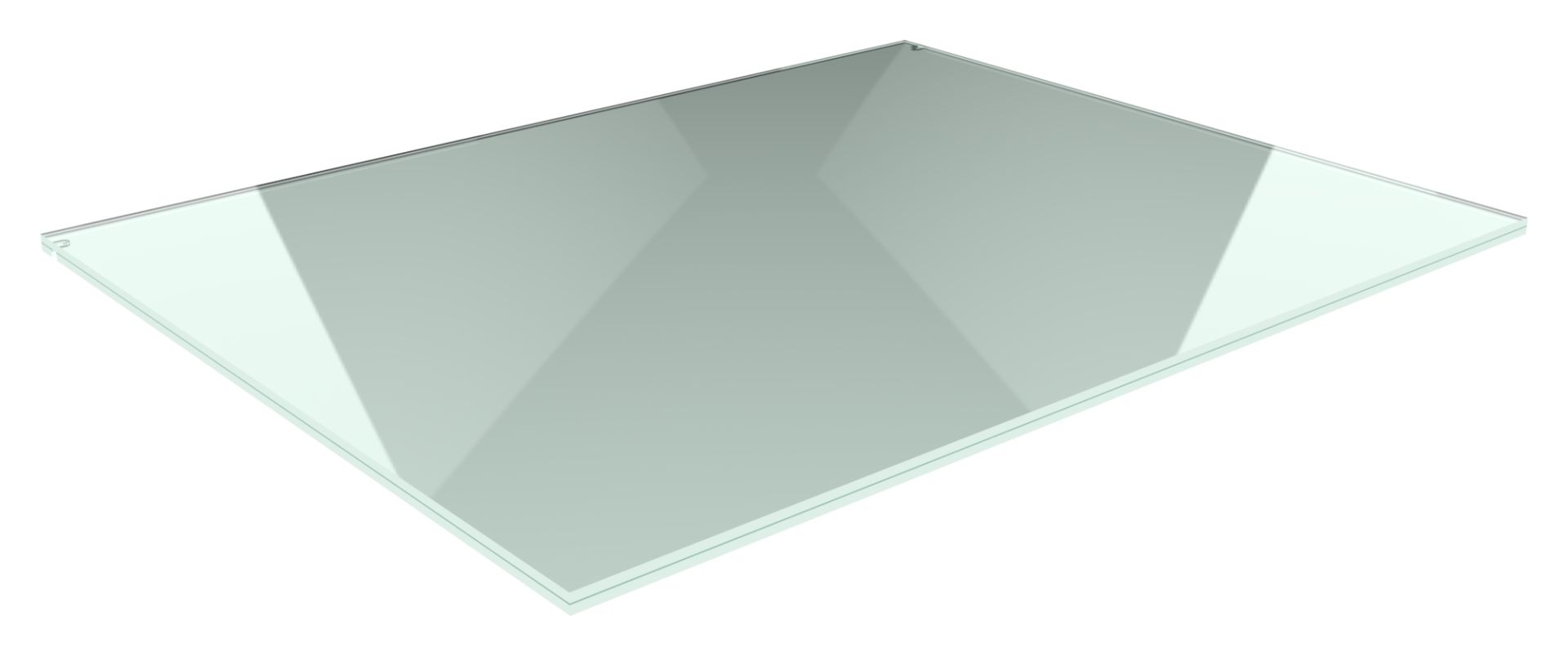

Standard glass thicknesses

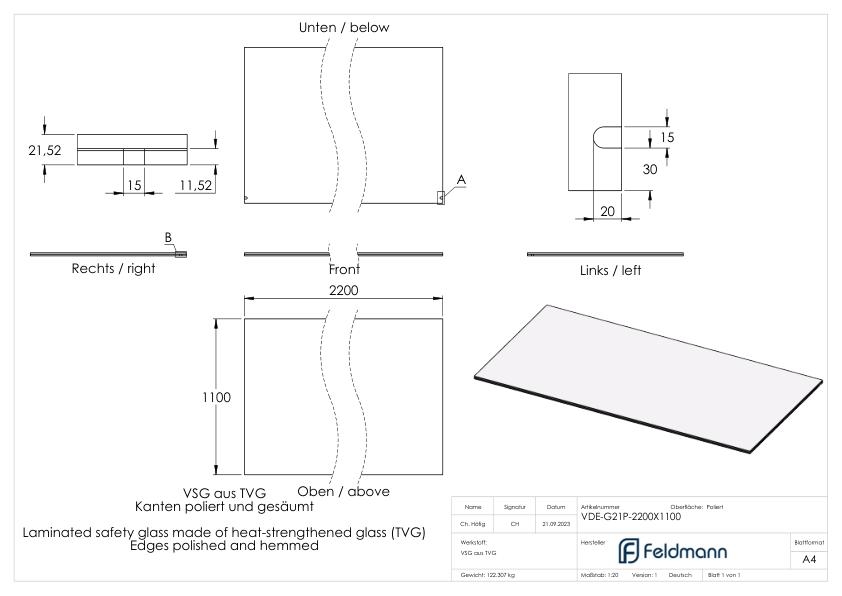

In many applications, glass assemblies such as 17.52 mm or 21.52 mm are used (two panes + interlayer). For larger overhangs and higher loads, the thicker variant is often the appropriate choice. Important: The selection should not be made ‘on a whim’, but in accordance with the system approval and structural analysis.

Appearance: clear glass, white glass and special effects

A glass canopy looks different depending on the quality of the glass. Those who want a particularly ‘clear’ appearance often opt for white glass (reduced green tint). Films in various tints are also available if you wish to achieve a personalised look. White glass can also offer advantages for entrances with lighting, as colours appear more neutral.

Snow load, wind & safety: what you should bear in mind

A glass canopy is constantly exposed to the elements. Correct design to withstand snow and wind loads is therefore crucial. Snow loads can vary significantly depending on the region. High-quality systems are designed to cope with even demanding load conditions – with appropriate dimensioning, values of up to 5.5 kN/m² are possible.

For you as a buyer, this means: ensure there is a transparent structural basis (e.g. type-specific structural analysis/project-specific structural analysis) and that the system is designed for your country or region. The method of fixing to the substrate also plays a major role: concrete, load-bearing masonry, timber or steel each require suitable fixings and installation methods.

Important safety details

• Tested glazing assemblies: Use only approved laminated safety glass (LSG) combinations.
• Edge finishing: Neatly ground and polished edges reduce the risk of injury and enhance quality.

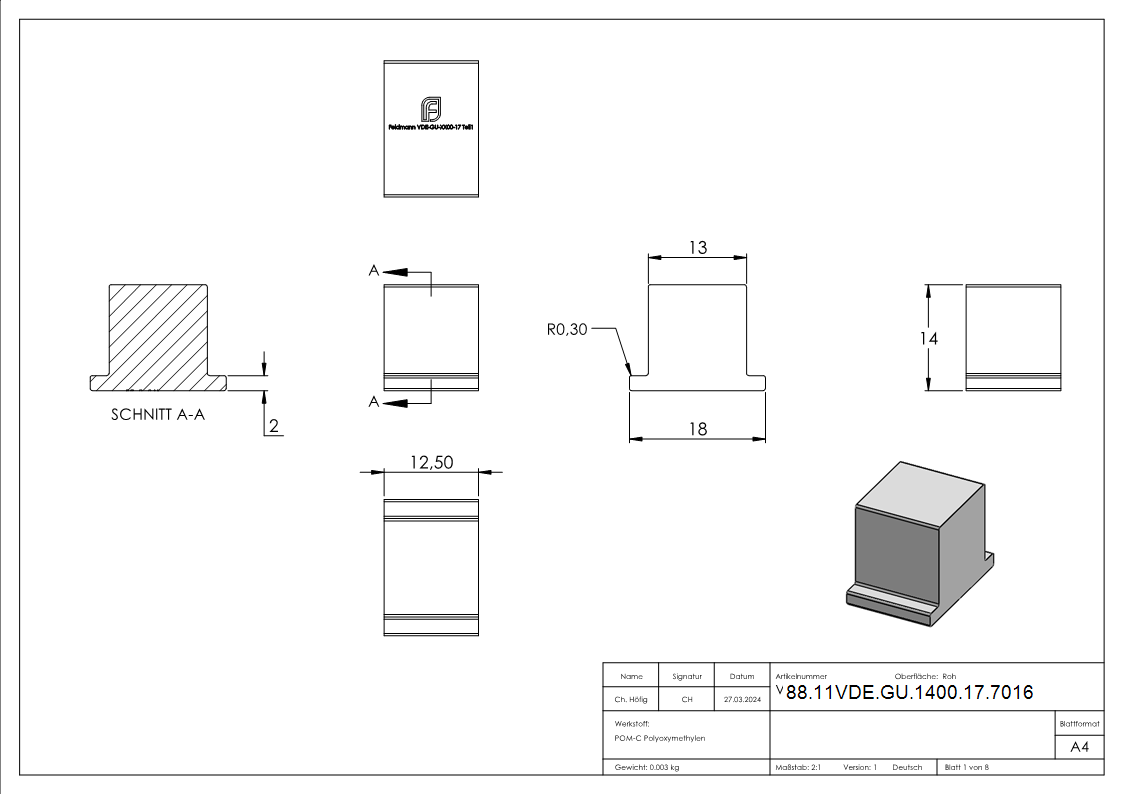

• Pane retention: Mechanical retainers and system-compliant inserts ensure a secure, long-lasting hold.
• Slope/drainage: Reduces water build-up and improves suitability for everyday use.

Installation on the substrate: concrete, masonry, timber – and insulated façades

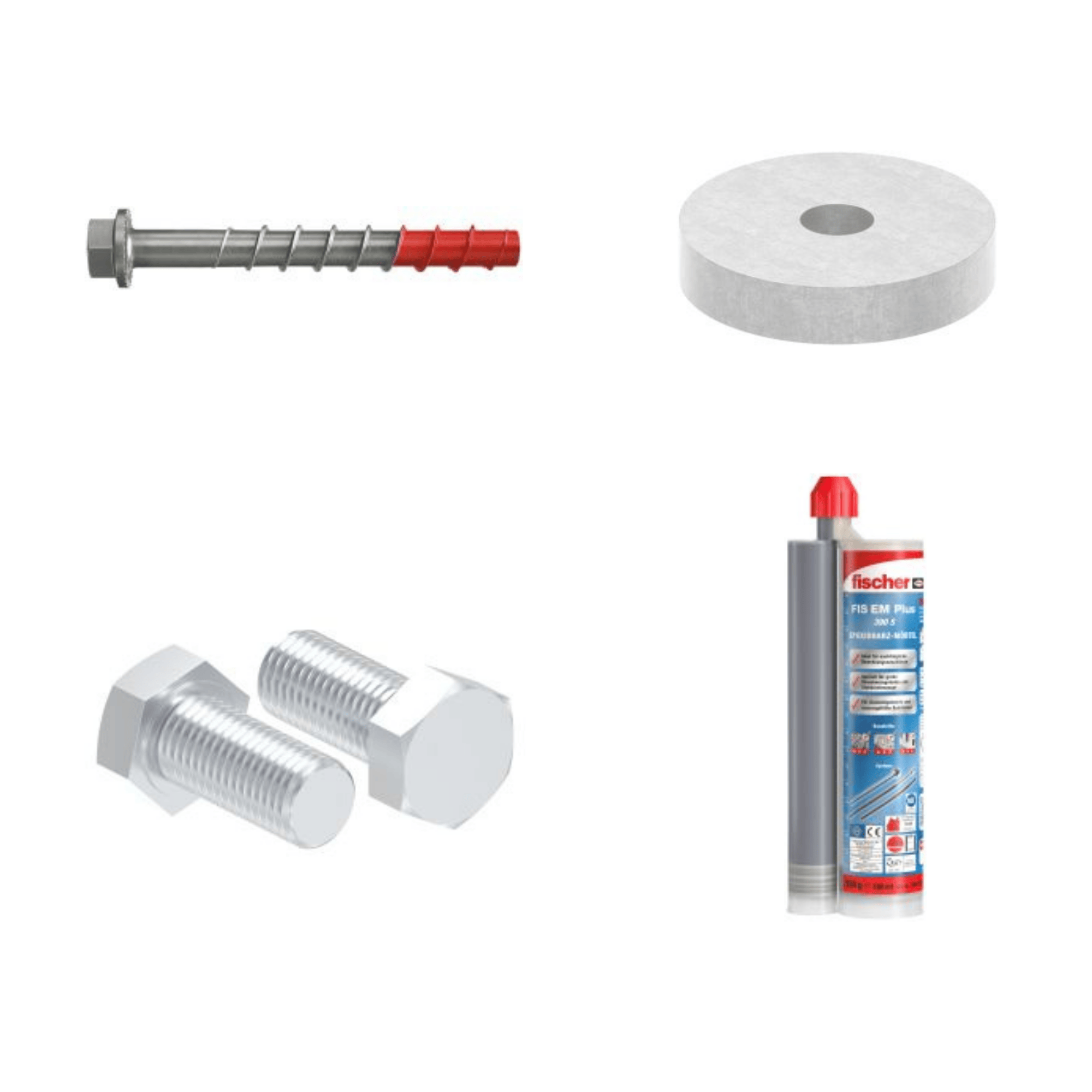

The installation of a glass canopy is a safety-critical step. Ideally, the canopy should be fixed to a load-bearing substrate. Depending on the wall construction, different fixing systems and spacing requirements apply. With concrete or load-bearing masonry, installation is usually particularly straightforward.

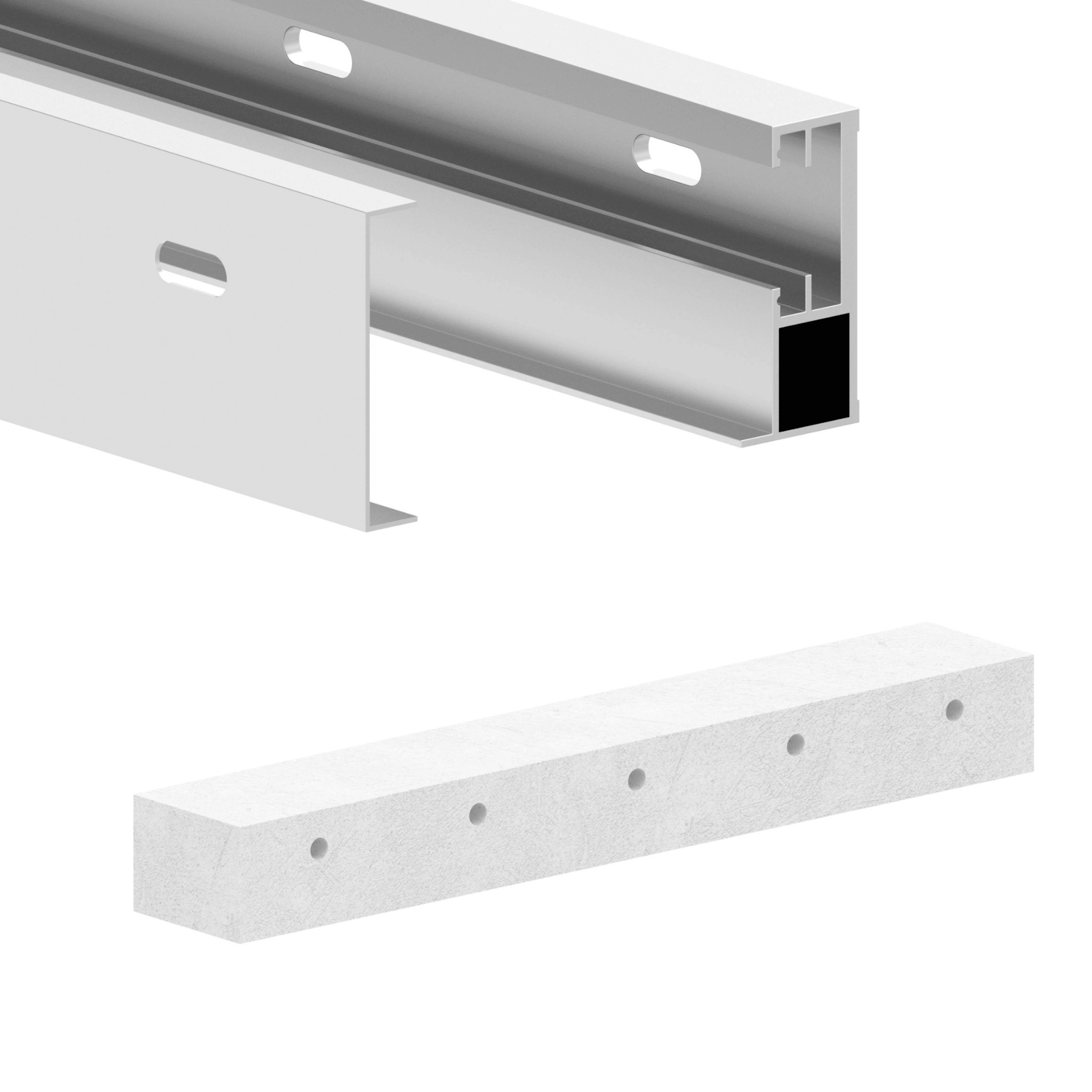

For insulated façades (ETICS), the following applies: the insulation itself does not bear any load. In such cases, specialised installation concepts are advisable, which safely transfer loads to the load-bearing substrate whilst simultaneously reducing thermal bridges. Modern solutions utilise compression-resistant insulation elements and modular mounting components to ensure the structure remains stable over the long term and the façade is not damaged.

Recommendation

If you are unsure whether your wall structure is suitable, clarify the following in advance: substrate material, insulation thickness, fixing depth and any pipes or installations. This saves time, prevents incorrect drilling and ensures that your glass canopy fits perfectly later on.

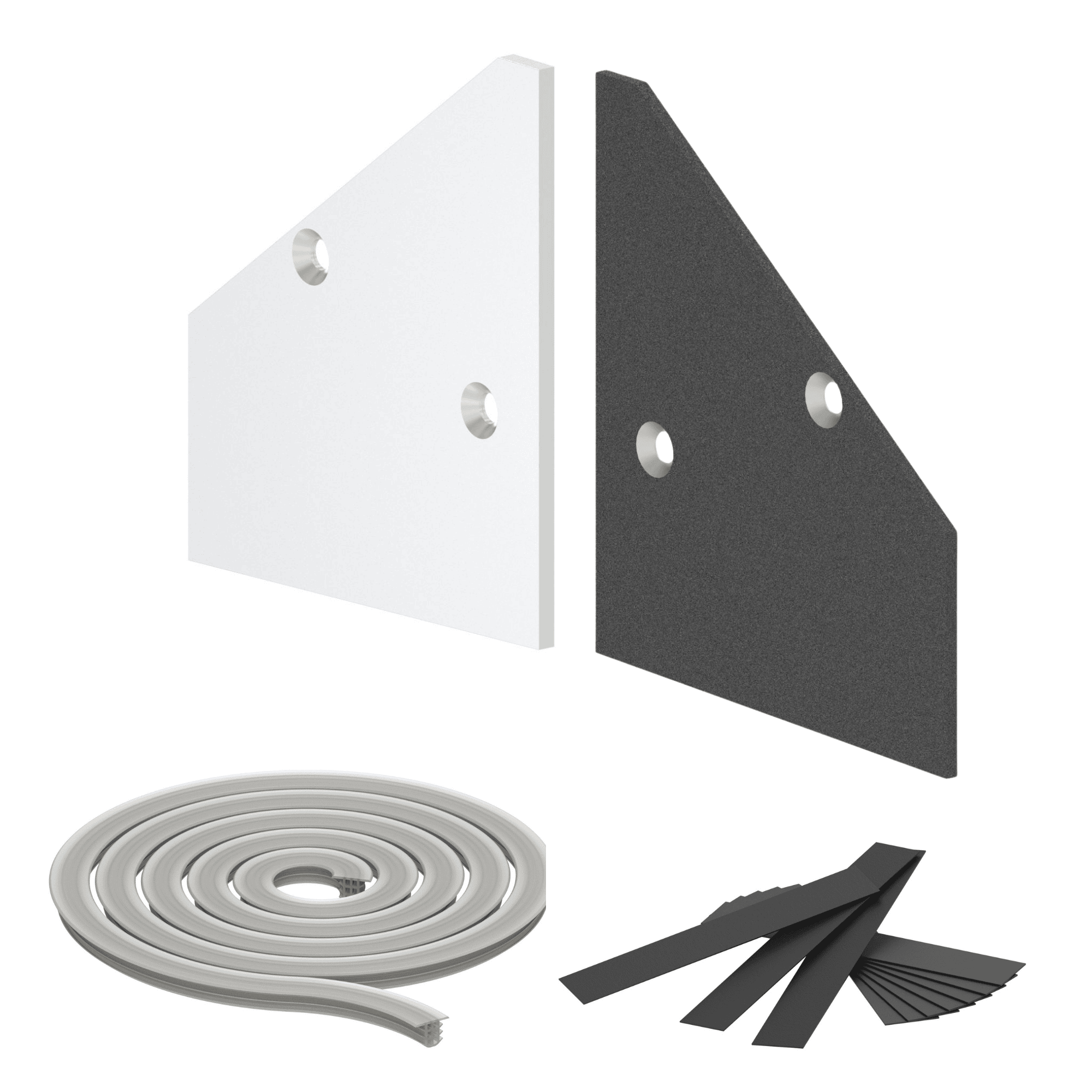

Useful accessories for your glass canopy

Accessories are not just ‘nice to have’, but are often the key to a thoroughly successful solution. Depending on the installation situation, the following options may be useful:

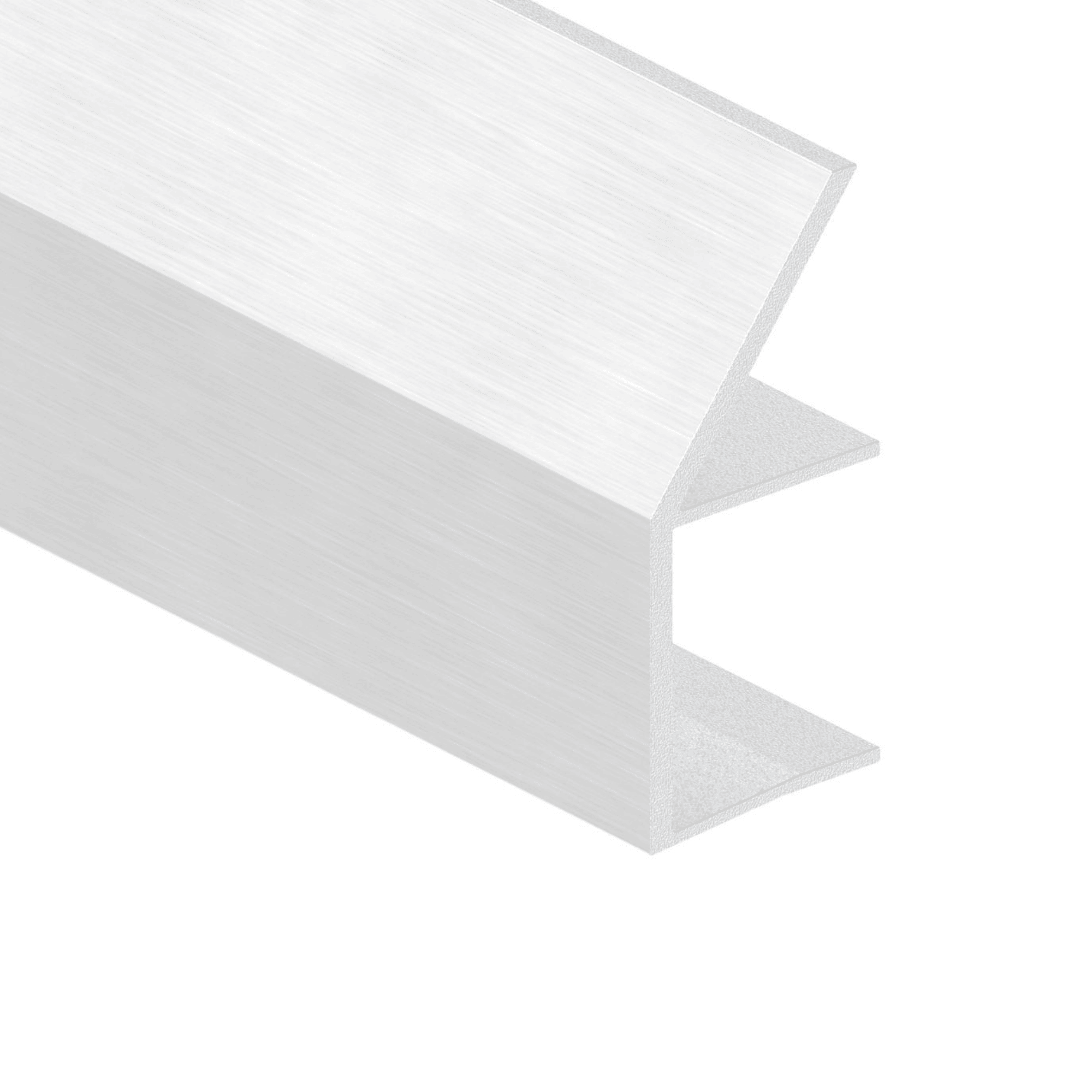

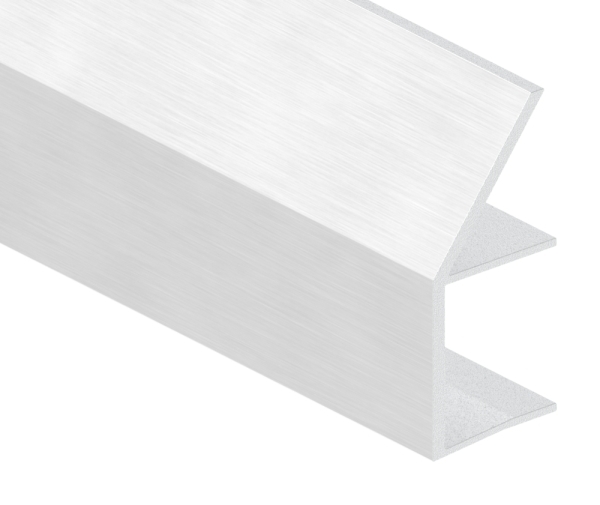

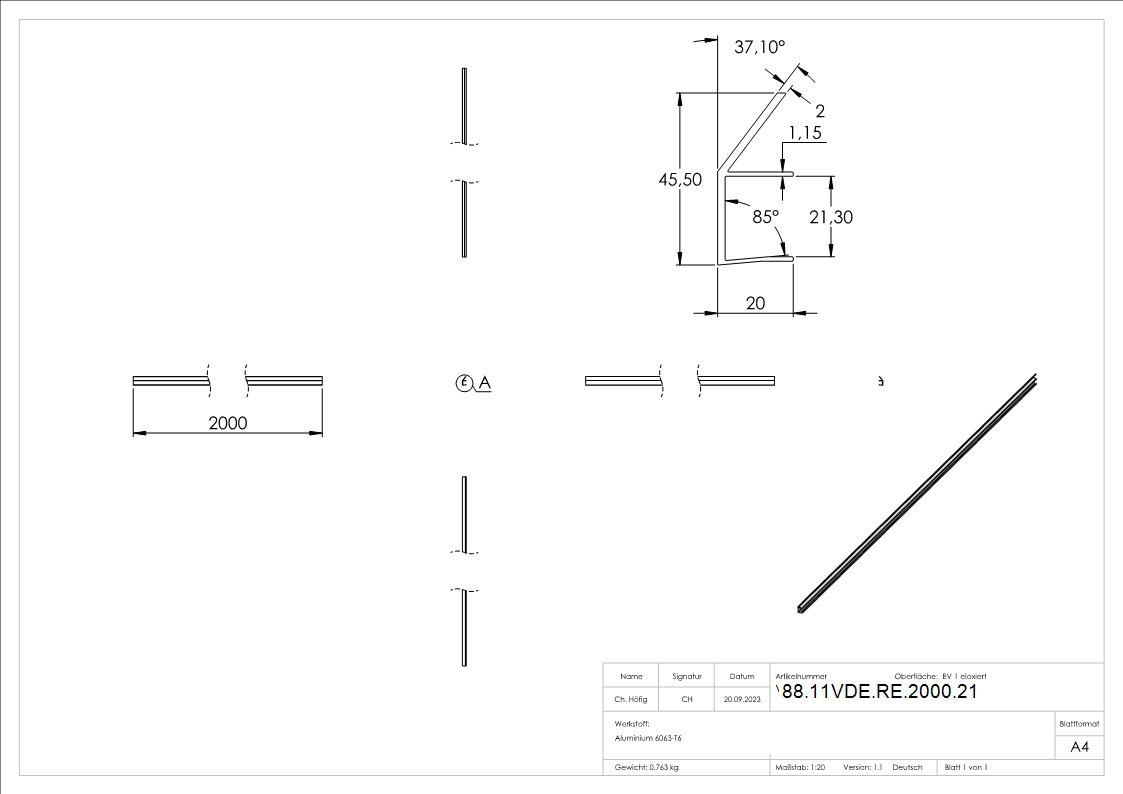

• Gutter / water drainage: For controlled water drainage (e.g. to the side), particularly useful in heavy rainfall.

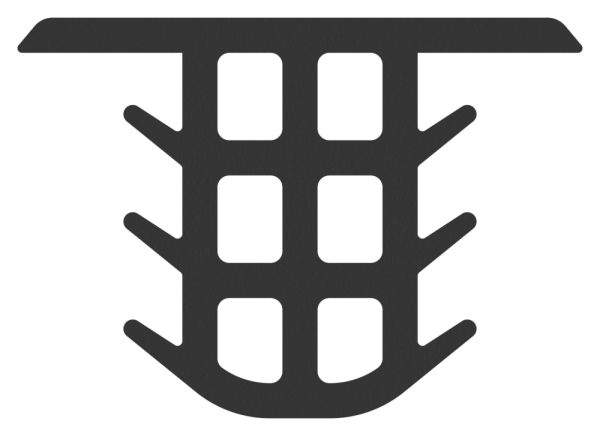

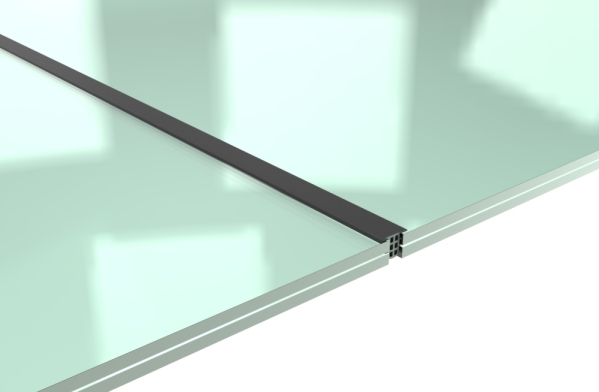

• Sealing solutions: For multi-part installations, sealing profiles or silicone joints ensure clean transitions.
• Spacers / levelling elements: For millimetre-precise alignment in complex installation situations.

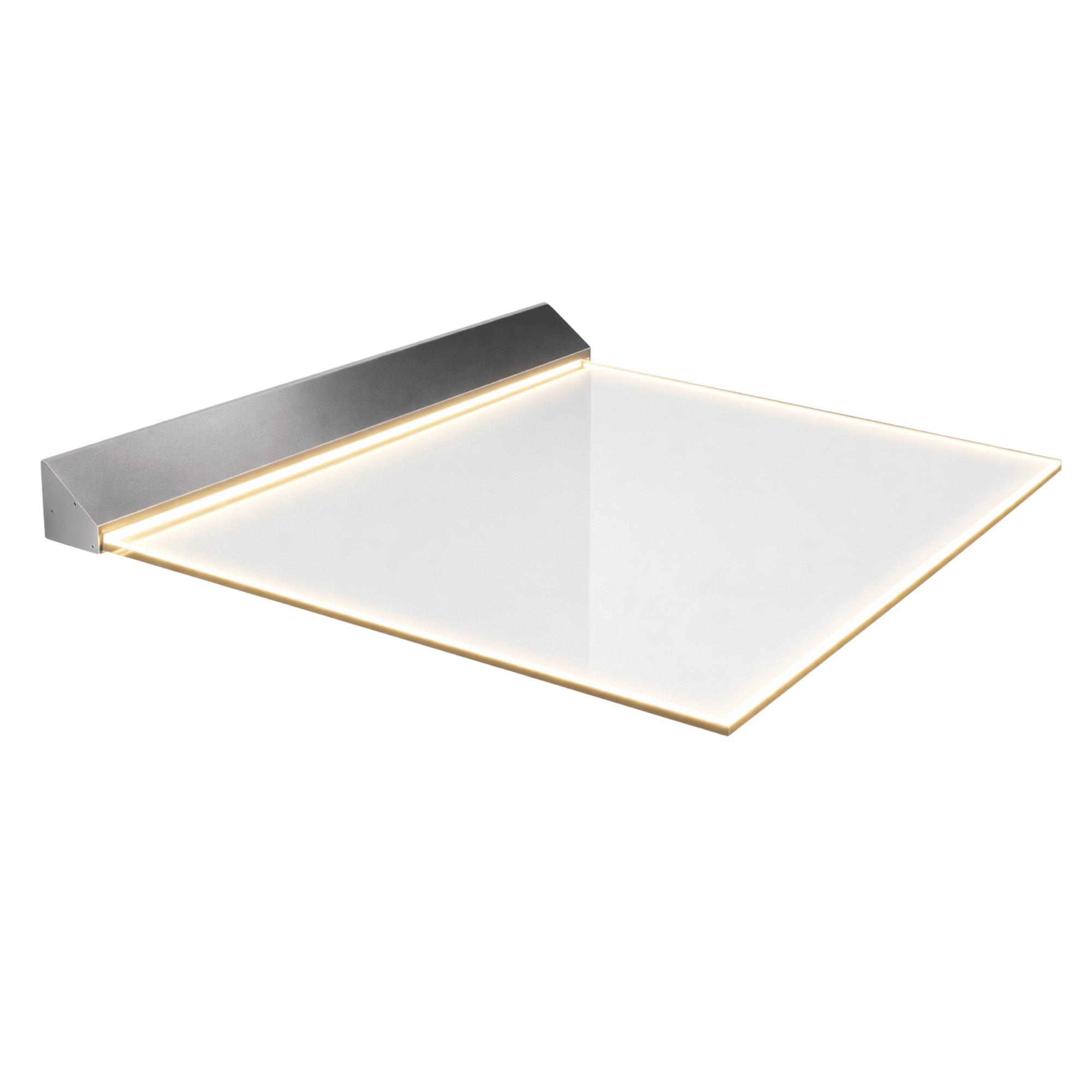

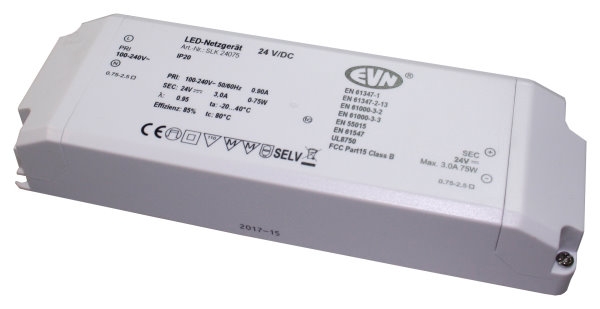

• LED lighting: Highlights the entrance and improves visibility in the evening – ideal in combination with modern front doors.

Straight LED solutions are particularly popular because they turn your glass canopy into an eye-catcher whilst also offering practical benefits . When choosing lighting, ensure suitable protection ratings (e.g. for outdoor areas) and neat integration, so that the look remains minimalist.

Care & cleaning: How to keep your glass canopy looking good for years to come

A glass canopy is easy to maintain if you follow a few basic rules. Clean the glass surface as required with clear water and a mild cleaner. Avoid abrasive products, which can damage surfaces and seals. Leaves or pollen may accumulate seasonally – regular, gentle cleaning maintains its clear appearance.

Tip: If your glass canopy is installed near trees, it’s worth carrying out a quick visual check after strong winds. This will help you spot any dirt or build-up at an early stage.

FAQ: Frequently asked questions about glass canopies

How deep should a glass canopy be?

As a rule of thumb: the more exposed the location (wind, driving rain), the greater the overhang should be. In practice, suitable overhangs are often between 700 and 1200 mm – depending on system approval and structural design.

Is a cantilevered glass canopy really stable?

Yes, provided the glass structure, system and fixings are compatible. Approved laminated safety glass (VSG) structures and a design capable of withstanding local snow and wind loads are crucial.

What width is suitable for my entrance?

At least the width of the door, preferably with a side overhang. For wide entrances or side sections, 2,000–3,000 mm look particularly harmonious.

Can I install a glass canopy on an insulated façade?

Yes, using suitable installation methods that transfer the load to the load-bearing structure and do not compress the insulation. Have the wall structure checked in advance.

Does the glass make a noise when it rains?

Rain is audible, but usually not a nuisance. How it is perceived depends on the overhang, the installation situation and the surroundings. An integrated slope also helps water to run off.

Choose the right glass canopy now

Whether minimalist on a new build, elegant on rendered or clinker brick façades, or as a high-quality upgrade for an existing property: a glass canopy perfectly combines design and function. If you are looking for a glass canopy that appears light yet still provides reliable protection, look for certified glass structures, appropriate dimensions, suitable drainage and professional installation.

Use the product selection in the shop to find the width and projection that suit your entrance area – and, if required, add accessories such as guttering or lighting. This creates a solution that works well in everyday life and visibly enhances the entrance area.
