B M1400 direct-fit screw connection | Grating height 50 mm | V4A (1.4571/1.4404) | for GRP gratings
FeNau GmbH
Stock:
30
Product number:
GFK-B1400-504
EAN:
4060272122301
Description
Product information "B M1400 direct-fit screw connection | Grating height 50 mm | V4A (1.4571/1.4404) | for GRP gratings"

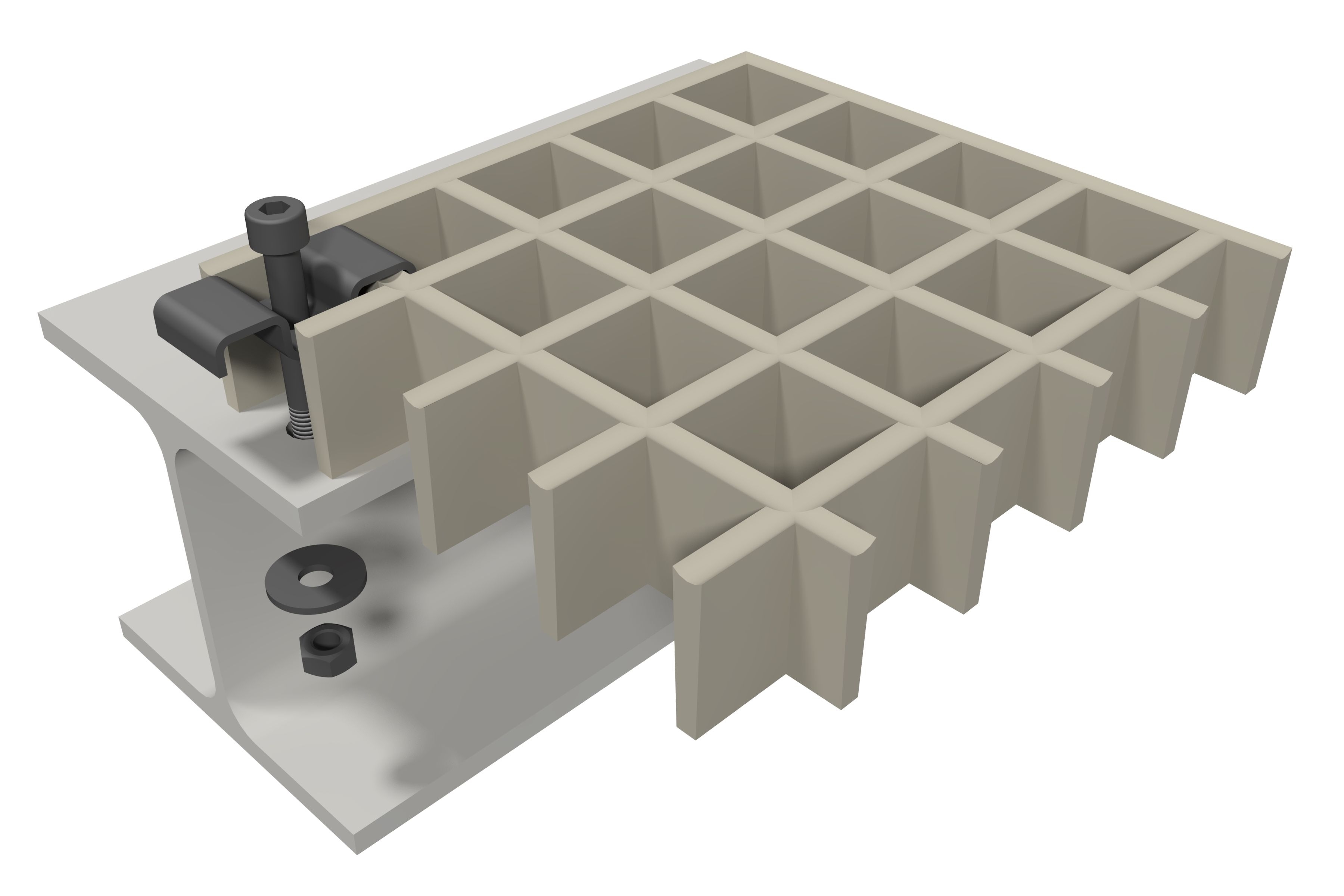

B M1400 direct screw connection for the positive-fit fixing of GRP grating with a grating height of 50 mm, manufactured from V4A (1.4571/1.4404). Suitable for MT 50x50 mm.
Technical data
| Type | Direct screw connection B M1400 |
|---|---|
| Grating height | 50 mm |
| Material | V4A (1.4571/1.4404) |
| Suitable for | MT 50 x 50 mm |
| Standard | Corrosion protection in accordance with BGI/GUV 588/1 and DIN 24537-3 |
| Sales unit | 1 piece |
Your benefits
- Precisely fitted for a grating height of 50 mm
- Material: V4A (1.4571/1.4404) – as corrosion-resistant as the grating itself
- Positive-fit connection, no slippage in the direction of load-bearing
- Supplied complete with bolt, washer and nut
- Fitted from above, without access to the underside
Typical applications
- Fastening of GRP gratings to steel and GRP substructures
Installation and instructions
- In accordance with BGI/GUV 588/1 and DIN 24537-3, each grating must be secured by positive locking at at least four corner points; if there is a risk of falling, it must also be secured against lifting.
- V2A (1.4301) for normal environments; V4A (1.4571/1.4404) for environments containing chlorides, seawater and chemicals.
- The mesh spacing and grating height must be suitable for the grating – if in doubt, please ask us.
Properties
| Höhe: | 50 |
|---|---|
| Maschenweite | Steps | Drahtgewebe: | 50 x 50 mm |
| Werkstoff: | Edelstahl V4A (1.4571/1.4404) |
