B M7400 direct screw connection | Grating height 38 mm | V4A (1.4571/1.4404) | for GRP gratings
FeNau GmbH
Stock:
39
Product number:
GFK-B7400-384
EAN:
4060272527373
Description
Product information "B M7400 direct screw connection | Grating height 38 mm | V4A (1.4571/1.4404) | for GRP gratings"

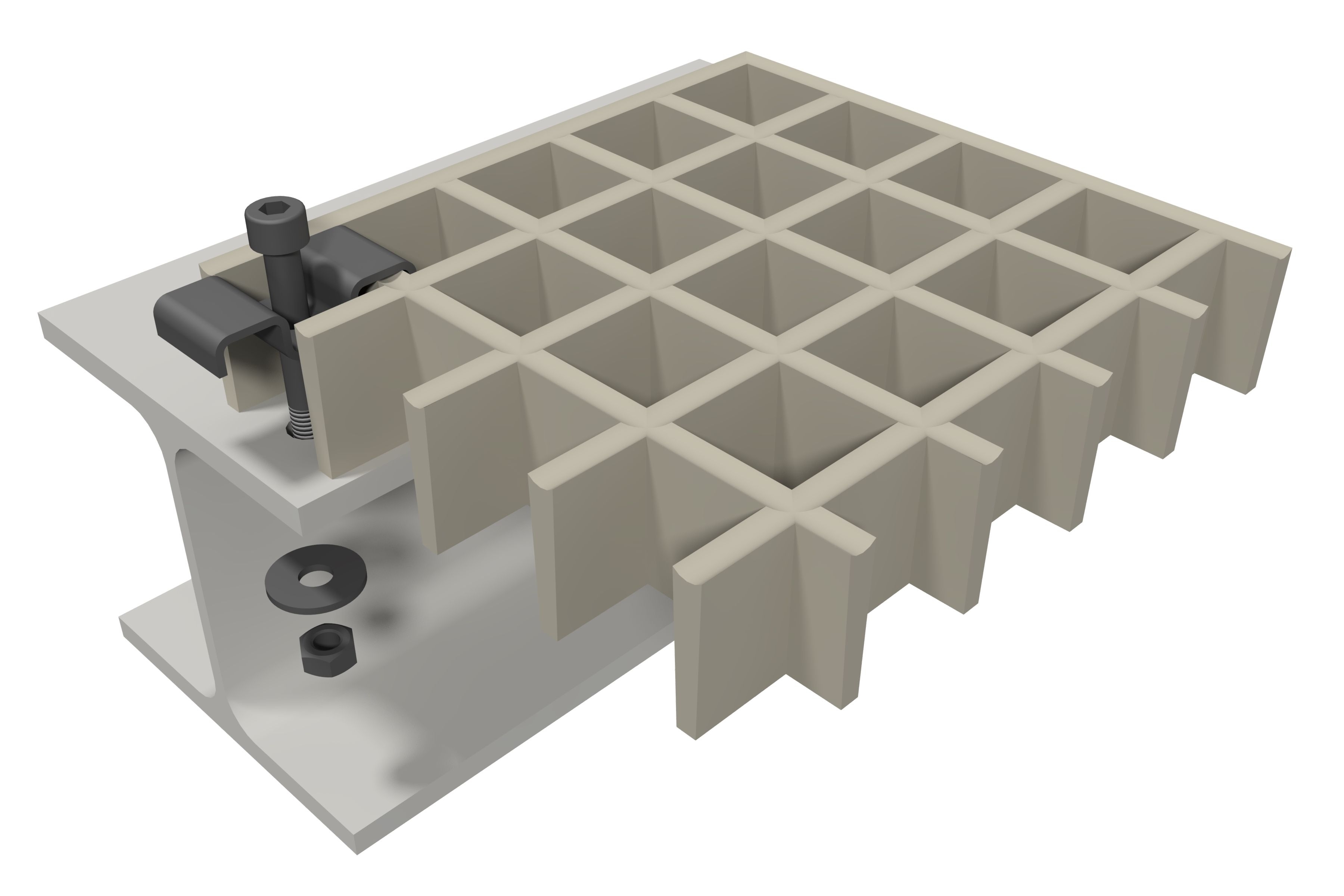

B M7400 direct screw-in fitting for the form-fit fixing of GRP gratings with a grating height of 38 mm, manufactured from V4A (1.4571/1.4404). Suitable for MT 38x38 and 40x40 mm.
Technical data
| Type | Direct screw-in fitting B M7400 |
|---|---|
| Grating height | 38 mm |
| Material | V4A (1.4571/1.4404) |
| Suitable for | MT 38x38 and 40x40 mm |
| Standard | Corrosion protection in accordance with BGI/GUV 588/1 and DIN 24537-3 |
| Sales unit | 1 piece |
Your benefits
- Precisely fitted for a grating height of 38 mm
- Material: V4A (1.4571/1.4404) – as corrosion-resistant as the grating itself
- Positive-lock connection, no slippage in the direction of load-bearing
- Supplied complete with bolt, washer and nut
- Fitting from above, without access to the underside
Typical applications
- Fastening of GRP grating to steel and GRP substructures
Installation and notes
- In accordance with BGI/GUV 588/1 and DIN 24537-3, each grating must be secured by a positive fit at at least four corner points; where there is a risk of falling, it must also be secured against lifting.
- V2A (1.4301) for normal environments, V4A (1.4571/1.4404) for chloride, seawater and chemicals.
- The mesh spacing and grating height must be suitable for the grating – if in doubt, please contact us.
Properties
| Höhe: | 38 |
|---|---|
| Maschenweite | Steps | Drahtgewebe: | 38 x 38 mm, 40 x 40 mm |
| Werkstoff: | Edelstahl V4A (1.4571/1.4404) |
