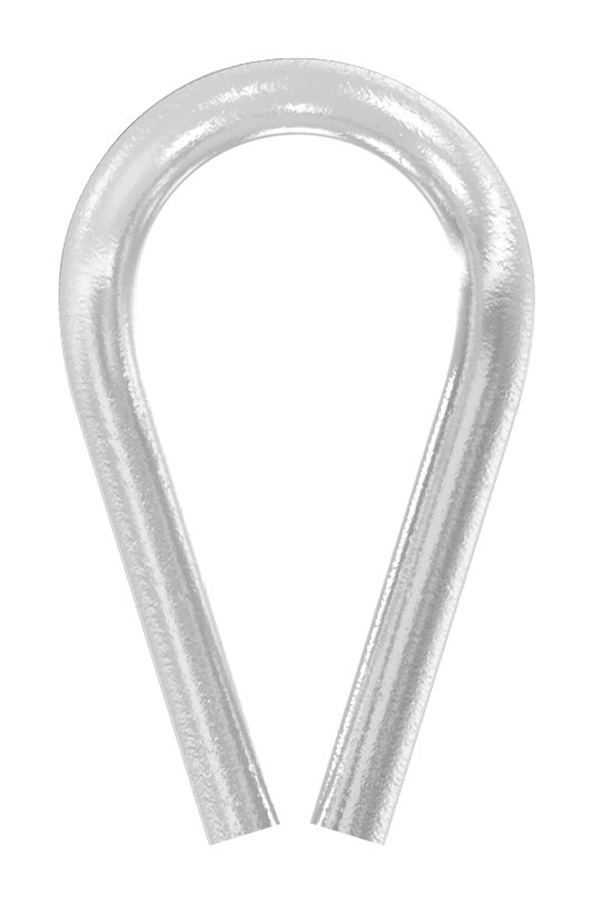

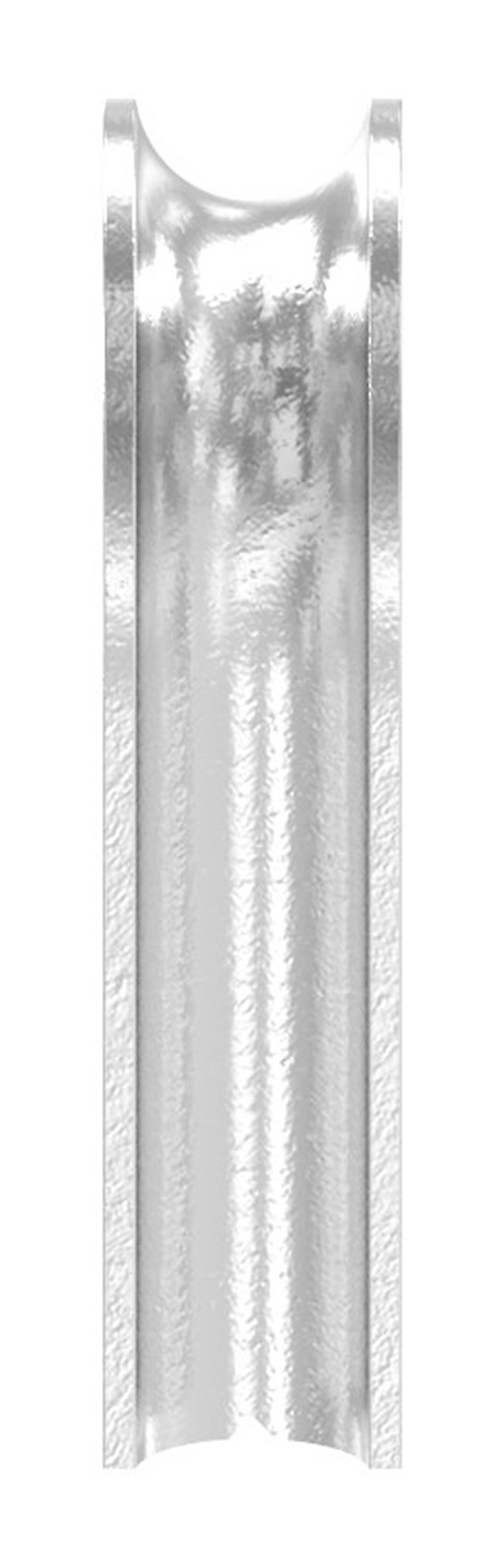

Thimble | for rope diameter: 2 mm – 8 mm | V4A
Ø-Seil:
Ø 5 mm
Stock:
799
Product number:
11.2907.1
EAN:
4251412912498
Weight:
0.01 kg
Description
Product information "Thimble | for rope diameter: 2 mm – 8 mm | V4A"
Thimble | for rope Ø 2 mm – 8 mm | V4A
[ Technical details ] made of stainless steel 1.4401/04/V4A/AISI 316
| for rope Ø | A | B | C | D |
|---|---|---|---|---|
| 2 mm | 9 mm | 15 mm | 4 mm | 13 mm |
| 3 mm | 12 mm | 19 mm | 6 mm | 16 mm |
| 4 mm | 13 mm | 23 mm | 6.5 mm | 19 mm |
| 5 mm | 15.5 mm | 32 mm | 7.5 mm | 28 mm |
| 6 mm | 19 mm | 35 mm | 9 mm | 29 mm |
| 8 mm | 23 mm | 44 mm | 12 mm | 36 mm |
Skip the product gallery
£2.29*
Zubehör
11.2801.1
7x7 stainless steel wire | flexible | Ø 2 mm to Ø 8 mm | Price per metre | V4A
7x7 stainless steel wire rope | flexible | Ø 2 mm to Ø 8 mm | Price per metre | V4A
[ Technical details ] Manufactured from stainless steel 1.
4401/04/V4A/AISI 316 [ Specific details ] Ø 2 mm to Ø 8 mm; cleaned and pre-tensioned; nominal tensile strength 1570 N/mm²
[ Note on ordering ] Price per metre; simply order the number of metres you require
[ Further specific details ]
Ø 2 mm wire: breaking force 1.70 kN
Ø 3 mm wire: breaking force 5.07 kN
Ø 4 mm wire: breaking force 9.10 kN
Ø 5 mm wire: breaking force 13.0 kN
Ø 6 mm wire: breaking force 19.0 kN
Ø 8 mm wire: breaking strength 38.0 kN
Variants from £0.47*
Available, : 1-3 days
