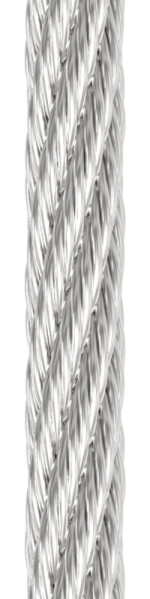

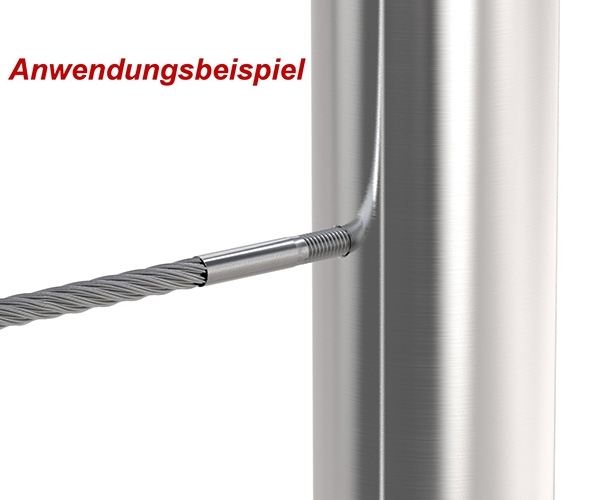

7x7 stainless steel wire | flexible | Ø 2 mm to Ø 8 mm | Price per metre | V4A

Ø-Seil: Ø 4 mm

FeNau GmbH

£1.51*

Prices exclude VAT and are subject to delivery charges

Available: Lieferzeit 5-10 Werktage

Ø-Seil

Ø 2 mm

Ø 3 mm

Ø 4 mm

Ø 5 mm

Ø 6 mm

Ø 8 mm

Stock: 3470

Product number: 11.2800.1

EAN: 4251412911736

Weight: 0.06 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

Product information "7x7 stainless steel wire | flexible | Ø 2 mm to Ø 8 mm | Price per metre | V4A"

7x7 stainless steel wire rope | flexible | Ø 2 mm to Ø 8 mm | Price per metre | V4A

[ Technical details ] Manufactured from stainless steel 1.
4401/04/V4A/AISI 316 [ Specific details ] Ø 2 mm to Ø 8 mm; cleaned and pre-tensioned; nominal tensile strength 1570 N/mm²
[ Note on ordering ] Price per metre; simply order the number of metres you require

[ Further specific details ]
Ø 2 mm wire: breaking force 1.70 kN
Ø 3 mm wire: breaking force 5.07 kN
Ø 4 mm wire: breaking force 9.10 kN
Ø 5 mm wire: breaking force 13.0 kN
Ø 6 mm wire: breaking force 19.0 kN
Ø 8 mm wire: breaking strength 38.0 kN

Durchmesser:	Ø 4 mm
Werkstoff:	V4A

Product safety (GPSR)

Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230

Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.

All product safety information → · Your legal guarantee rights →

Zubehör

11.2805.4

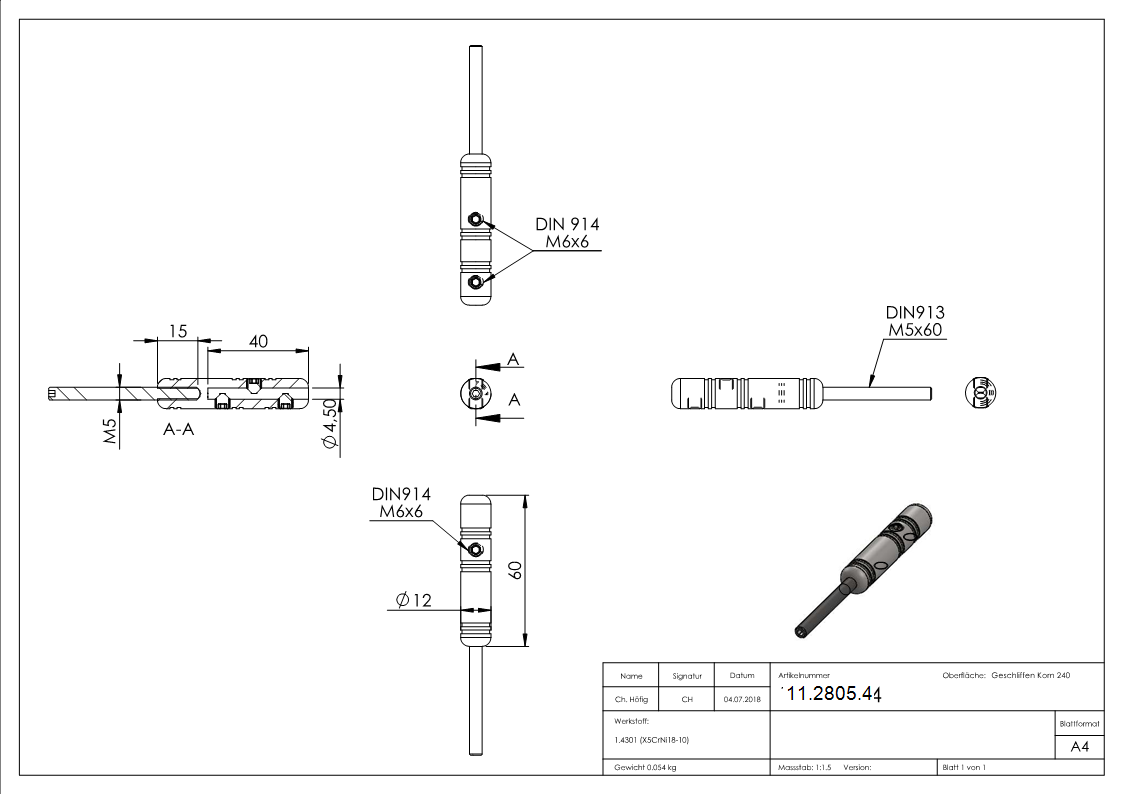

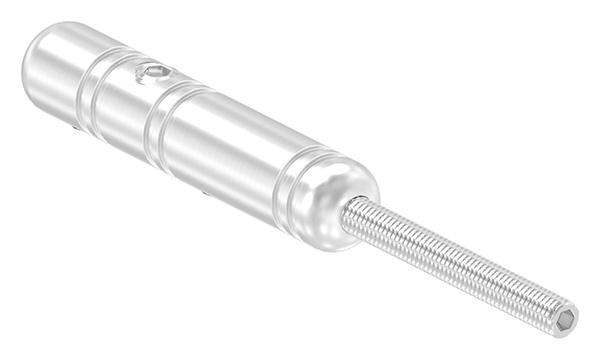

Threaded terminal for self-assembly | For cable: Ø 3 mm to Ø 8 mm | with external thread | V2A

Threaded terminal for self-assembly | For cable: Ø 3 mm to Ø 8 mm | with external thread | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Application ] Insert the cable into the terminal and secure it with the included Allen clamp screw For cable Ø A B C D E F 3 mm M5 60 mm 40 mm Ø 12 mm 15 mm 45 mm 4 mm M5 60 mm 40 mm Ø 12 mm 15 mm 45 mm 5 mm M5 70 mm 40 mm Ø 14 mm 20 mm 40 mm 6 mm M6 70 mm 40 mm Ø 14 mm 20 mm 40 mm 8 mm M8 80 mm 60 mm Ø 16 mm 15 mm 45 mm

Available, : Lieferzeit 5-10 Werktage

£3.72*

Gewindeterminal zur Selbstmontage - Fuer Seil Ø 4 mm - mit Innengewinde - V2A-11-2810.4

Stk

11.2810.4

Threaded terminal for self-assembly | For 4 mm cable | with internal thread | V2A

Threaded terminal for self-assembly | For 4 mm diameter cable | with internal thread | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of Ø 4 mm; with internal thread; for self-assembly; threads from M5 to M8 [ Application ] Insert the cable into the terminal and secure it with the included Allen clamp screw [ Further specific details ] Dimensions of threaded terminal for Ø 3 mm rope: A: M5; B: 60 mm; C: 40 mm; D: Ø 12 mm; E: 15 mm Dimensions of threaded terminal for Ø 4 mm rope: A: M5; B: 60 mm; C: 40 mm; D: Ø 12 mm; E: 15 mm Dimensions of threaded terminal for Ø 5 mm cable: A: M5; B: 70 mm; C: 40 mm; D: Ø 14 mm; E: 20 mm Dimensions of threaded terminal for Ø 6 mm cable: A: M6; B: 70 mm; C: 40 mm; D: Ø 14 mm; E: 20 mm Dimensions of threaded terminal for Ø 8 mm rope: A: M8; B: 80 mm; C: 60 mm; D: Ø 16 mm; E: 15 mm

Available, : Lieferzeit 5-10 Werktage

£3.61*

11.2900.4

Threaded terminal with swivel | For cable Ø 4 mm to Ø 8 mm | For self-assembly | For posts Ø 42.4 mm | V2A

Threaded terminal with swivel | For cables from 4 mm to 8 mm in diameter | For self-assembly | For posts with a diameter of 42.4 mm | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for a cable with a diameter of 4 mm to 8 mm [ Application ] For self-assembly on a post with a diameter of 42.4 mm

Available, : Lieferzeit 5-10 Werktage

£6.71*

11.2961.4

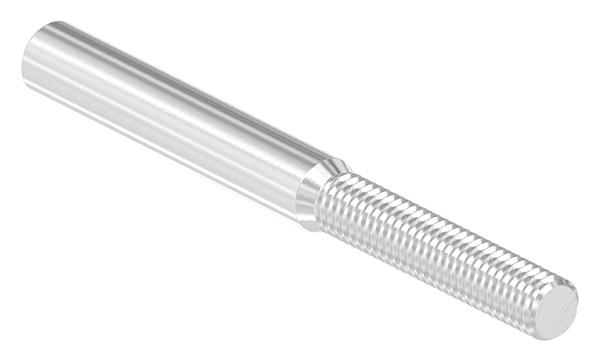

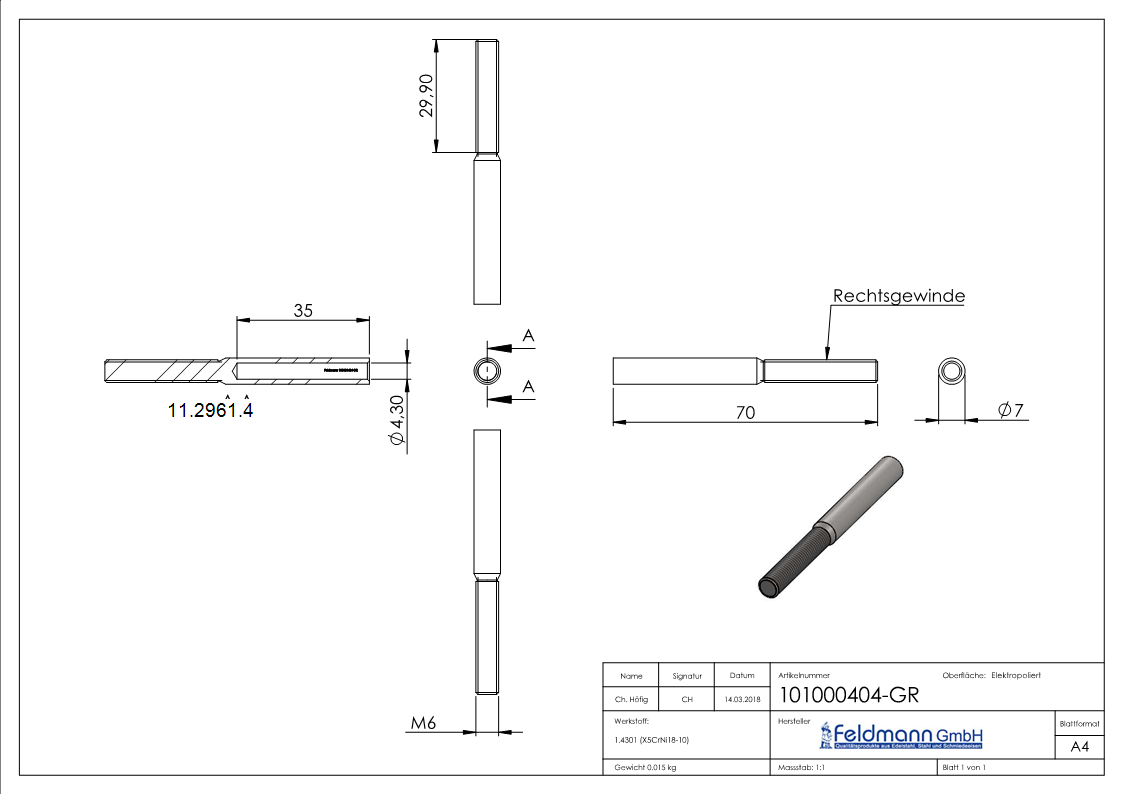

Threaded terminal with external thread | Right-hand thread | For cable from Ø 3 mm to Ø 8 mm | V2A

Threaded terminal with external thread | Right-hand thread | For cable with a diameter of 3 mm to 8 mm | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for cable with a diameter of 3 mm to 8 mm; for self-crimping; threads from M5 to M8 [ Application ] Insert the cable into the terminal and crimp using a suitable tool [ Further specific details ] Dimensions of threaded terminal for 3 mm diameter rope: A: M5; B: 70 mm; C: 30 mm; D: 6 mm; E: 35 mm Dimensions of threaded terminal for 4 mm diameter rope: A: M6; B: 70 mm; C: 30 mm; D: 7 mm; E: 35 mm Dimensions of threaded terminal for Ø 5 mm rope: A: M6; B: 70 mm; C: 30 mm; D: 8 mm; E: 35 mm Dimensions of threaded terminal for Ø 6 mm rope: A: M6; B: 70 mm; C: 30 mm; D: 9 mm; E: 35 mm Dimensions of threaded terminal for Ø 8 mm rope: A: M8; B: 110 mm; C: 50 mm; D: 11 mm; E: 50 mm

Variants from £1.55*

Available, : Lieferzeit 5-10 Werktage

£1.63*

11.2966.4

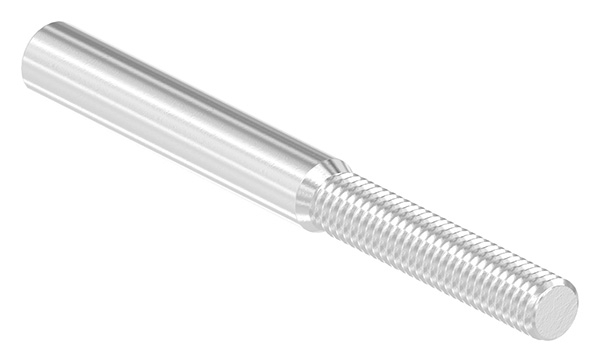

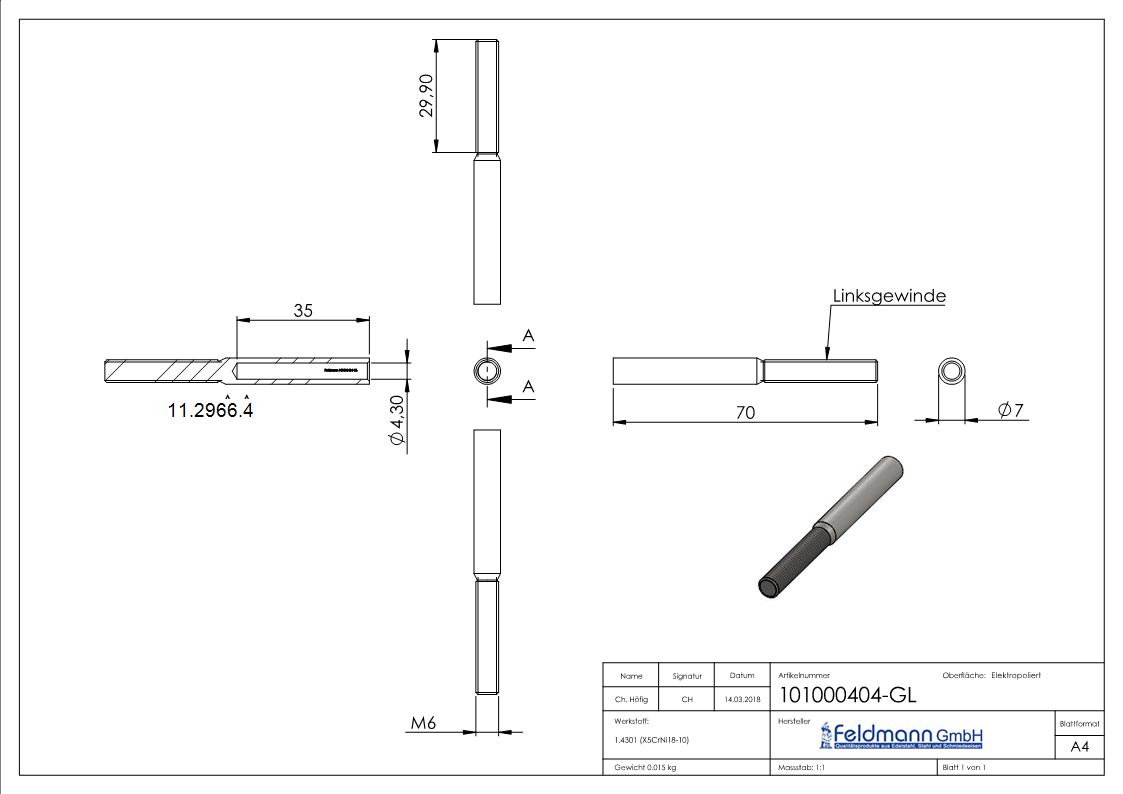

Threaded terminal with external thread | Left-hand thread | For cable from Ø 3 mm to Ø 8 mm | V2A

Threaded terminal with external thread | Left-hand thread | For cable diameters from 3 mm to 8 mm | V2A [ Technical details ] Made from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for cable with a diameter of 3 mm to 8 mm; for self-crimping; threads from M5 to M8 [ Application ] Insert the cable into the terminal and crimp using a suitable tool [ Further specific details ] Dimensions of threaded terminal for 3 mm diameter rope: A: M5; B: 70 mm; C: 30 mm; D: 6 mm; E: 35 mm Dimensions of threaded terminal for 4 mm diameter rope: A: M6; B: 70 mm; C: 30 mm; D: 7 mm; E: 35 mm Dimensions of threaded terminal for Ø 5 mm rope: A: M6; B: 70 mm; C: 30 mm; D: 8 mm; E: 35 mm Dimensions of threaded terminal for Ø 6 mm rope: A: M6; B: 70 mm; C: 30 mm; D: 9 mm; E: 35 mm Dimensions of threaded terminal for Ø 8 mm rope: A: M8; B: 110 mm; C: 45 mm; D: 11 mm; E: 50 mm

Variants from £1.55*

Available, : Lieferzeit 5-10 Werktage

£1.63*

11.2971.4

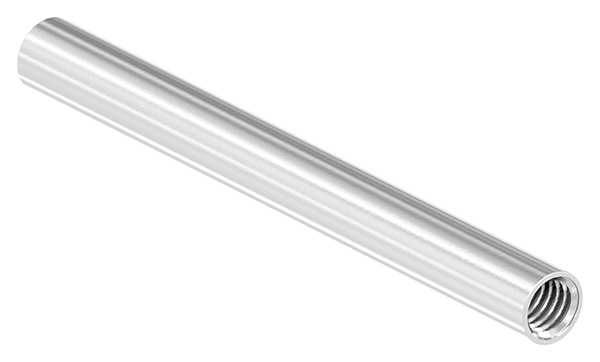

Threaded terminal with internal thread | Right-hand thread | For cable from Ø 3 mm to Ø 8 mm | V2A

Threaded terminal with internal thread | Right-hand thread | For cables from Ø 3 mm to Ø 8 mm | V2A [ Technical details ] Manufactured from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for cable with a diameter of 3 mm to 8 mm; for self-crimping; threads from M5 to M8 [ Application ] Insert the cable into the terminal and crimp using a suitable tool [ Further specific details ] Dimensions of threaded terminal for 3 mm diameter rope: A: M5; B: 70 mm; C: 21 mm; D: 6 mm; E: 35 mm Dimensions of threaded terminal for 4 mm diameter rope: A: M6; B: 70 mm; C: 25 mm; D: 7 mm; E: 35 mm Dimensions of threaded terminal for Ø 5 mm rope: A: M6; B: 70 mm; C: 20 mm; D: 8 mm; E: 35 mm Dimensions of threaded terminal for Ø 6 mm rope: A: M6; B: 70 mm; C: 25 mm; D: 9 mm; E: 35 mm Dimensions of threaded terminal for Ø 8 mm rope: A: M8; B: 110 mm; C: 40 mm; D: 11 mm; E: 50 mm

Variants from £1.63*

Available, : Lieferzeit 5-10 Werktage

£1.73*

11.2976.4

Threaded terminal with internal thread | Left-hand thread | For cable from Ø 3 mm to Ø 8 mm | V2A

Threaded terminal with internal thread | Left-hand thread | For cables from Ø 3 mm to Ø 8 mm | V2A [ Technical details ] Manufactured from stainless steel 1.4301/V2A/AISI 304[ Specific details ] Suitable for rope with a diameter of 3 mm to 8 mm; for self-crimping; threads from M5 to M8 [ Application ] Insert the rope into the terminal and crimp using a suitable tool [ Further specific details ] Dimensions of threaded terminal for 3 mm diameter rope: A: M5; B: 70 mm; C: 21 mm; D: 6 mm; E: 35 mm Dimensions of threaded terminal for 4 mm diameter rope: A: M6; B: 70 mm; C: 25 mm; D: 7 mm; E: 35 mm Dimensions of threaded terminal for Ø 5 mm rope: A: M6; B: 70 mm; C: 20 mm; D: 8 mm; E: 35 mm Dimensions of threaded terminal for Ø 6 mm rope: A: M6; B: 70 mm; C: 25 mm; D: 9 mm; E: 35 mm Dimensions of threaded terminal for Ø 8 mm rope: A: M8; B: 110 mm; C: 40 mm; D: 11 mm; E: 50 mm

Variants from £1.63*

Available, : Lieferzeit 5-10 Werktage

£1.73*

11.2906.1

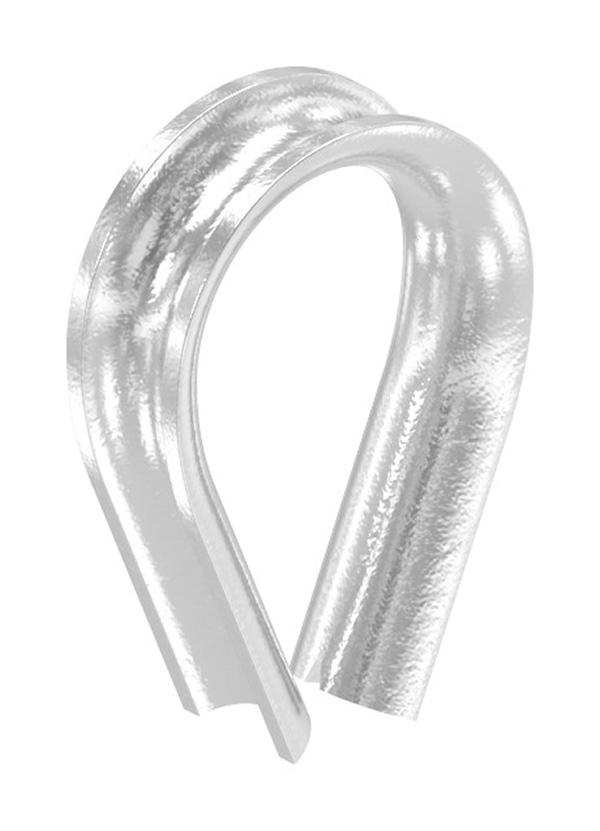

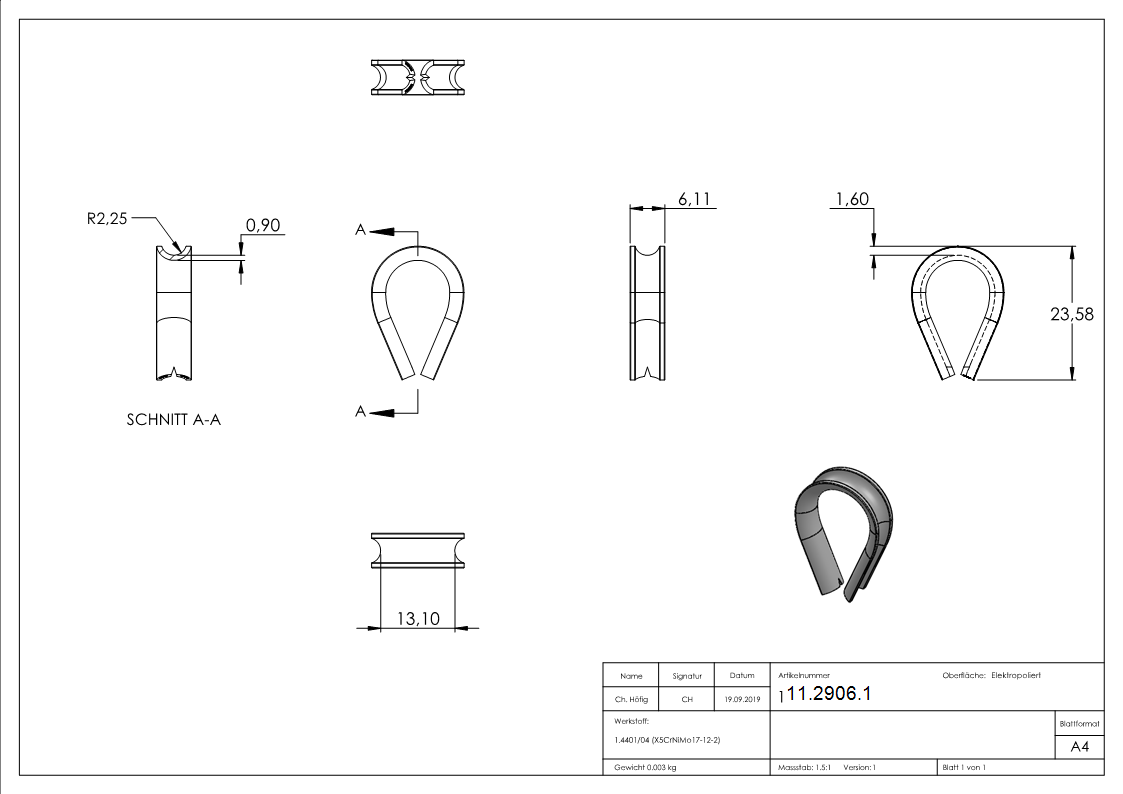

Thimble | for rope diameter: 2 mm – 8 mm | V4A

Thimble | for rope Ø 2 mm – 8 mm | V4A[ Technical details ] made of stainless steel 1.4401/04/V4A/AISI 316 for rope Ø A B C D 2 mm 9 mm 15 mm 4 mm 13 mm 3 mm 12 mm 19 mm 6 mm 16 mm 4 mm 13 mm 23 mm 6.5 mm 19 mm 5 mm 15.5 mm 32 mm 7.5 mm 28 mm 6 mm 19 mm 35 mm 9 mm 29 mm 8 mm 23 mm 44 mm 12 mm 36 mm

Available, : Lieferzeit 5-10 Werktage

£0.43*

11.2920.1

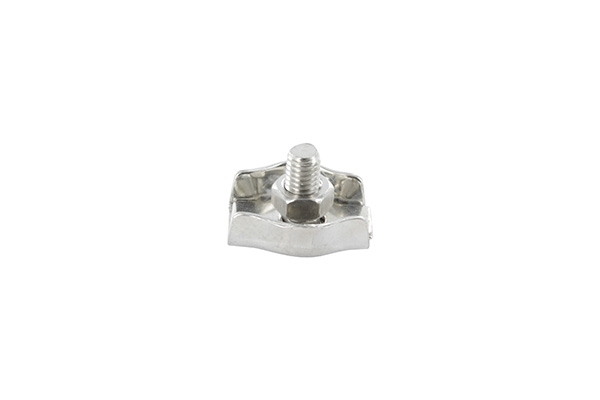

Simplex clamp | for rope Ø 2 mm – 8 mm | V4A

Simplex clamp | for cable Ø 2 mm – 8 mm | V4A[ Technical details ] made of stainless steel 1.4401/04/V4A/AISI 316 for rope Ø A B C 2 mm 8 mm 14.5 mm 5 mm 3 mm 9 mm 17 mm 6.5 mm 4 mm 10 mm 20 mm 6.5 mm 5 mm 13 mm 25 mm 7.5 mm 6 mm 16 mm 30 mm 8 mm 8 mm 23 mm 38 mm 11.5 mm

Variants from £0.71*

Available, : Lieferzeit 5-10 Werktage

£0.81*

11.2924.1

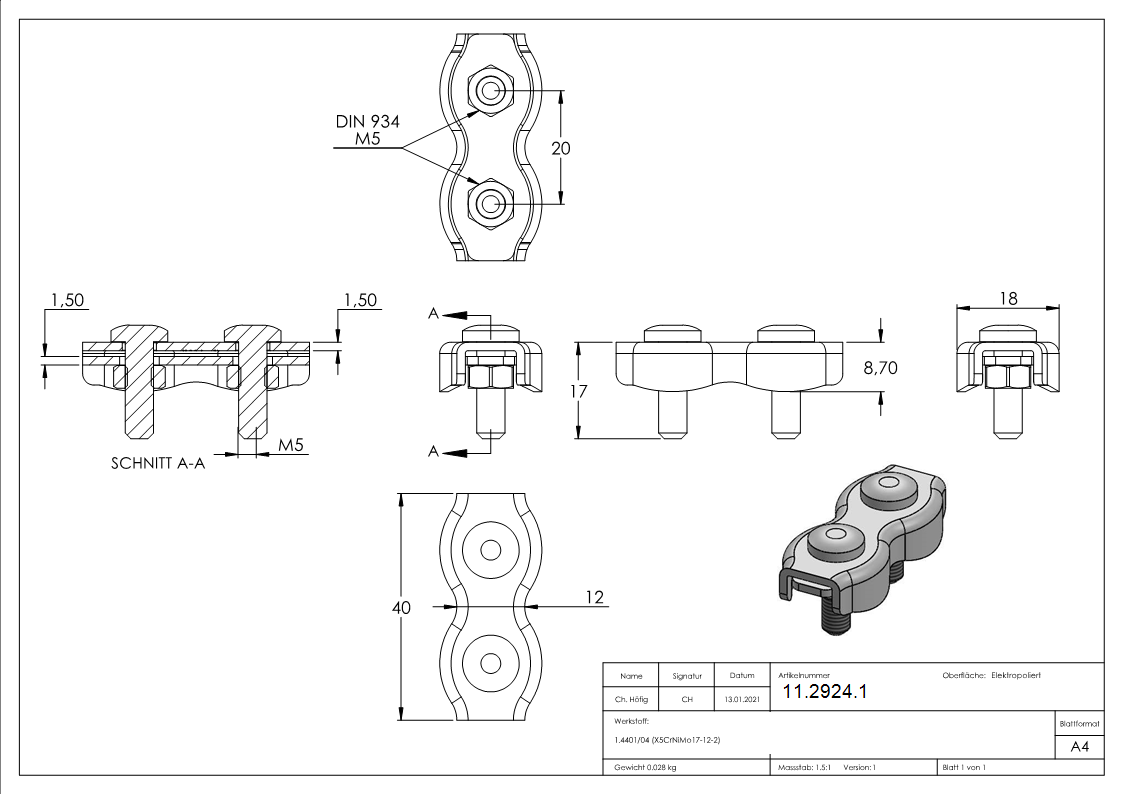

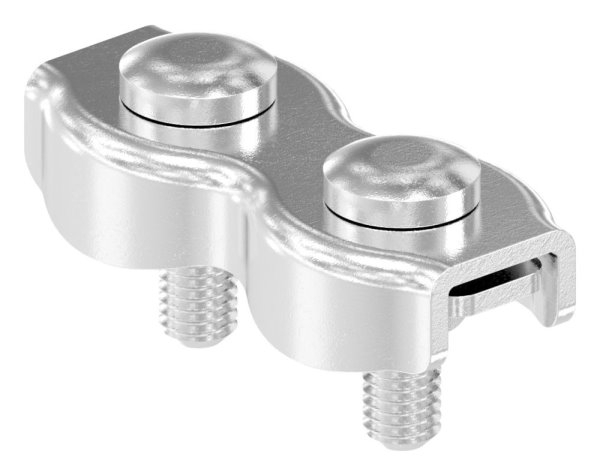

Duplex clamp | for cable Ø 2 mm – 8 mm | V4A

Duplex clamp | for cable Ø 2 mm – 8 mm | V4A[ Technical details ] made of stainless steel 1.4401/04/V4A/AISI 316 for cable Ø A B C 2 mm 14 mm 30 mm 5.5 mm 3 mm 16 mm 35 mm 6 mm 4 mm 18 mm 40 mm 6.5 mm 5 mm 20 mm 50 mm 8 mm 6 mm 27 mm 70 mm 10.5 mm 8 mm 32 mm 76 mm 11.5 mm

Available, : Lieferzeit 5-10 Werktage

£1.24*

Stk

11.2959.4

rope clamp

Cable pliers for cutting steel cables up to 20 mm

Available, : Lieferzeit 5-10 Werktage

£44.91*

Stk

88.1160620.240

60 kN wire rope press

60 kN wire rope press, for crimping threaded sleeves onto stainless steel cables, diameters 3 mm, 4 mm, 5 mm, 6 mm, 8 mm

£904.76*
