Threaded terminal for self-assembly | For cable: Ø 3 mm to Ø 8 mm | with external thread | V2A
Ø-Seil:
Ø 3 mm
Stock:
373
Product number:
11.2804.4
EAN:
4251412911774
Weight:
0.05 kg
Description
Product information "Threaded terminal for self-assembly | For cable: Ø 3 mm to Ø 8 mm | with external thread | V2A"

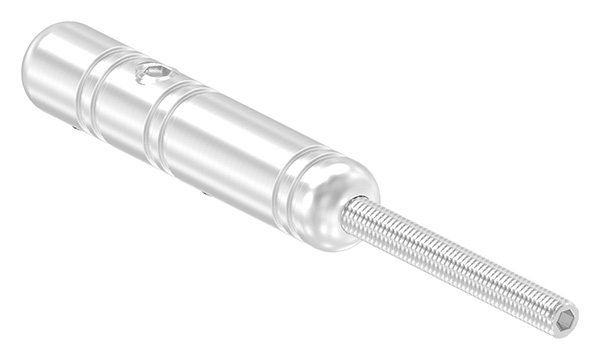

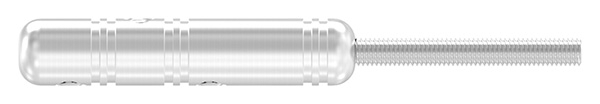

Threaded terminal for self-assembly | For cable: Ø 3 mm to Ø 8 mm | with external thread | V2A
[ Technical details ] Made from stainless

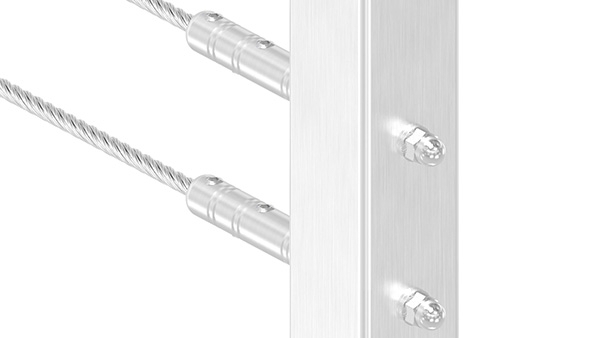

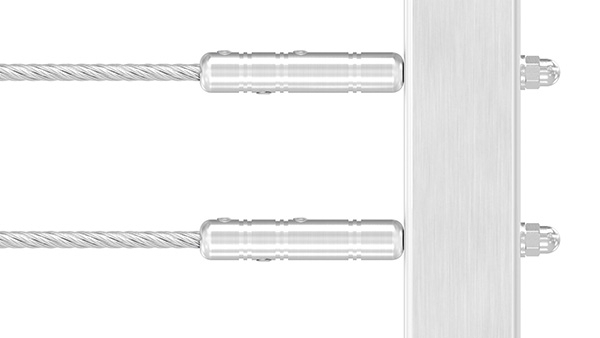

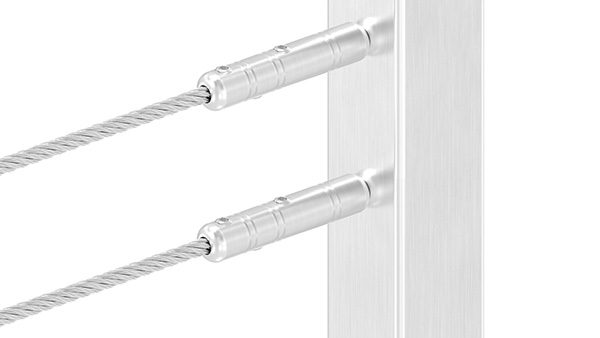

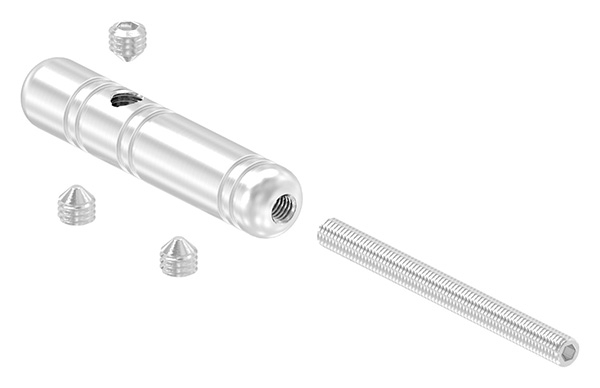

steel 1.4301/V2A/AISI 304[ Application ] Insert the cable into the terminal and secure it with the included Allen clamp screw

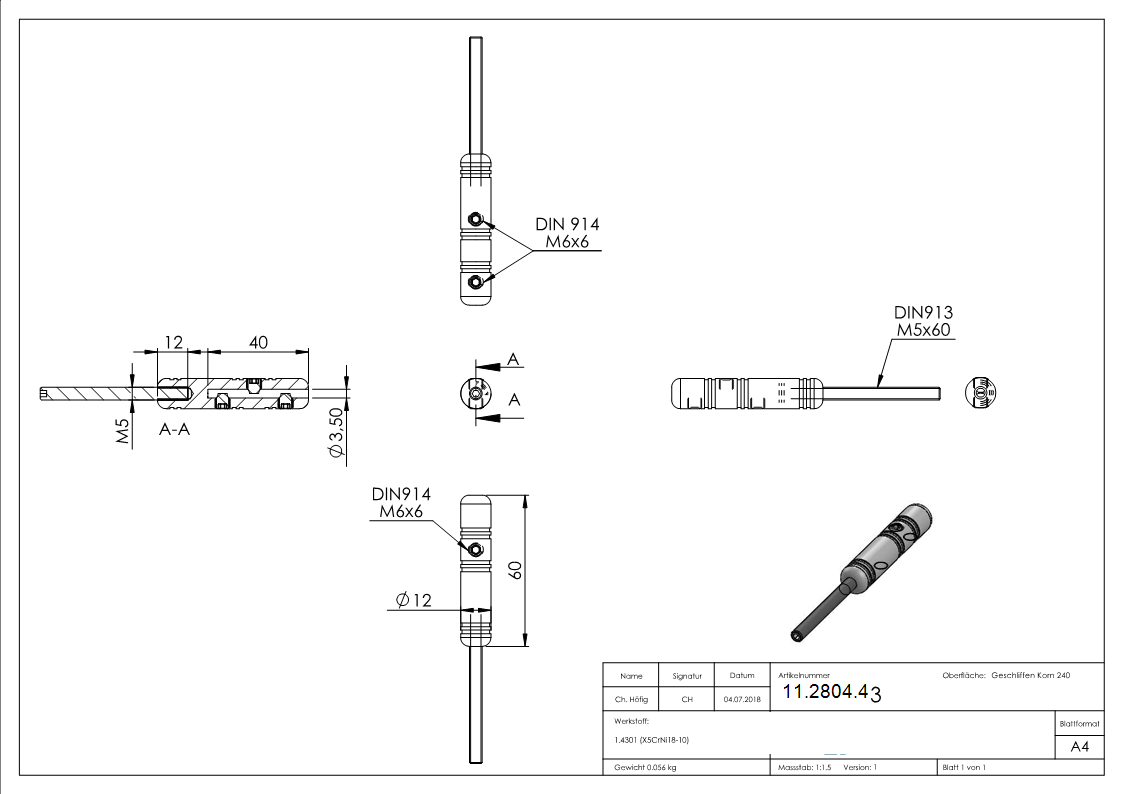

| For cable Ø | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 3 mm | M5 | 60 mm | 40 mm | Ø 12 mm | 15 mm | 45 mm |
| 4 mm | M5 | 60 mm | 40 mm | Ø 12 mm | 15 mm | 45 mm |
| 5 mm | M5 | 70 mm | 40 mm | Ø 14 mm | 20 mm | 40 mm |
| 6 mm | M6 | 70 mm | 40 mm | Ø 14 mm | 20 mm | 40 mm |
| 8 mm | M8 | 80 mm | 60 mm | Ø 16 mm | 15 mm | 45 mm |
Properties
| Form: | Gewindeterminal |
|---|
Skip the product gallery
£0.97*
Zubehör
11.2799.1
7x7 stainless steel wire | flexible | Ø 2 mm to Ø 8 mm | Price per metre | V4A
7x7 stainless steel wire rope | flexible | Ø 2 mm to Ø 8 mm | Price per metre | V4A
[ Technical details ] Manufactured from stainless steel 1.
4401/04/V4A/AISI 316 [ Specific details ] Ø 2 mm to Ø 8 mm; cleaned and pre-tensioned; nominal tensile strength 1570 N/mm²
[ Note on ordering ] Price per metre; simply order the number of metres you require
[ Further specific details ]
Ø 2 mm wire: breaking force 1.70 kN
Ø 3 mm wire: breaking force 5.07 kN
Ø 4 mm wire: breaking force 9.10 kN
Ø 5 mm wire: breaking force 13.0 kN
Ø 6 mm wire: breaking force 19.0 kN
Ø 8 mm wire: breaking strength 38.0 kN
Variants from £0.47*
Available, : 1-3 days
