Pipe connector | Adjustable ring | 138 | 26.9 mm – 48.3 mm | 3/4" – 1 1/2" | Hot-dip galvanised and electro-galvanised

Rohraußendurchmesser: Ø 26,9 mm
Skip the photo gallery
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27
Rohrverbinder - Stellringauge - 138A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-138A27

£2.58*

Prices include VAT, plus delivery charges

Available: 1-3 days

Rohraußendurchmesser
Stk
Stock: 282
Product number: 138A27
EAN: 4251412902222
Weight: 0.16 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Pipe connector | Adjustable ring | 138 | 26.9 mm – 48.3 mm | 3/4" – 1 1/2" | Hot-dip galvanised and electro-galvanised"

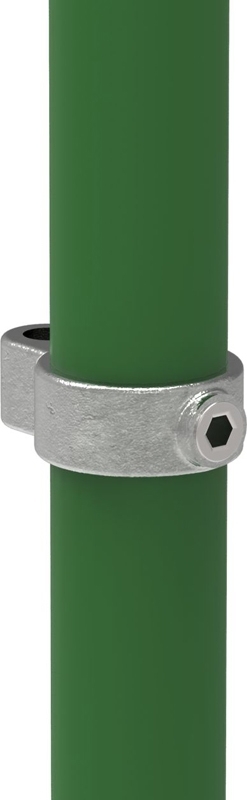

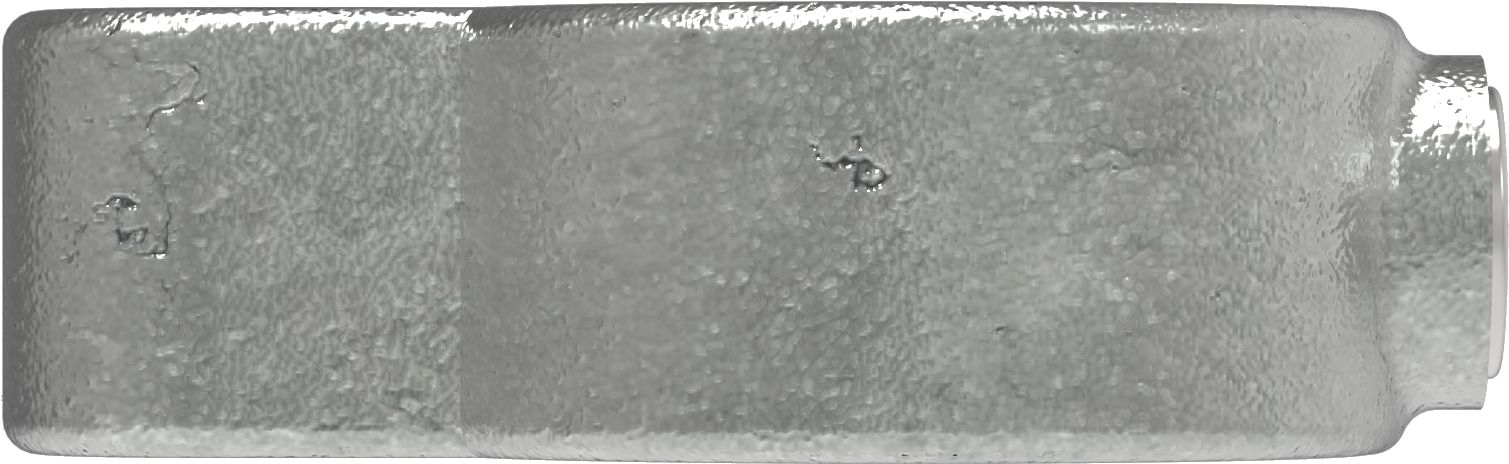

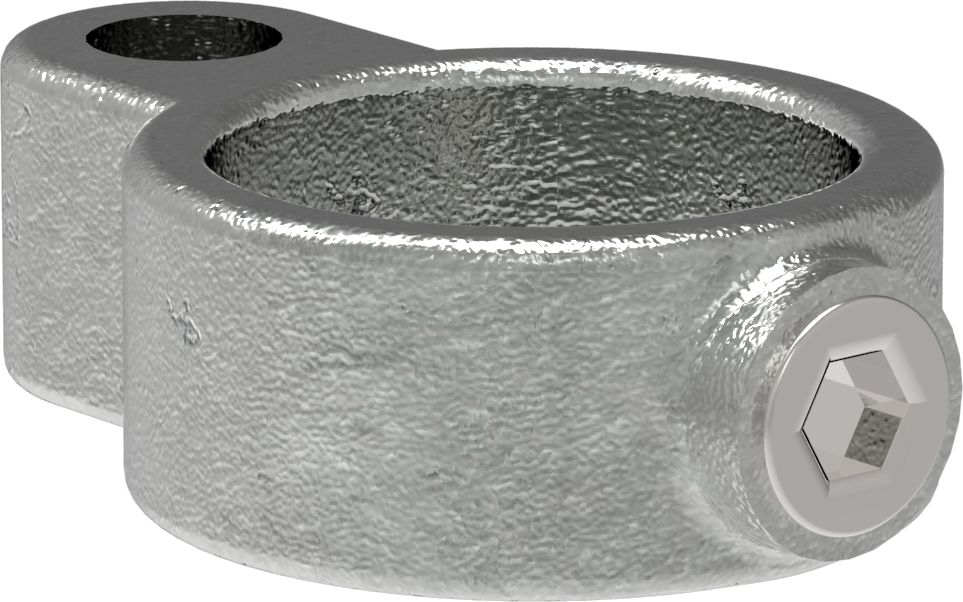

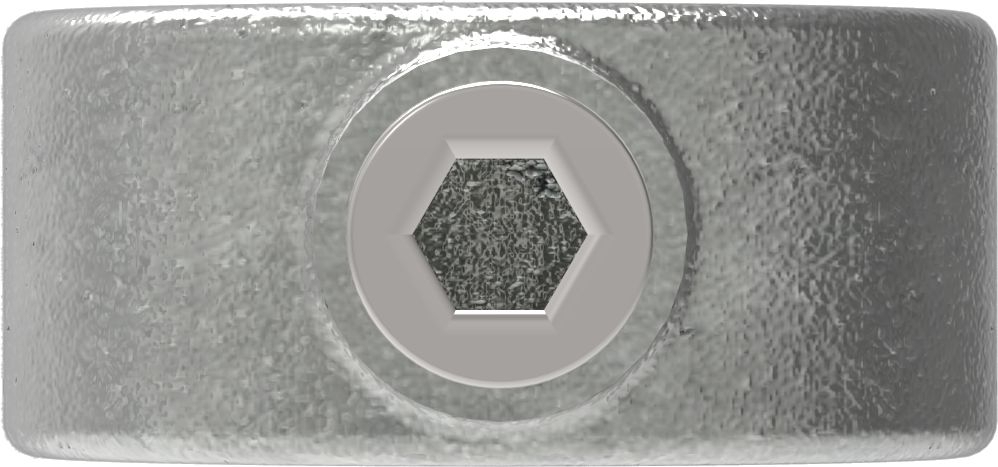

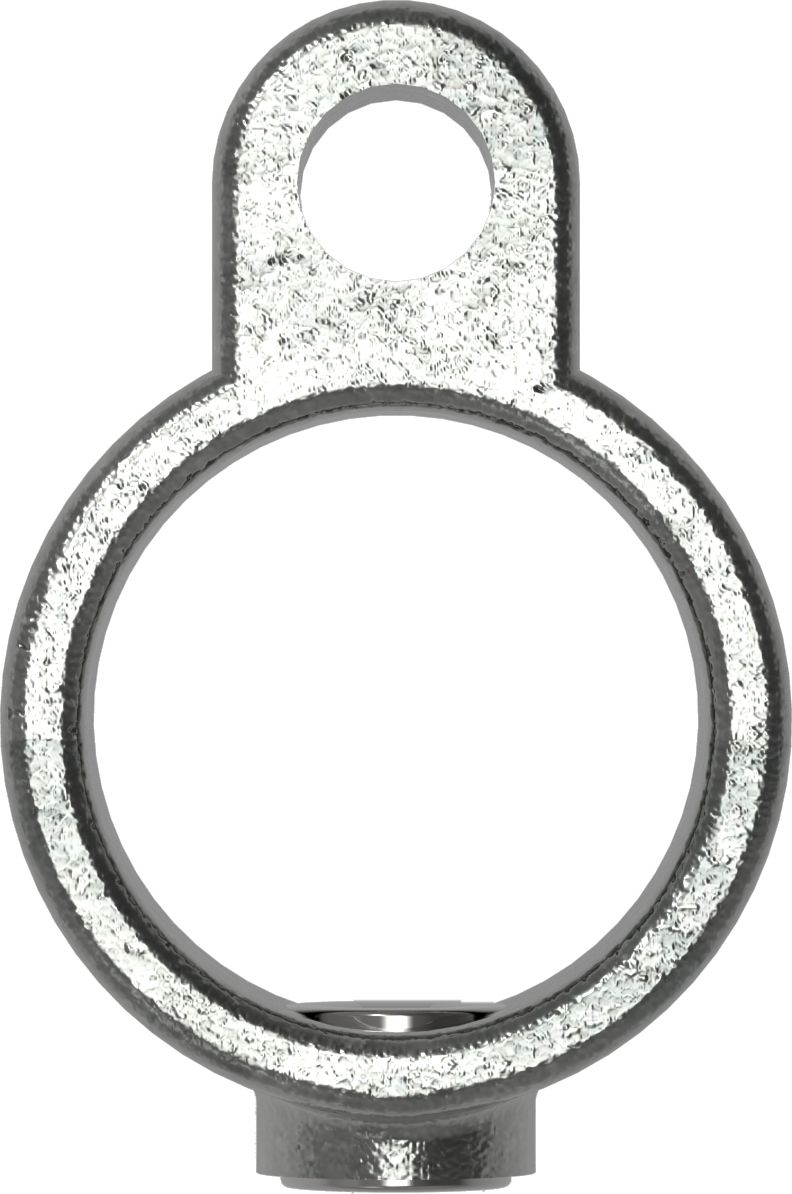

Pipe connector | Adjustable ring eye | 138 | 26.9 mm – 48.3 mm | 3/4" – 1 1/2" | Malleable cast iron and electro-galvanised

[ Contents ] 1x hook top / adjusting ring eye incl. stainless steel clamping and cutting screws - (Item No.: 138A27) | Optimal corrosion protection against the elements – durable, sturdy and universally applicable (outer diameter in accordance with DIN EN ISO 6708 and EN 10255)

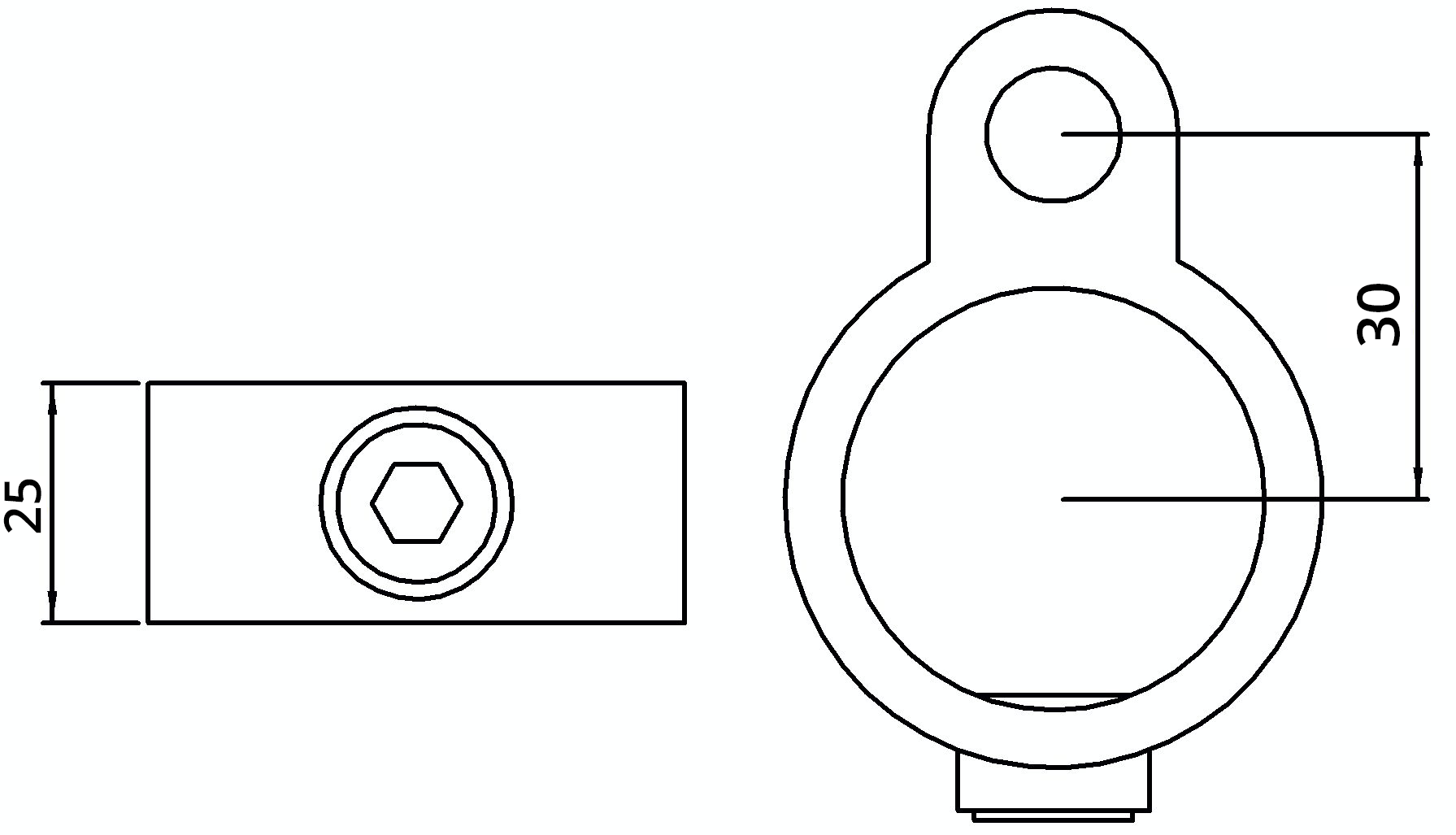

[ Technical details ] Dimensions (see illustration): For Ø 26.9 mm / ¾" Dimension (A): 30 mm / Dimension (B): 25 mm / Weight: 0.16 kg | Professional quality thanks to electroplating and hot-dip galvanising - Material: malleable cast iron

[ Wrong size? - Suitable items ] (Item no.: 138A27) Dimensions: Ø 26.9 mm / ¾" | (Item no.: 138B34) Dimensions: Ø 33.7 mm / 1" | (Item No.: 138C42) Dimensions: Ø 42.4 mm / 1 ¼" | (Item No.: 138D48) Dimensions: Ø 48.3 mm / 1 ½" | Additional individual parts: Item No.: cfg-140ABCD

[ Application ] Wide range of applications | Functions as a door/gate hinge with (Item No.: cfg-140) as a gate pivot fitting | For steel structures, scaffolding, handrails, railings, shelving, etc. | Not the right tube connector? No problem, we stock a wide range of tube connectors in various shapes

For tube Dimension a Dimension b Dimension c Allen key 26.9 mm 30 mm 25 mm 14 mm 301AB 33.7 mm 33 mm 25 mm 14 mm 301AB 42.4 mm 38 mm 25 mm 14 mm 301CDE 48.3 mm 41 mm 25 mm 14 mm 301CDE
Properties
Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: Ø 26.9mm (3⁄4″)
