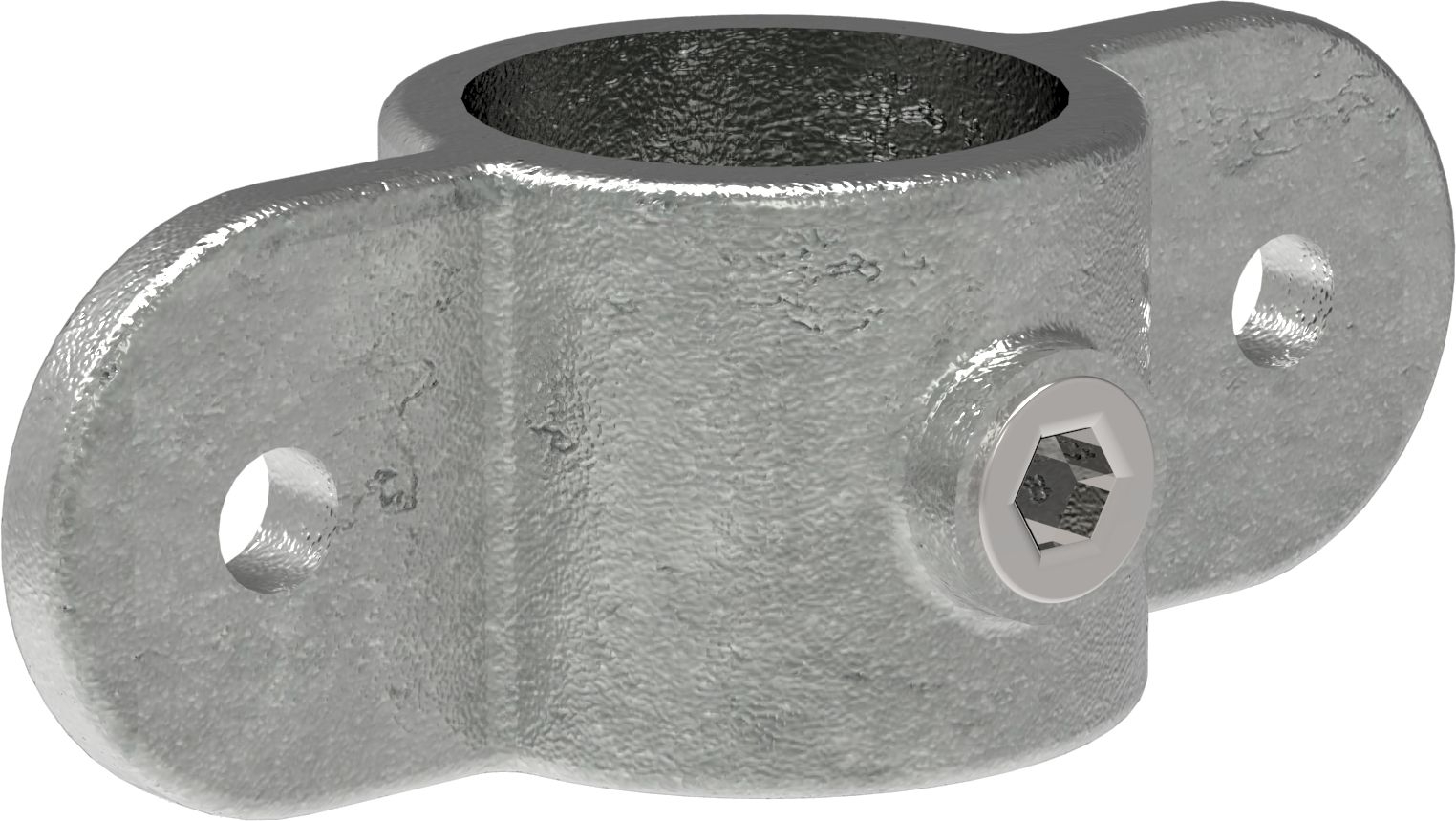

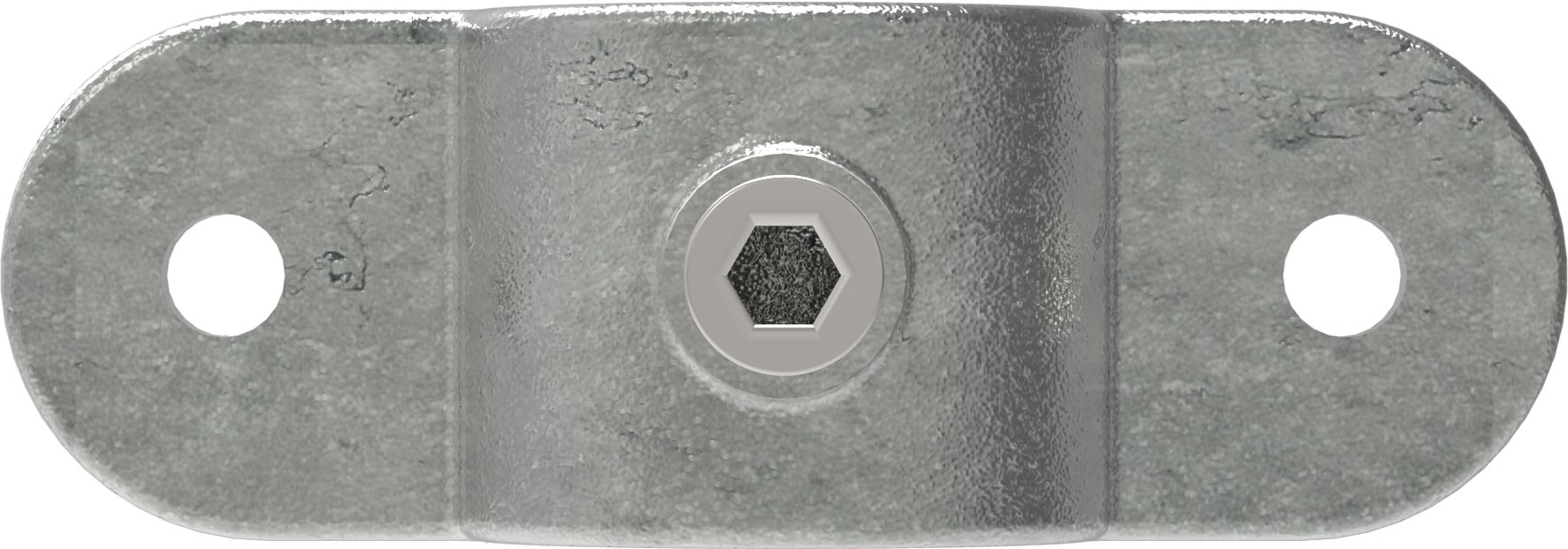

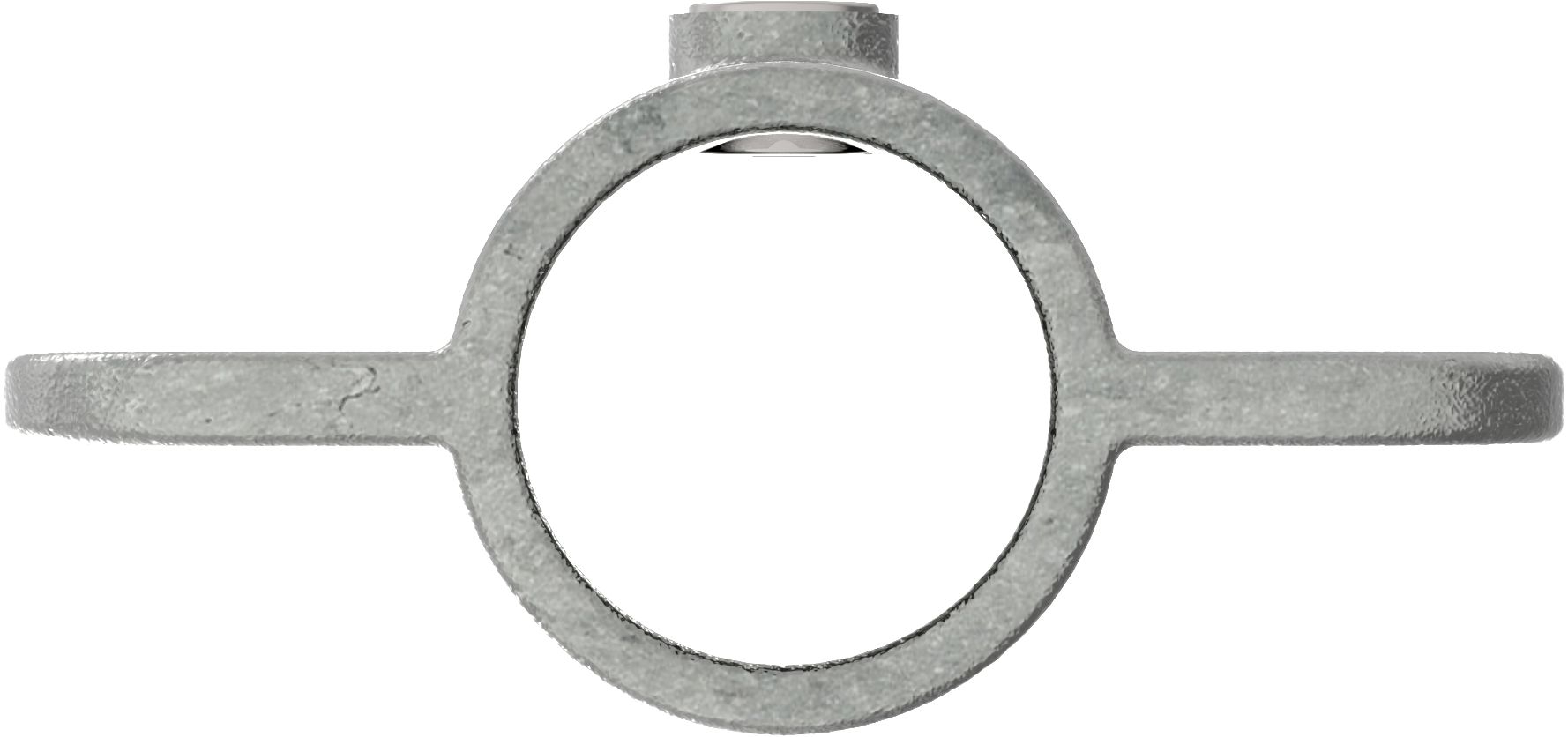

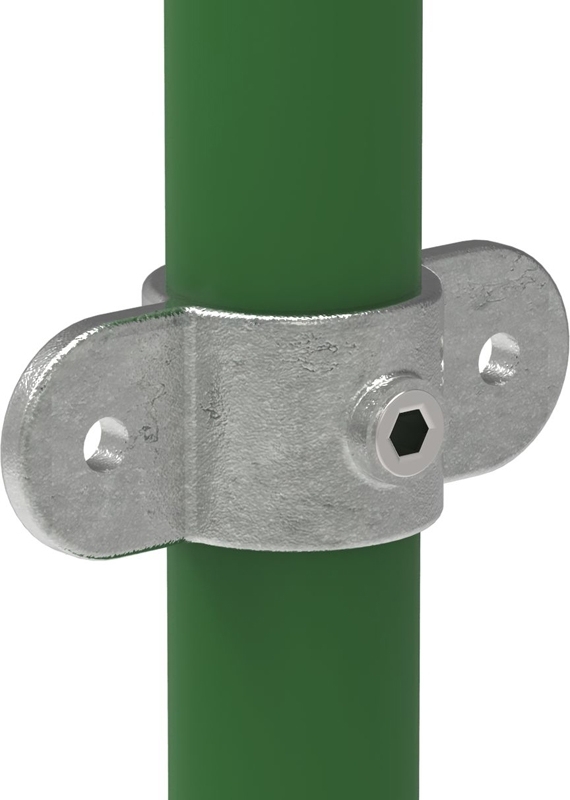

Pipe connector | Double swivel eye | 167M | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised
Rohraußendurchmesser:
Ø 26,9 mm
FeNau GmbH
![Rohrverbinder - Gelenkauge doppelt - 167MA27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-167MA27](https://fenau.uk/media/6f/41/83/1771485811/Rohrverbinder-Gelenkauge-doppelt-167MA27-26-9-mm-3-4-Feuerverzinkt-u-Elektrogalvanisiert-167MA27-1.jpeg?ts=1775643691 "Pipe connector | Double swivel eye | 167M | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised")
![Rohrverbinder - Gelenkauge doppelt - 167MA27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-167MA27](https://fenau.uk/media/0c/2f/84/1771485811/Rohrverbinder-Gelenkauge-doppelt-167MA27-26-9-mm-3-4-Feuerverzinkt-u-Elektrogalvanisiert-167MA27-2.jpeg?ts=1775643692 "Pipe connector | Double swivel eye | 167M | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised")
![Rohrverbinder - Gelenkauge doppelt - 167MA27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-167MA27](https://fenau.uk/media/b3/ea/43/1771485812/Rohrverbinder-Gelenkauge-doppelt-167MA27-26-9-mm-3-4-Feuerverzinkt-u-Elektrogalvanisiert-167MA27-3.jpeg?ts=1775643693 "Pipe connector | Double swivel eye | 167M | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised")
![Rohrverbinder - Gelenkauge doppelt - 167MA27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-167MA27](https://fenau.uk/media/83/2f/98/1771485816/Rohrverbinder-Gelenkauge-doppelt-167MA27-26-9-mm-3-4-Feuerverzinkt-u-Elektrogalvanisiert-167MA27-4.jpeg?ts=1775643696 "Pipe connector | Double swivel eye | 167M | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised")
![Rohrverbinder - Gelenkauge doppelt - 167MA27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-167MA27](https://fenau.uk/media/01/3c/dd/1771485816/Rohrverbinder-Gelenkauge-doppelt-167MA27-26-9-mm-3-4-Feuerverzinkt-u-Elektrogalvanisiert-167MA27-5.png?ts=1775643695 "Pipe connector | Double swivel eye | 167M | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised")
![Rohrverbinder - Gelenkauge doppelt - 167MA27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-167MA27](https://fenau.uk/media/cd/99/58/1771485816/Rohrverbinder-Gelenkauge-doppelt-167MA27-26-9-mm-3-4-Feuerverzinkt-u-Elektrogalvanisiert-167MA27-6.jpeg?ts=1776411282 "Pipe connector | Double swivel eye | 167M | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised")
Stock:
85
Product number:
167MA27
EAN:
4251412903731
Weight:
0.21 kg
Description
Product information "Pipe connector | Double swivel eye | 167M | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised"
Pipe connector | Double swivel eye | 167M | 26.9 mm – 60.3 mm | 3/4" – 2" | Malleable cast iron, electro-galvanised
[ Scope of delivery ] 1x swivel fitting / vertical swivel eye (180°) (double-holed) incl. stainless steel clamping and cutting screws - (Item No.: 167MA27) | Optimal corrosion protection against the elements - durable, stable and universally applicable (Outer diameter in accordance with DIN EN ISO 6708 and EN 10255)
[
[
[

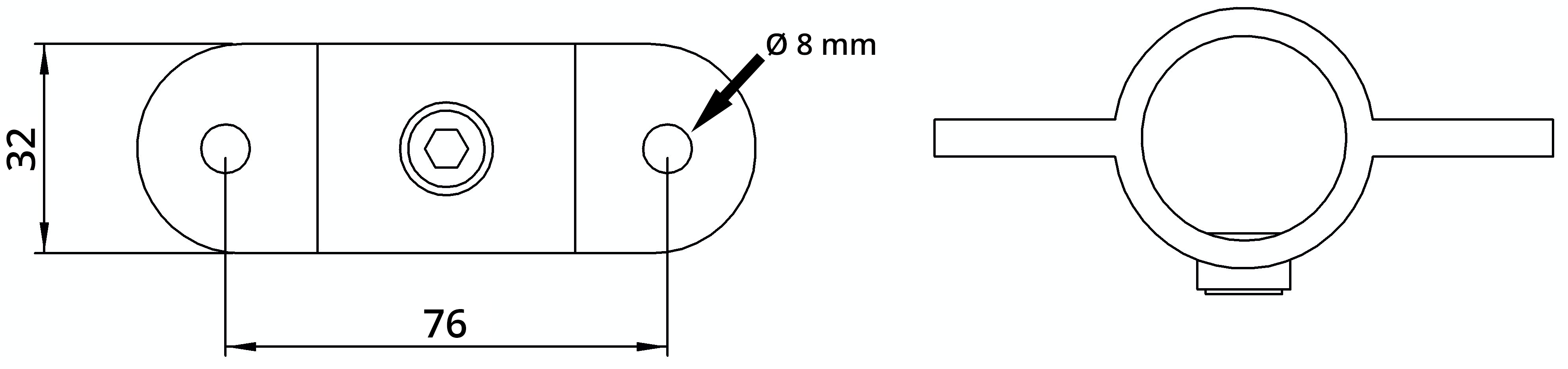

| For pipe | Dimension a | Dimension b | Allen |
|---|---|---|---|
| 26.9 mm | 32 mm | 76 mm | 301AB |
| 33.7 mm | 40 mm | 86 mm | 301AB |
| 42.4 mm | 45 mm | 95 mm | 301CDE |
| 48.3 mm | 48 mm | 105 mm | 301CDE |
| 60.3 mm | mm | 124 mm | 301CDE |
Properties
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | Ø 26.9mm (3⁄4″) |
|---|
