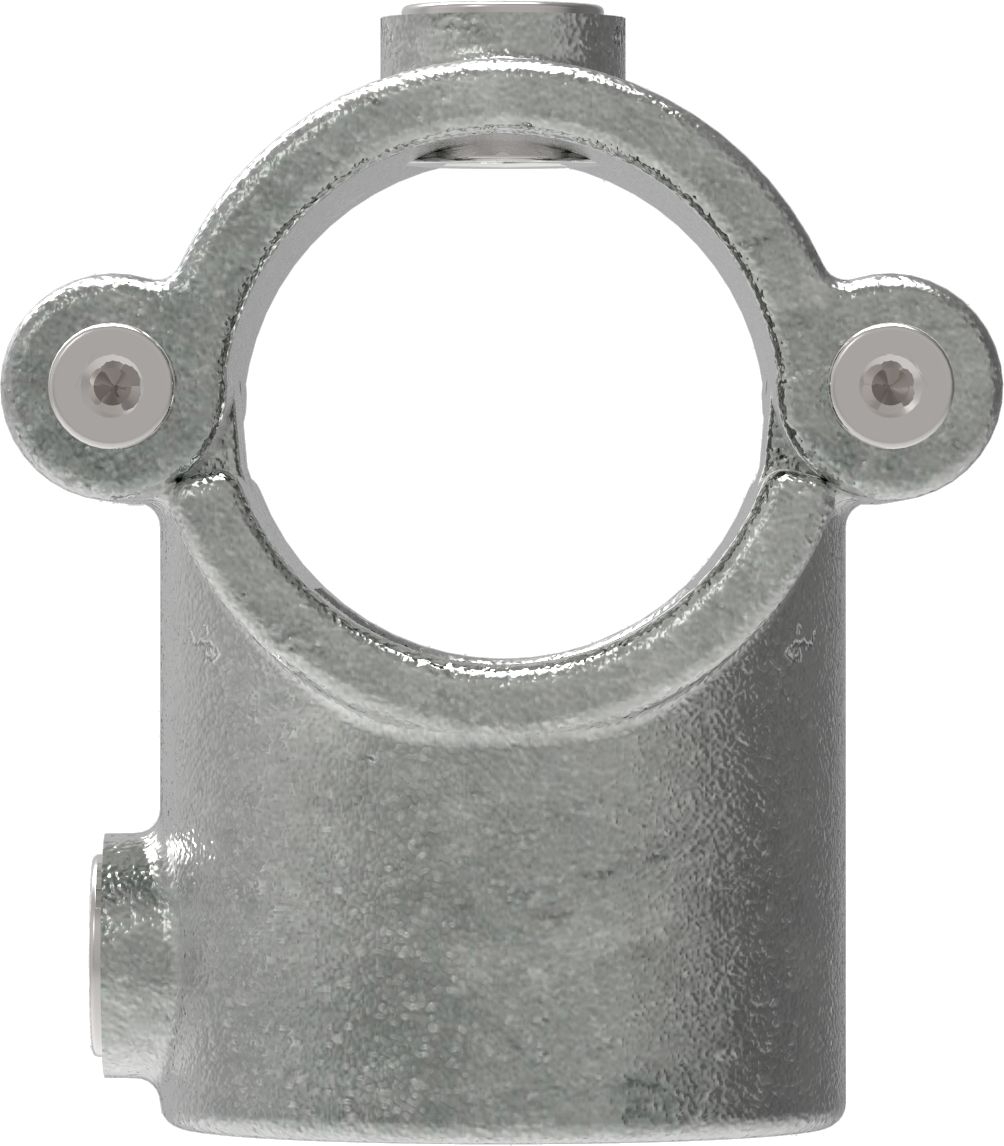

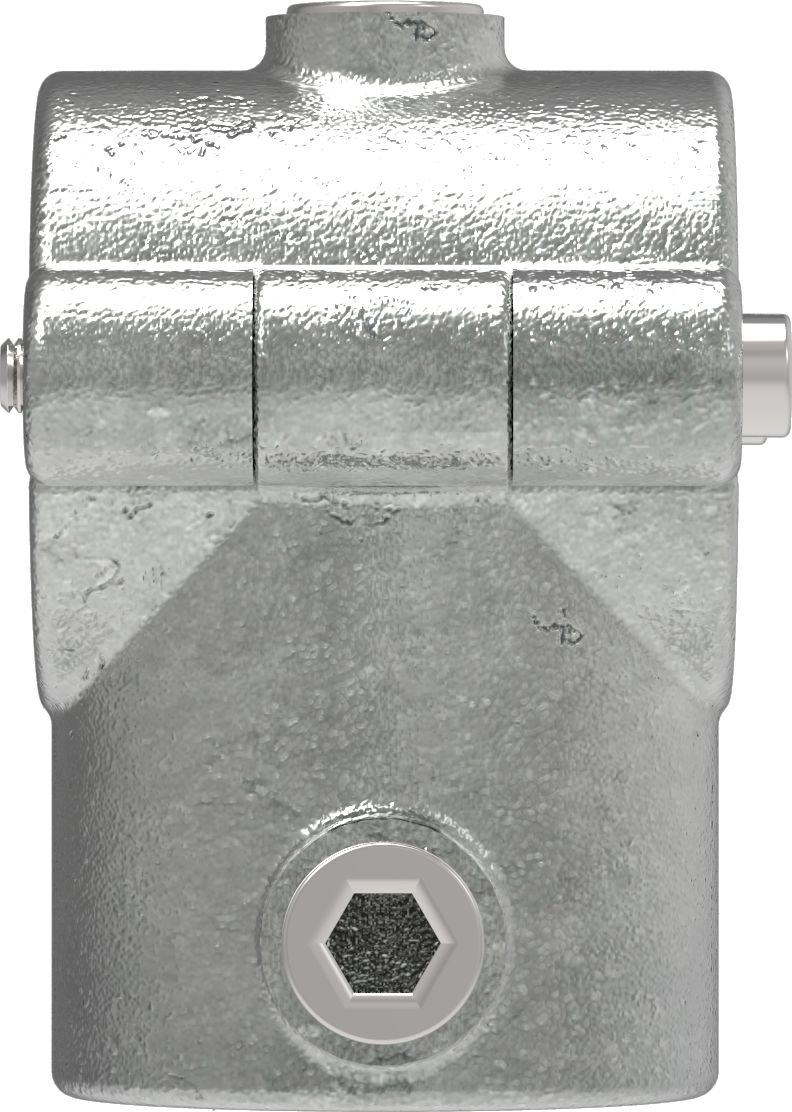

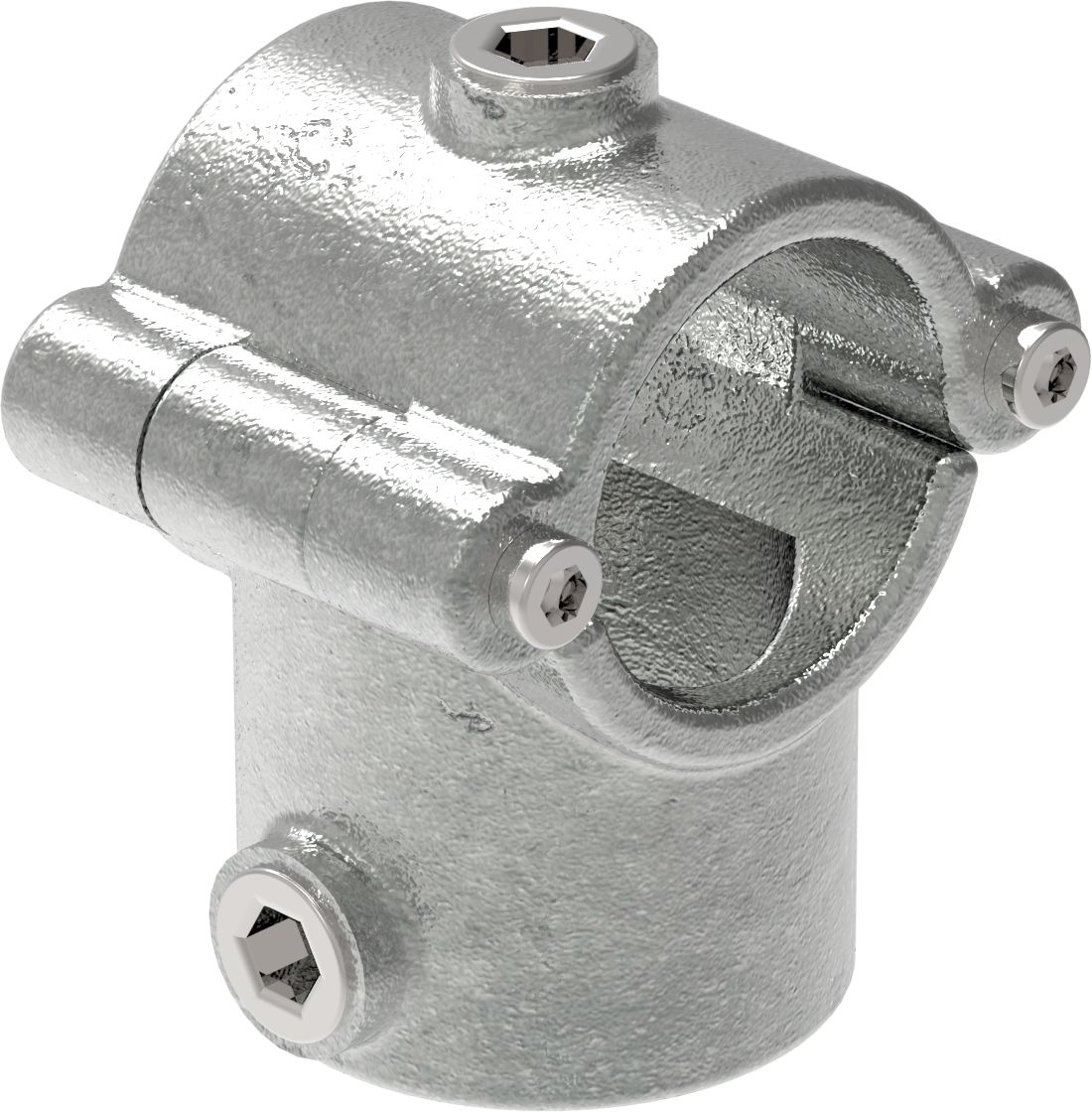

Pipe connector | T-joint with hinged bolts | 136 | 33.7 mm – 48.3 mm | 1" – 1 1/2" | Hot-dip galvanised and electro-galvanised

Rohraußendurchmesser: Ø 33,7 mm
Skip the photo gallery
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34
Rohrverbinder - T-Stueck mit Bolzen aufklappbar - 136B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-136B34

£7.48*

Prices include VAT, plus delivery charges

Available: 1-3 days

Rohraußendurchmesser
Stk
Stock: 600
Product number: 136B34
EAN: 4251412902161
Weight: 0.43 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Pipe connector | T-joint with hinged bolts | 136 | 33.7 mm – 48.3 mm | 1" – 1 1/2" | Hot-dip galvanised and electro-galvanised"

Pipe connector | T-piece with bolts, hinged | 136 | 33.7 mm – 48.3 mm | 1" – 1 1/2" | Malleable cast iron, electro-galvanised

[ Scope of delivery ] 1x T-connector (hinged / incl. bolts / angle: 90 degrees) incl. stainless steel clamping and cutting screws - (Item no.: 136B34) | Optimal corrosion protection against the elements - durable, stable and universally applicable (Outer diameter in accordance with DIN EN ISO 6708 and EN 10255)

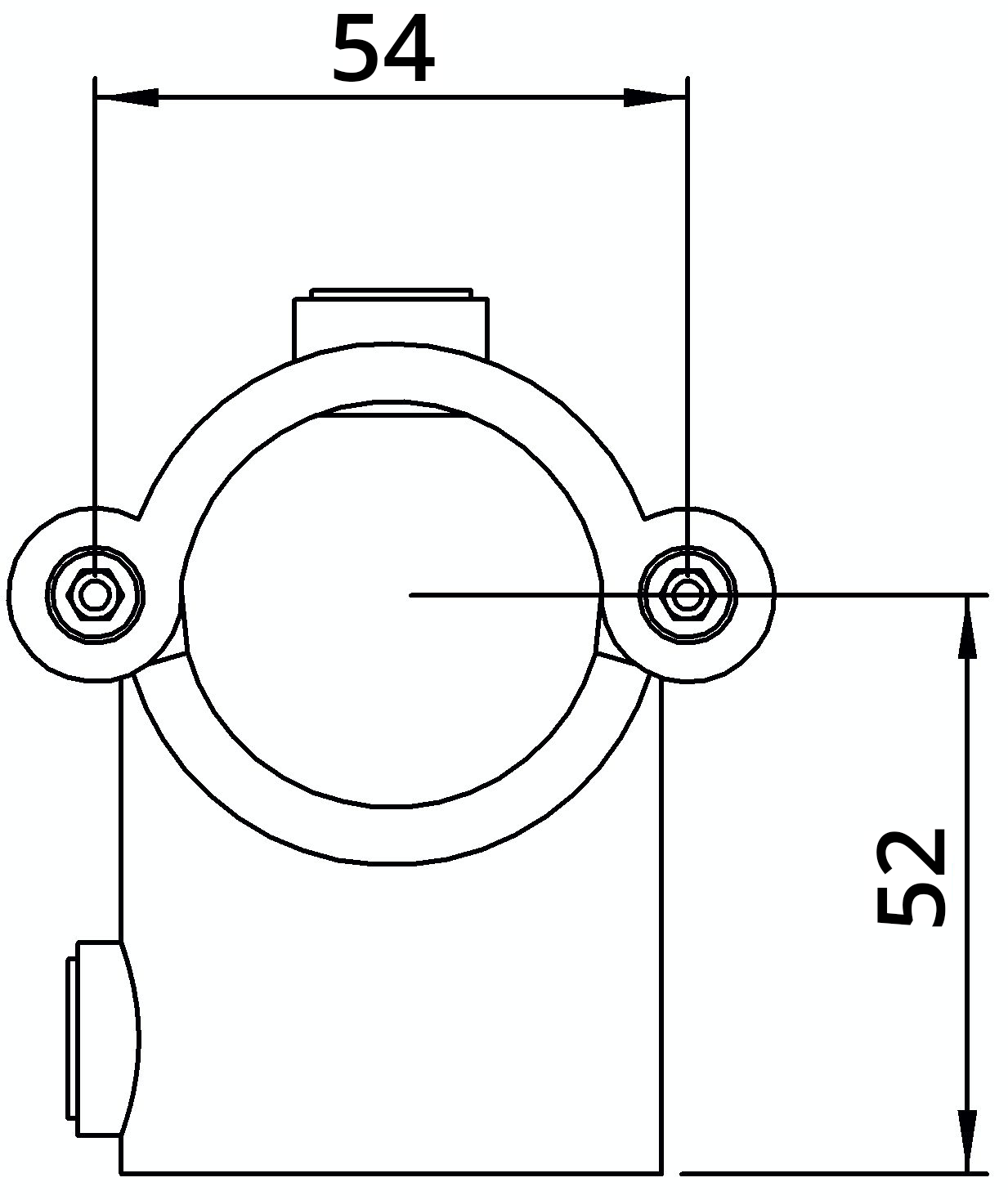

[ Technical details ] Dimensions (see illustration): For Ø 33.7 mm / 1" Dimension (A): 54 mm / Dimension (B): 52 mm / Weight: 0.43 kg | Professional quality thanks to electro-galvanisation and hot-dip galvanisation - Material: malleable cast iron

[ Wrong size? – Suitable items ] (Item no.: 136B34) Dimensions: Ø 33.7 mm / 1" | (Item no.: 136C42) Dimensions: Ø 42.4 mm / 1 ¼" | (Item No.: 136D48) Dimensions: Ø 48.3 mm / 1 ½"

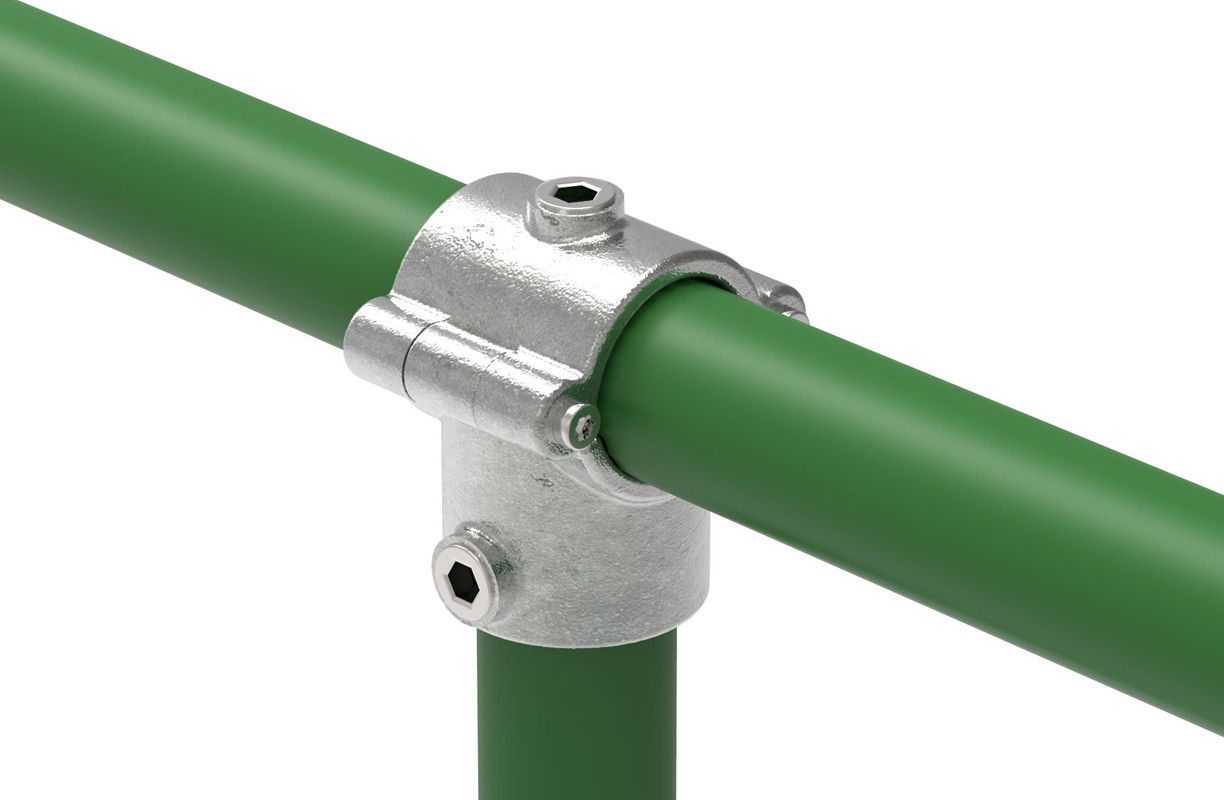

[ Application ] Wide range of applications | Used for modifications and additions where the installation of (Item No.: cfg-101) is not possible | For steel structures, scaffolding, handrails, railings, shelving, etc. | Not the right pipe connector? No problem, we stock a wide range of pipe connectors in various shapes

For tube Dimension a Dimension b Allen key 33.7 mm 54 mm 52 mm 301AB 42.4 mm 62 mm 60 mm 301CDE 48.3 mm 67 mm 69 mm 301CDE
Properties
Versand Gurtmasspflichtig: Nein
Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: Ø 33.7mm (1″)
