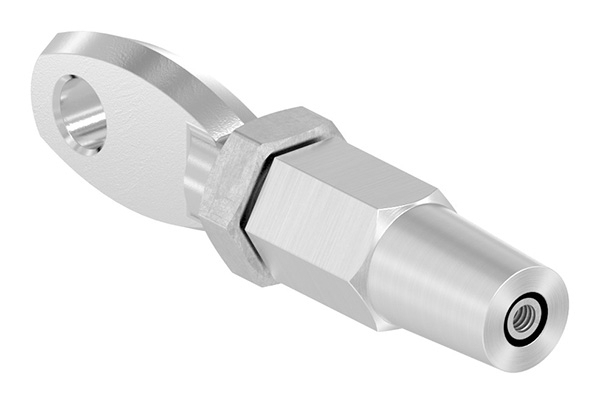

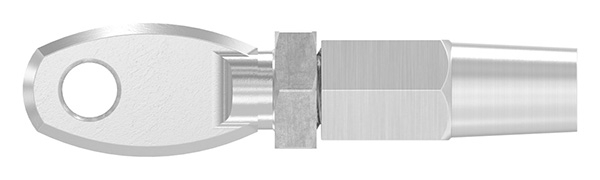

Eye terminal for self-assembly | For cables from 3 mm to 6 mm in diameter | V4A
Ø-Seil:
Ø 3 mm
Stock:
136
Product number:
11.2741.1
EAN:
4251412956980
Weight:
0.04 kg
Description
Product information "Eye terminal for self-assembly | For cables from 3 mm to 6 mm in diameter | V4A"
Eye terminal for self-assembly | For cables from 3 mm to 6 mm in diameter | V4A
[ Technical details ] Made from stainless steel 1.
4401/04/V4A/AISI 316 [ Specific details ] Suitable for a cable with a diameter of 3 mm to 6 mm

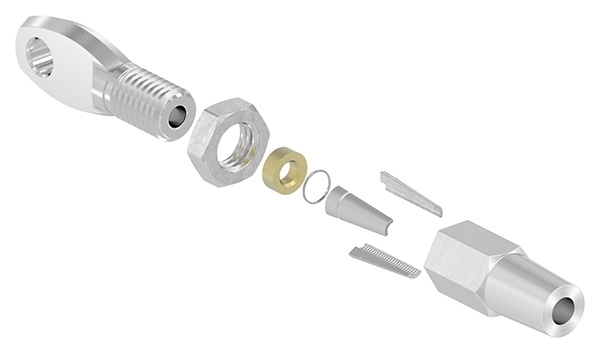

[ Application ] Insert the cable into the eye terminal and secure it

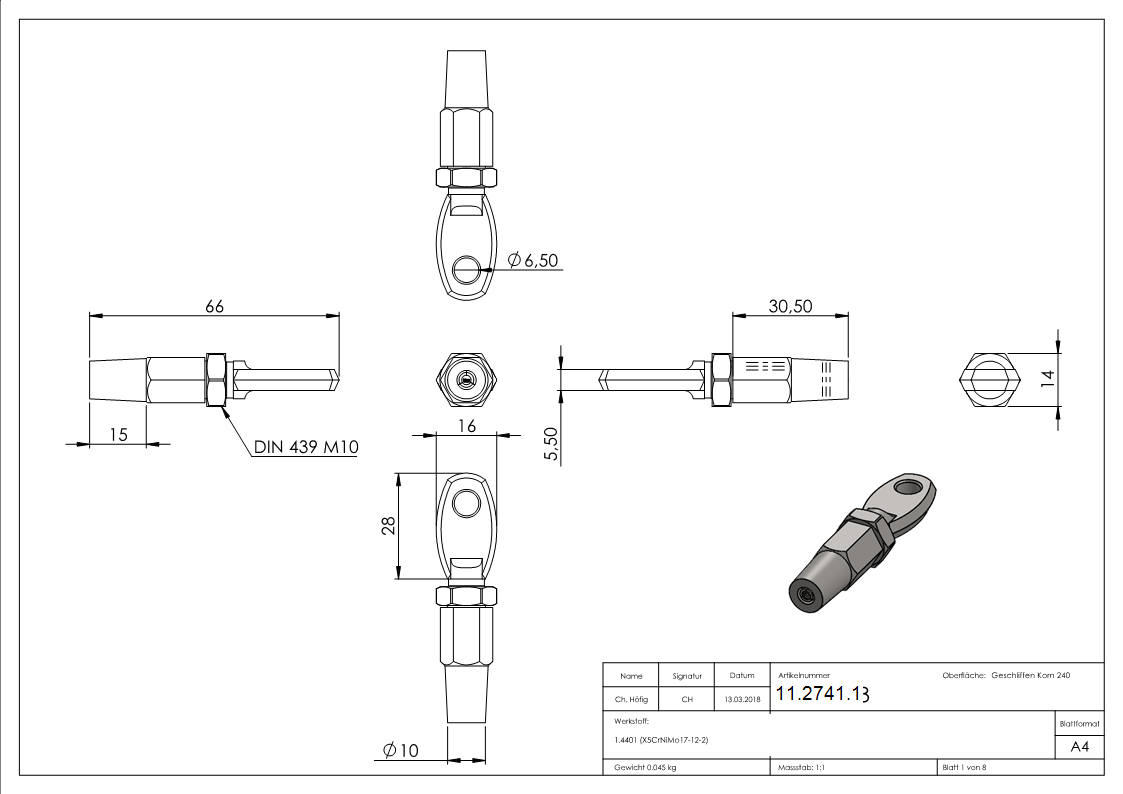

| for rope Ø | Bore | Dimension A | Dimension B | Dimension C | Dimension L |
|---|---|---|---|---|---|
| 3 mm | 6 mm | Ø 10 mm | 6 mm | 16 mm | 66 mm |
| 4 mm | 8 mm | Ø 11 mm | 7 mm | 18 mm | 75 mm |
| 5 mm | 10 mm | Ø 13 mm | 8 mm | 22 mm | 83 mm |
| 6 mm | 12.5 mm | Ø 16 mm | 9 mm | 26 mm | 99 mm |
Properties
| Form: | Augenterminal |
|---|
