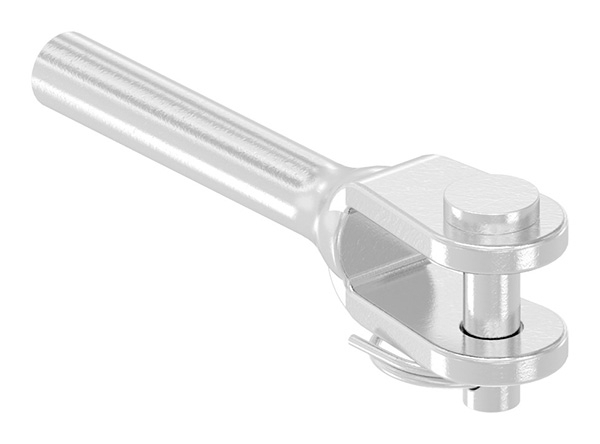

Fork terminal for self-crimping | for cable from 3 mm to 8 mm in diameter | V4A
Ø-Seil:
Ø 3 mm
Stock:
201
Product number:
11.2815.1
EAN:
4251412955983
Weight:
0.04 kg
Description
Product information "Fork terminal for self-crimping | for cable from 3 mm to 8 mm in diameter | V4A"
Fork terminal for self-crimping | for cables from Ø 3 mm to Ø 8 mm | V4A
[ Technical details ] Manufactured from stainless steel 1.
4401/04/V4A/AISI 316 [ Specific details ] Suitable for cable with a diameter of 3 mm to 8 mm
[ Application ] Insert the cable into the terminal and crimp using a suitable tool
[ Further specific details ]

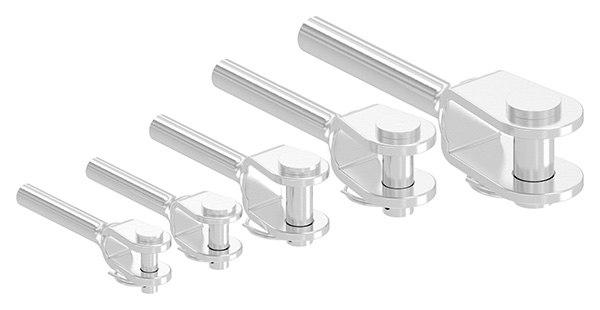

Dimensions of fork terminal for Ø 3 mm rope: A: 32 mm; B: 23 mm; C: 7 mm; D: 5 mm
Dimensions of fork terminal for Ø 4 mm rope: A: 32 mm; B: 23 mm; C: 9 mm; D: 6 mm
Dimensions of fork terminal for Ø 5 mm rope: A: 35 mm; B: 26 mm; C: 12 mm; D: 8 mm
Dimensions of fork terminal for Ø 6 mm cable: A: 48 mm; B: 31 mm; C: 13 mm; D: 9 mm
Dimensions of fork terminal for Ø 8 mm cable: A: 57 mm; B: 41 mm; C: 16 mm; D: 12 mm
Properties
| Form: | Gewindeterminal |
|---|
