V2A glass clamp for 42.4 mm diameter tubing, black powder-coated, set of 4

FeNau GmbH

Glasklemme V2A fuer Rohr Ø 42-4 mm schwarz pulverbeschichtet 4er Set-89.ABLACK230P042SET4

£25.18*

Prices include VAT, plus delivery charges

Available: Lieferzeit 10-13 Werktage

Stock: 8

Product number: 89.ABLACK230P042SET4

Weight: 0.797 kg

20,000 items in stock

CAD data available after login

Over 200,000 satisfied customers

Worldwide delivery

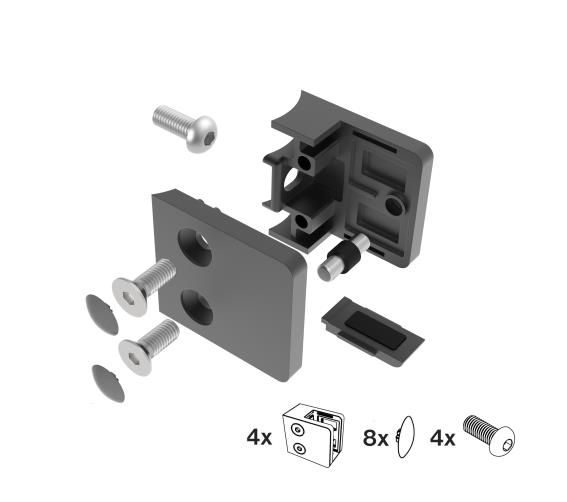

Product information "V2A glass clamp for 42.4 mm diameter tubing, black powder-coated, set of 4"

Set of 4 glass clamps for round tubes – stylish and secure

This set of four high-quality glass clamps is the ideal solution for installing glass or panel infills on railings with round posts. Made from robust V2A stainless steel and finished with an elegant black powder coating (RAL 9004), these clamps combine durability with modern design. The semi-circular shape ensures a perfect fit on tubes with a diameter of 42.4 mm and guarantees a stable and secure fixing of your railing infill.

Technical details at a glance

Product type: Glass clamp (Model 230P)
Material: V2A stainless steel (AISI 304)
Surface: Powder-coated
Colour: Black (RAL 9004)
Connection: For round tube with Ø 42.4 mm
Suitable glass thicknesses: 6 mm, 6.76 mm, 8 mm, 8.76 mm, 10 mm, 10.76 mm (matching rubber inserts must be purchased separately)

Applications and benefits

Thanks to the corrosion-resistant V2A stainless steel, these glass holders are ideal for both indoor and outdoor use. They are the perfect choice for balcony railings, stair railings or patio enclosures. The supplied fixing materials make installation easy and ensure a secure hold.

Höhe:	45 mm
Länge:	45 mm
Werkstoff:	V2A
Ø Für Rohr \| Ø Außendurchmesser \| Ø Anschluss:	42,4 mm
Breite:	26 mm

Accessories

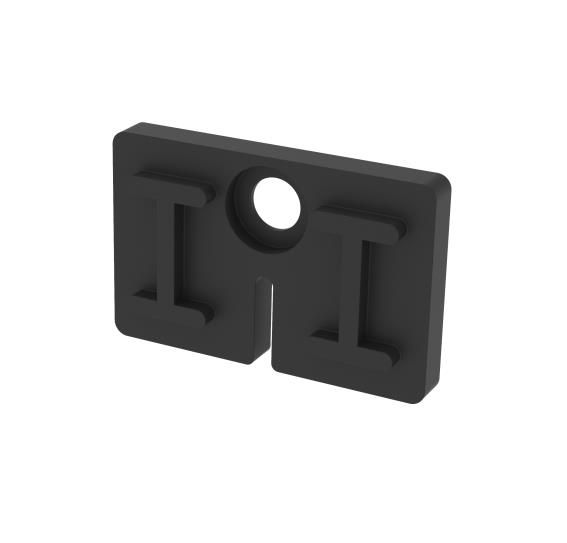

89.A1923P15K35

Gummieinlage für Glashalter, Glasstärke 1,5/3,5 mm, schwarz

Die Gummieinlage für Glashalter ist ein essenzielles Konstruktionselement zur sicheren Befestigung und präzisen Abdichtung von Glas- oder Blechfüllungen in entsprechenden Haltern. Sie gewährleistet einen stabilen Halt der Füllung und verhindert zuverlässig ein mögliches Verschieben, Verrutschen oder Beschädigen der Platte. Gleichzeitig schützt die Dichtung den Zwischenraum zwischen Platte und Halter effektiv vor dem Eindringen von Schmutz und Feuchtigkeit, was die Langlebigkeit der gesamten Konstruktion erhöht. Technische Details und Material Diese hochwertige Gummieinlage ist speziell für den Einsatz in Glashaltern konzipiert. Das Material Gummi in Rohzustand und schwarzer Farbe bietet optimale Flexibilität und Beständigkeit. Die Einlage ist passend für Glasstärken von 1,5 mm und 3,5 mm, wodurch sie vielseitig einsetzbar ist. Material: Hochwertiger Gummi Farbe: Schwarz Oberflächengüte: Rohzustand Kompatible Glasstärken: 1,5 mm und 3,5 mm Kompatible Glashaltermodelle: Modell 2300, Modell 230P, Modell 23KP Anwendungsbereiche und Vorteile Die Gummieinlage ist ideal für Metallbauer, Schlossereien und Handwerksbetriebe, die Wert auf präzise und dauerhafte Befestigungslösungen legen. Sie findet Anwendung in Geländern, Brüstungen und anderen Konstruktionen, bei denen Glas- oder Blechfüllungen sicher montiert werden müssen. Für die vollständige Montage einer Glas- oder Blechfüllung in einem Glashalter werden zwei dieser Dichtungen benötigt. Ihre Vorteile auf einen Blick: Sicherer und stabiler Halt der Füllung Effektiver Schutz vor Verrutschen und Beschädigung Zuverlässige Abdichtung gegen Schmutz Langlebiges und flexibles Gummimaterial Einfache Montage und hohe Kompatibilität

Available, : Lieferzeit 5-10 Werktage

£0.52*

Gummieinlage fuer Glashalter Modelle 2300- 230P- 23KP- Glas 2-4 mm-18-2102S-A.0

Paar

18.2102S-A.0

1 pair of rubber bands | for 2.0 mm | Model 230P

Available, : 1-3 days

£0.49*

Tip

Paar

13.2001-A.0_BLACK

1 pair of cover plates | for clamping screws in glass clamps | PVC, matt black

1 pair of cover plates | for clamping screws in glass clamps | PVC MATT BLACK [ Technical details ] made of PVC [ Specific details ] for covering the clamping screws in the glass clamps / sheet metal clamps

Available, : 1-3 days

£0.12*

Gummieinlage fuer Glashalter- Glasstaerke 8-10 mm- schwarz-18-2108S-A.0

Paar

18.2108S-A.0

1 pair of rubber rings | for 8.00 mm | Model 230P

Available, : 1-3 days

£0.32*

Gummieinlage fuer Glashalter 3-5 mm Glasstaerke- Schwarz-18-2103S-A.0

Paar

18.2103S-A.0

1 pair of rubber rings | for 3.0 mm | Model 230P

Available, : 1-3 days

£0.49*

Tip

Glasklemme V2A fuer Rohr Ø 42-4 mm schwarz PVD beschichtet 4er Set-18-2142SET-A.4_BLACK

Stk

18.2142SET-A.4_BLACK

V2A glass clamp for 42.4 mm diameter tubing, black PVD-coated, set of 4

Modern design meets functionality: glass clamp in black This set contains four 230P model glass clamps, made from durable V2A stainless steel. The elegant black PVD coating gives your railing project a modern and stylish look whilst ensuring a robust, scratch-resistant surface. The clamps are specially designed for mounting on round posts or tubes with a diameter of 42.4 mm and are ideal for the secure fixing of glass or panel infills in balustrade systems. Technical details at a glance Product type: Glass clamp (Model 230P) Material: V2A stainless steel (AISI 304) Surface: PVD-coated, black Connection: For round tube Ø 42.4 mm Suitable thickness: 6 mm – 10.76 mm (glass) or 1.5 mm – 5 mm (sheet metal) Fastening method: Clamp connection (locking pin can be used optionally) Versatile application and installation The glass clamps are ideal for indoor and outdoor use, for example on balcony and stair railings. Installation is straightforward via screw fixing to the post. The set includes the appropriate fixing screws for the clamp as well as cover caps for a neat finish. Please note that the rubber seals suitable for your glass thickness are not included and must be ordered separately.

Available, : 1-3 days

£29.71*

Tip

Gummieinlage fuer Glashalter - Glas 10-76-12-76 mm - Schwarz-18-2111S-A.0

Paar

18.2111S-A.0

1 pair of rubber rings | for 10.76 mm | Model 230P

Available, : 1-3 days

£0.32*

89.11ADRILLM8-A.4

Bohrer für rostfreien Stähl mit Gewinde, M8x1.25mm

Available, : Lieferzeit 5-10 Werktage

£8.25*

89.11ABL230P042SET4-A.4

V2A glass holder, powder-coated black, for 42.4 mm tubes, set of 4

Glass holders in a handy set of four This set contains four sturdy glass holders, made from durable V2A stainless steel. The surface features a high-quality powder coating in deep black (RAL 9005), which not only offers a modern look but also provides additional protection against the elements. The holders are specially designed for mounting on round balusters with a diameter of 42.4 mm and are ideal for constructing stylish and safe railings for both indoor and outdoor use. Technical details at a glance Product type: Glass holder (glass clamp) Material: V2A stainless steel (AISI 304) Surface: Powder-coated Colour: Black (RAL 9005) Connection: For round tube with ø 42.4 mm Suitable glass thickness: 6 mm to 10.76 mm (suitable seals required) Fastening: Clamp connection with optional locking pin Application and installation The glass holders are ideal for securing glass, sheet metal or other panel materials. Thanks to the screw set supplied, quick and easy installation directly onto the baluster is possible. The semi-circular contact surface ensures a perfect and stable fit on the tube. Please note that the appropriate seals for your glass thickness must be ordered separately to ensure optimum hold and protection of the glass. Contents of the set 4x Glass holders Model 230P, black 8x countersunk screw A2 DIN7991 M6x16 8x PVC screw caps, black 4x pan-head screw A2 DIN 7380 M8x20

Available, : Lieferzeit 10-13 Werktage

£25.13*

Tip
