Pipe connector | 90° three-way elbow | 128 | 21.3 mm – 60.3 mm | 1/2" – 2" | Hot-dip galvanised and electro-galvanised
![Rohrverbinder - Dreiweg-Eckstueck 90° - 128T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-128T21](https://fenau.uk/media/ec/ac/58/1771483862/Rohrverbinder-Dreiweg-Eckstueck-90-128T21-21-3-mm-1-2-Feuerverzinkt-u-Elektrogalvanisiert-128T21-1.png?ts=1775642890 "Pipe connector | 90° three-way elbow | 128 | 21.3 mm – 60.3 mm | 1/2" – 2" | Hot-dip galvanised and electro-galvanised")
![Rohrverbinder - Dreiweg-Eckstueck 90° - 128T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-128T21](https://fenau.uk/media/e5/40/67/1771483863/Rohrverbinder-Dreiweg-Eckstueck-90-128T21-21-3-mm-1-2-Feuerverzinkt-u-Elektrogalvanisiert-128T21-2.png?ts=1775642891 "Pipe connector | 90° three-way elbow | 128 | 21.3 mm – 60.3 mm | 1/2" – 2" | Hot-dip galvanised and electro-galvanised")
![Rohrverbinder - Dreiweg-Eckstueck 90° - 128T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-128T21](https://fenau.uk/media/35/27/7c/1771483864/Rohrverbinder-Dreiweg-Eckstueck-90-128T21-21-3-mm-1-2-Feuerverzinkt-u-Elektrogalvanisiert-128T21-3.png?ts=1775642894 "Pipe connector | 90° three-way elbow | 128 | 21.3 mm – 60.3 mm | 1/2" – 2" | Hot-dip galvanised and electro-galvanised")
![Rohrverbinder - Dreiweg-Eckstueck 90° - 128T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-128T21](https://fenau.uk/media/5b/7b/8e/1771483867/Rohrverbinder-Dreiweg-Eckstueck-90-128T21-21-3-mm-1-2-Feuerverzinkt-u-Elektrogalvanisiert-128T21-4.png?ts=1775642900 "Pipe connector | 90° three-way elbow | 128 | 21.3 mm – 60.3 mm | 1/2" – 2" | Hot-dip galvanised and electro-galvanised")
![Rohrverbinder - Dreiweg-Eckstueck 90° - 128T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-128T21](https://fenau.uk/media/2f/67/g0/1771483866/Rohrverbinder-Dreiweg-Eckstueck-90-128T21-21-3-mm-1-2-Feuerverzinkt-u-Elektrogalvanisiert-128T21-5.png?ts=1775642899 "Pipe connector | 90° three-way elbow | 128 | 21.3 mm – 60.3 mm | 1/2" – 2" | Hot-dip galvanised and electro-galvanised")
![Rohrverbinder - Dreiweg-Eckstueck 90° - 128T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-128T21](https://fenau.uk/media/c9/4b/f1/1771483866/Rohrverbinder-Dreiweg-Eckstueck-90-128T21-21-3-mm-1-2-Feuerverzinkt-u-Elektrogalvanisiert-128T21-6.jpeg?ts=1776415989 "Pipe connector | 90° three-way elbow | 128 | 21.3 mm – 60.3 mm | 1/2" – 2" | Hot-dip galvanised and electro-galvanised")
Product information "Pipe connector | 90° three-way elbow | 128 | 21.3 mm – 60.3 mm | 1/2" – 2" | Hot-dip galvanised and electro-galvanised"
90° Three-Way Pipe Connector | Item No.: 128A27 | 21.3 mm – 60.3 mm
Our high-quality 90° three-way elbow pipe connector is the perfect solution for secure and stable connections in construction projects. This pipe connector is suitable for a wide range of applications such as handrails, railings, shelving and steel structures, and offers optimum corrosion protection thanks to malleable cast iron and electro-galvanisation.
Contents
The scope of delivery includes:
- 1x 3-way elbow (angle: 90°) – Item no.: 128A27
- Includes stainless steel clamping and cutting screws
- Suitable for pipe diameters in accordance with DIN EN ISO 6708 and EN 10255
Technical details
Our pipe connector is made from high-quality S235JR / ST37 malleable cast iron and is particularly durable and corrosion-resistant thanks to hot-dip galvanising and electro-galvanising.
- For a flange height of Ø 26.9 mm / ¾"
- Dimension (A): 40 mm
- Weight: 0.35 kg
Available sizes
Matching item numbers and pipe dimensions for other sizes:
- Item no.: 128T21 – Ø 21.3 mm / ½"
- Item no.: 128A27 – Ø 26.9 mm / ¾"
- Item no.: 128B34 – Ø 33.7 mm / 1"
- Item no.: 128C42 – Ø 42.4 mm / 1 ¼"
- Item no.: 128D48 – Ø 48.3 mm / 1 ½"
- Item no.: 128E60 – Ø 60.3 mm / 2"
Applications
This three-way elbow with a 90° angle is highly versatile and is ideal for:
- Connecting handrails and other steel structures
- Use in scaffolding, for railings, shelving and more

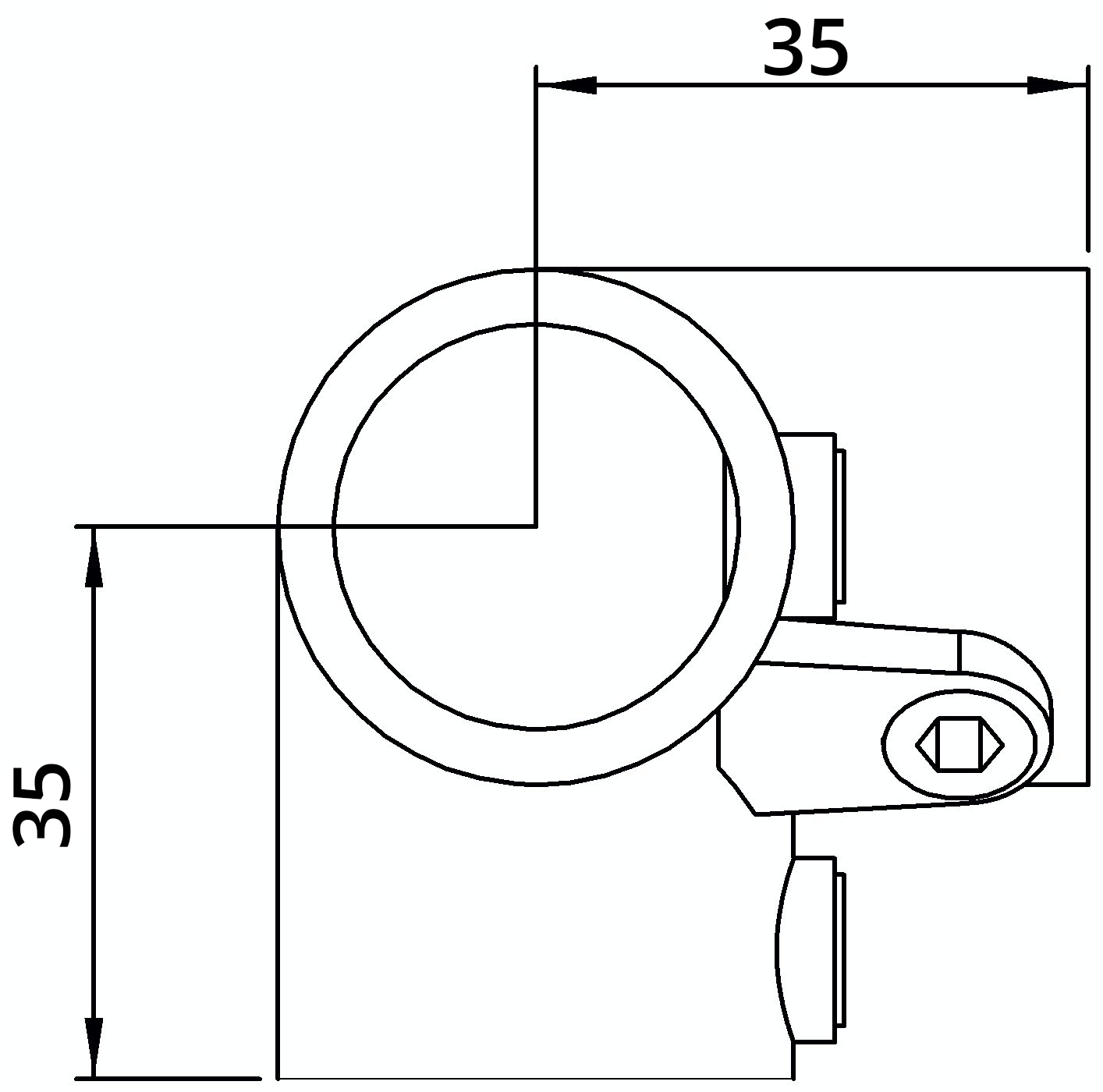

Technical table
| For pipe | Dimension A | Allen |
|---|---|---|
| 17.2 mm | 30 mm | 301T |
| 21.3 mm | 35 mm | 301T |
| 26.9 mm | 40 mm | 301AB |
| 33.7 mm | 48 mm | 301AB |
| 42.4 mm | 60 mm | 301CDE |
| 48.3 mm | 68 mm | 301CDE |
| 60.3 mm | 85 mm | 301CDE |
Why choose this product?
Our 90° three-way elbow pipe connector offers quality and durability for all your connection projects. Benefit from easy installation and a robust, corrosion-resistant design – ideal for both indoor and outdoor use.
Order now and make your structures safe and durable!
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | Ø 21.3mm (1⁄2″) |
|---|
