Pipe connector | Straight cross-piece | 119 | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised

Rohraußendurchmesser: Ø 21,3 mm
Skip the photo gallery
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21
Rohrverbinder - Kreuzstueck durchgehend - 119T21 - 21-3 mm - 1-2- - Feuerverzinkt u. Elektrogalvanisiert-119T21

£2.84*

Prices include VAT, plus delivery charges

Available: 1-3 days

Rohraußendurchmesser
Stk
Stock: 490
Product number: 119T21
EAN: 4251412901614
Weight: 0.2 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

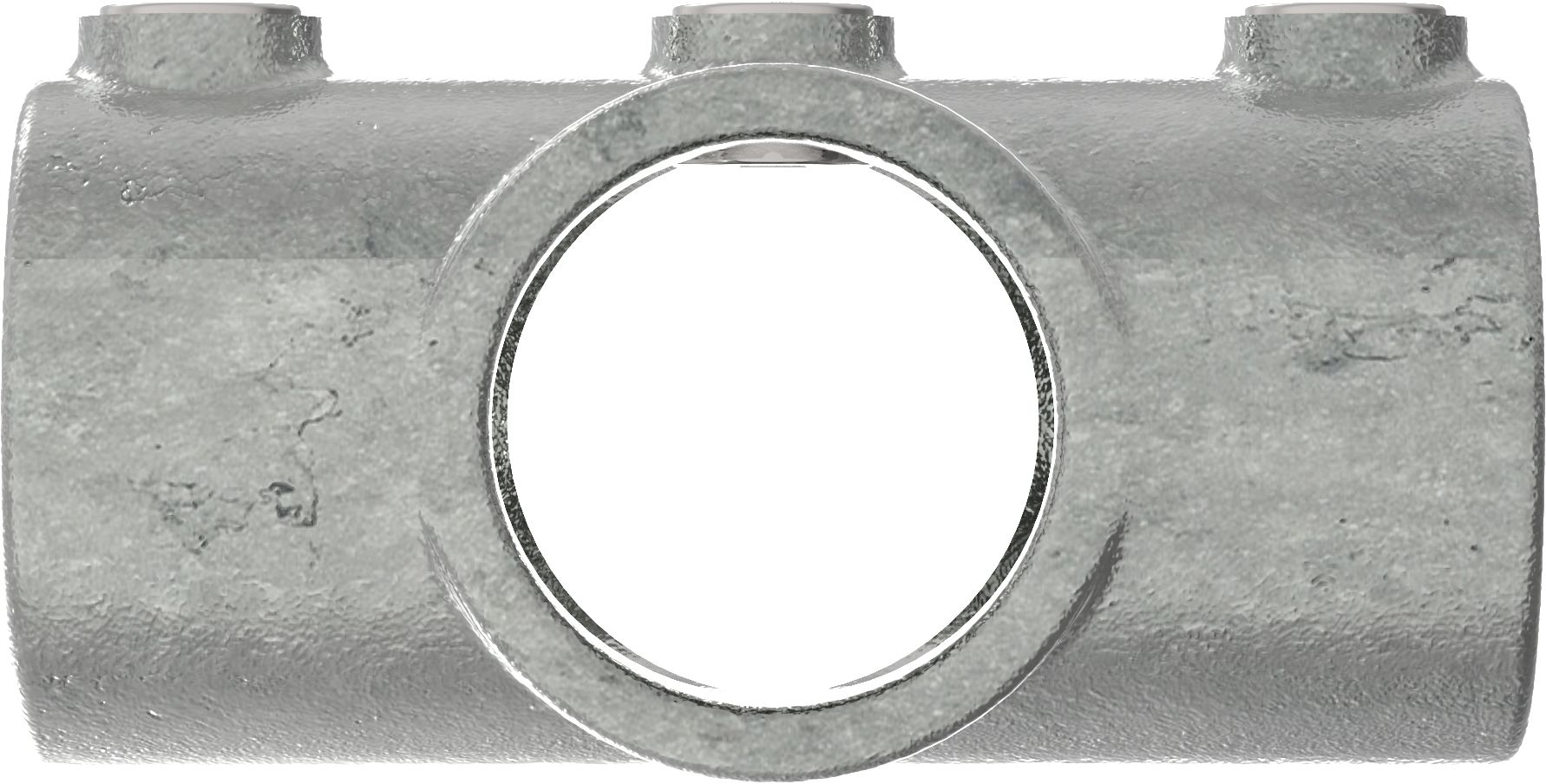

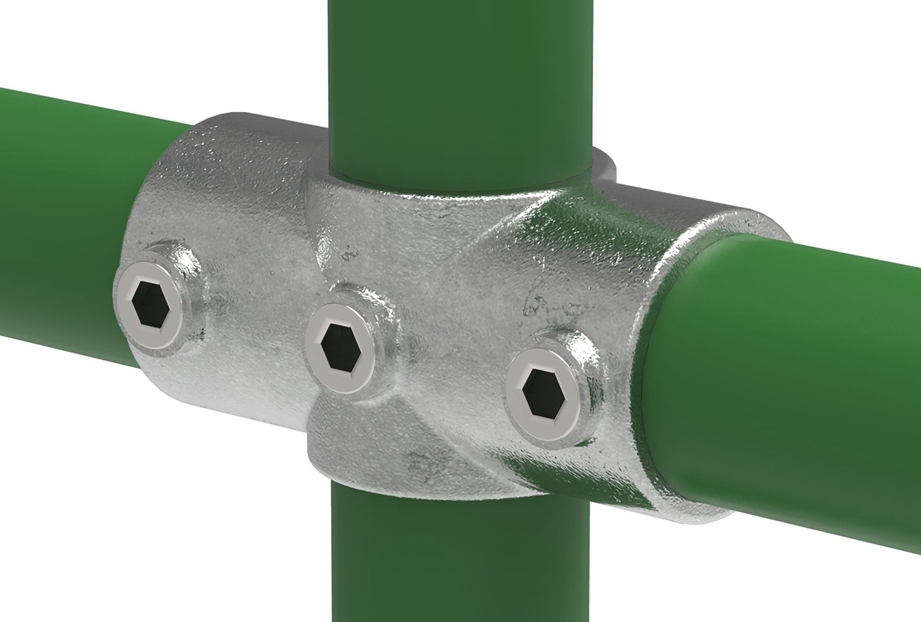

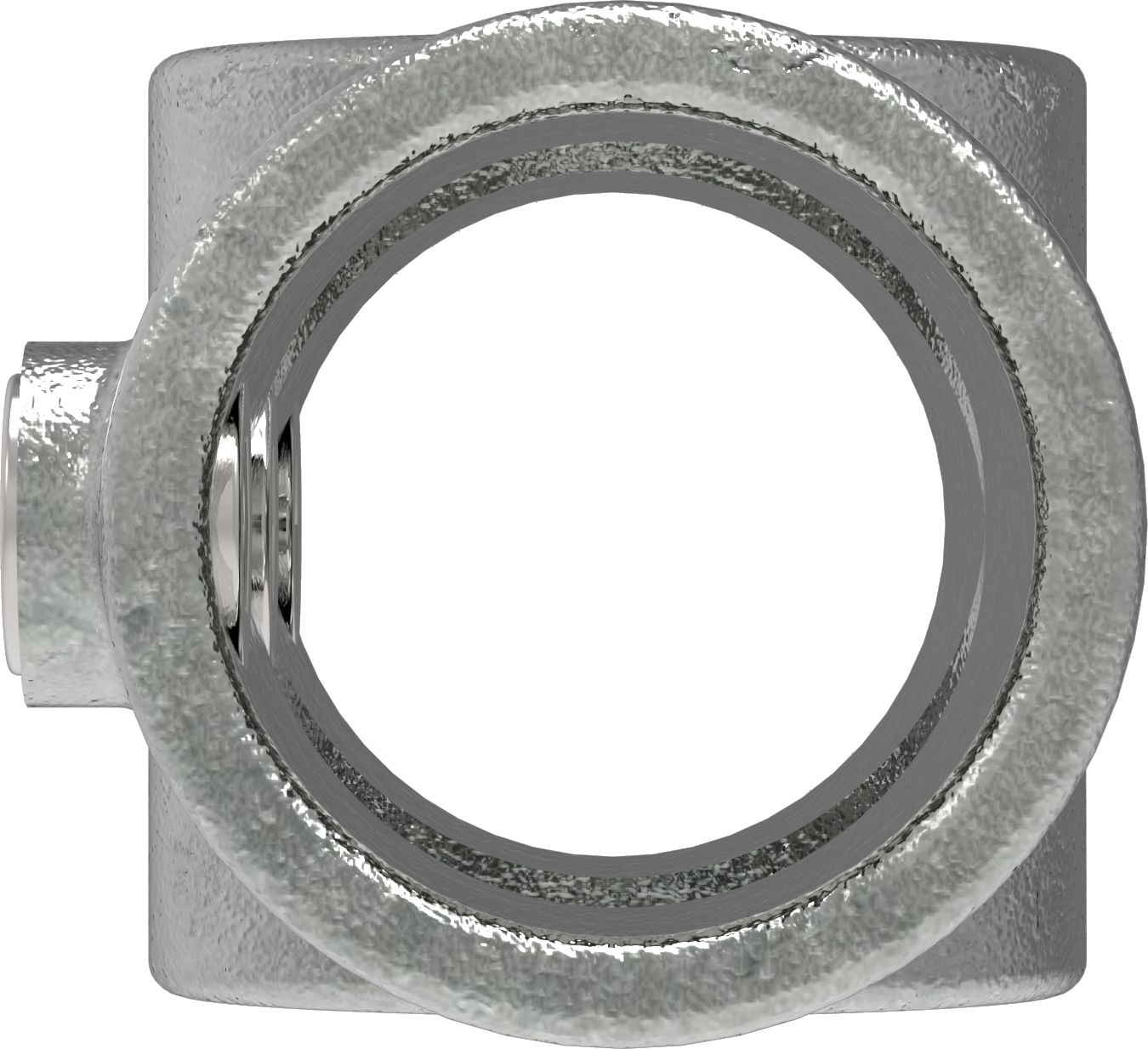

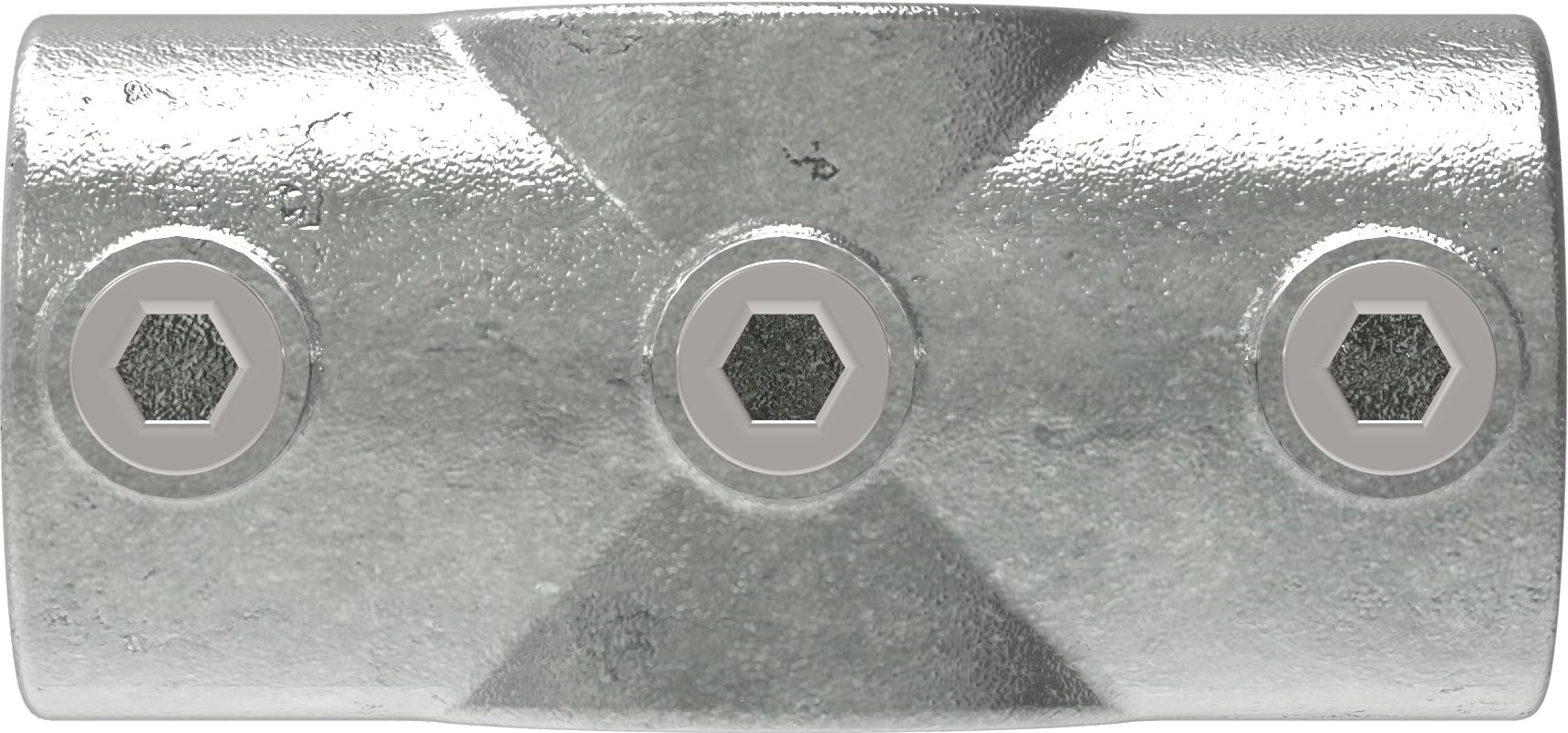

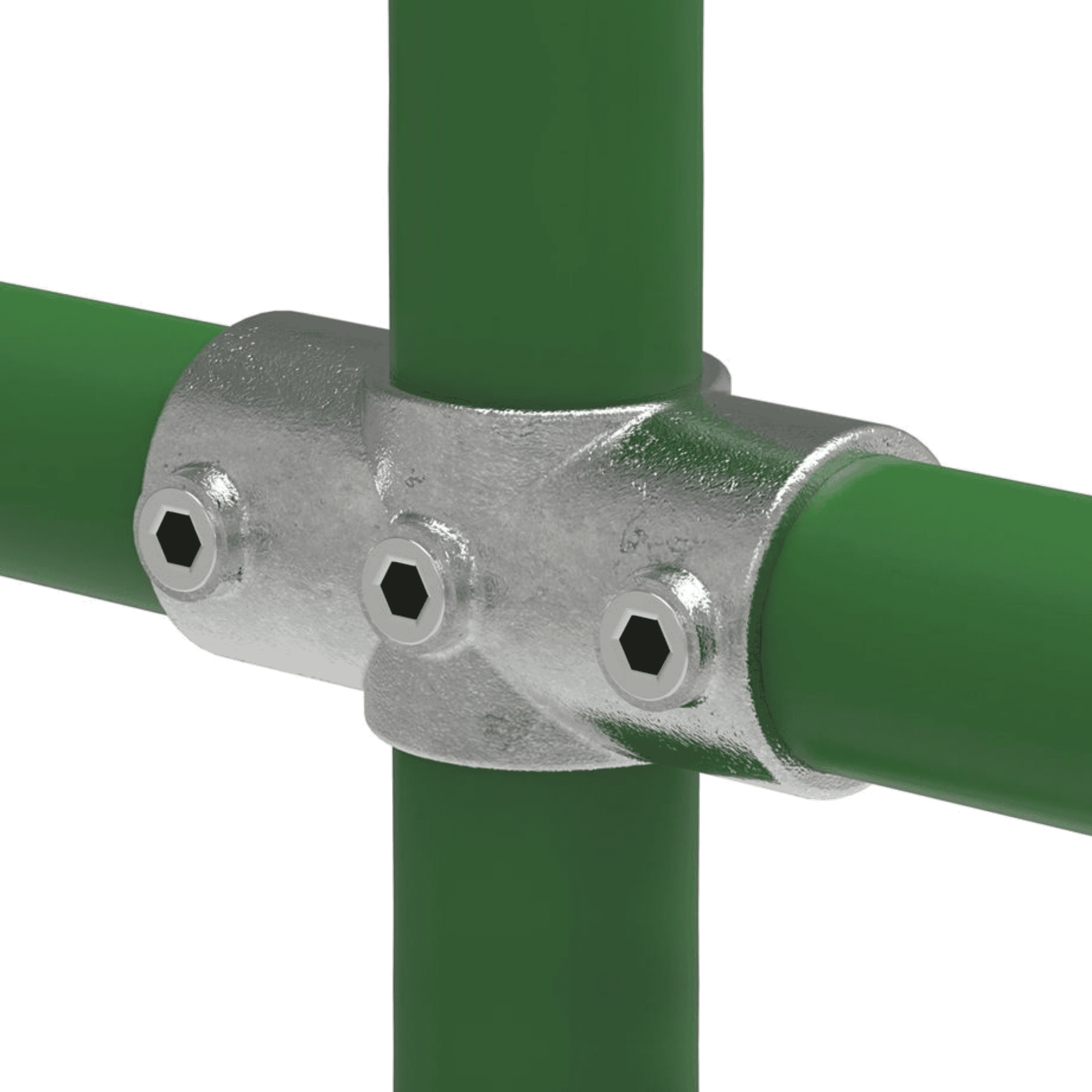

Product information "Pipe connector | Straight cross-piece | 119 | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised"

Pipe connector | Straight cross-piece | 119 | 26.9 mm – 60.3 mm | 3/4" – 2" | Malleable cast iron, electro-galvanised

[ Contents ] 1x cross connector (1x through-hole / 2x outlet) incl. stainless steel clamping and cutting screws (angle: 90°) - (Item No.: 119A27) | Optimal corrosion protection against the elements – durable, stable and universally applicable (outer diameter in accordance with DIN EN ISO 6708 and EN 10255)

[ Technical details ] Dimensions (see illustration): For Ø 26.9 mm / ¾" Dimension (A): 80 mm / Weight: 0.27 kg | Professional quality thanks to electro-galvanising and hot-dip galvanising - Material: malleable cast iron

[ Wrong size? - Suitable items ] (Item no.: 119T21) Dimensions: Ø 21.3 mm / ½" | (Item No.: 119A27) Dimensions: Ø 26.9 mm / ¾" | (Item No.: 119B34) Dimensions: Ø 33.7 mm / 1" | (Item No.: 119C42) Dimensions: Ø 42.4 mm / 1 ¼" | (Item No.: 119D48) Dimensions: Ø 48.3 mm / 1 ½" | (Item No.: 119E60) Dimensions: Ø 60.3 mm / 2"

[ Application ] Wide range of applications | Used in conjunction with (Item No.: cfg-119TABCDE) for a 90° connection in a railing or rectangular structure | For steel structures, scaffolding, handrails, railings, shelving, etc. | Not the right tube connector? No problem, we stock a wide range of tube connectors in various shapes

For tube Dimension a Insertion depth Allen key 21.3 mm 70 mm 24 mm301T 26.9 mm 80 mm 27 mm301AB 33.7 mm 96 mm 30 mm301AB 42.4 mm 120 mm 37 mm301CDE 48.3 mm 135 mm 43 mm class="tg-s6z2">301CDE 60.3 mm 168 mm 53 mm301CDE
Properties
Versand Gurtmasspflichtig: Nein
Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: Ø 21.3mm (1⁄2″)
Skip the product gallery

Zubehör

Sechskantschluessel - fuer Rohrverbinder 17-2 mm - 21-3mm - 301T21-301T21 Sechskantschluessel - fuer Rohrverbinder 17-2 mm - 21-3mm - 301T21-301T21
301T21
Pipe coupler | Hex key | for S17 & T21 / A27 / B34 & C42 / D48 / E60 | Stainless steel
Pipe connector | Hex key | for T21 & A27 / B34 & C42 / D48 / E60 | Stainless steel

Available, : 1-3 days

£1.57*
Rohrverbinder - Kunststoffstopfen hellgrau - 133T21 - 21-3 x 1-5 - 2-5 mm - 1-2-133T21 Rohrverbinder - Kunststoffstopfen hellgrau - 133T21 - 21-3 x 1-5 - 2-5 mm - 1-2-133T21
133T21
Pipe connector | Light grey plastic plug | 133 | 21.3 mm – 60.3 mm | 1/2"–2"
Pipe connector | Light grey plastic plug | 133 | 21.3 mm – 60.3 mm | 1/2"–2" | Malleable cast iron and electro-galvanised [ Specific details ] for pipe Ø: 21.3 mm – 60.3 mm (1/2"–2"); wall thickness: 2–4 mm [ Application ] Insert plastic plugs into open pipe ends to seal

Available, : 1-3 days

£0.22*
Rohrverbinder - Kunststoffstopfen schwarz - 133T21-S - 21-3 x 1 - 2-5 mm - 1-2-133T21-S Rohrverbinder - Kunststoffstopfen schwarz - 133T21-S - 21-3 x 1 - 2-5 mm - 1-2-133T21-S
133T21-S
Pipe connector | Black plastic plug | 133-S | 21.3 mm – 60.3 mm | 1/2"–2"
Pipe connector | Black plastic plug | 133 | 21.3 mm – 60.3 mm | 1/2"–2" | Malleable cast iron and electro-galvanised [ Specific details ] for pipe Ø: 21.3 mm – 60.3 mm (1/2"–2"); wall thickness: 2–4 mm [ Application ] Insert plastic plugs into open pipe ends to seal

Available, : 1-3 days

£0.22*
Gelaenderrohr - Ø 21-3x1-75 mm - Laenge- 500 mm - Stahl S235JR- verzinkt-30-2221-500.7 Gelaenderrohr - Ø 21-3x1-75 mm - Laenge- 500 mm - Stahl S235JR- verzinkt-30-2221-500.7
30.2221-500.7
Balustrade tube | Ø 21.3 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised
Balustrade tube | Ø 21.3 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3 x 1.75 mmLength: 6000 mm; Tube Ø 21.3 x 1.75 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

£11.90*
Gelaenderrohr - Ø 21-3x1-75 mm - Laenge- 1000 mm - Stahl S235JR- verzinkt-30-2221-1000.7 Gelaenderrohr - Ø 21-3x1-75 mm - Laenge- 1000 mm - Stahl S235JR- verzinkt-30-2221-1000.7
30.2221-1000.7
Balustrade tube | Ø 21.3 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised
Balustrade tube | Ø 21.3 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3 x 1.75 mmLength: 6000 mm; Tube Ø 21.3 x 1.75 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

Variants from £11.90*
£23.81*
Gelaenderrohr - Ø 21-3x1-75 mm - Laenge- 1500 mm - Stahl S235JR- verzinkt-30-2221-1500.7 Gelaenderrohr - Ø 21-3x1-75 mm - Laenge- 1500 mm - Stahl S235JR- verzinkt-30-2221-1500.7
30.2221-1500.7
Balustrade tube | Ø 21.3 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised
Balustrade tube | Ø 21.3 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3 x 1.75 mmLength: 6000 mm; Tube Ø 21.3 x 1.75 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

Variants from £11.90*
£27.41*
Gelaenderrohr - Ø 21-3x1-75 mm - Laenge- 6000 mm - Stahl S235JR- verzinkt-30-2221.7 Gelaenderrohr - Ø 21-3x1-75 mm - Laenge- 6000 mm - Stahl S235JR- verzinkt-30-2221.7
Stk
30.2221.7
Balustrade tube | Ø 21.3 x 1.75 mm | Length: 6000 mm | S235JR steel, galvanised
Balustrade tube | Ø 21.3 x 1.75 mm | Length: 6000 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified length! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3 x 1.75 mmLength: 6000 mm; Tube Ø 21.3 x 1.75 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

Available, : Lieferzeit 3-5 Werktage

£44.60*
