Product information "Pipe connector | 90° elbow | 125 | 21.3 mm – 60.3 mm | 1/2" – 2" | Hot-dip galvanised and electro-galvanised"

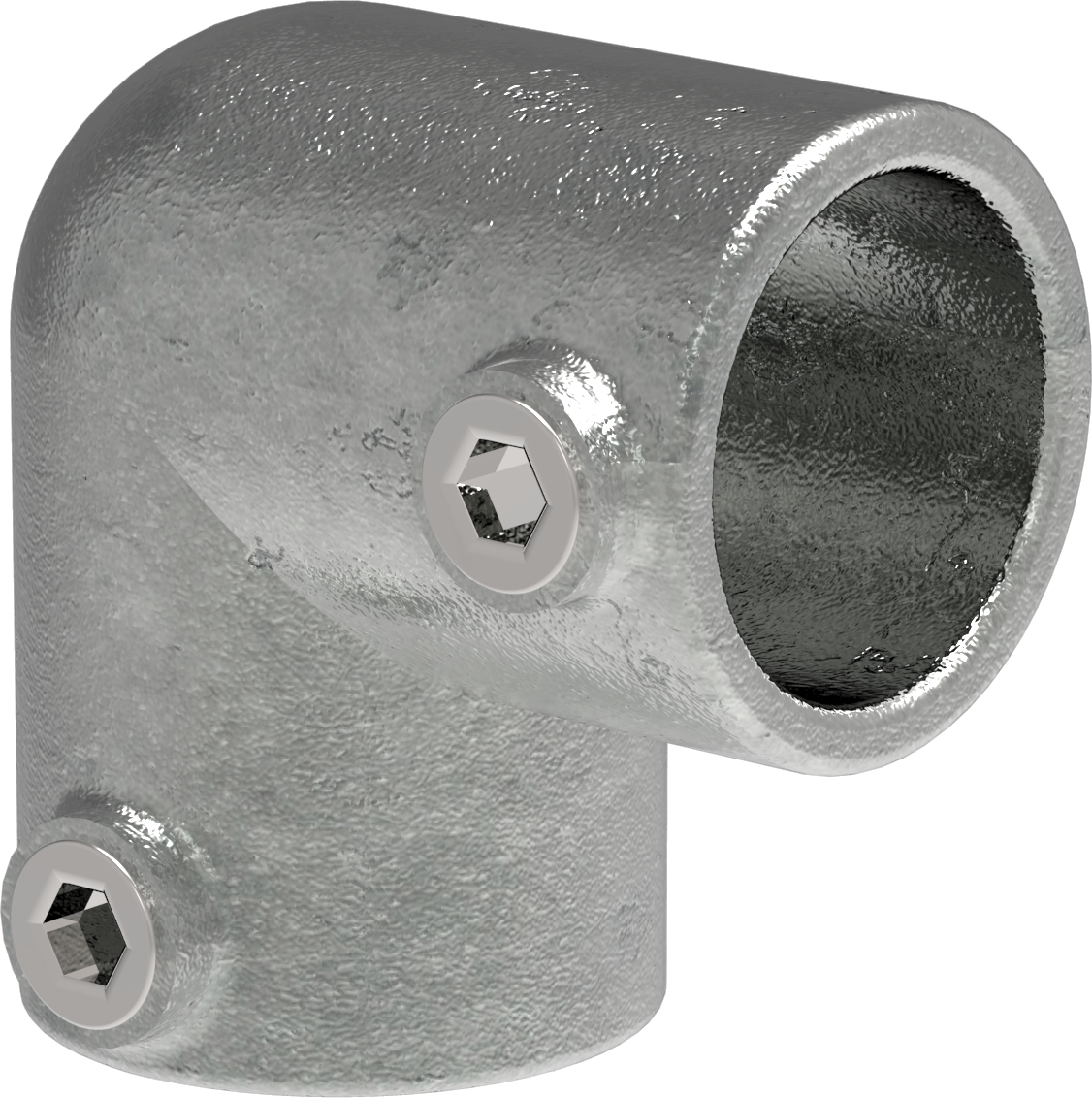

90° Elbow Pipe Fitting | High-quality malleable cast iron & electro-galvanised
Our 90° elbow pipe connector, available in sizes ranging from 21.3 mm to 60.3 mm, is ideal for anyone who values quality and durability.
Contents: 1x elbow (also known as a knee joint) including stainless steel clamping and cutting screws with a 90° angle (Item No.: 125A27). By using malleable cast iron and electro-galvanisation, we offer optimum corrosion protection, ensuring the pipe connector is well protected against the elements.
Technical details: Dimensions for Ø 26.9 mm / ¾". Dimension (A): 41 mm and a weight of 0.24 kg. The professional quality of our product is guaranteed by electro-galvanisation and hot-dip galvanisation.
Wrong size? No problem! Take a look at our other suitable items:
- (Item no.: 125S17) Dimensions: Ø 17.2 mm / ½"
- (Item no.: 125T21) Dimensions: Ø 21.3 mm / ½"
- (Item no.: 125A27) Dimensions: Ø 26.9 mm / ¾"
- (Item no.: 125B34) Dimensions: Ø 33.7 mm / 1"
- (Item no.: 125C42) Dimensions: Ø 42.2 mm / 1½"
- (Item No.: 125D48) Dimensions: Ø 48.3 mm / 1¾"
- (Item No.: 125E60) Dimensions: Ø 60.3 mm / 2"

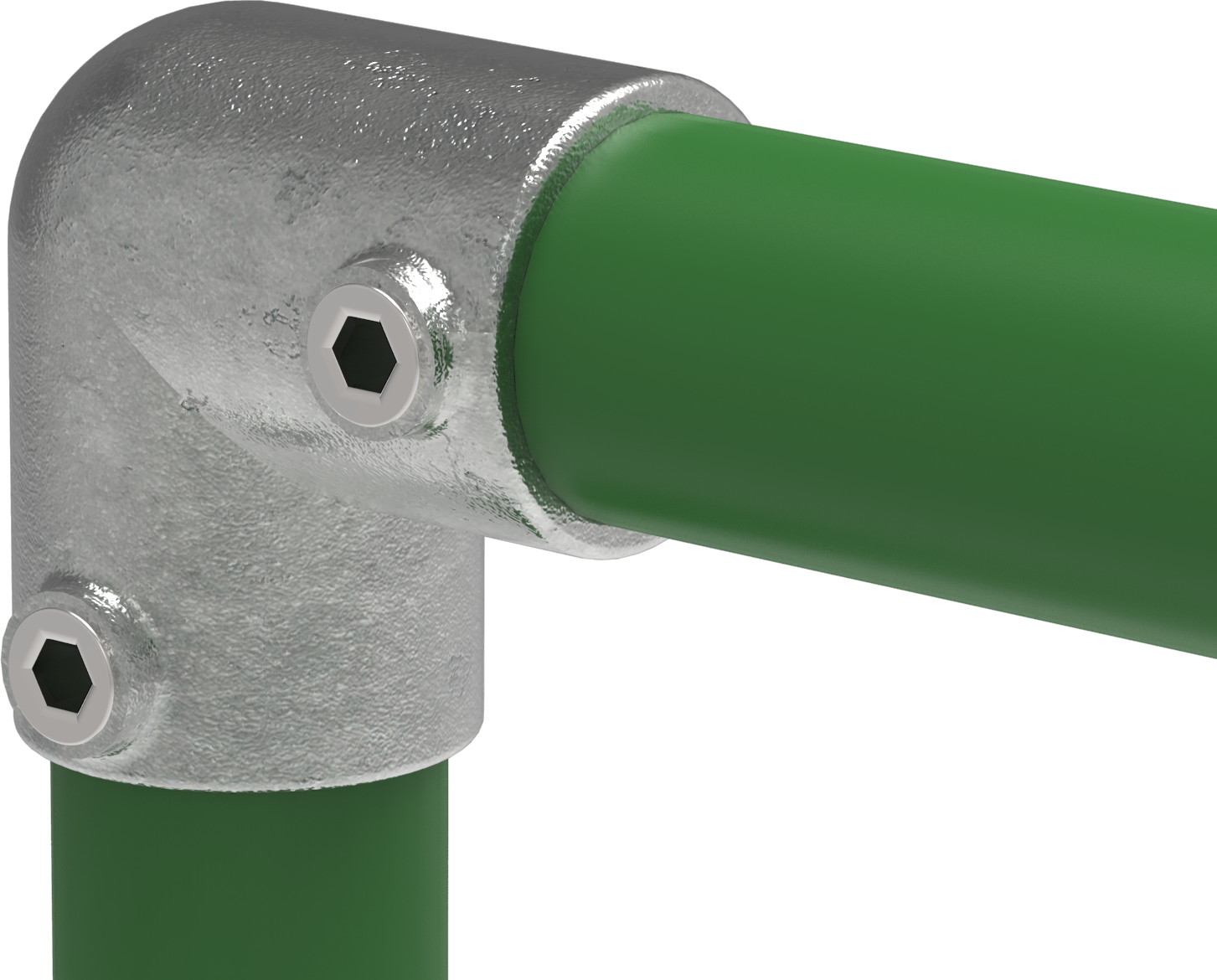

Application: This tube connector offers a wide range of applications. It can be used in combination with (Item No.: 119, 101 or 104) to create a 90° connection for railings or rectangular structures. Ideal for steel structures, scaffolding, handrails, railings, shelving and more. If this is not the right tube connector for you, we offer an extensive range of tube connectors in various shapes.
Technical data:

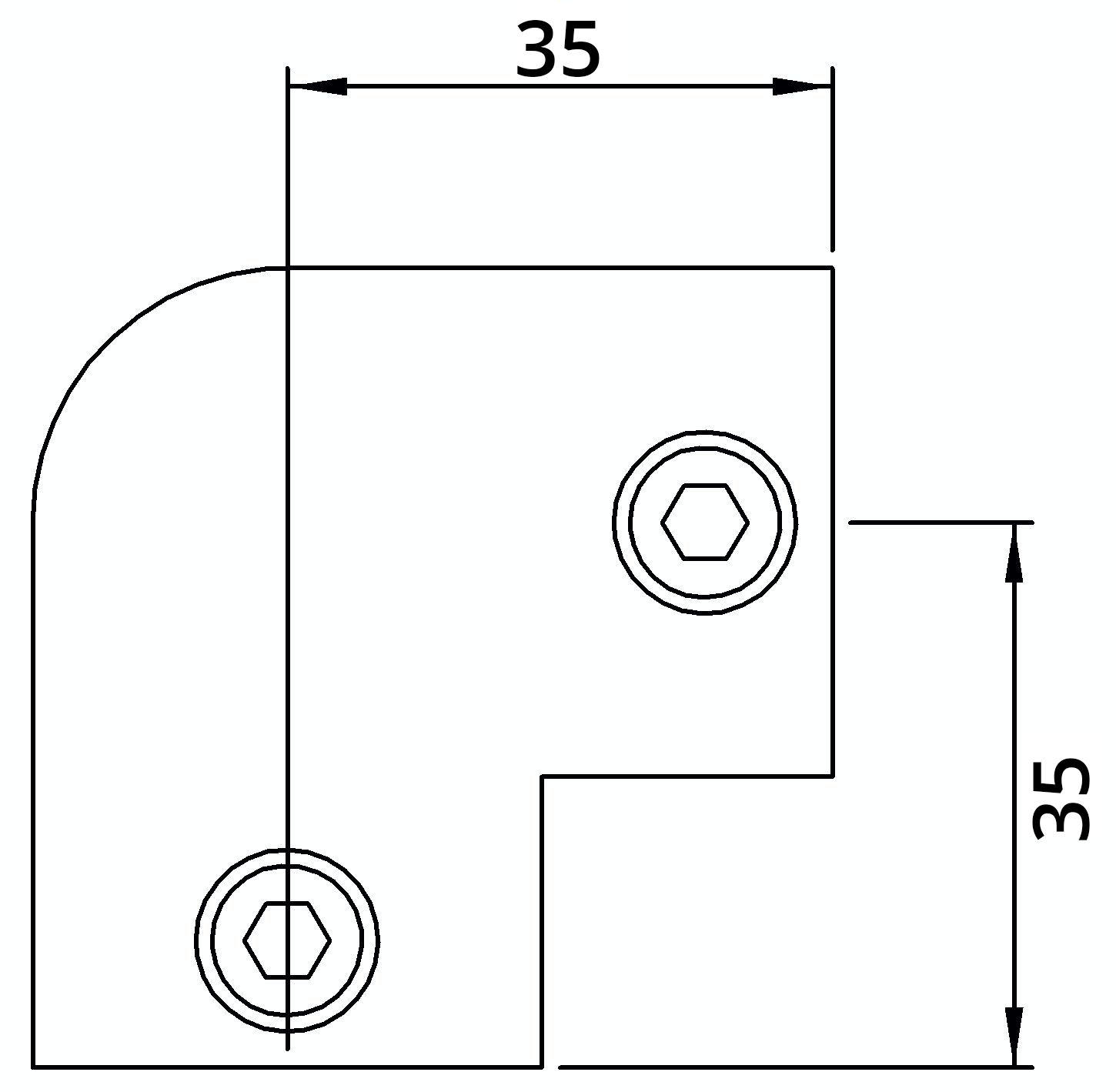

| For pipe | Dimension a | Insertion depth | Allen |
|---|---|---|---|
| 17.2 mm | 30 mm | - | 301T |
| 21.3 mm | 35 mm | 25 mm | 301T |
| 26.9 mm | 41 mm | 26 mm | 301AB |
| 33.7 mm | 46 mm | 29 mm | 301AB |
| 42.4 mm | 60 mm | 38 mm | 301CDE |
| 48.3 mm | 68 mm | 43 mm | 301CDE |
| 60.3 mm | 84 mm | 54 mm | 301CDE |
| Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: | Ø 21.3mm (1⁄2″) |
|---|
