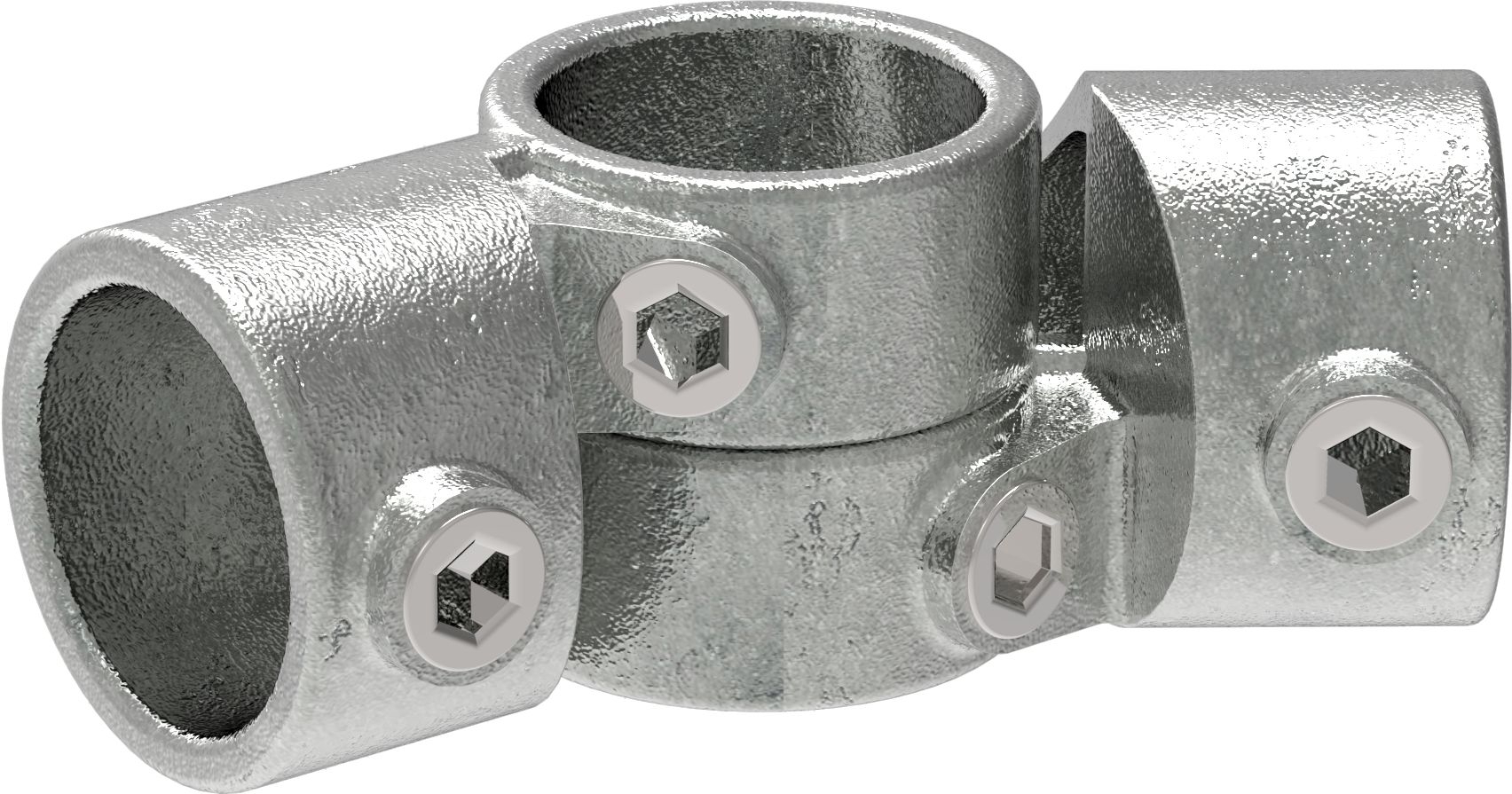

Pipe connector | Adjustable elbow joint | 148 | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised

Rohraußendurchmesser: Ø 26,9 mm
Skip the photo gallery
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27
Rohrverbinder - Winkelgelenk verstellbar - 1 Stueck - 148A27 - 26-9 mm - 3-4- - Feuerverzinkt u. Elektrogalvanisiert-148A27

£3.39*

Prices include VAT, plus delivery charges

Available: 1-3 days

Rohraußendurchmesser
Stk
Stock: 80
Product number: 148A27
EAN: 4251412902468
Weight: 0.18 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Pipe connector | Adjustable elbow joint | 148 | 26.9 mm – 60.3 mm | 3/4" – 2" | Hot-dip galvanised and electro-galvanised"

Pipe connector | Adjustable angle joint | 148 | 26.9 mm – 60.3 mm | 3/4" – 2" | Malleable cast iron, electro-galvanised

[ Contents ] 1x angle joint - adjustable, incl. stainless steel clamping and cutting screws - (Item No.: 148A27) | Optimal corrosion protection against weathering – durable, stable and universally applicable (outer diameter in accordance with DIN EN ISO 6708 and EN 10255)

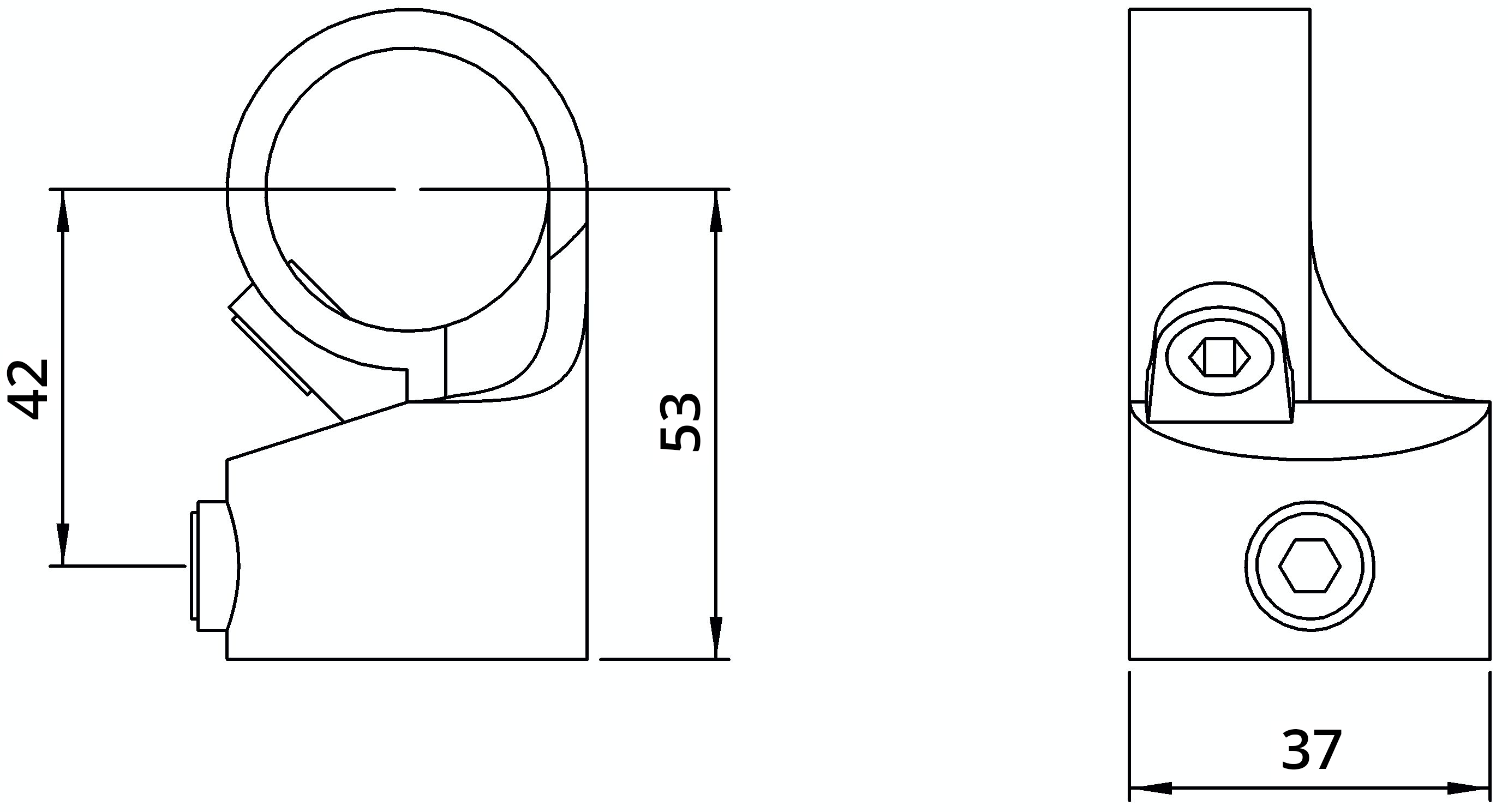

[ Technical details ] Dimensions (see illustration): For Ø 26.9 mm / ¾" Dimension (A): 53 mm / Dimension (B): 37 mm / Dimension (C): 42 mm / Weight: 0.18 kg | Professional quality thanks to electro-galvanisation and hot-dip galvanisation - Material: malleable cast iron

Please note that this is for one side only

[ Wrong size? - Suitable items ] (Item no.: 148A27) Dimensions: Ø 26.9 mm / ¾" | (Item no.: 148B34) Dimensions: Ø 33.7 mm / 1" | (Item No.: 148C42) Dimensions: Ø 42.4 mm / 1 ¼" | (Item No.: 148D48) Dimensions: Ø 48.3 mm / 1 ½"

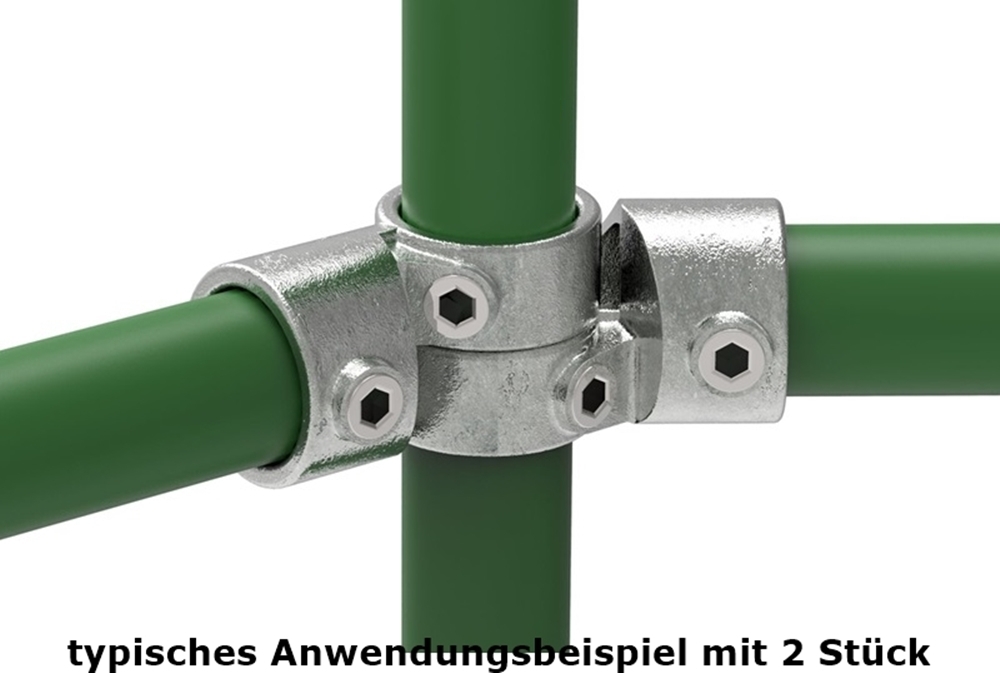

[ Application ] Wide range of applications | Used in pairs to set any angle between horizontal pipes – combine with (Item No.: cfg-133) | For steel structures, scaffolding, handrails, railings, shelving, etc. | Not the right pipe connector? No problem, we stock a wide range of pipe connectors in various shapes

For tube Dimension a Dimension b Dimension c Allen key 26.9 mm 53 mm 37 mm 42 mm 301AB 33.7 mm 59 mm 46 mm 48 mm 301AB 42.4 mm 73 mm 55 mm 59 mm 301CDE 48.3 mm 93 mm 61 mm 78 mm 301CDE 60.3 mm 110 mm 77 mm 91 mm 301CDE
Properties
Versand Gurtmasspflichtig: Nein
Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: Ø 26.9mm (3⁄4″)
Skip the product gallery

Zubehör

Rohrverbinder - Kunststoffstopfen hellgrau - 133A27 - 26-9 x 1 - 2 mm - 3-4-133A27 Rohrverbinder - Kunststoffstopfen hellgrau - 133A27 - 26-9 x 1 - 2 mm - 3-4-133A27
133A27
Pipe connector | Light grey plastic plug | 133 | 21.3 mm – 60.3 mm | 1/2"–2"
Pipe connector | Light grey plastic plug | 133 | 21.3 mm – 60.3 mm | 1/2"–2" | Malleable cast iron and electro-galvanised [ Specific details ] for pipe Ø: 21.3 mm – 60.3 mm (1/2"–2"); wall thickness: 2–4 mm [ Application ] Insert plastic plugs into open pipe ends to seal

Available, : 1-3 days

£0.22*
Sechskantschluessel fuer Rohrverbinder 26-9mm - 33-7mm - 301AB-301AB Sechskantschluessel fuer Rohrverbinder 26-9mm - 33-7mm - 301AB-301AB
301AB

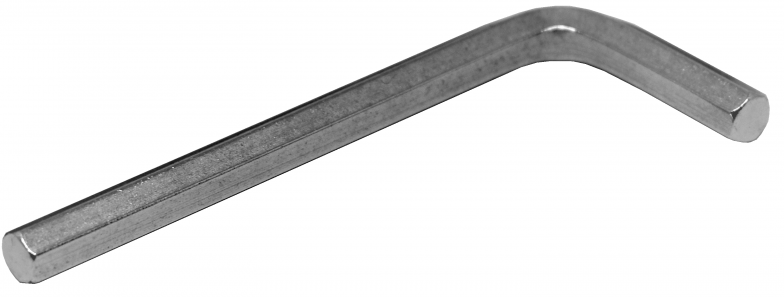

Pipe coupler | Hex key | for S17 & T21 / A27 / B34 & C42 / D48 / E60 | Stainless steel
Pipe connector | Hex key | for T21 & A27 / B34 & C42 / D48 / E60 | Stainless steel

Variants from £1.57*

Available, : 1-3 days

£1.65*
Rohrverbinder - Kunststoffstopfen schwarz - 133A27-K-S - 26-9 x 1 - 3 mm - 3-4-133A27-K-S
133A27-K-S
Pipe connector | Black plastic plug | For wall thickness: 1–2 mm | 133-K-S | 33.7 mm – 60.3 mm | 1"–2"
Pipe connector | Black plastic plug | 133 | 21.3 mm – 60.3 mm | 1/2"–2" | Malleable cast iron and electro-galvanised [ Specific details ] for pipe Ø: 21.3 mm – 60.3 mm (1/2"–2"); wall thickness: 1–2 mm [ Application ] Insert plastic plugs into open pipe ends to seal them

Available, : 1-3 days

£0.27*
Gelaenderrohr - Ø 26-9x1-75 mm - Laenge- 1500 mm - Stahl S235JR- verzinkt-30-2226-1500.7 Gelaenderrohr - Ø 26-9x1-75 mm - Laenge- 1500 mm - Stahl S235JR- verzinkt-30-2226-1500.7
30.2226-1500.7

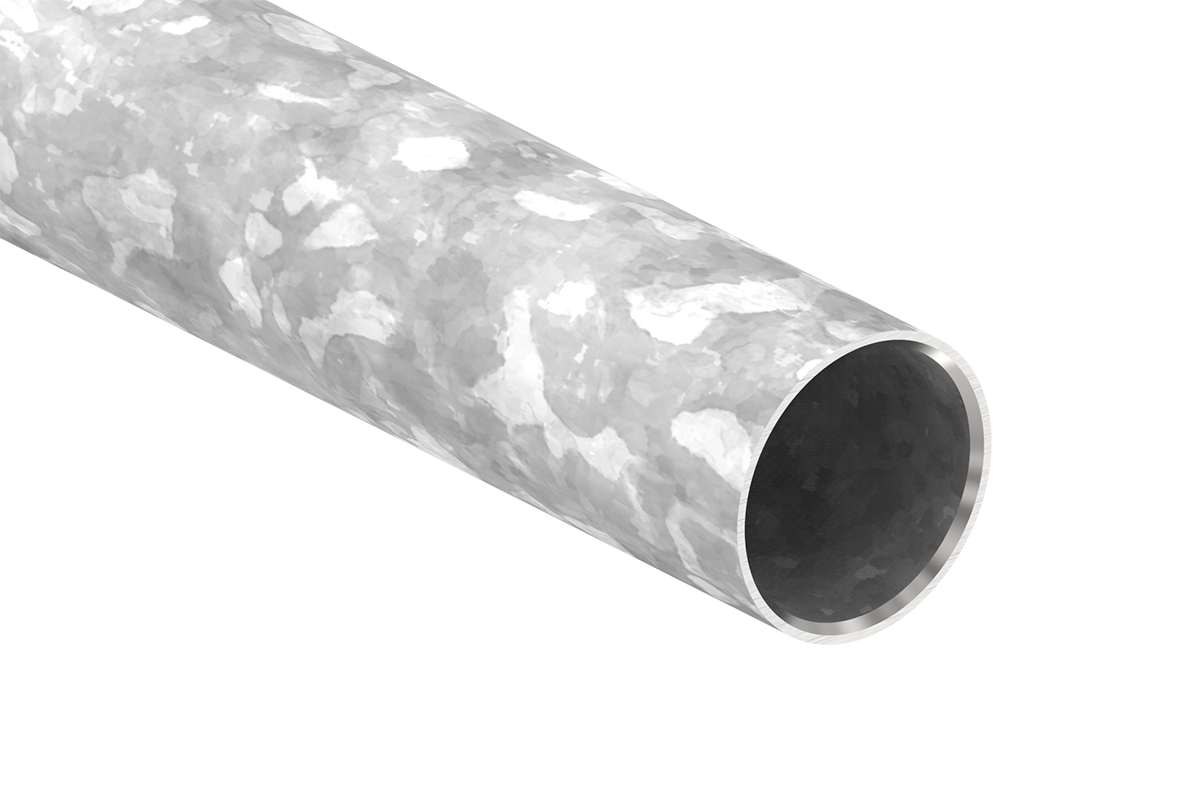

Balustrade tube | Ø 26.9 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised
Railing tube | Ø 26.9 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3 x 1.75 mmLength: 6000 mm; Tube Ø 26.9 x 1.75 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

Variants from £13.30*
£27.69*
Rohrverbinder - Einschlagstopfen Feuerverzinkt - 184 - 26-9mm - 3-4-184A27 Rohrverbinder - Einschlagstopfen Feuerverzinkt - 184 - 26-9mm - 3-4-184A27
184A27
Pipe connector | Hot-dip galvanised drive-in plug | 184 | 17.2 mm – 60.3 mm | 3/8" – 2"
Pipe connector | Malleable cast iron drive-in plug | 184 | 17.2 mm – 60.3 mm | 3/8" – 2" [ Specific details ] for pipe Ø: 17.2 mm – 60.3 mm (3/8"–2") [ Application ] Drive the drive-in plug into the open end of the pipe [ Technical details ] Wall thickness 3.2 mm to 4.00 mm DIN EN 10255

Available, : 1-3 days

£2.24*
Schneidschrauben fuer Rohrverbinder 26-9 mm - 33-7 mm - 300AB - Edelstahl-300AB Schneidschrauben fuer Rohrverbinder 26-9 mm - 33-7 mm - 300AB - Edelstahl-300AB
300AB

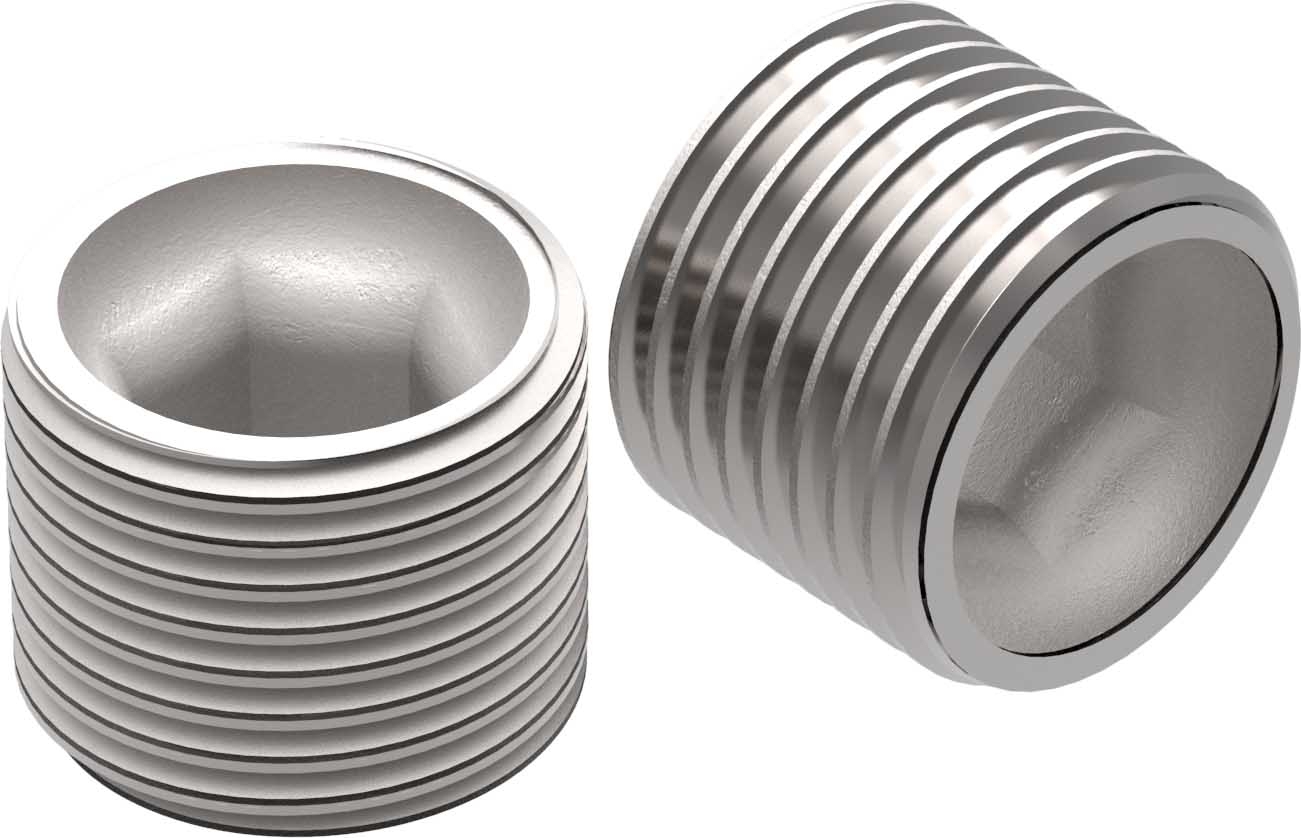

Pipe connectors | Self-tapping screws | for S17 / T21 / A27 / B34 & C42 / D48 / E60 | Stainless steel
Pipe connectors | Self-tapping screws | for S17 / T21 / A27 / B34 & C42 / D48 / E60 | Stainless steel [ Technical Details ] Material: Stainless steel

Variants from £0.77*

Available, : 1-3 days

£0.83*
Gelaenderrohr - Ø 26-9x1-75 mm - Laenge- 6000 mm - Stahl S235JR- verzinkt-30-2226.7 Gelaenderrohr - Ø 26-9x1-75 mm - Laenge- 6000 mm - Stahl S235JR- verzinkt-30-2226.7
Stk
30.2226.7
Balustrade tube | Ø 26.9 x 1.75 mm | Length: 6000 mm | S235JR steel, galvanised
Balustrade tube | Ø 26.9 x 1.75 mm | Length: 6000 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified length! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3 x 1.75 mmLength: 6000 mm; Tube Ø 26.9 x 1.75 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

Available, : Lieferzeit 3-5 Werktage

£56.51*
Gelaenderrohr - Ø 26-9x1-75 mm - Laenge- 500 mm - Stahl S235JR- verzinkt-30-2226-500.7 Gelaenderrohr - Ø 26-9x1-75 mm - Laenge- 500 mm - Stahl S235JR- verzinkt-30-2226-500.7
30.2226-500.7
Balustrade tube | Ø 26.9 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised
Railing tube | Ø 26.9 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3 x 1.75 mmLength: 6000 mm; Tube Ø 26.9 x 1.75 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

£13.30*
Gelaenderrohr - Ø 26-9x1-75 mm - Laenge- 1000 mm - Stahl S235JR- verzinkt-30-2226-1000.7 Gelaenderrohr - Ø 26-9x1-75 mm - Laenge- 1000 mm - Stahl S235JR- verzinkt-30-2226-1000.7
30.2226-1000.7
Balustrade tube | Ø 26.9 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised
Railing tube | Ø 26.9 x 1.75 mm | Length: 500 mm / 1000 mm / 1500 mm | S235JR steel, galvanised We are happy to produce tube cuts to your specified lengths! [ Technical details ] S235JR steel, galvanised [ Specific details ] Length: 6000 mm; Tube Ø 21.3 x 1.75 mmLength: 6000 mm; Tube Ø 26.9 x 1.75 mm [ Further specific details ] Tube in accordance with EN 10219 / EN 10240

Variants from £13.30*
£23.81*
Rohrverbinder - Kunststoffstopfen schwarz - 133A27-S - 26-9 x 1 - 2 mm - 3-4-133A27-S Rohrverbinder - Kunststoffstopfen schwarz - 133A27-S - 26-9 x 1 - 2 mm - 3-4-133A27-S
133A27-S

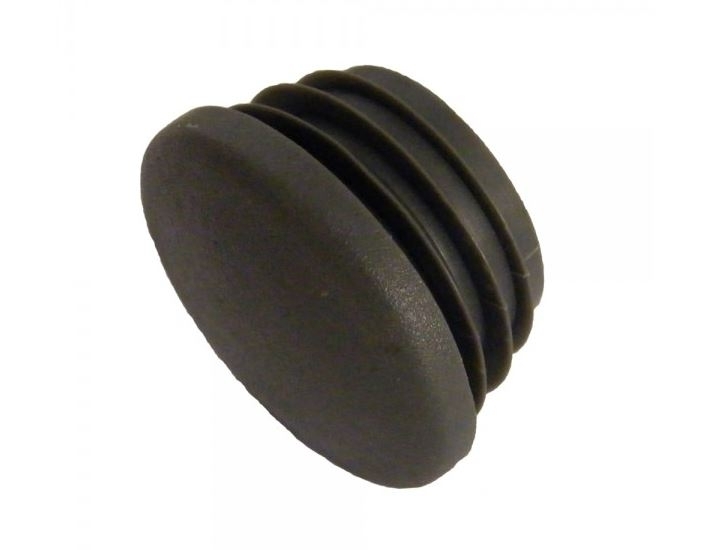

Pipe connector | Black plastic plug | 133-S | 21.3 mm – 60.3 mm | 1/2"–2"
Pipe connector | Black plastic plug | 133 | 21.3 mm – 60.3 mm | 1/2"–2" | Malleable cast iron and electro-galvanised [ Specific details ] for pipe Ø: 21.3 mm – 60.3 mm (1/2"–2"); wall thickness: 2–4 mm [ Application ] Insert plastic plugs into open pipe ends to seal

Variants from £0.22*

Available, : 1-3 days

£0.23*
Rohrverbinder - Kunststoffstopfen hellgrau - 133A27-K - 26-9 x 1 - 3 mm - 3-4-133A27-K
133A27-K

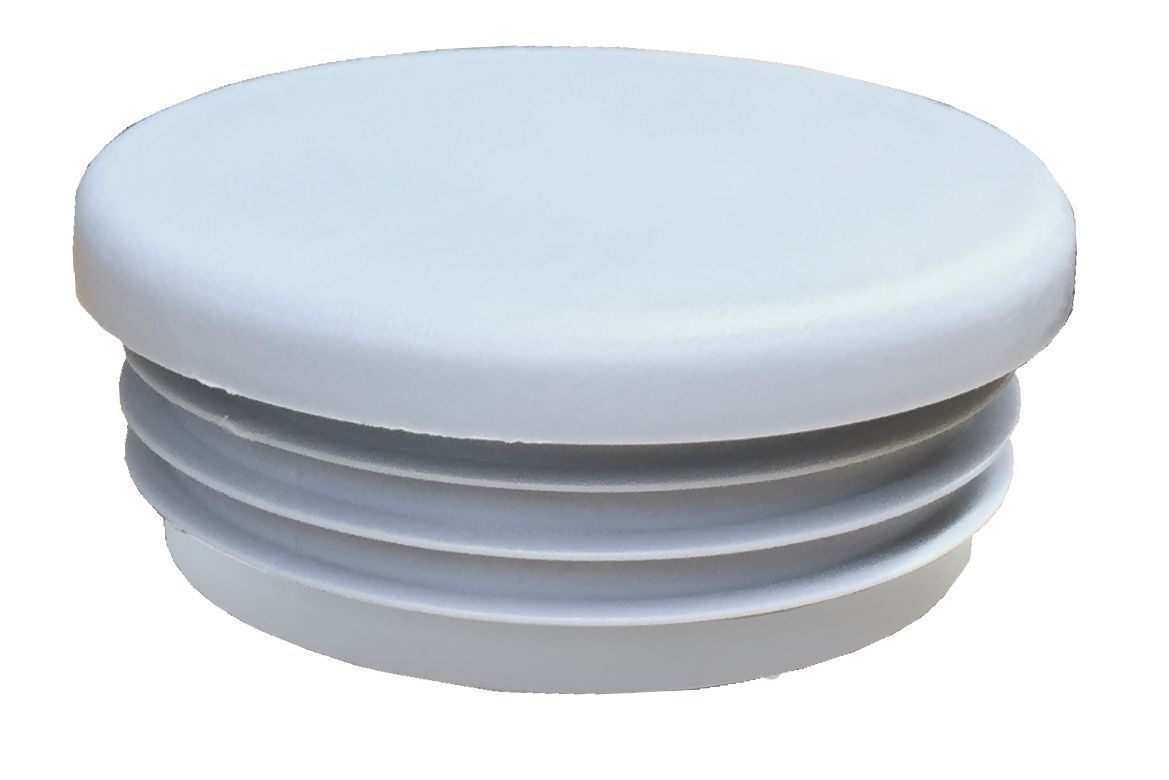

Pipe connector | Light grey plastic plug | For wall thickness: 1–2 mm | 133-K | 33.7 mm – 60.3 mm | 1"–2"
