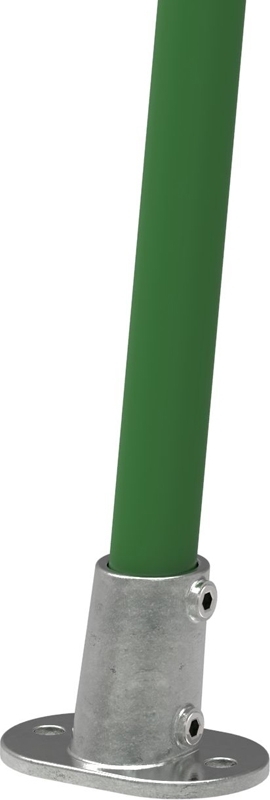

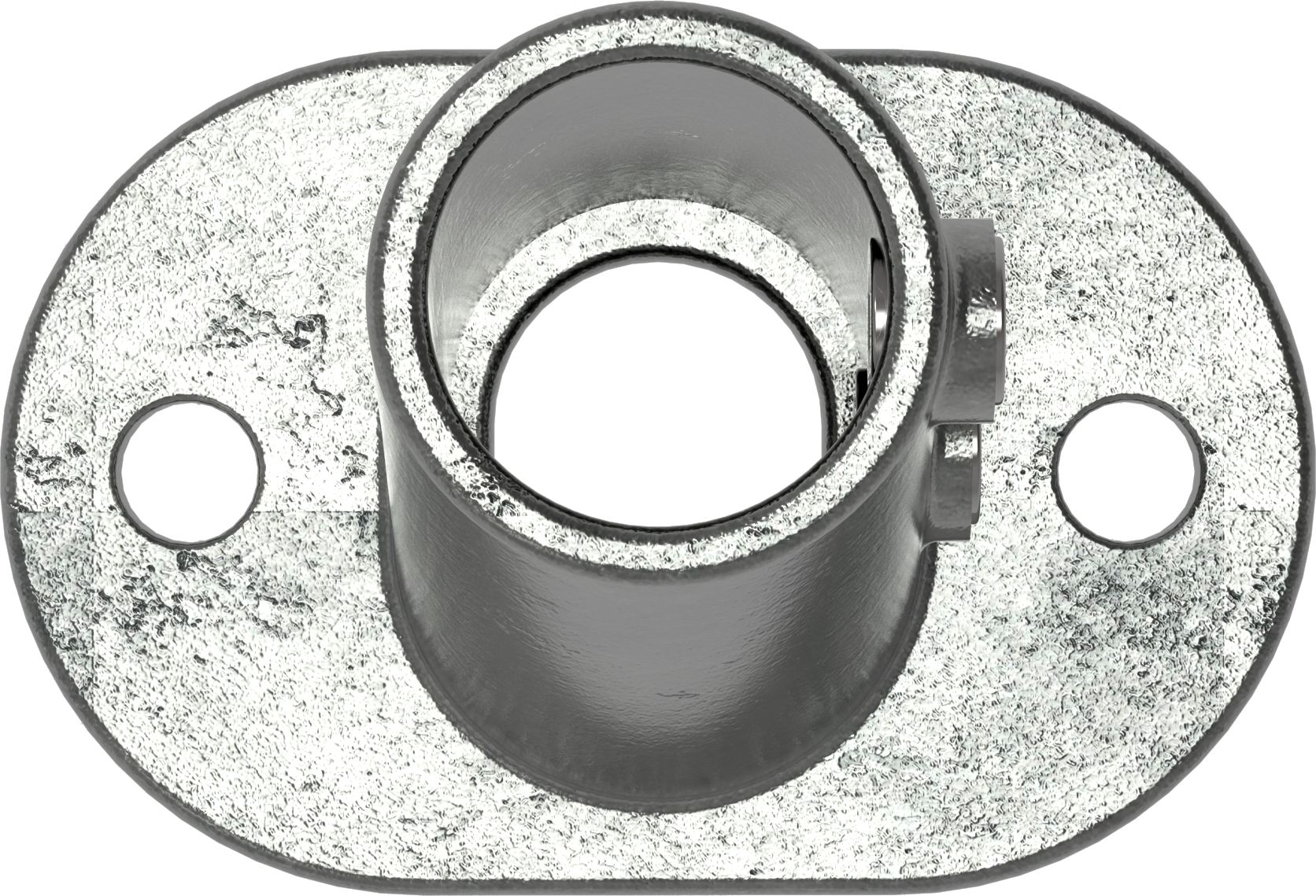

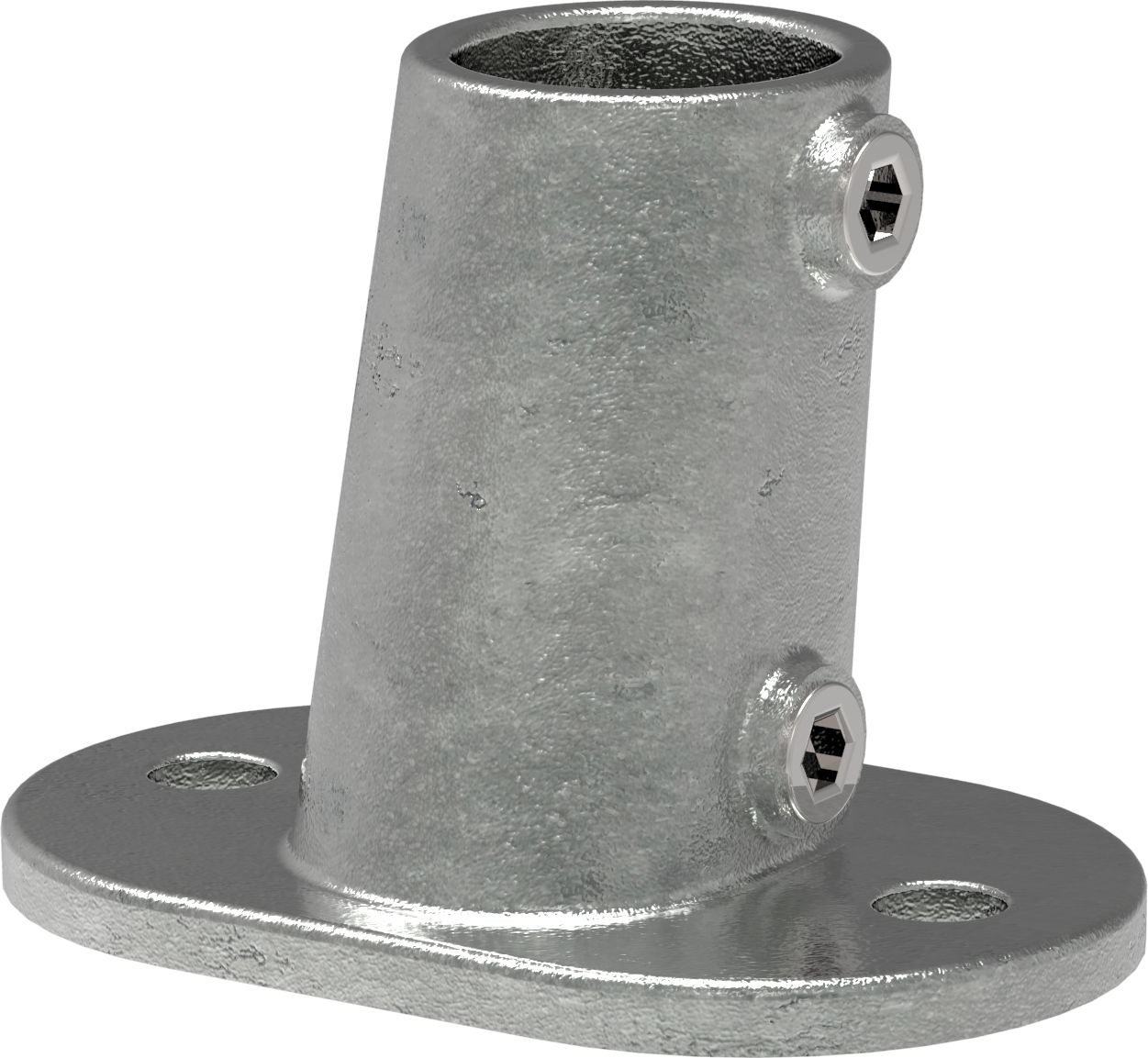

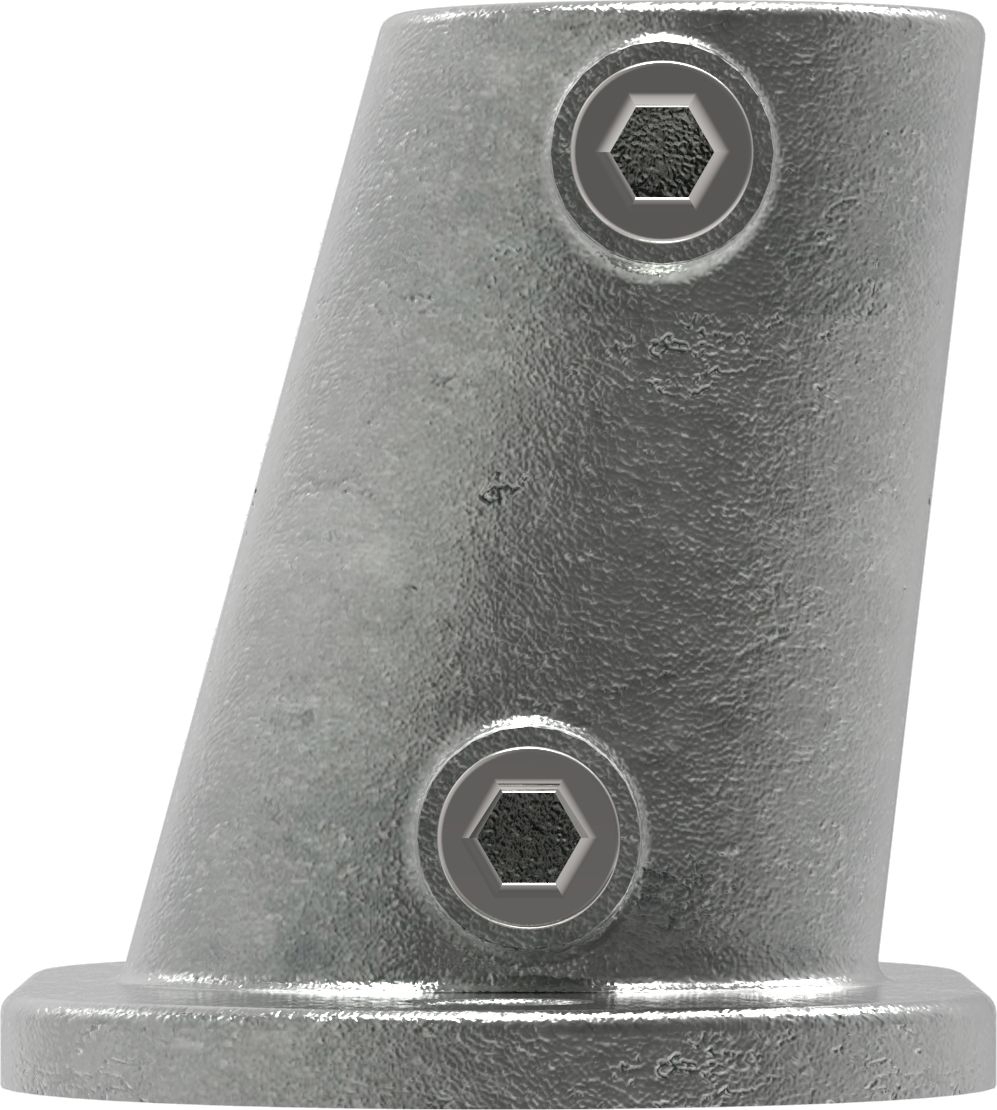

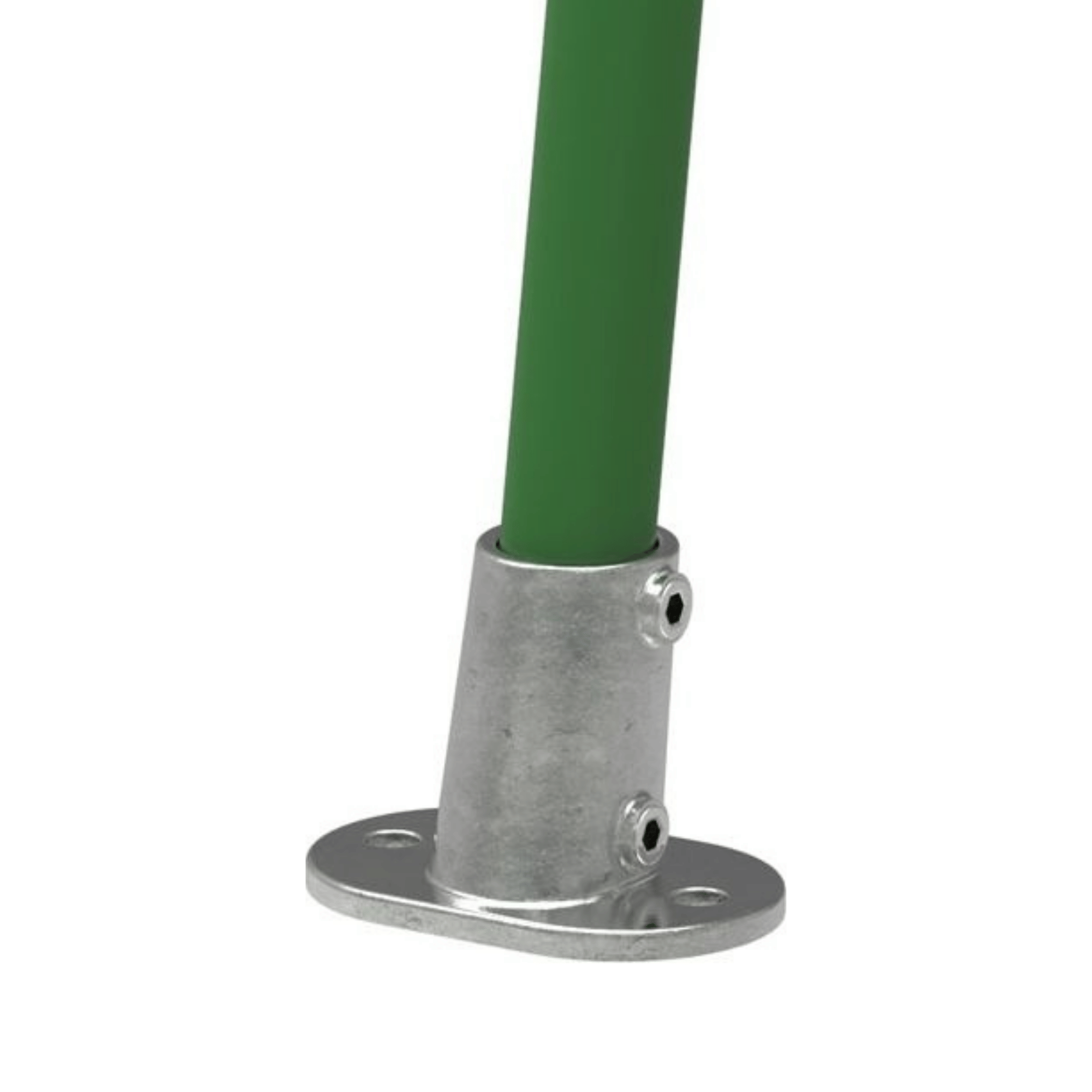

Pipe connector | Oval base plate, 3–11° angle | 152 | 33.7 mm – 48.3 mm | 1" – 1 1/2" | Hot-dip galvanised and electro-galvanised

Rohraußendurchmesser: Ø 33,7 mm
Skip the photo gallery
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34
Rohrverbinder - Fussplatte oval 3-11° Neigung - 152B34 - 33-7 mm - 1- - Feuerverzinkt u. Elektrogalvanisiert-152B34

£10.48*

Prices include VAT, plus delivery charges

Available: 1-3 days

Rohraußendurchmesser
Stk
Stock: 127
Product number: 152B34
EAN: 4251412902604
Weight: 0.83 kg
20,000 items in stock
CAD data available after login
Over 200,000 satisfied customers
Worldwide delivery
Description

Product information "Pipe connector | Oval base plate, 3–11° angle | 152 | 33.7 mm – 48.3 mm | 1" – 1 1/2" | Hot-dip galvanised and electro-galvanised"

Pipe connector | Oval base plate, 3–11° angle | 152 | 33.7 mm – 48.3 mm | 1" – 1 1/2" | Malleable cast iron, electro-galvanised

[ Scope of delivery ] 1x base flange (adjustable inclination angle: 3° - 11°) incl. stainless steel clamping and cutting screws | Optimal corrosion protection against the elements – durable, stable and universally applicable (outer diameter in accordance with DIN EN ISO 6708 and EN 10255)

[ Technical details ] Dimensions: see variants | Professional quality thanks to electro-galvanisation and hot-dip galvanisation - Material: malleable cast iron

[ Wrong size? - Suitable items ] (Item no.: 152B34) Dimensions: Ø 33.7 mm / 1" | (Item no.: 152C42) Dimensions: Ø 42.4 mm / 1 ¼" | (Item No.: 152D48) Dimensions: Ø 48.3 mm / 1 ½"

[ Application ] Wide range of applications | Oval base plate for posts with adjustable angle | For steel structures, scaffolding, handrails, railings, shelving, etc. | Not the right pipe connector? No problem, we stock a wide range of pipe connectors in various shapes

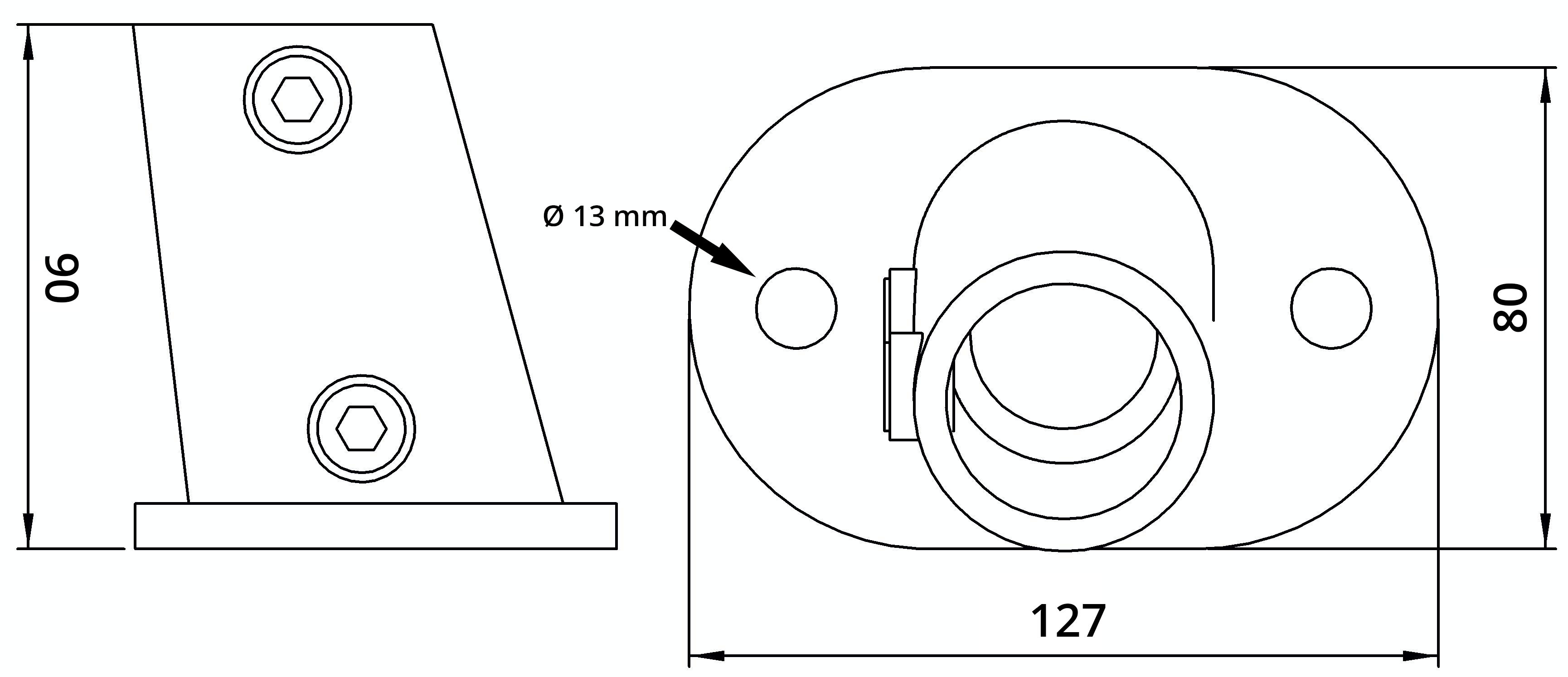

For tube Dimension a Dimension b Dimension c Bore Insertion depth Allen 33,7 mm 90 mm 127 mm 80 mm 13 mm 83 mm301AB 42.4 mm 98 mm 140 mm 90 mm 13 mm 91 mm301CDE 48.3 mm 99 mm 153 mm 113 mm 13 mm 92 mm301CDE
Properties
Versand Gurtmasspflichtig: Nein
Ø Für Rohr | Ø Außendurchmesser | Ø Anschluss: Ø 33.7mm (1″)
