Double ceiling bracket | for up to two rail runs | Size 1.2 MEA 10335812
Product information "Double ceiling bracket | for up to two rail runs | Size 1.2 MEA 10335812"

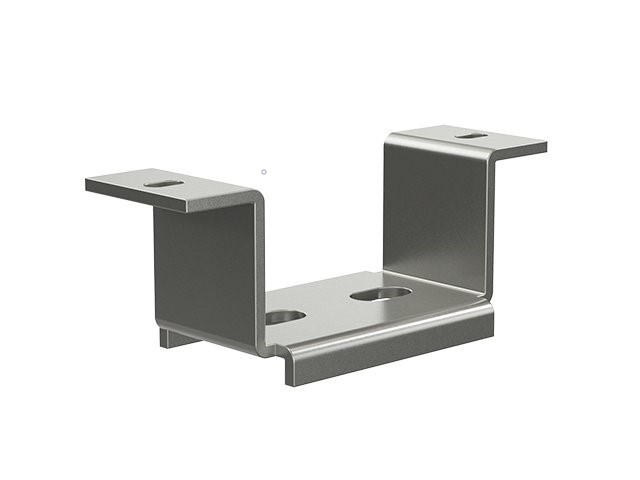

MEA double ceiling bracket, sizes 1 + 2 | Item no. 10335812
The ceiling bracket supports the duct beneath the ceiling. When used in conjunction with H/S sleeves, the system can be adjusted both vertically and horizontally.
This original component from MEA Metal Applications is available in sizes No. 1 + 2: hot-dip galvanised finish.
Why choose this component
- Electro-galvanised – protected against the elements for standard outdoor use
- Dimensionally compatible with all MEA components in sizes 1 and 2
- Available individually or in packs of 10
Application and installation
The bracket is fixed to the ceiling; the fixing materials must be selected by the customer according to the substrate. H/S sleeves must be ordered separately.
Technical data
| Manufacturer | MEA Metal Applications |
|---|---|
| MEA item number | 10335812 |
| Product type | Double ceiling bracket |
| MEA size | No. 1 + 2 |
| Width | 80 mm |
| Height | 65 mm |
| Length | 194 mm |
| Material/wall thickness | 5 mm |
| Bore diameter | 17 mm |
| Material | Steel |
| Surface | electro-galvanised |
| Weight per piece | 0.8 kg |
| Packaging unit | 10 pieces |
| Further MEA dimensions (mm) | w 80 · d 17 · h 65 · l 194 · t 5 · v 30–70 |
Contents
1 ceiling bracket. H/S sockets and fixing materials are not included.
Compatible components from the MEA system
To ensure the system operates correctly, all components must have the same MEA size. These items are compatible:
- H/S sleeve sizes 1 + 2 – Item No. 60.0023.7
- Pipe, sizes 1 and 2 – Item no. 60.0001.7
What to look out for when making your selection
All components of an MEA sliding gate system are designed to work together. Ensure that the guide rail, roller assembly, fixings and accessories are all the same MEA size. All dimensions are approximate figures according to MEA and may vary within the usual technical tolerances.
Not sure which size is right for your gate? Tell us the gate’s weight, width and installation type – we’ll put together the right components for you.
| Bohrung Ø in mm: | 17 |
|---|---|
| Form: | Deckenkonsole zweifach |
| Höhe: | 65 mm |
| Länge: | 194 mm |
| Oberfläche: | galvanisch verzinkt |
| Wandstärke | Materialstärke: | 5 mm |
| Werkstoff: | Stahl |
| Breite: | 80 mm |
Product safety (GPSR)
Manufacturer / responsible person in the EU: FeNau GmbH, Veit-Stoß-Str. 20, 90579 Langenzenn, Germany · info@fenau.eu · +49 911 97917230
Safety information: metal products may have sharp edges – wear protective gloves. Observe permissible loads and installation instructions; secure components properly before use.
