Double roller with stopper | Size 0 MEA 10332830
Product information "Double roller with stopper | Size 0 MEA 10332830"

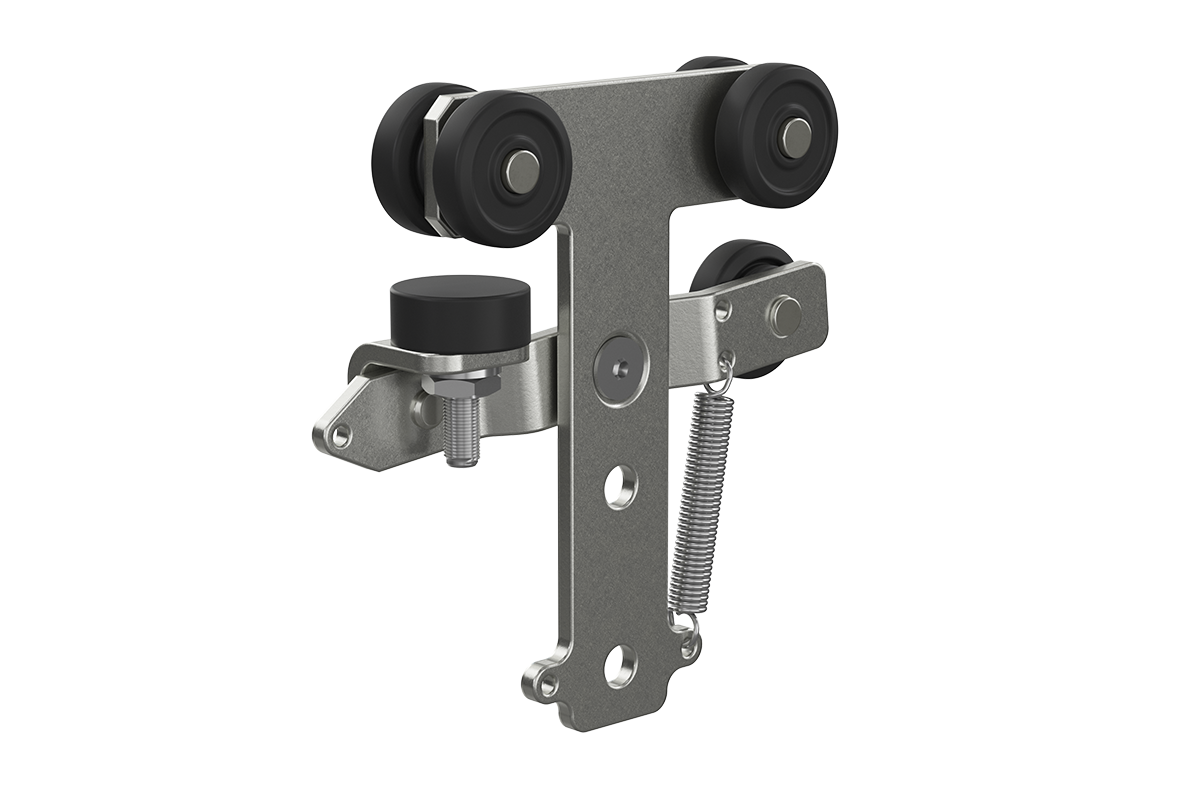

MEA double roller with stopper, size No. 0 – roller diameter 22 mm | Item No. 10332830
The twin-axle roller assembly runs inside the guide tube and supports the door leaf. Twin-axle roller assemblies are generally recommended: they guide the door more precisely and run more smoothly than single rollers.
This original component from MEA Metal Applications is available in size No. 0: roller diameter Ø 22 mm, permissible load 40 kg per roller assembly, hot-dip galvanised finish.
Why choose this component
- Load capacity according to the manufacturer’s specifications: 40 kg per roller assembly
- Electro-galvanised – protected against the elements in standard outdoor use
- Maintenance-free ball bearings, greased for the entire service life
- Operating temperature range: -20 °C to +80 °C
- Dimensionally compatible with all MEA components of size No. 0
Use and installation
Two roller assemblies are fitted per gate leaf. They are attached to the gate leaf via the central suspension; for wooden gates, a support plate must be used in conjunction with a reinforcement bracket.
Technical data
| Manufacturer | MEA Metal Applications |
|---|---|
| MEA item number | 10332830 |
| Product type | Double roller with stopper |
| MEA size | No. 0 |
| Roller/outer diameter | Ø 22 mm |
| Load capacity | 40 kg per roller unit |
| Width | 20.5 mm |
| Height | 99 mm |
| Length | 77 mm |
| Bore Ø | 6.5 mm |
| Material | S235JR steel with high-quality ball bearings |
| Surface | electro-galvanised |
| Weight per item | 0.17 kg |
Contents
1 piece. Fixing materials must be selected to suit the on-site structural conditions and are not included in the scope of delivery.
Compatible components from the MEA system
To ensure the system operates correctly, all components must have the same MEA size. The following items are compatible:
- Conduit, size No. 0 – Item No. 60.0000.7
- Support plate size No. 0 – Item No. 60.0181.7
- Reinforcement bracket, size No. 0 – Item No. 60.0176.7
- Wall bracket, size No. 0 – Item No. 60.0037.7
- Pipe buffer, size No. 0 – Item No. 60.0076.7
- Floor guide roller No. 10 – Item No. 60.0187.7
- Floor guide rail No. 10, 6 m – Item No. 60.0211.7
What to look out for when making your selection
The weight per gate leaf is the decisive factor, not the total weight of the gate. Two roller assemblies are used per gate leaf. The roller assembly, guide tube and fixings must all be of the same MEA size. All dimensions are approximate figures based on MEA and may vary within the usual technical tolerances.
Not sure which size is right for your gate? Just tell us the gate’s weight, width and installation type – we’ll put together the right components for you.
| Bohrung Ø in mm: | 6,5 |
|---|---|
| Durchmesser: | Ø 22 mm |
| Form: | Doppelrolle mit Stopper |
| Höhe: | 99 mm |
| Länge: | 77 mm |
| Oberfläche: | galvanisch verzinkt |
| Werkstoff: | Stahl / Kugellager mit Kunstst |
| Breite: | 20,5 mm |
