Double-wall mounting, size 2, sockets with/without spacer MEA 10333020
FeNau GmbH
Product number:
60.0045.7
EAN:
4001990131657
Weight:
1.4 kg
Description
Product information "Double-wall mounting, size 2, sockets with/without spacer MEA 10333020"

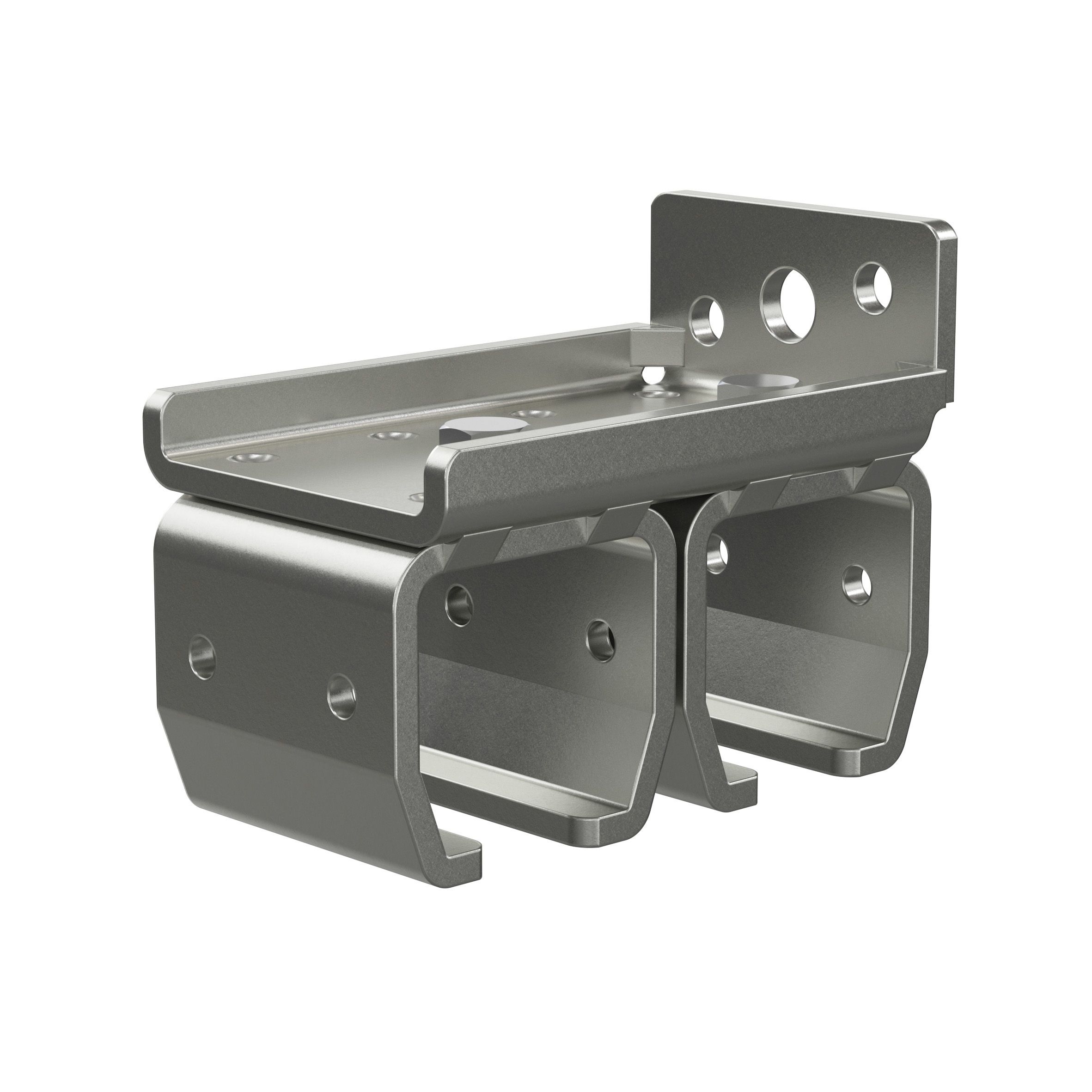

Double-wall mounting, size 2, sockets with and without spacers
Made of S235JR steel, electro-galvanised

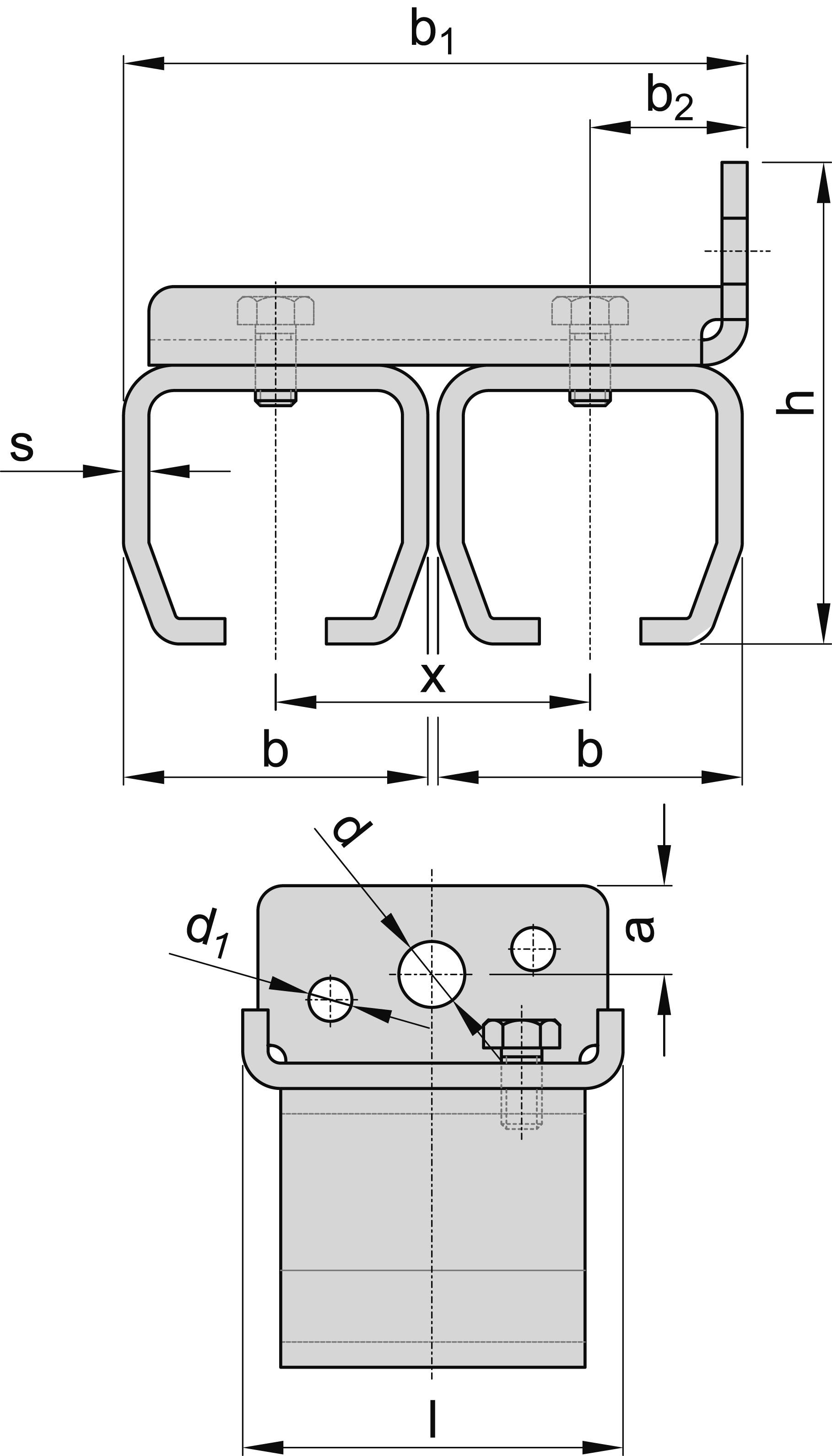

Dimension a: 17.5 mm
Dimension b: 60 mm
Dimension b1: 150 mm
Dimension b2: 31 mm
Dimension d: 13 mm
Dimension d1: 8.5 mm
Dimension h: 95 mm
Dimension l: 75 mm
Dimension s: 5 mm
Dimension x: 90 mm
Properties
| Bohrung Ø in mm: | 13 |
|---|---|
| Form: | Doppelwandbefestigung |
| Höhe: | 95 mm |
| Länge: | 75 mm |
| Oberfläche: | galvanisch verzinkt |
| Wandstärke | Materialstärke: | 5 mm |
| Werkstoff: | Stahl |
| Breite: | 60 mm |
